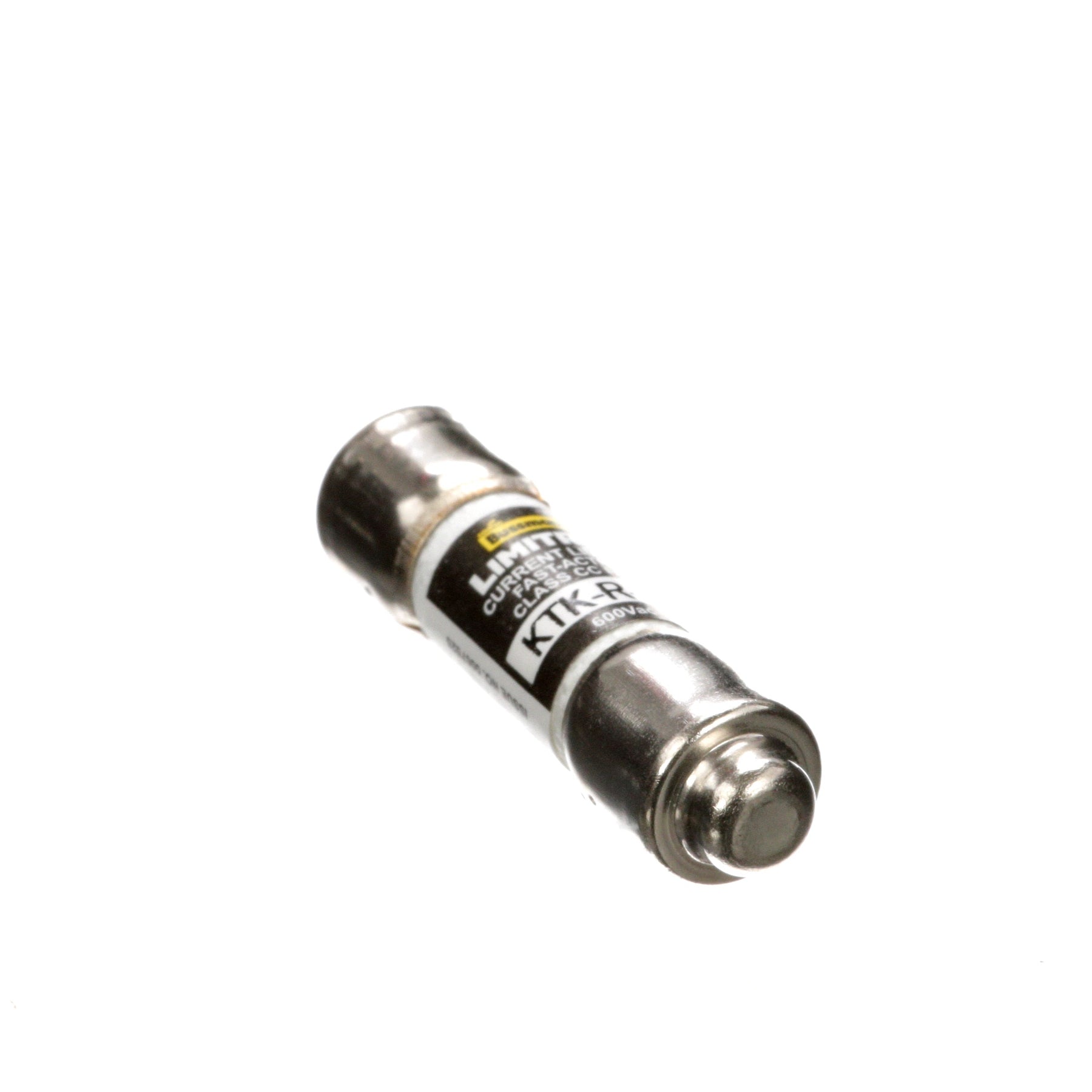

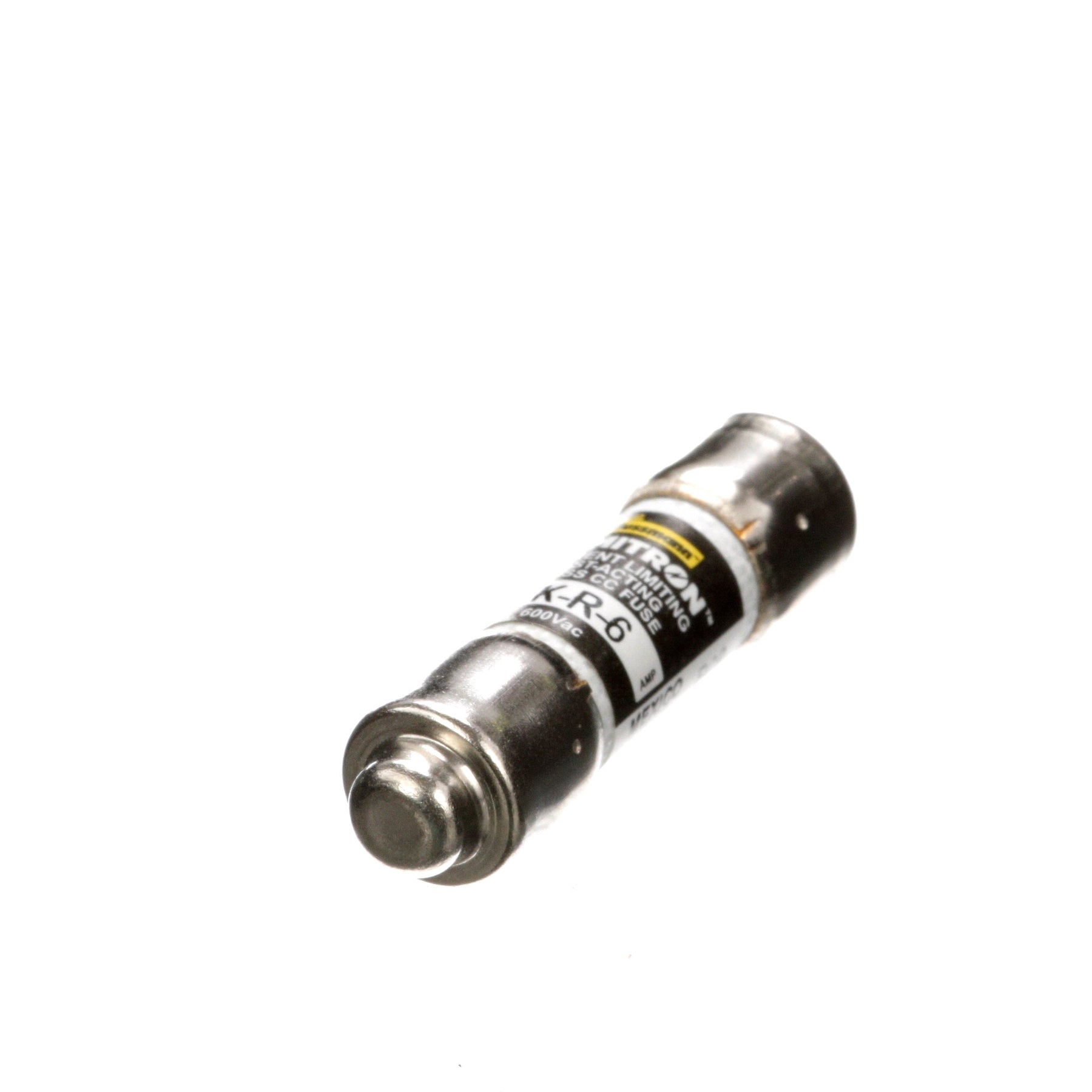

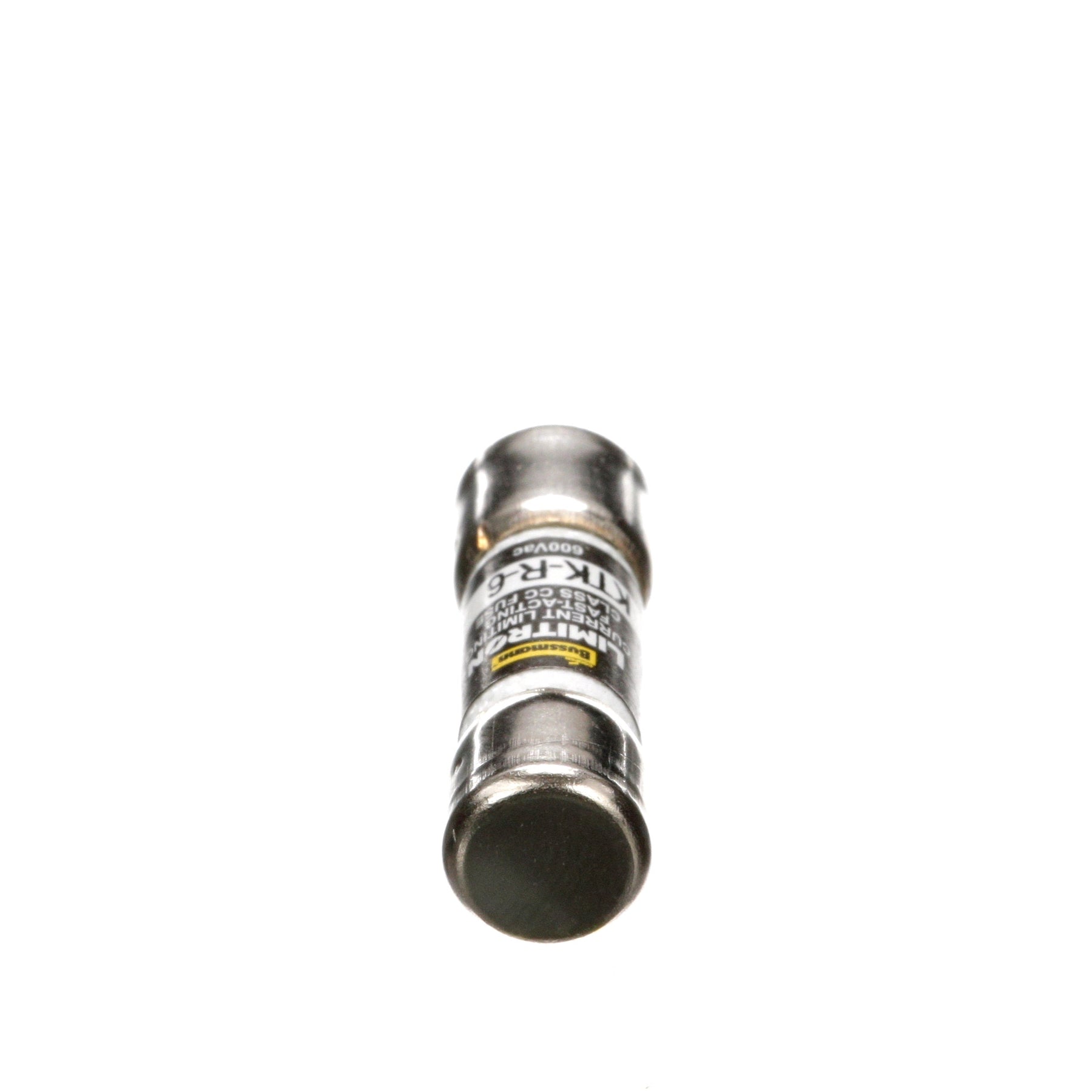

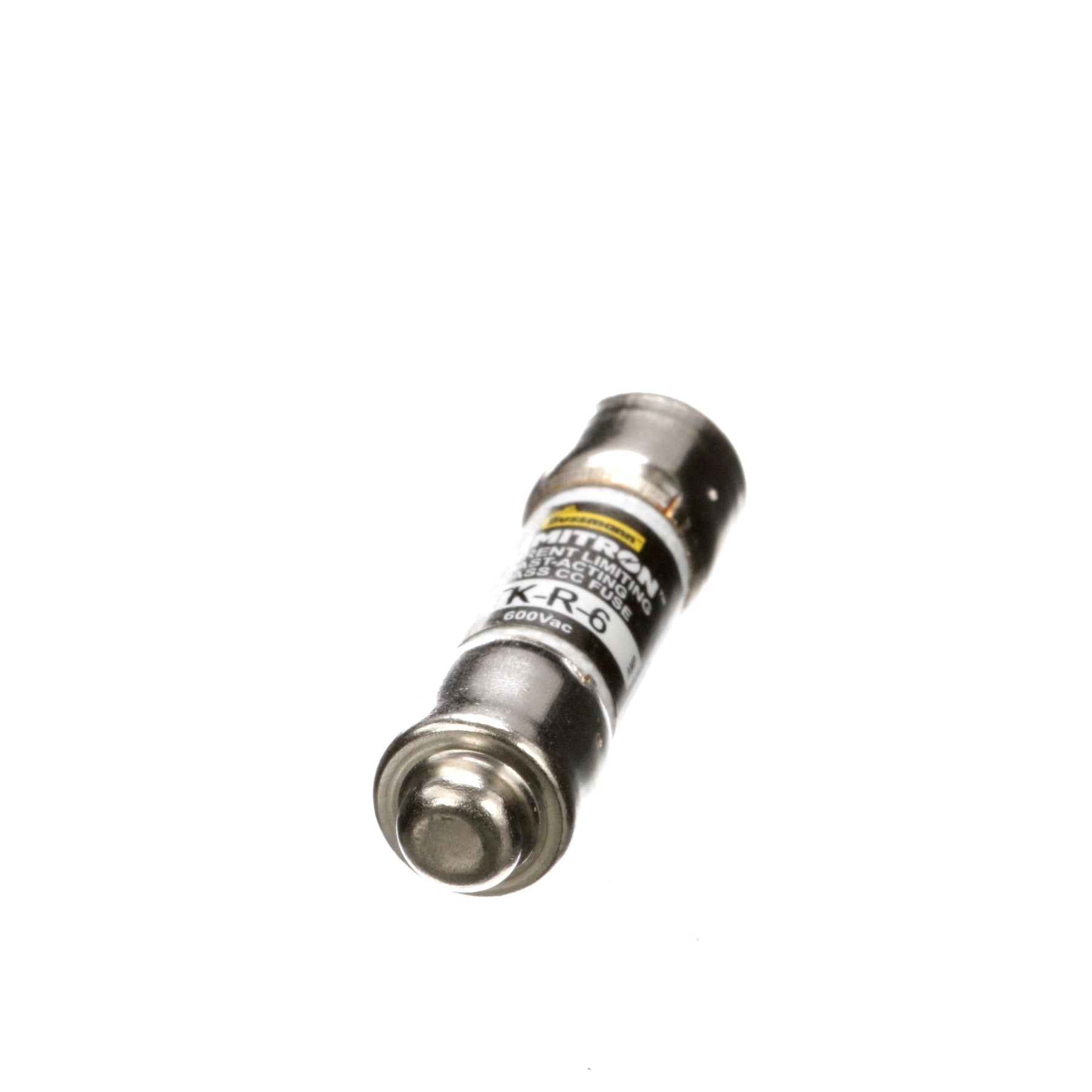

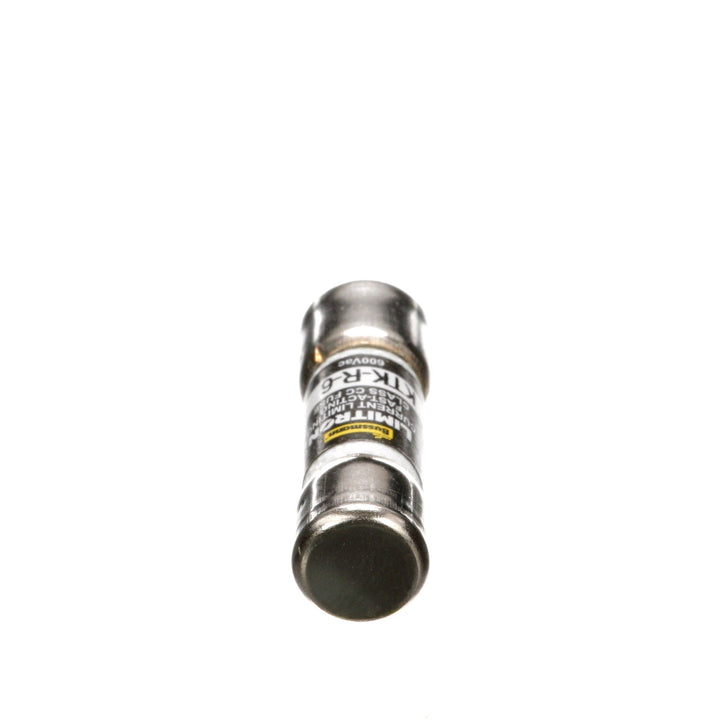

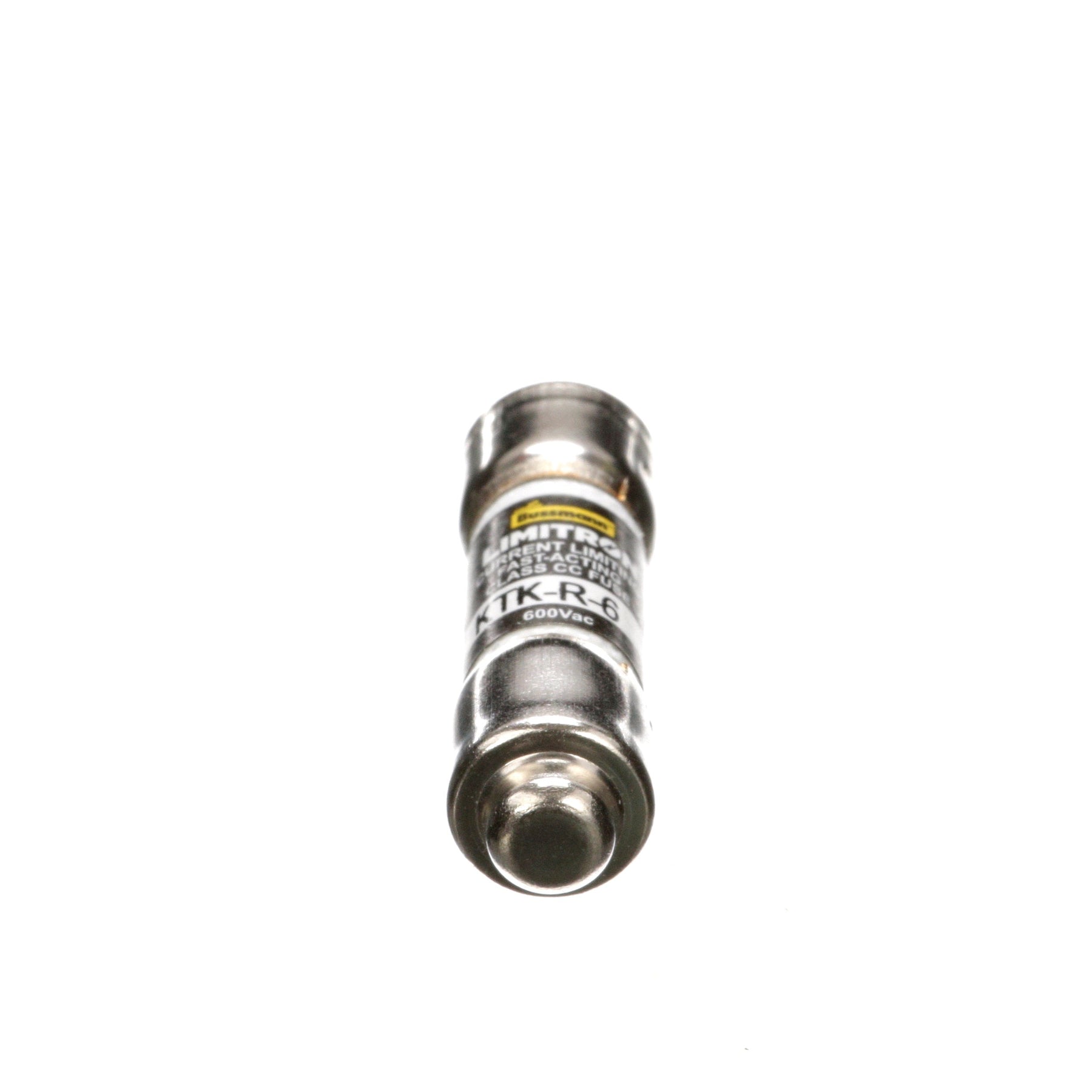

Bussmann KTK-R-6 - Class CC Fuse 6A/600V (200kA AIC Rating)

Bussmann KTK-R-6 is a Class CC low-voltage fuse designed for circuit protection in industrial electrical systems. This 600V-rated fuse features a 6A current rating with a 200kA interrupting capacity, housed in a compact 1-1/2-inch cylindrical body with 0.41-inch diameter. Constructed with durable materials, it meets CE/UL-248-4 and CSA Class 1422-02 standards for safety and performance. The Limitron-series fuse is commonly used in control circuits, transformers, and motor branch circuits requiring reliable overcurrent protection.

Key Features & Specifications

• Type: Class CC time-delay fuse with single barrel construction
• Voltage Rating: 600V AC
• Current Rating: 6A
• Dimensions: 1-1/2 in length x 0.41 in diameter
• Weight: 1 lb
• Standards: CE/UL-248-4 Guide JDDZ, CSA Class 1422-02
• AIC Rating: 200kA@600V
• Class Rating: CC
• Applications: Industrial control circuits, transformer protection, motor branch circuits

Product Identification

• UPC: 051712420655
• GTIN: 00051712420655
