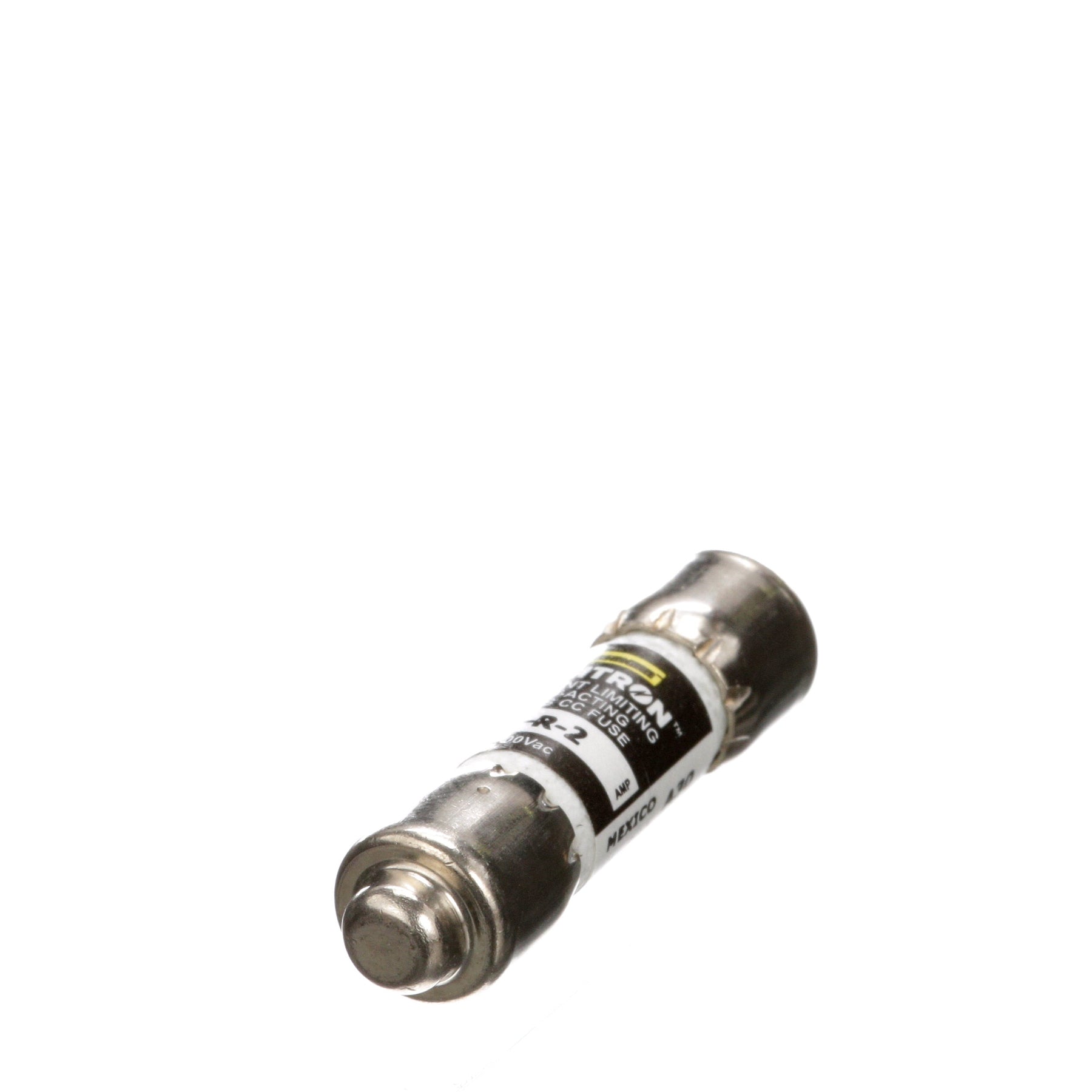

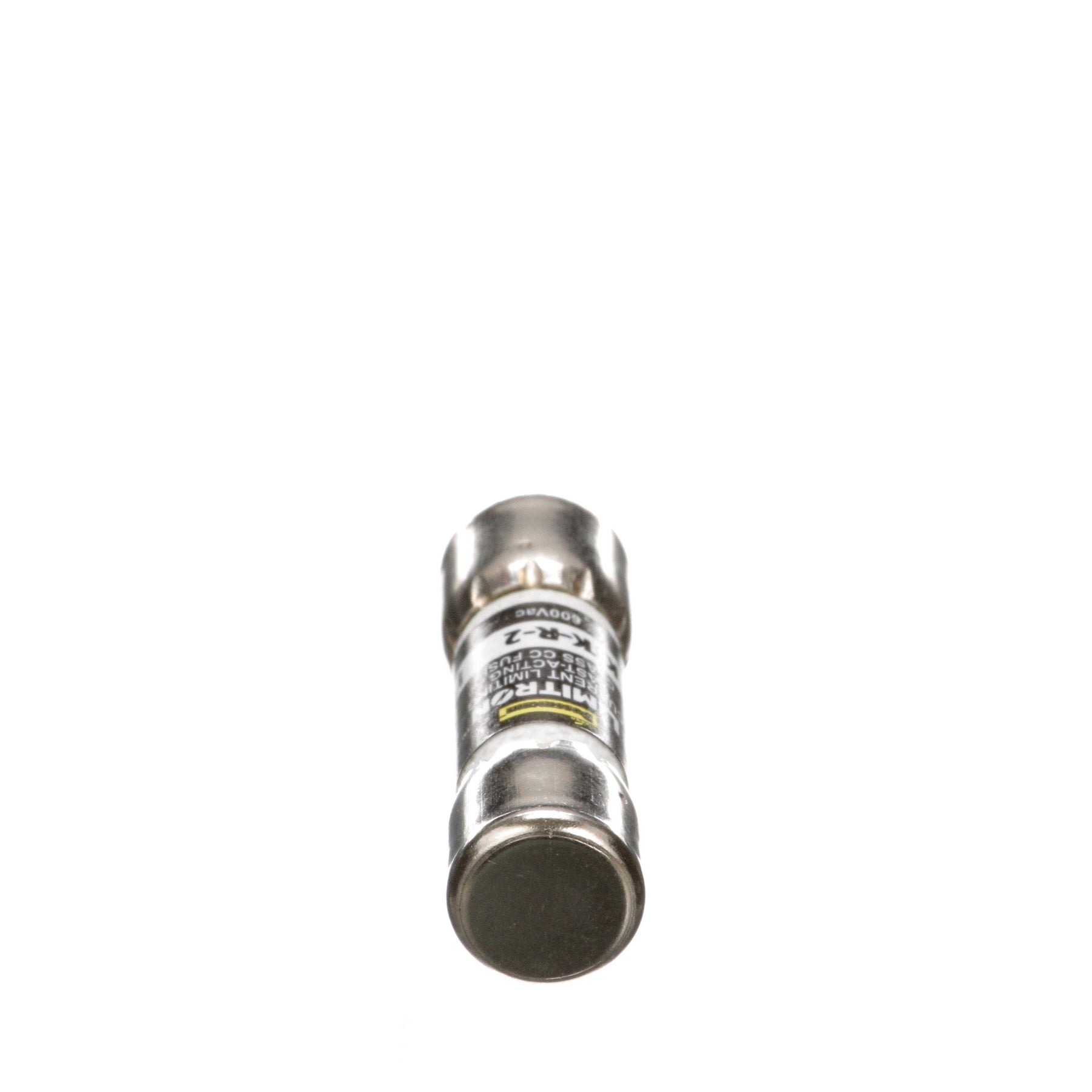

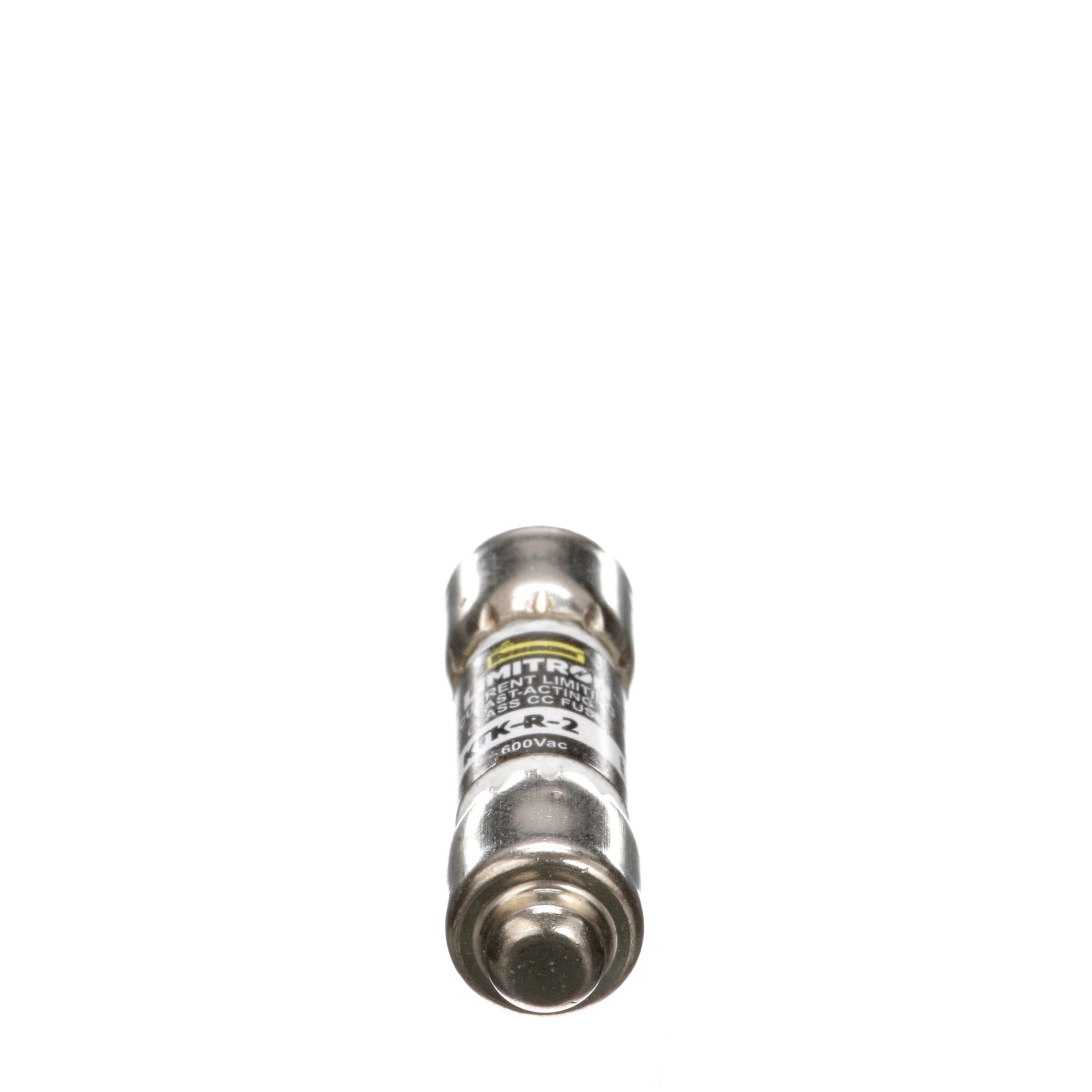

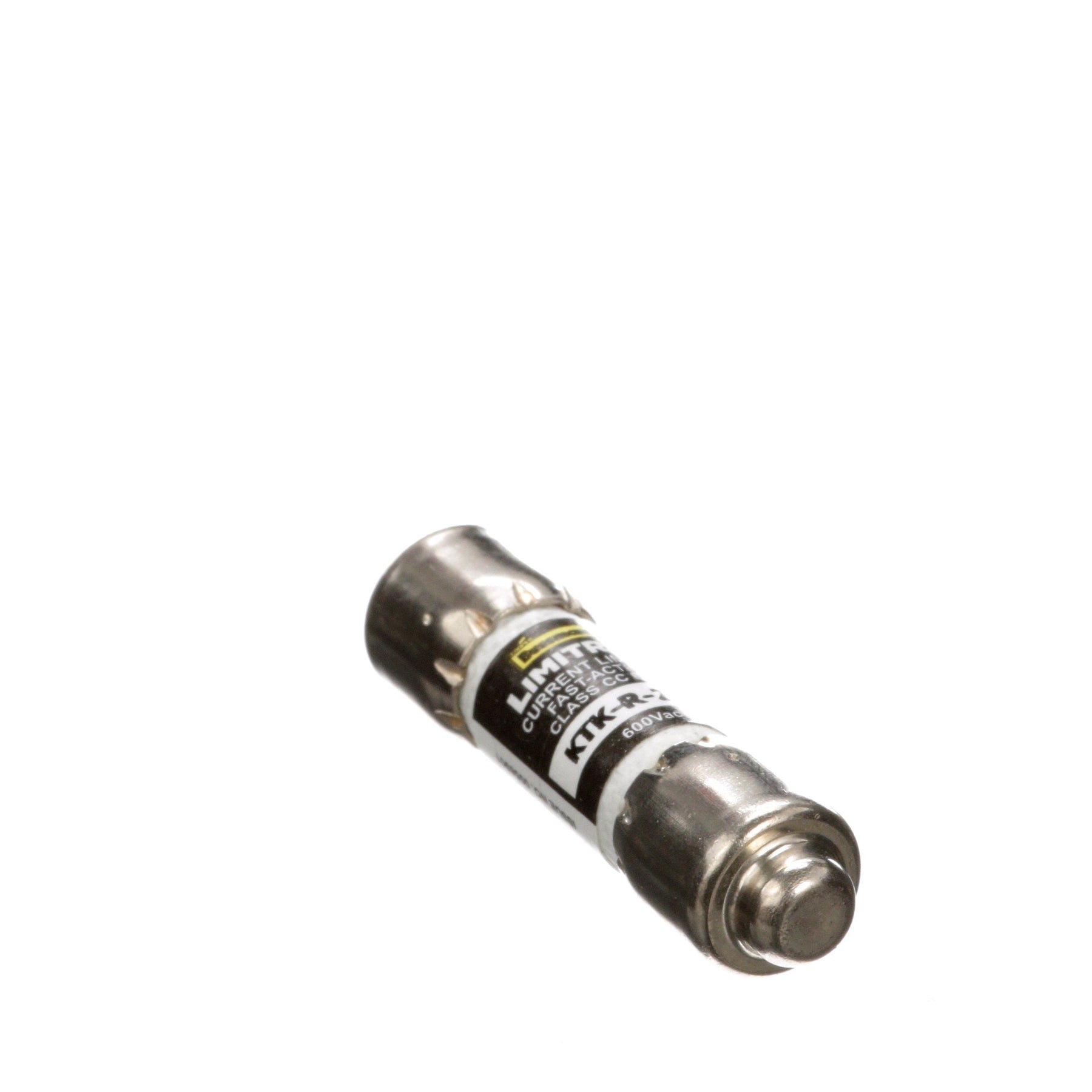

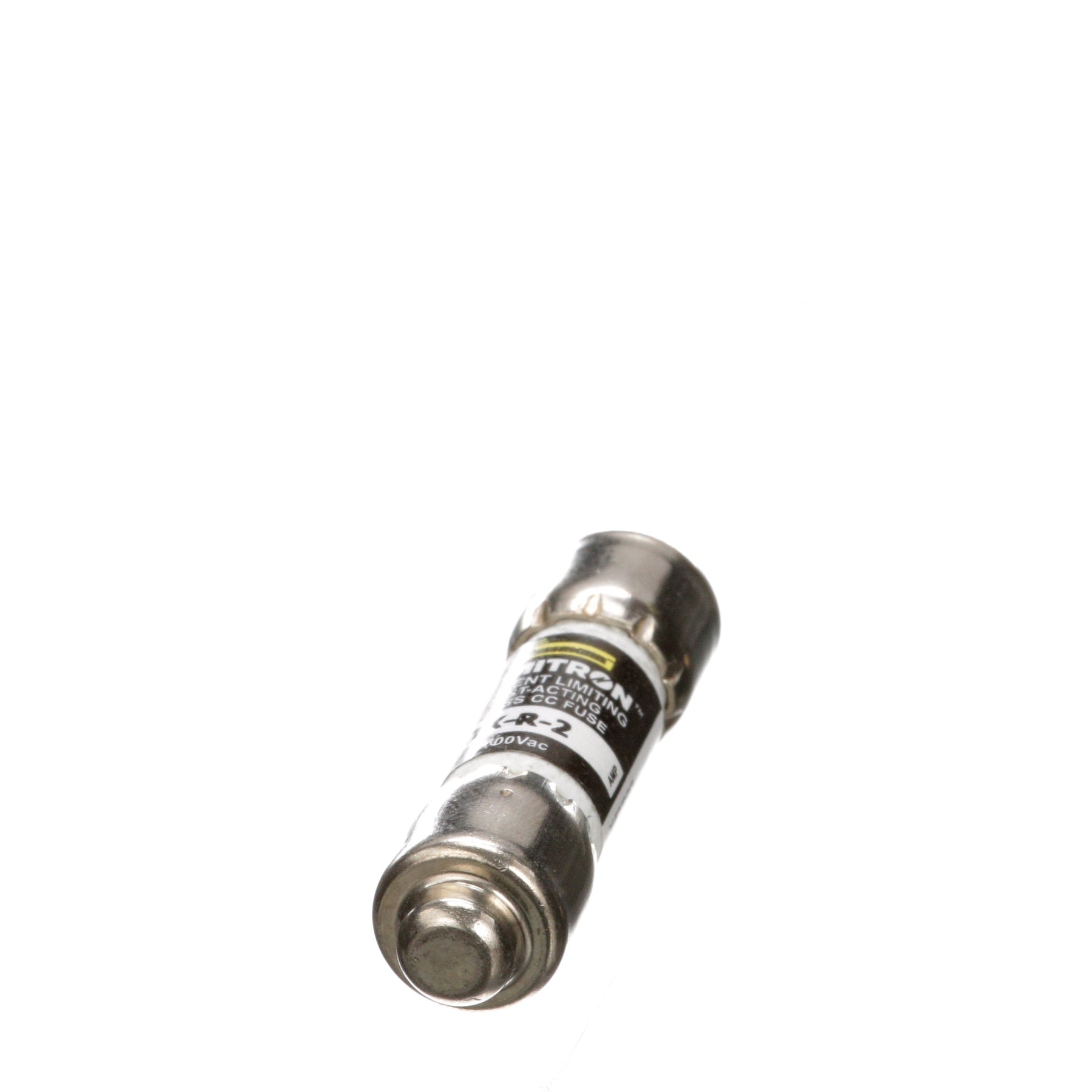

Bussmann KTK-R-2 - CC Class Fuse 2A 600V (200kA AIC Rating)

Bussmann KTK-R-2 is a current-limiting fuse from the Limitron family designed for overcurrent protection in low voltage industrial applications. It features a 2A current rating and 600V voltage rating with an interrupting capacity of 200kA at 600V AC. The fuse measures 1-1/2 inches in length with a 0.41-inch diameter and utilizes a single-barrel construction. Certified to UL-248-4 and CSA Class 1422-02 standards, this CC class fuse provides reliable circuit protection for control circuits, instrumentation, and other sensitive electronic equipment requiring precise overcurrent coordination.

Key Features & Specifications

• Type: Current-limiting time-delay fuse, single barrel construction
• Voltage Rating: 600V AC
• Current Rating: 2A
• Dimensions: 1-1/2 inch length, 0.41 inch diameter
• Standards: UL-248-4, CSA Class 1422-02, CE marked
• Applications: Control circuits, instrumentation, sensitive electronic equipment
• AIC rating: 200kA@600V
• Class Rating: CC
• Barrels: 1
• Weight: 1 lb
• Certification: CE/UL-248-4 Guide JDDZ/CSA Class 1422-02

Product Identification

• UPC: 051712420600
• GTIN: 00051712420600
