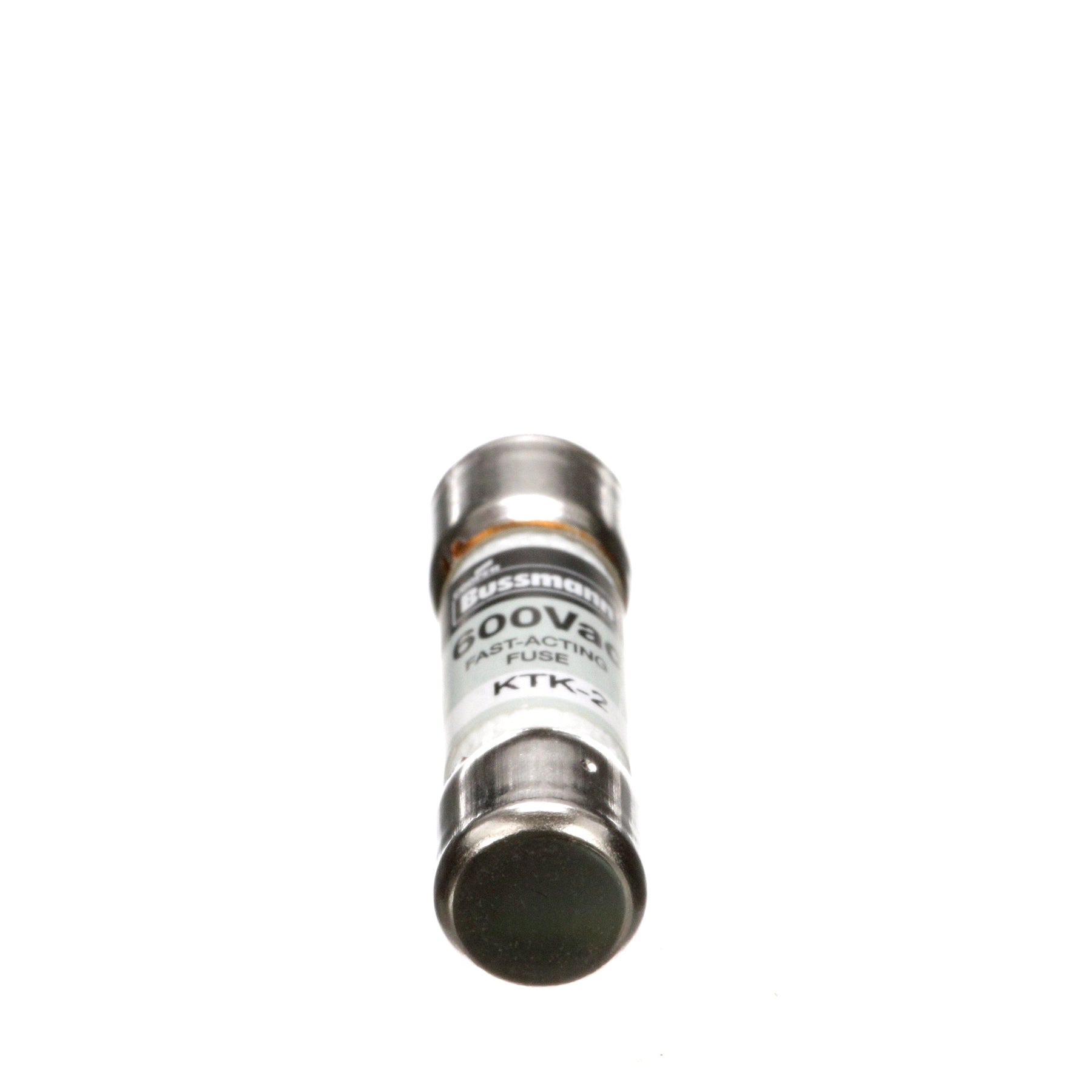

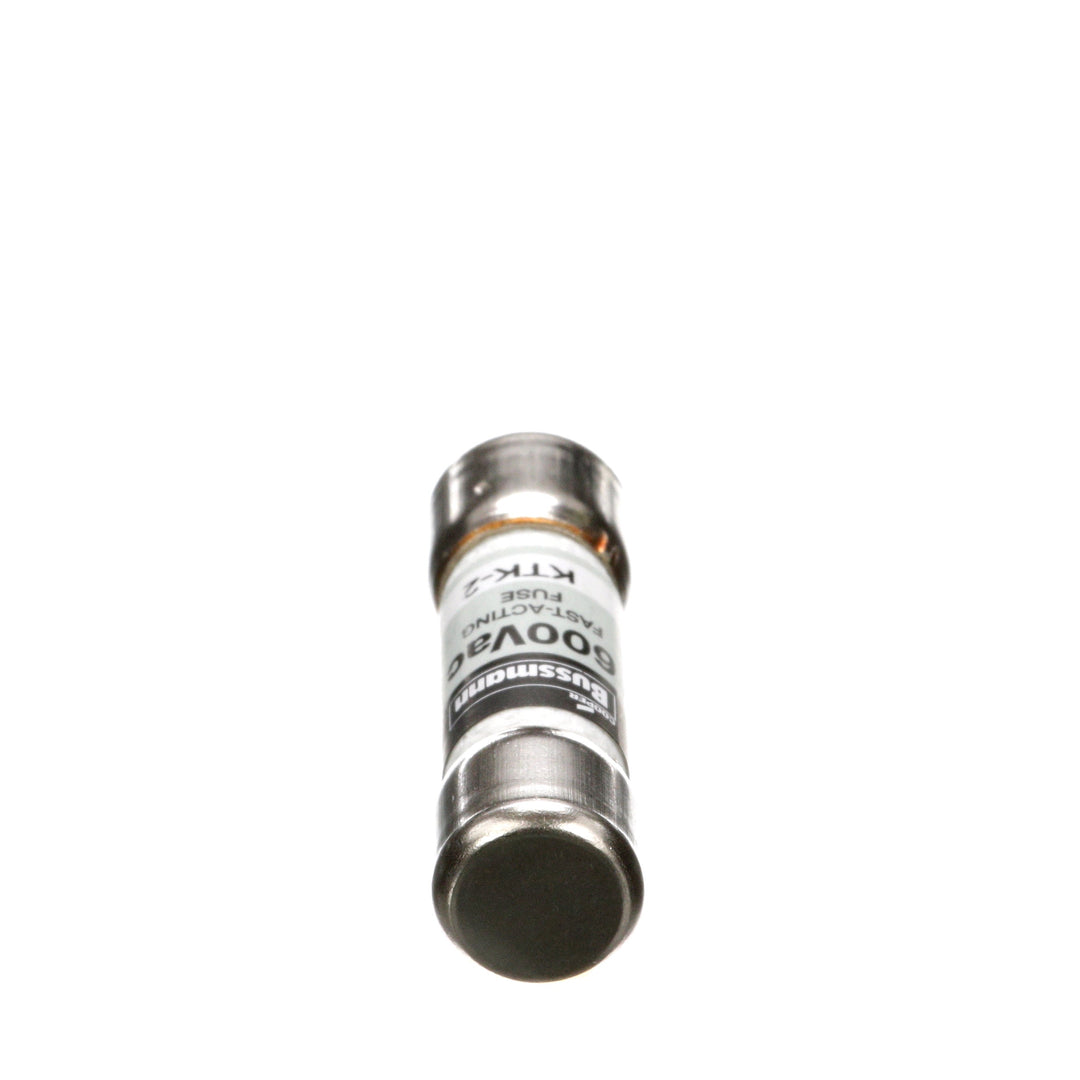

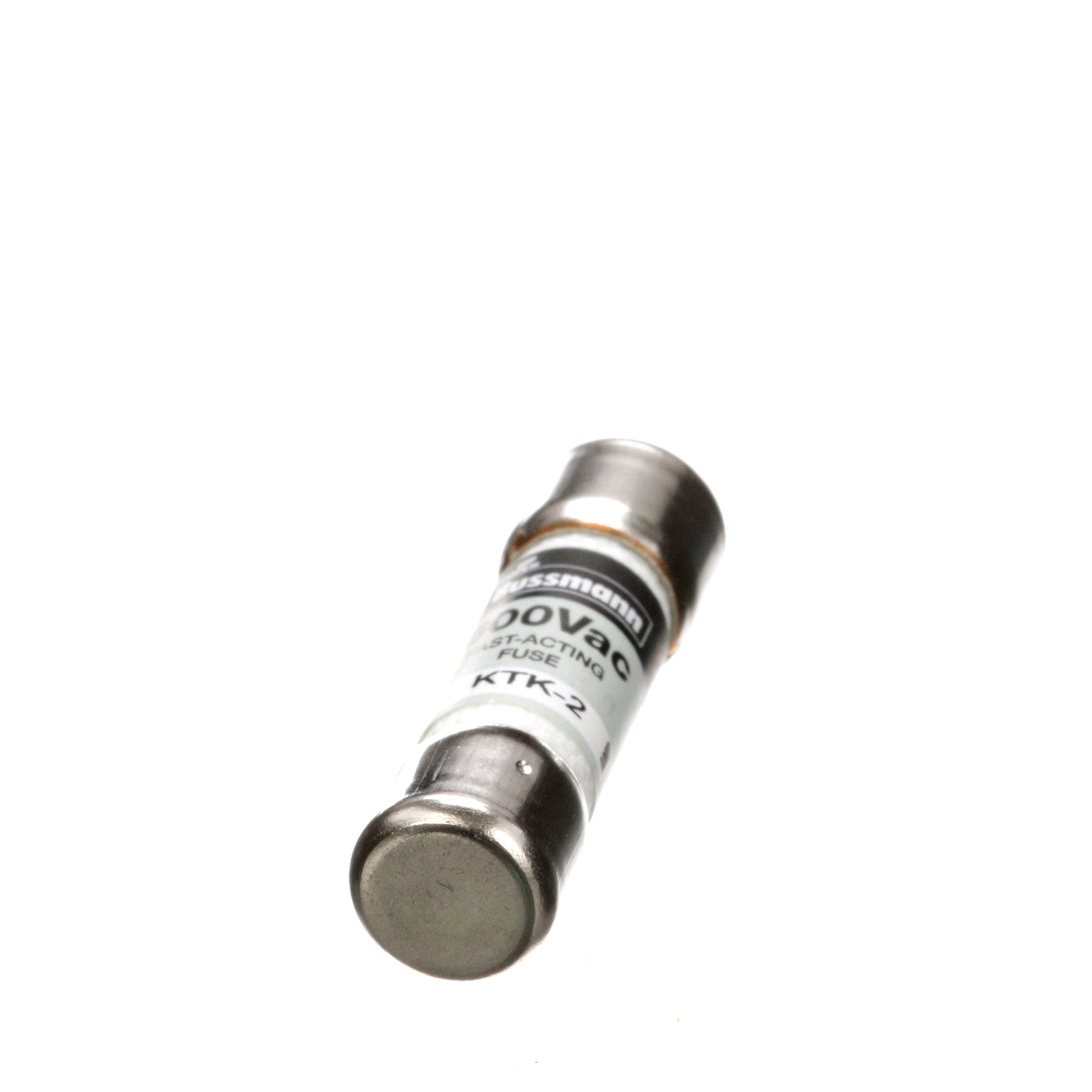

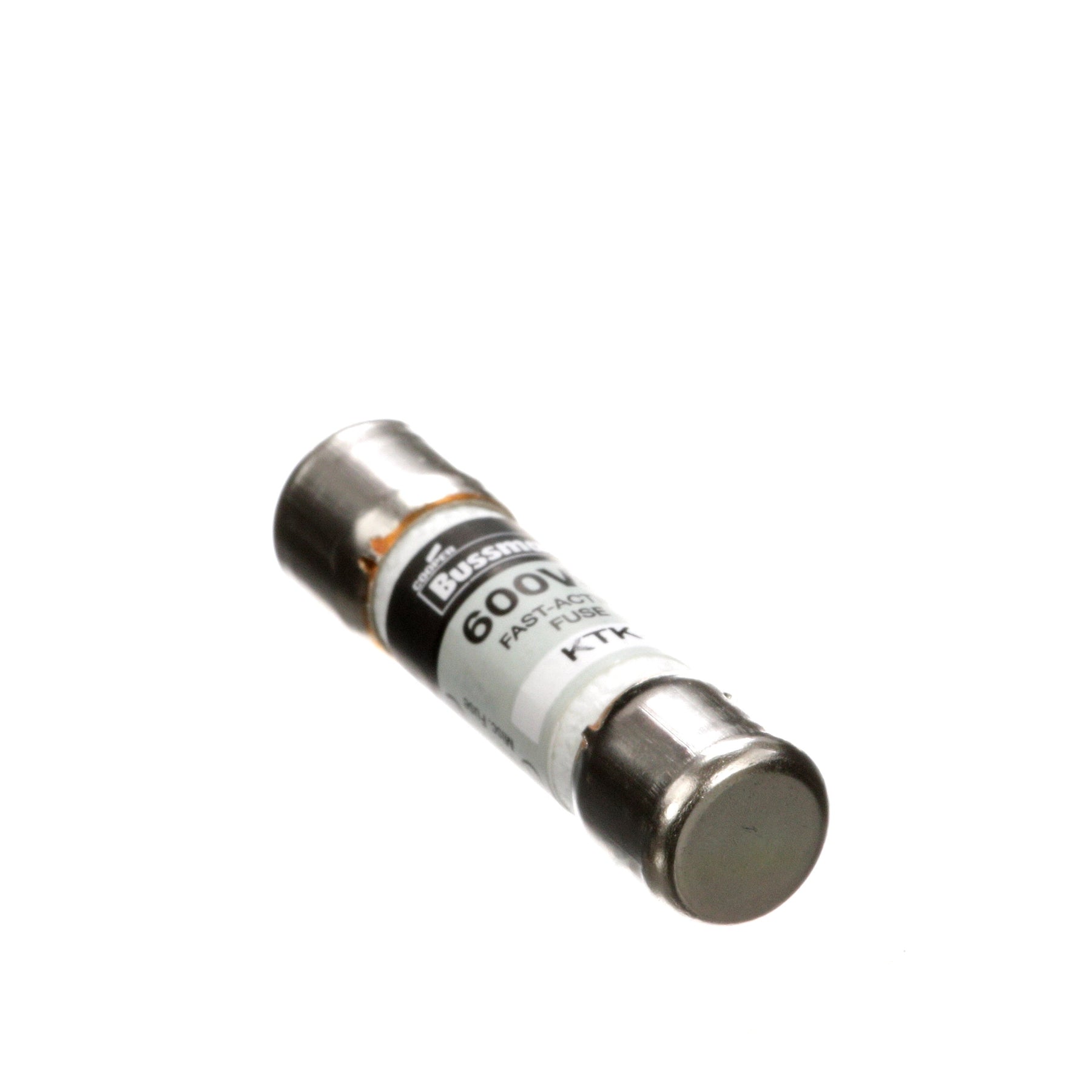

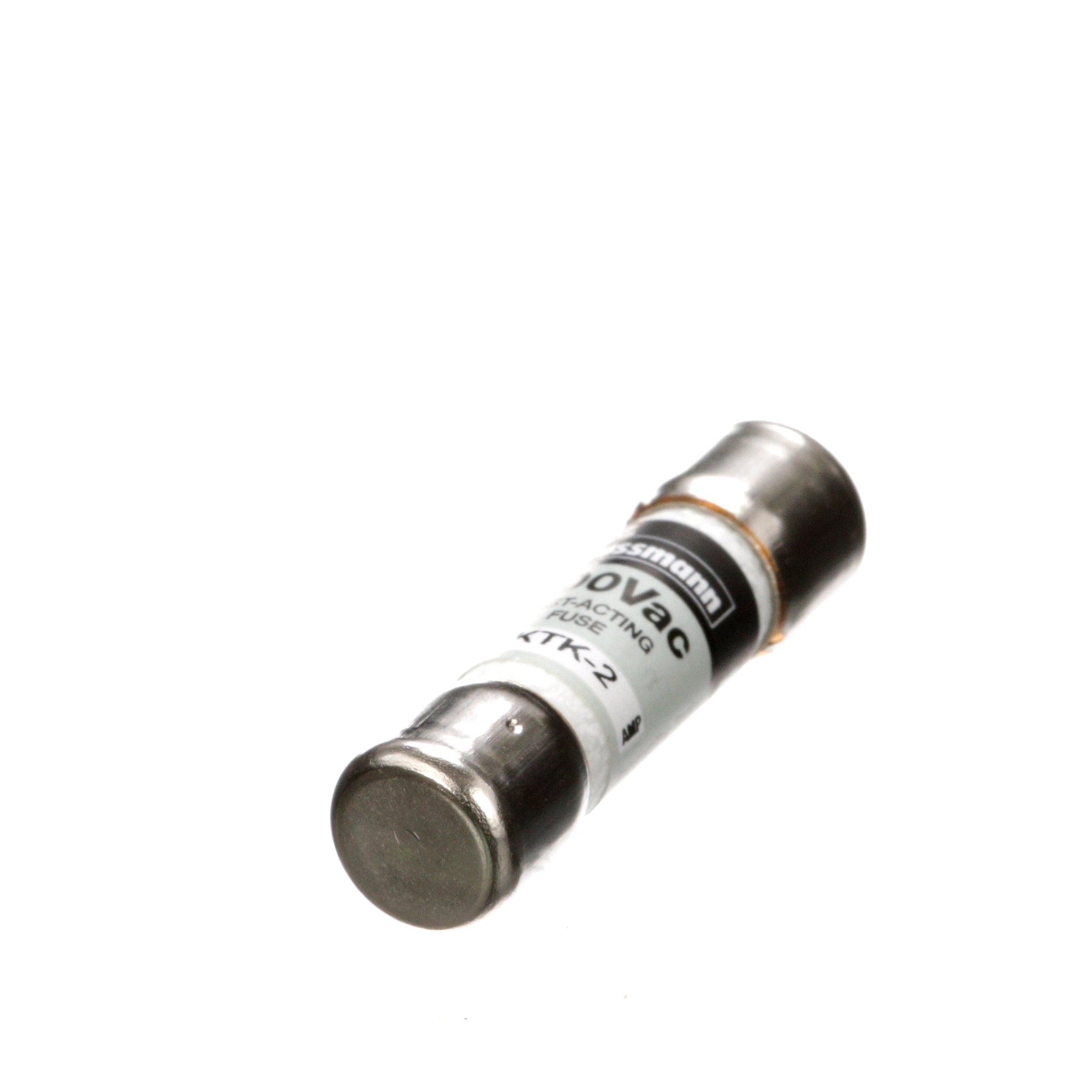

Bussmann KTK-2 is a low-voltage current-limiting fuse designed for branch circuit and feeder protection in industrial control panels and electrical distribution equipment. It features a 600V AC rating and a 2A current rating, housed in a compact, single-barrel ceramic body measuring 0.41 in x 1.5 in x 0.41 in (L x H x W) and weighing 0.017 lb. The fuse is certified to UL, CSA, and CE standards and offers a high interrupting rating of 100,000 amperes at 600V AC for reliable protection against short circuits. Its typical applications include safeguarding motor control circuits, transformers, and other sensitive electrical components.
Key Features & Specifications
Type: KTK Series, Low Voltage, Current-Limiting, Single Barrel Ceramic Body Fuse
Voltage Rating: 600V AC
Current Rating: 2A
Dimensions: 0.41 in x 1.5 in x 0.41 in (Length/Depth x Height x Width)
Standards: UL Listed, CSA Certified, CE Marked
Applications: Industrial Control Panels, Motor Circuits, Feeder Protection
AIC rating: 100kA @ 600V AC
Barrels: 1
Weight: 0.017 lb
Product Identification
UPC: 051712420129
GTIN: 00051712420129
