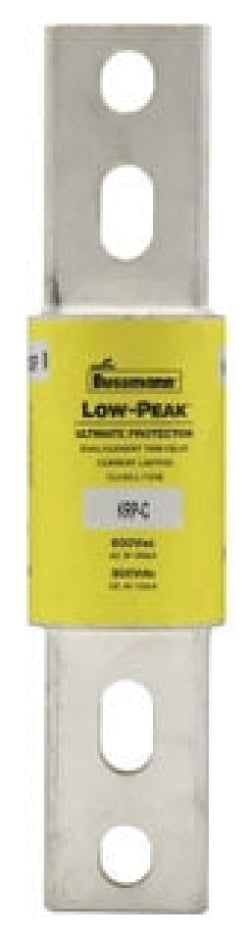

Eaton Bussmann KRP-C-900SP - Class L Time-Delay Fuse 900A 600V (300kA AIC)

Eaton Bussmann KRP-C-900SP is a Class L low-voltage fuse designed for high-current circuit protection in industrial power distribution systems. This 900A current-rated fuse provides reliable protection at 600V AC with an impressive 300kA interrupting rating, ensuring safe operation under high fault conditions. The fuse features a single-barrel construction with a 2.4-inch diameter and 10-3/4-inch length, manufactured to exacting standards with a robust 4 lb weight. It carries both UL and CSA certifications, meeting rigorous industry safety requirements for industrial applications. Typical applications include main service entrances, feeder circuits, and motor branch circuits where high fault current interruption is critical.

Key Features & Specifications

• Type: Class L Low-Peak time-delay fuse, single barrel construction
• Voltage Rating: 600V AC
• Current Rating: 900A
• Dimensions: 2.4" diameter × 10-3/4" length
• Standards: UL, CSA certified
• Applications: Industrial power distribution, main service entrances, feeder circuits, motor protection
• AIC rating: 300kA @ 600V
• Class Rating: L
• Barrels: 1
• Weight: 4 lb
• Family: Low-Peak
• Country of Origin: Mexico

Product Identification

• UPC: 051712605144
• GTIN: 00051712605144
