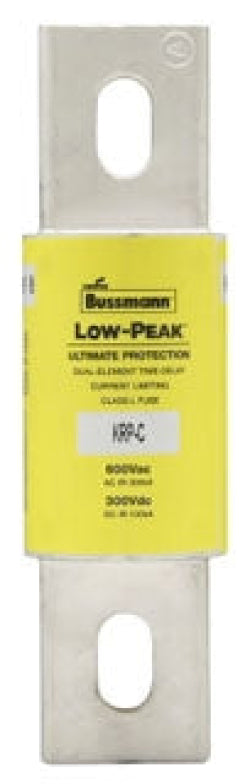

Bussmann KRP-C-750SP - Class L Time-Delay Fuse 750A (300kA AIC @600V)

Bussmann KRP-C-750SP is a Low-Peak time-delay fuse designed for comprehensive circuit protection in industrial power distribution systems, providing reliable overload and short-circuit interruption. It features a 750A current rating with a 600V AC voltage rating and offers a high 300kA interrupting capacity at rated voltage. The fuse construction utilizes a single-barrel design with 2.4-inch diameter and measures 8-5/8 inches in length, weighing 5 lb for robust mechanical durability. This Class L fuse complies with UL, CSA, and CE standards for safety and performance verification. Typical applications include service entrance equipment, motor control centers, and industrial switchboards where high fault current protection is required.

Key Features & Specifications

• Type: Low-Peak time-delay fuse, single-barrel construction
• Voltage Rating: 600V AC
• Current Rating: 750A
• Dimensions: 8-5/8 inches length, 2.4 inches diameter
• Standards: UL, CSA, CE certified
• Applications: Industrial power distribution, service entrance equipment, motor control centers
• AIC rating: 300kA@600V
• Class Rating: L
• Barrels: 1
• Weight: 5 lb
• Country of Origin: Mexico

Product Identification

• UPC: 051712605090
• GTIN: 00051712605090
