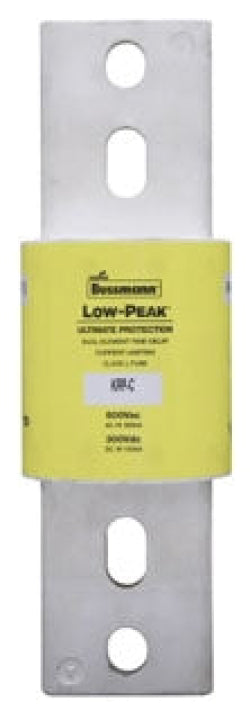

Bussmann KRP-C-2000SP - Low-Peak Fuse 2000A (300kA@600V Interrupting Capacity)

Bussmann KRP-C-2000SP is a Low-Peak class L fuse designed for high-current circuit protection in industrial applications. Rated for 600V AC/DC systems with a 2000A current capacity, it features a rugged 3.5-inch diameter single-barrel construction weighing 5 lb. Certified to UL-248-10 and CSA Class 1422-02 standards, this 300kA interrupting capacity fuse provides reliable protection for heavy-duty switchgear, motor control centers, and power distribution equipment.

Key Features & Specifications

• Type: KRP-C Low-Peak time-delay fuse with current-limiting design
• Voltage Rating: 600V AC/DC
• Current Rating: 2000A
• Dimensions: 10-3/4 in length x 3.5 in diameter
• Standards: CE/UL-248-10 Guide JFHR, CSA Class 1422-02
• Applications: Industrial switchgear, MCCs, power distribution
• Class Rating: L
• Barrels: 1
• AIC rating: 300kA@600V
• Weight: 5 lb
• Country of Origin: Mexico

Product Identification

• UPC: 051712605205
• GTIN: 00051712605205
