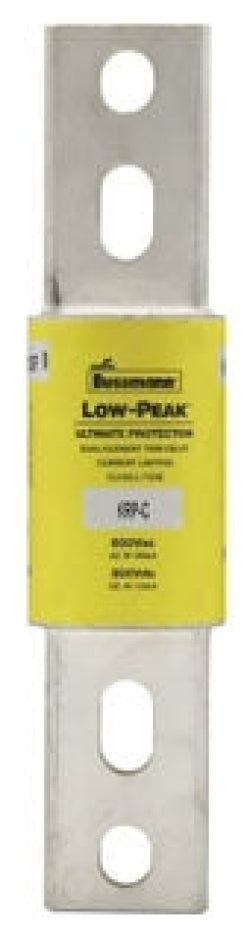

Bussmann KRP-C-1200SP - Class L Time-Delay Fuse 1200A 600V (300kA AIC)

The Bussmann KRP-C-1200SP is a Class L low-voltage fuse designed for high-current circuit protection in industrial power distribution systems. It features a 1200A current rating and 600V voltage rating with a 300kA interrupting capacity at 600VAC for reliable fault protection. The fuse construction includes a single-barrel design with 2.4-inch diameter and 10-3/4 inch length, weighing 5 lb for robust industrial use. It complies with CE, UL-248-10 Guide JFHR, and CSA Class 1422-02 standards for safety and performance verification. Typical applications include service entrance equipment, main disconnects, and feeder circuits in industrial facilities and commercial buildings.

Key Features & Specifications

• Type: Class L Low-Peak time-delay fuse, single barrel
• Voltage Rating: 600V AC
• Current Rating: 1200A
• Dimensions: 10-3/4 inch length, 2.4 inch diameter
• Standards: CE/UL-248-10 Guide JFHR/CSA Class 1422-02
• Applications: Industrial power distribution, service entrance, main disconnects
• AIC rating: 300kA@600V
• Class Rating: L
• Barrels: 1
• Weight: 5 lb
• Family: Low-Peak
• Country of Origin: Mexico

Product Identification

• UPC: 051712605120
• GTIN: 00051712605120
