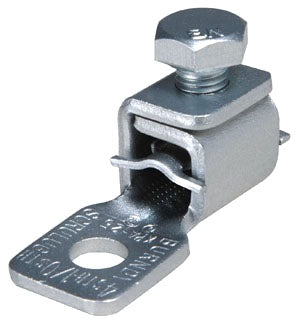

Burndy KPA4C - Mechanical Lug Connector 4 AWG (600V)
Burndy KPA4C - Mechanical Lug Connector 4 AWG (600V)

Burndy KPA4C - Mechanical Lug Connector 4 AWG (600V)

Burndy
Price
Save $-4.37
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Burndy KPA4C is a mechanical lug connector designed for terminating and splicing copper conductors in industrial power distribution systems. It is rated for use with conductors up to 4 AWG and accommodates a maximum voltage of 600V, with a current rating dependent on the connected wire size. The connector measures 0.94 inches by 1.21 inches, weighs 5.19 lb, and is constructed from high-conductivity copper alloy with a tin-plated finish for corrosion resistance. It is CSA Certified and UL Listed, ensuring compliance with North American safety and performance standards. Typical applications include panel boards, switchgear, and motor control centers in commercial and industrial electrical installations.

Key Features & Specifications
  • Type: Mechanical lug connector for copper conductors
  • Voltage Rating: 600V AC/DC
  • Current Rating: Dependent on conductor size (up to 4 AWG)
  • Dimensions: 0.94 in x 1.21 in
  • Standards: CSA Certified, UL Listed
  • Applications: Panel boards, switchgear, motor control centers
  • Metal Type: Copper alloy, tin-plated
  • Wire Size: 4 AWG maximum
  • Country of Origin: United States


Product Identification
  • UPC: 781810351352
  • GTIN: 781810351352
