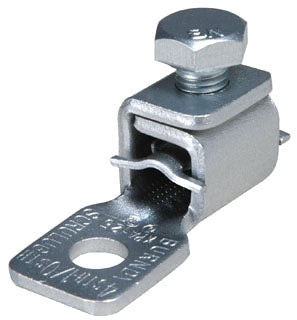

Burndy KPA34 - Terminal Lug 4/0-500 kcmil 1/2" Stud
Burndy KPA34 - Terminal Lug 4/0-500 kcmil 1/2" Stud

Burndy KPA34 - Terminal Lug 4/0-500 kcmil 1/2" Stud

Burndy
Price
Save $-75.12
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Burndy KPA34 is a tin-plated high copper alloy mechanical pressure bar terminal lug engineered for heavy-duty cable connections in industrial settings. This 1-hole lug accepts 4/0 AWG to 500 kcmil stranded copper conductors, fits a 1/2" stud, and requires an installation torque of 375 in-lb, with a temperature rating of 194°F (90°C). Constructed from high copper alloy with a tin-plated finish, it measures 2.44 in x 3.14 in and weighs 5.19 lb. It is CSA Certified and UL Listed under UL 486A and E2186 standards. The KPA34 is typically used for joining cable to equipment pads or terminal blocks in industrial power distribution systems.

Key Features & Specifications
  • Type: Mechanical pressure bar terminal lug
  • Material: Tin-plated high copper alloy
  • Conductor Range: 4/0 AWG (stranded) to 500 kcmil (stranded)
  • Stud Size: 1/2"
  • Number of Holes: 1
  • Mounting Type: Bolted, pressure bar
  • Temperature Rating: 194°F (90°C)
  • Installation Torque: 375 in-lb (hex socket)
  • Certification: CSA Certified, UL Listed
  • Standards: UL 486A, E2186
  • Country of Origin: United States
  • Dimensions: 2.44 in x 3.14 in
  • Weight: 5.19 lb


Product Identification
  • UPC: 781810356951
  • GTIN: 00781810356951
