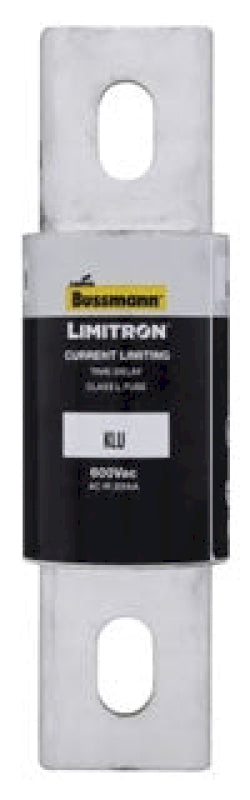

Bussmann KLU-800 - Class L Bolt-In Fuse 800A@600V (200kA AIC Rating)

Bussmann KLU-800 is a Class L bolt-in fuse designed for high-current circuit protection in industrial power distribution systems. It features a 600V AC rating with a 800A current capacity and 200kA interrupting rating, housed in a durable 8-5/8" cylindrical body with 2.4" diameter and 5 lb weight. Certified to UL-248-10 and CSA Class 1422-02 standards, this LIMITRON series fuse provides reliable short-circuit protection for motor control centers, switchgear, and other heavy-duty applications requiring Class L performance.

Key Features & Specifications

• Type: Class L time-delay fuse with single barrel construction
• Voltage Rating: 600V AC
• Current Rating: 800A
• Dimensions: 8-5/8" length x 2.4" diameter
• Weight: 5 lb
• Standards: UL-248-10, CSA Class 1422-02, CE
• Applications: Industrial switchgear, motor control centers, power distribution
• Connection: Bolt-in
• AIC rating: 200kA @ 600V
• Class Rating: L
• Barrels: 1
• Country of Origin: Mexico

Product Identification

• UPC: 051712135054
• GTIN: 00051712135054
