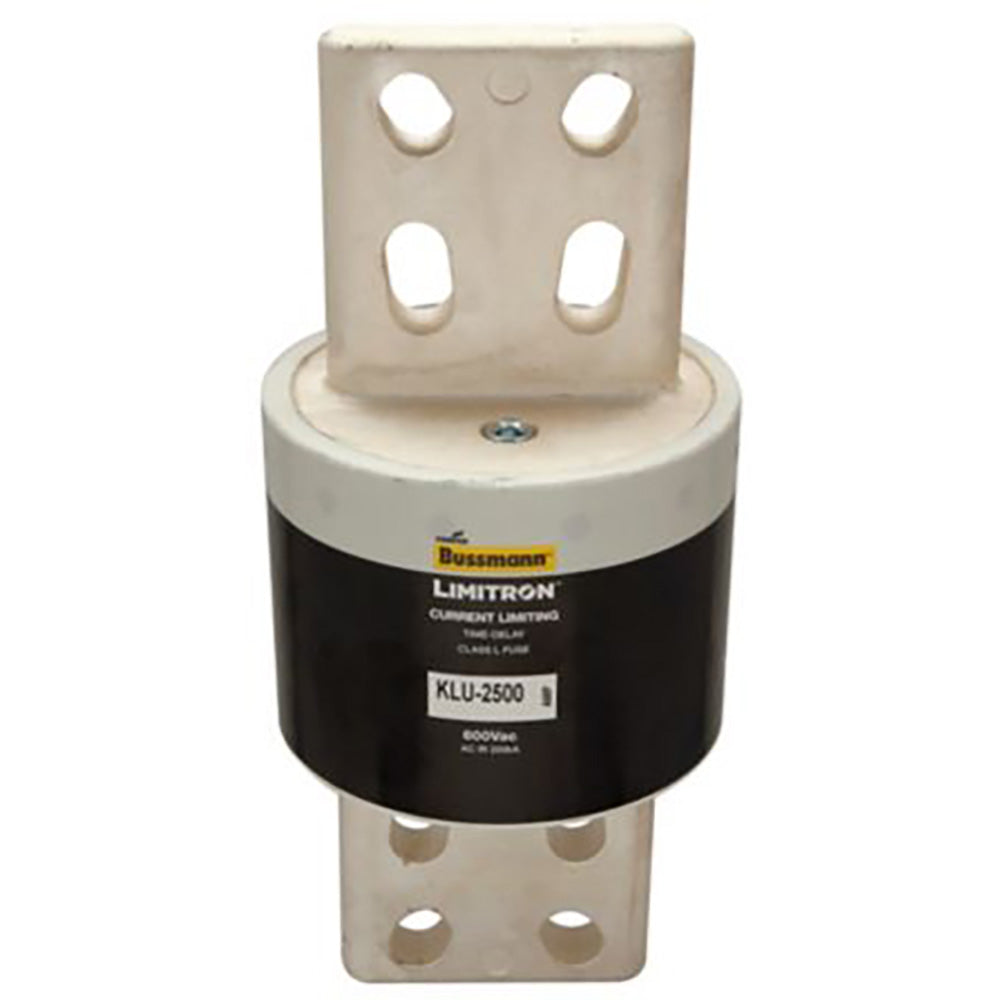

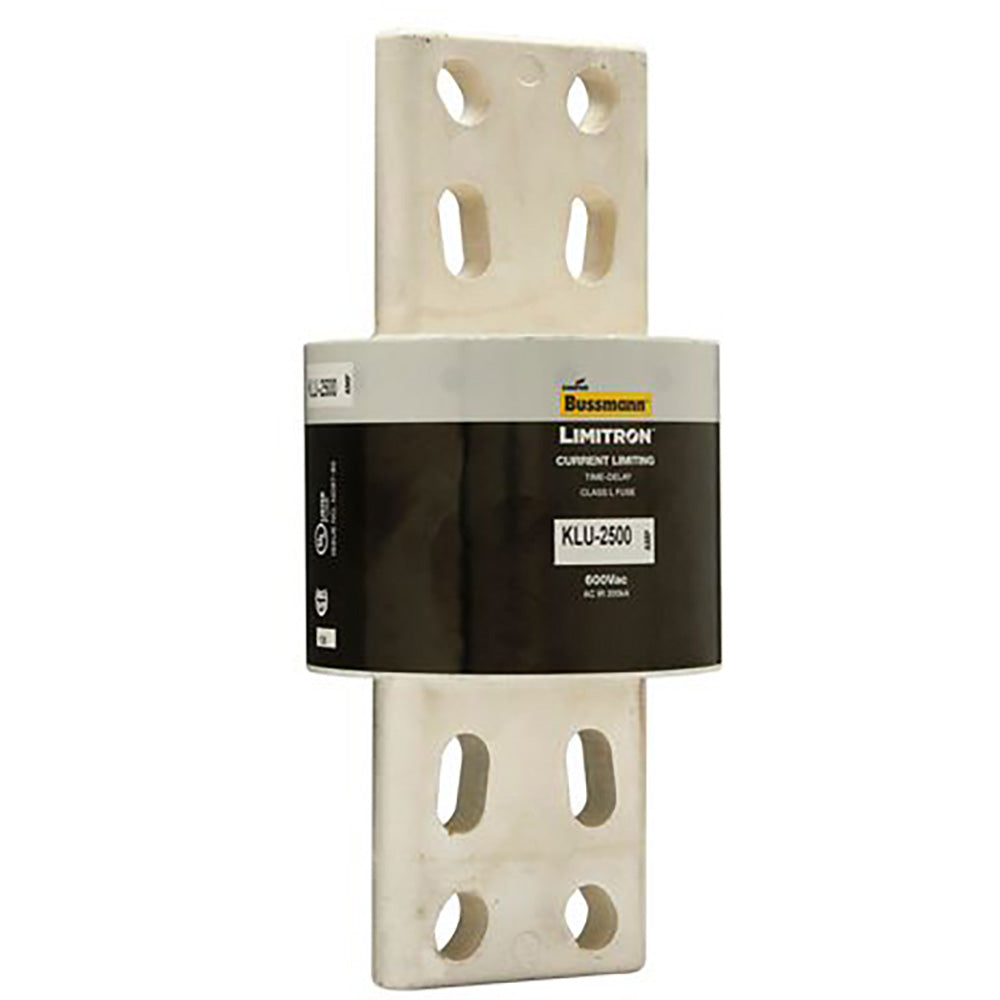

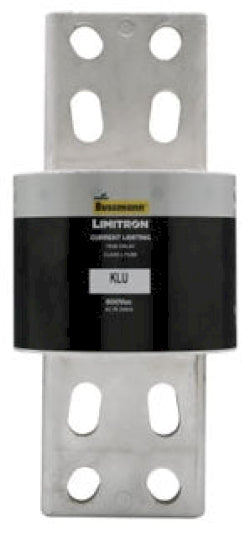

Bussmann KLU-2500 - Class L Fuse 2500A (200kA AIC @600V)

Bussmann KLU-2500 is a Class L low-voltage fuse designed for high-current circuit protection in industrial power distribution systems. This 2500A rated fuse operates at 600V AC with a 200kA interrupting capacity, providing reliable short-circuit protection. The single-barrel construction features a 4.8-inch diameter bolt-in design measuring 10-3/4 inches in length and weighing 10 lb for robust installation. Certified to UL-248-10 and CSA Class 1422-02 standards, this Limitron family fuse meets rigorous safety requirements for industrial applications including service entrance equipment, motor control centers, and main distribution panels.

Key Features & Specifications

• Type: Class L low-voltage current-limiting fuse with single-barrel construction
• Voltage Rating: 600V AC
• Current Rating: 2500A
• Dimensions: 10-3/4 inches length, 4.8 inches diameter
• Standards: UL-248-10, CSA Class 1422-02, CE certified
• Applications: Industrial power distribution, service entrance equipment, motor control centers
• AIC rating: 200kA @ 600V
• Connection: Bolt-in
• Barrels: 1
• Class Rating: L
• Weight: 10 lb
• Family: Limitron
• Country of Origin: Mexico

Product Identification

• UPC: 051712497022
• GTIN: 00051712497022
