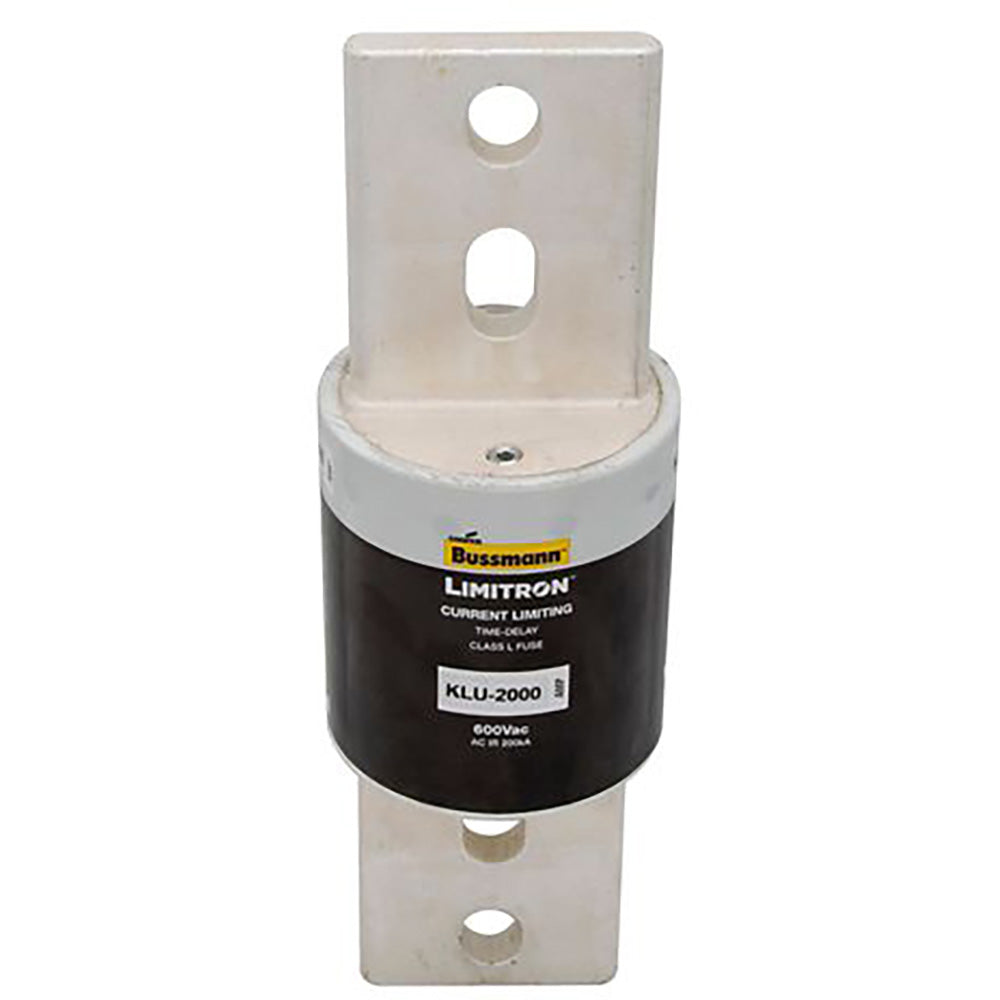

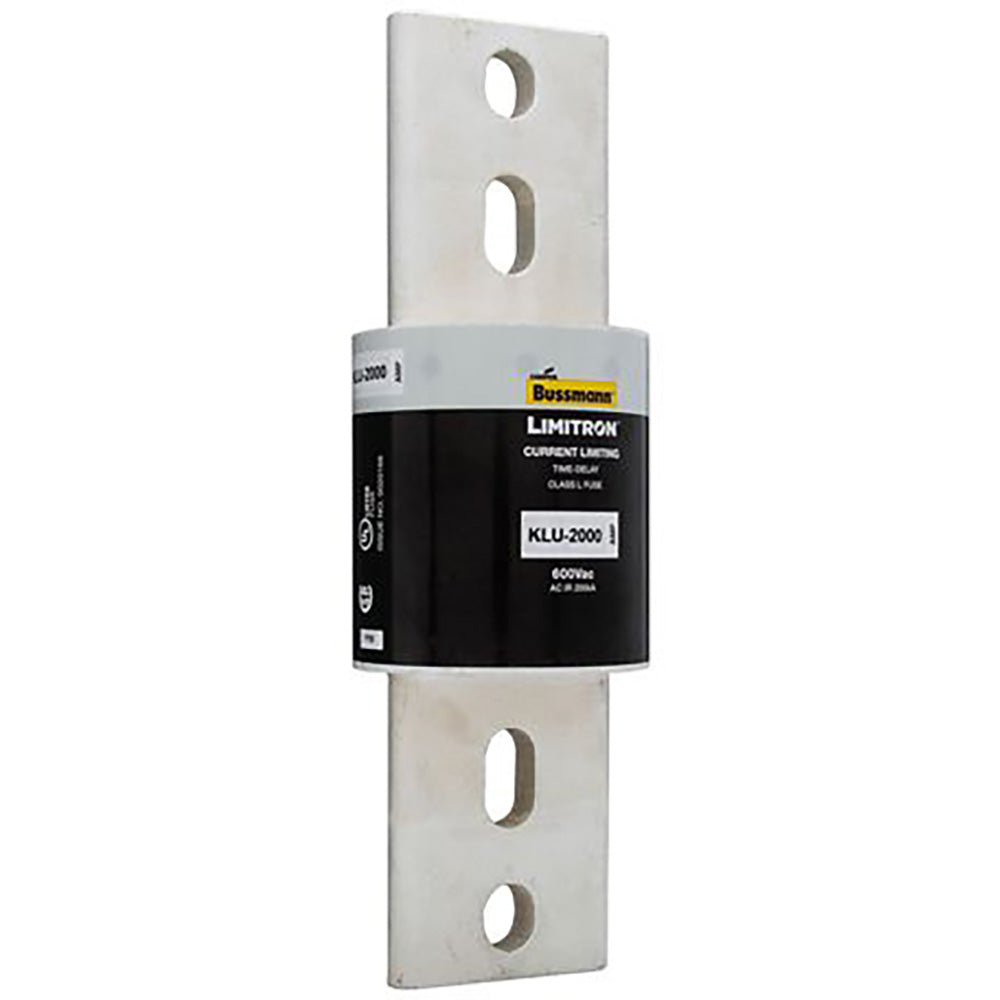

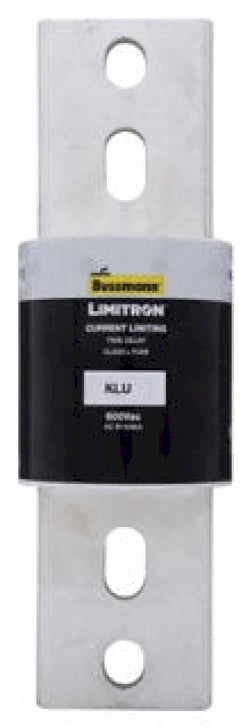

Bussmann KLU-2000 - Class L Current-Limiting Fuse 2000A (200kA AIC @600V)

Bussmann KLU-2000 is a Class L low-voltage current-limiting fuse designed for high-interrupting capacity circuit protection in industrial power distribution systems. It features a 2000A current rating and 600V voltage rating with exceptional 200kA interrupting capacity at rated voltage. The fuse construction utilizes a single-barrel design with 3.5-inch diameter and bolt-in connection configuration, manufactured to meet UL 248-10 and CSA 1422-02 standards. This fuse provides reliable protection for main service entrances, feeders, and branch circuits where high fault current conditions may occur in commercial and industrial applications.

Key Features & Specifications

• Type: Class L current-limiting fuse, single barrel construction
• Voltage Rating: 600V AC
• Current Rating: 2000A
• Dimensions: 10-3/4 inch length, 3.5 inch diameter
• Standards: UL 248-10, CSA 1422-02, CE certified
• Applications: Industrial power distribution, main service entrances, feeder protection
• AIC rating: 200kA@600V
• Connection: Bolt-In
• Barrels: 1
• Class Rating: L
• Certification: CE/UL-248-10 Guide JDDZ/CSA Class 1422-02
• Weight: 10 lb
• Family: LIMITRON
• Country of Origin: Mexico

Product Identification

• UPC: 051712135108
• GTIN: 00051712135108
