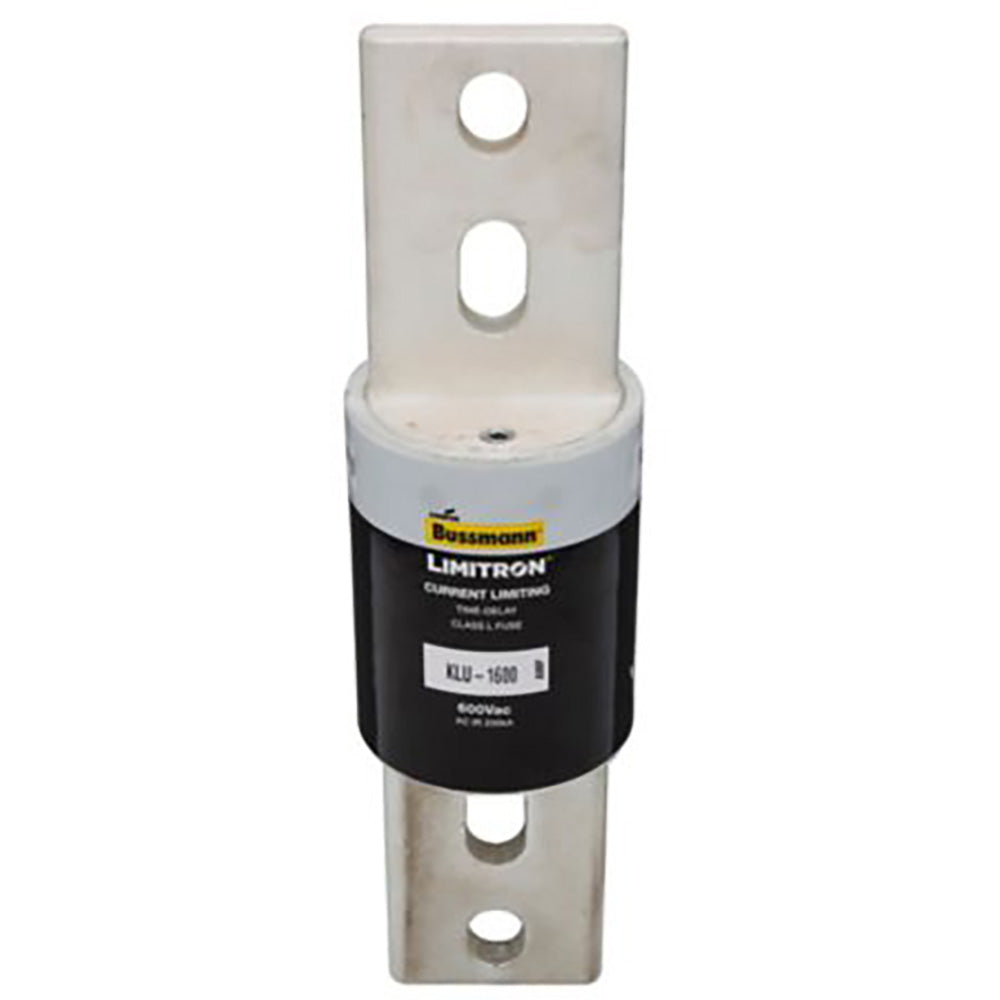

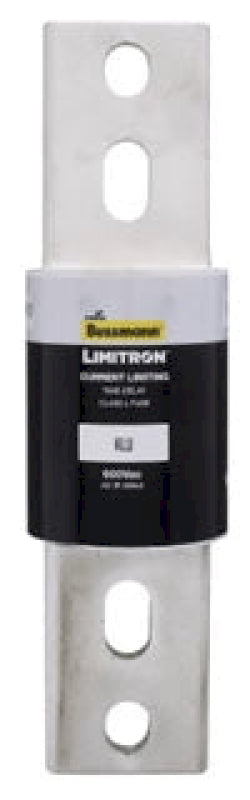

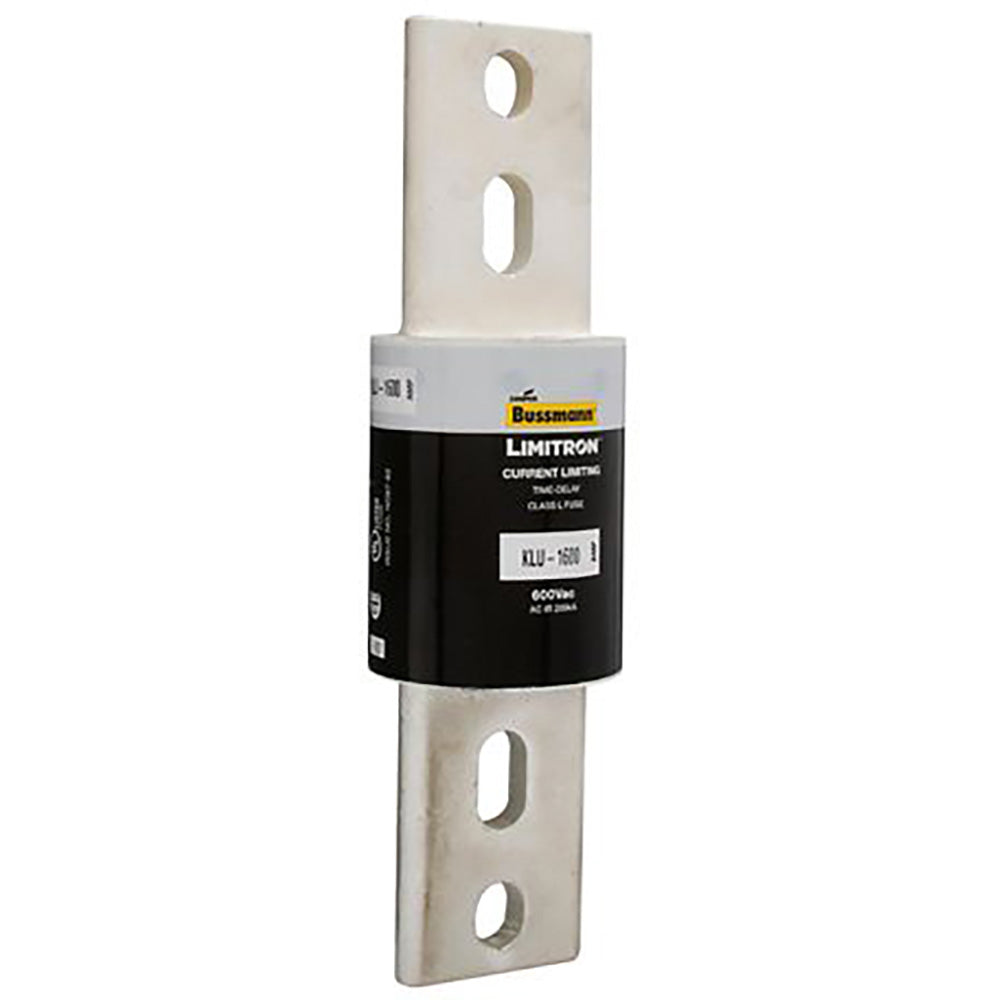

Eaton Bussmann KLU-1600 - Class L Current-Limiting Fuse 1600A (200kA AIC @600V)

Eaton Bussmann KLU-1600 is a Class L low-voltage current-limiting fuse designed for high-interrupting capacity circuit protection in industrial power distribution systems. It features a 1600A current rating and 600V voltage rating with exceptional 200kA interrupting capacity at rated voltage for reliable fault protection. The fuse construction utilizes a single-barrel design with 3-inch diameter and bolt-in connection type, manufactured to meet CE/UL-248-10 Guide JDDZ and CSA Class 1422-02 standards. This current-limiting fuse provides comprehensive protection for motor circuits, feeders, and branch circuits where high fault current interruption is critical, ensuring system reliability and equipment safety in demanding industrial environments.

Key Features & Specifications

• Type: Class L current-limiting fuse, single barrel construction
• Voltage Rating: 600V AC
• Current Rating: 1600A
• Dimensions: 10-3/4 inch length, 3 inch diameter
• Standards: CE/UL-248-10 Guide JDDZ, CSA Class 1422-02
• Applications: Industrial power distribution, motor protection, feeder circuits
• Class Rating: L
• Connection: Bolt-In
• Barrels: 1
• Certification: CE/UL-248-10 Guide JDDZ/CSA Class 1422-02
• AIC rating: 200kA@600V
• Weight: 10 lb
• Family: LIMITRON
• Country of Origin: Mexico

Product Identification

• UPC: 051712135092
• GTIN: 00051712135092
