Bussmann KLU-1200 - Class L Fuse 1200A 600V (200kA AIC Rating)

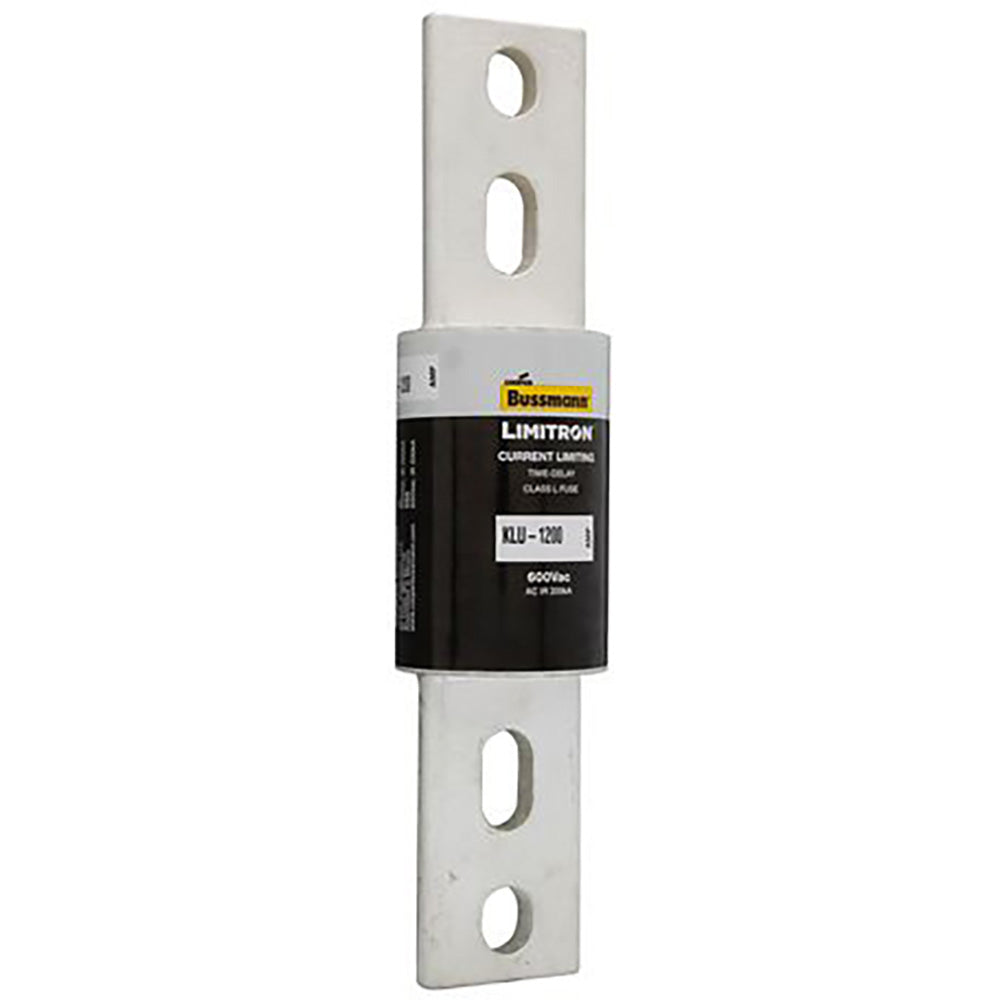

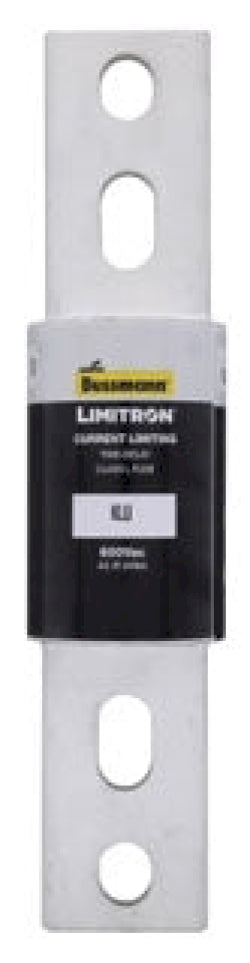

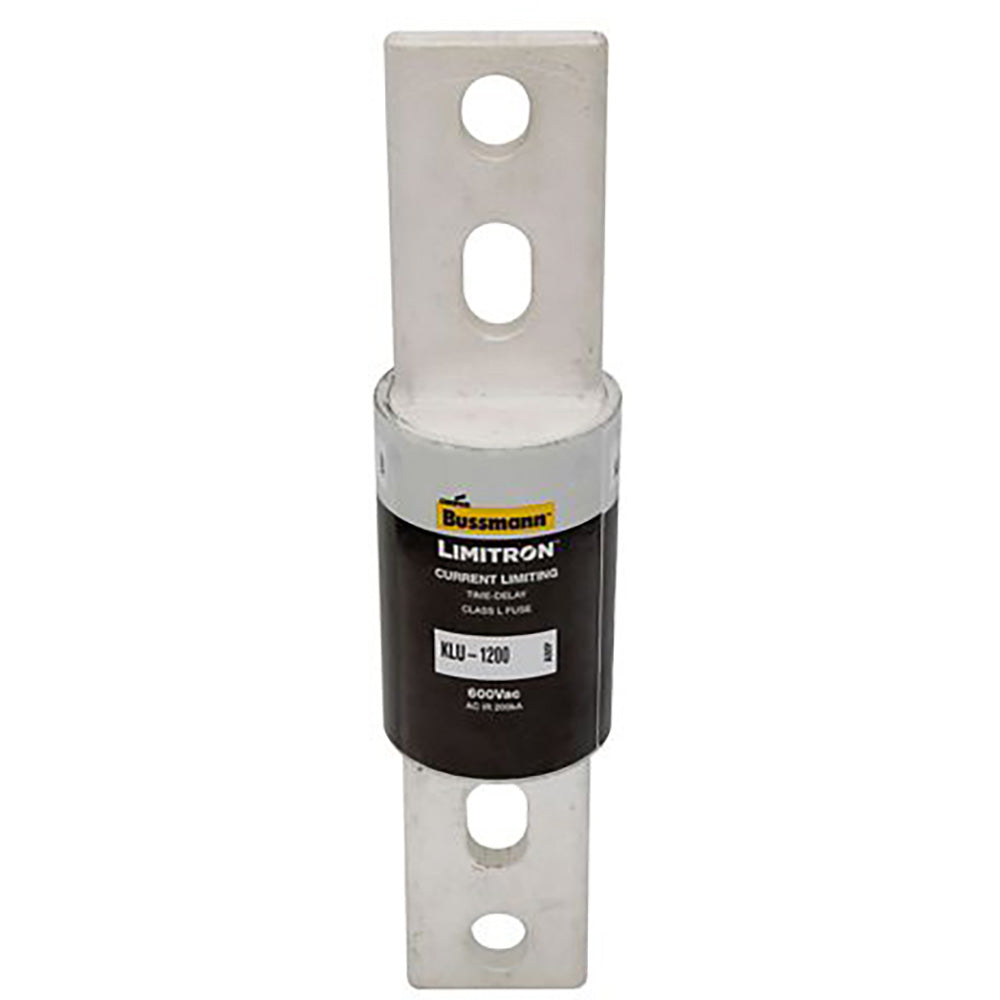

Bussmann KLU-1200 is a Class L low-voltage fuse designed for high-current circuit protection in industrial power distribution systems. It features a 1200A current rating and 600V voltage rating with a 200kA interrupting capacity, providing reliable short-circuit protection. The fuse construction includes a single-barrel design with 2.4-inch diameter and bolt-in connection terminals, manufactured to meet UL 248-10 and CSA Class 1422-02 standards. This LIMITRON family fuse carries CE certification and is engineered for use in industrial control panels, motor circuits, and power distribution equipment where high fault current protection is required.

Key Features & Specifications

• Type: Class L low-voltage current-limiting fuse, single barrel construction
• Voltage Rating: 600V AC
• Current Rating: 1200A
• Dimensions: 10-3/4 inch length, 2.4 inch diameter
• Standards: UL 248-10, CSA Class 1422-02, CE certified
• Applications: Industrial power distribution, motor protection, control panels
• AIC rating: 200kA @ 600V
• Connection: Bolt-In
• Barrels: 1
• Class Rating: L
• Certification: CE/UL-248-10 Guide JDDZ/CSA Class 1422-02
• Weight: 10 lb

Product Identification

• UPC: 051712135078
• GTIN: 00051712135078
