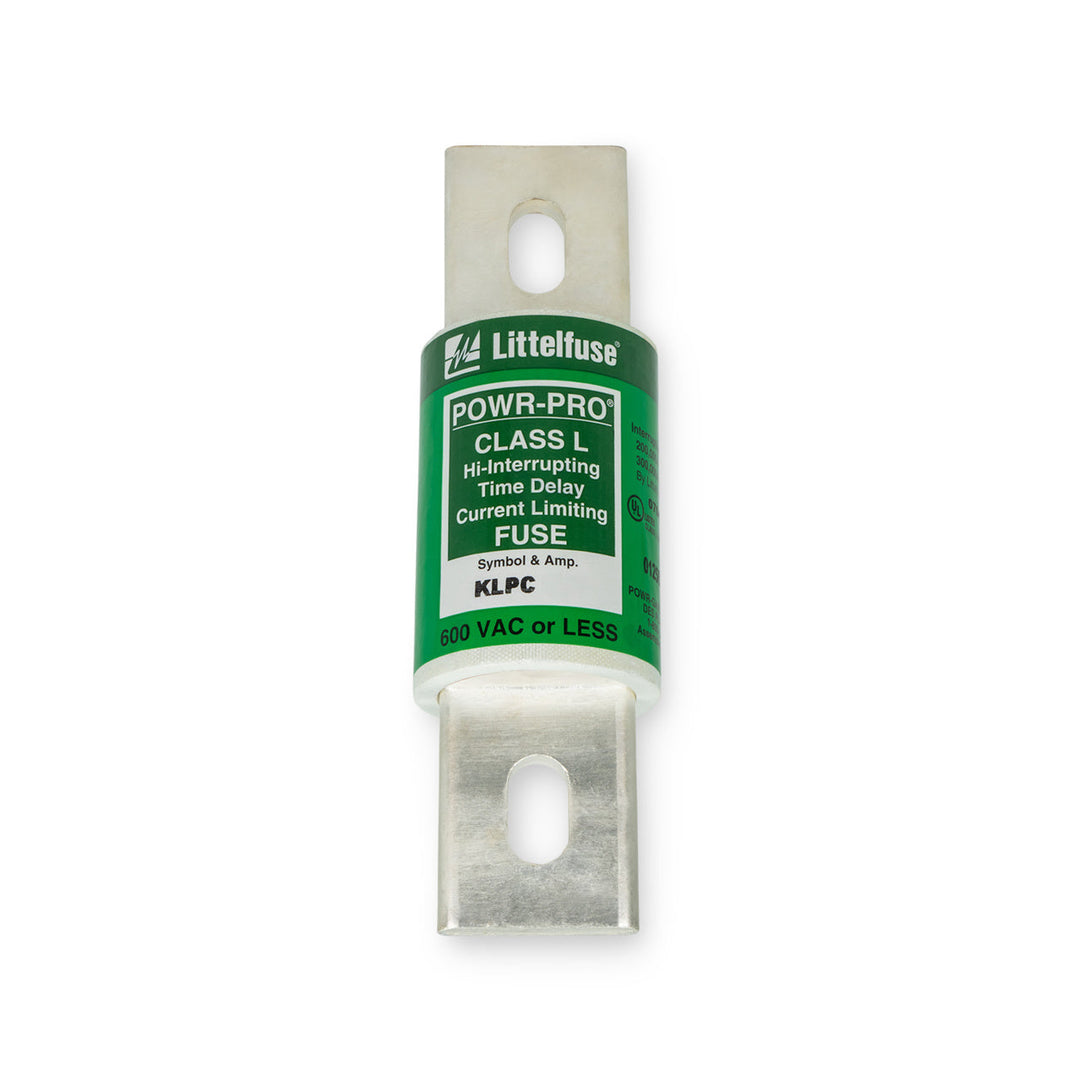

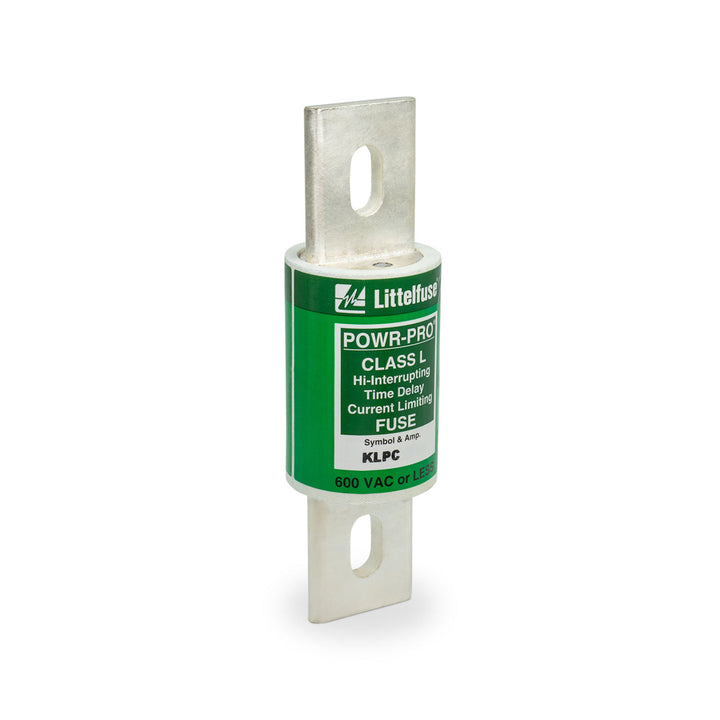

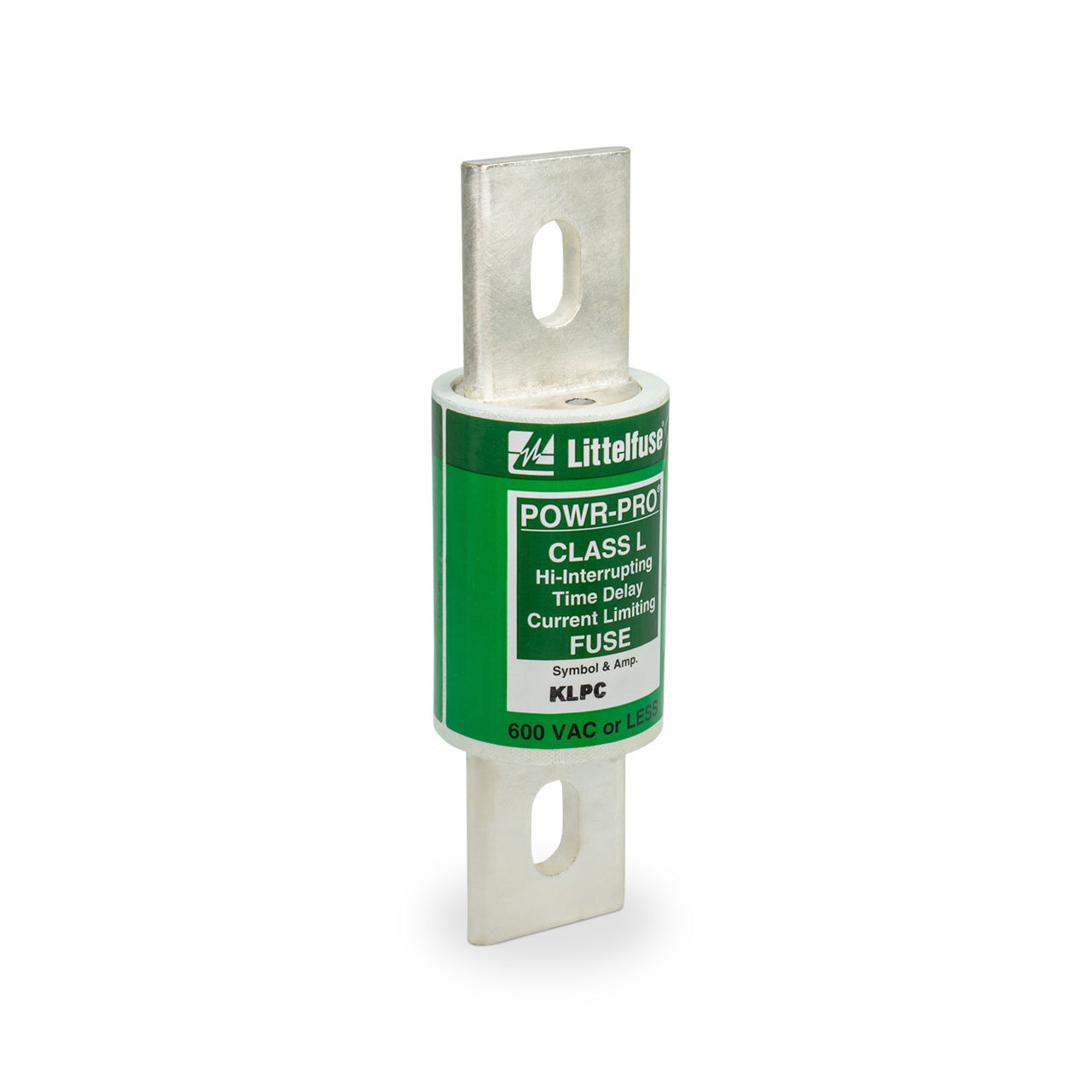

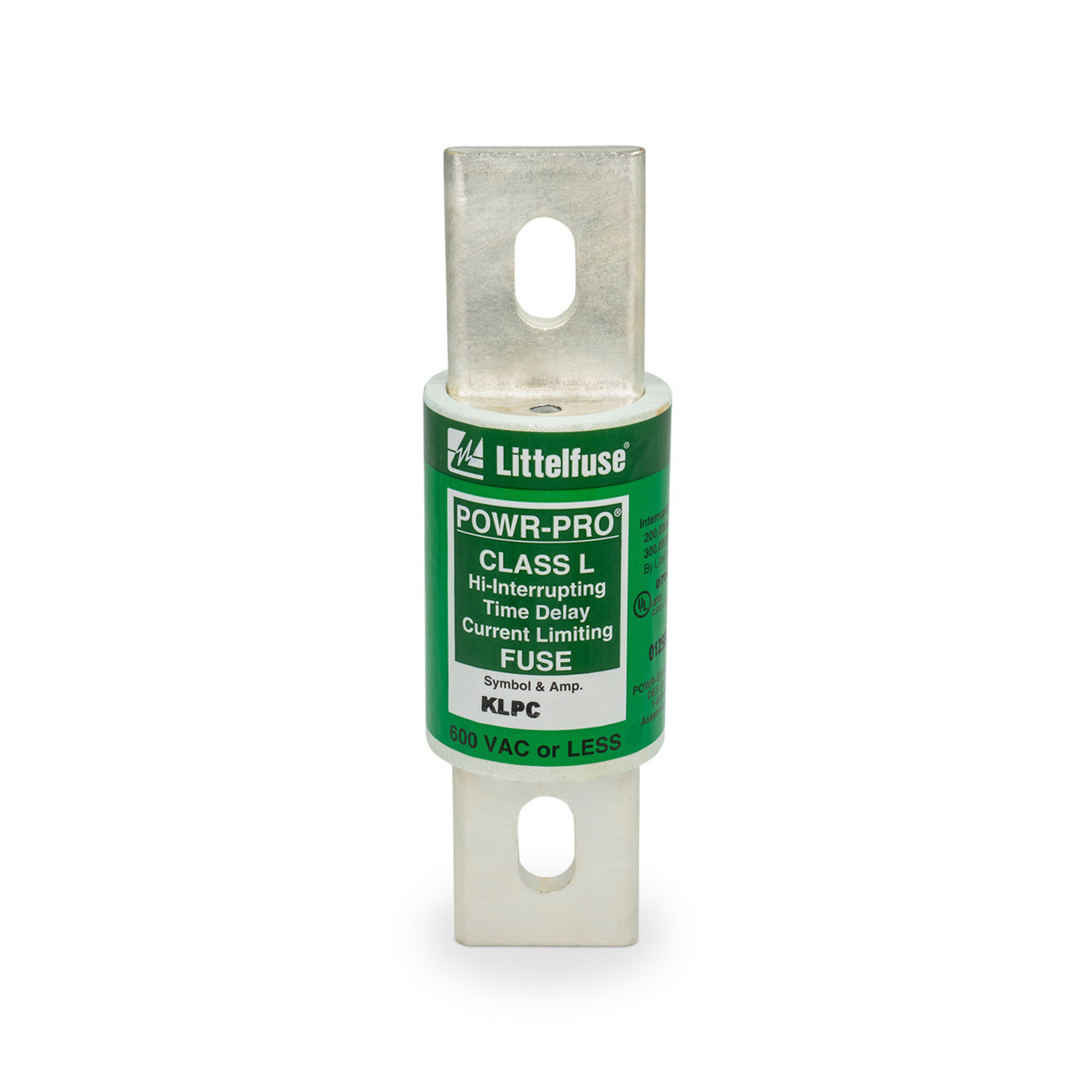

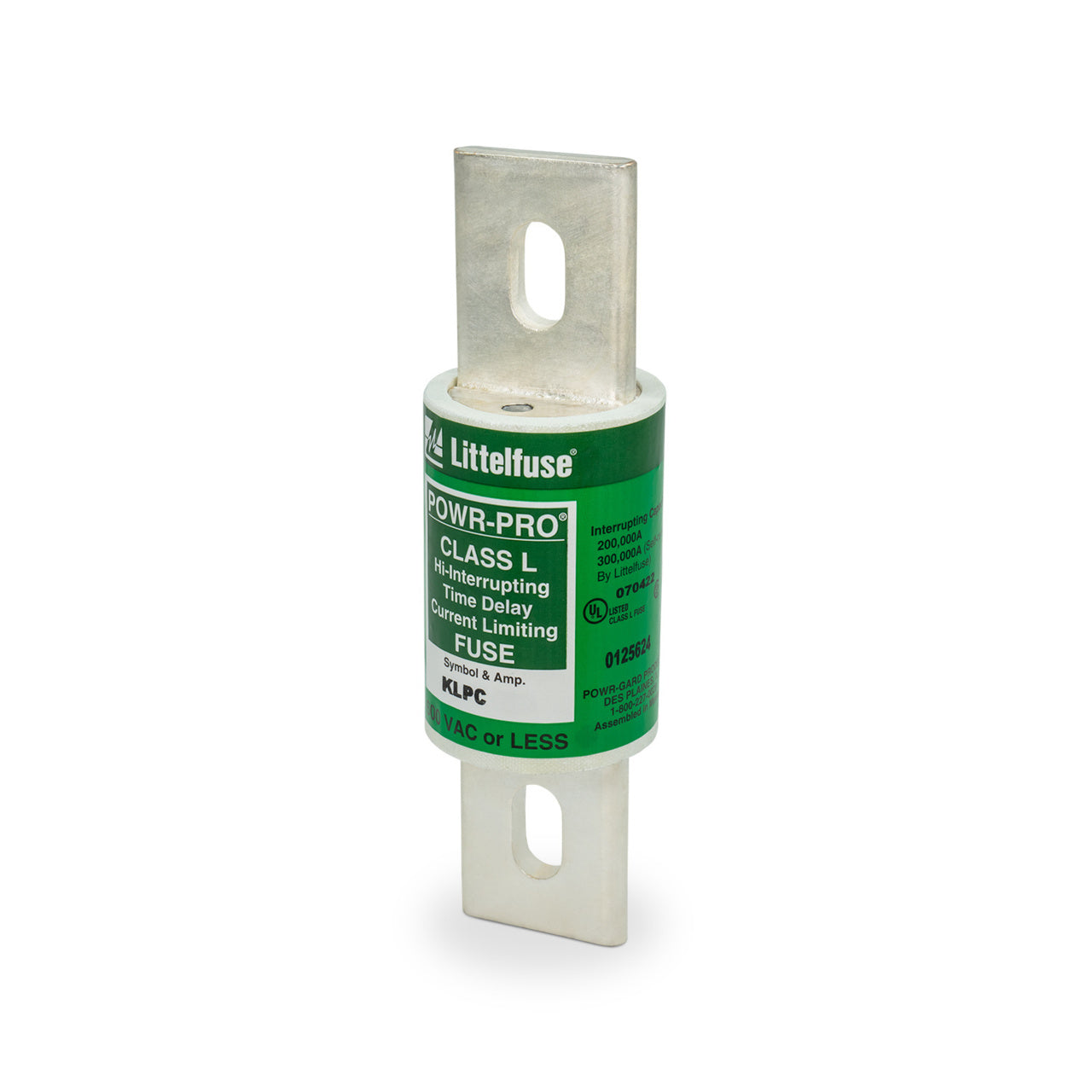

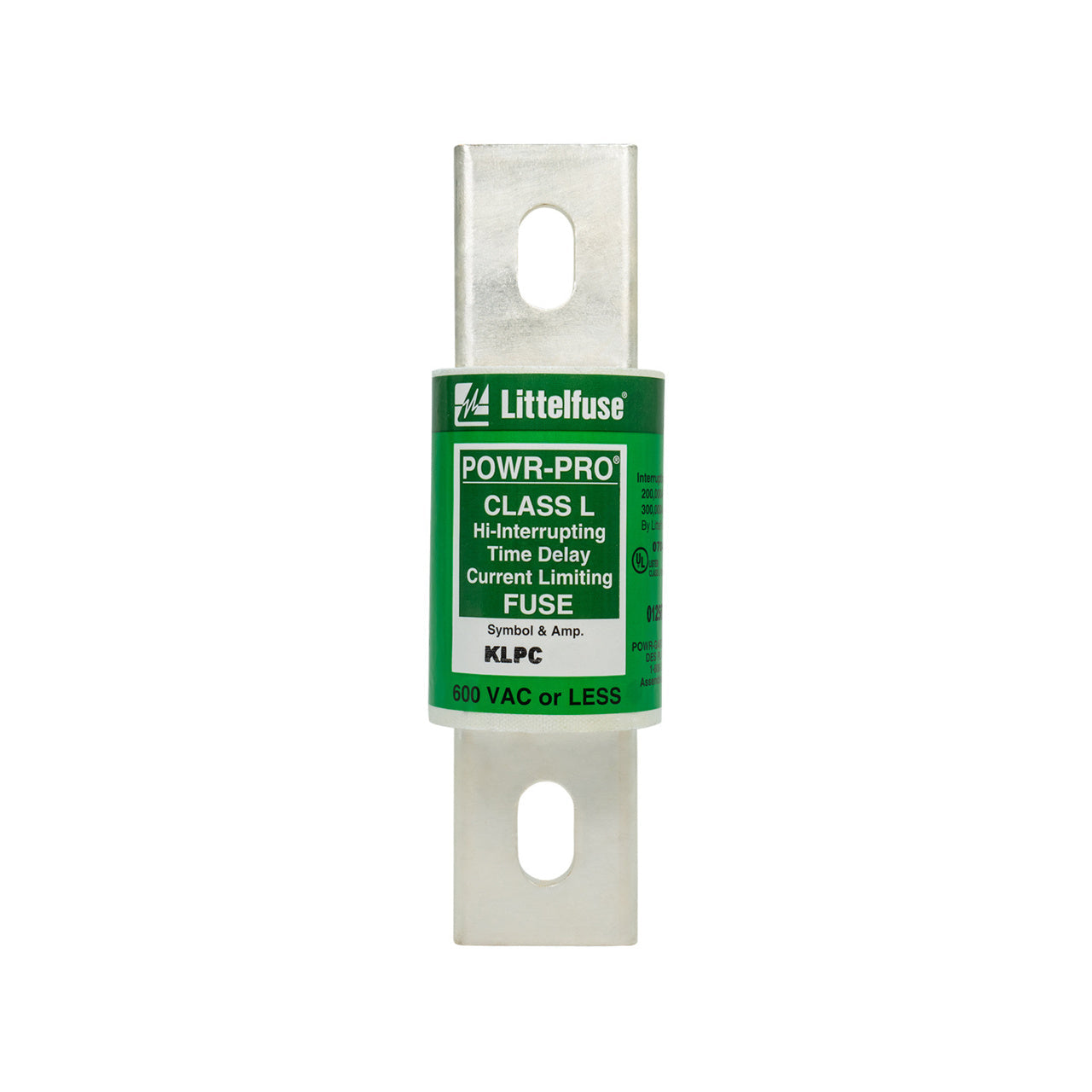

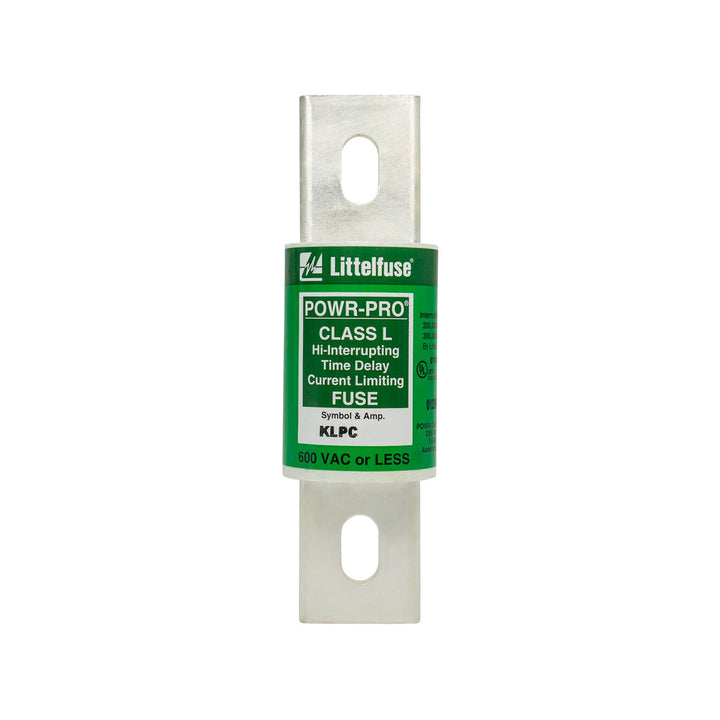

Littelfuse KLPC800 is a Class L bolt-in fuse designed for high-current circuit protection in industrial power distribution systems. Rated for 600V AC/DC operation with a 800A current capacity, it features a rugged 2.5-inch diameter design with 300kA interrupting capacity at rated voltage. The single-barrel construction with 6.75-inch clip centers meets UL/CSA standards for reliable performance in demanding environments. Typical applications include service entrance equipment, switchgear, and industrial control panels requiring robust short-circuit protection.
Key Features & Specifications
Type: Class L bolt-in fuse with single-barrel construction
Voltage Rating: 600V AC/DC
Current Rating: 800A
Dimensions: 2.5" diameter, 6.75" clip centers
Standards: UL/CSA listed
Applications: Industrial power distribution, switchgear, service entrance
AIC rating: 300kA@600V
Connection: Bolt-In
Class Rating: L
Weight: 3.62 lb
Product Identification
UPC: 079458301038
GTIN: 00079458301038
Same-day Shipping Available
Same-day Delivery Availabile
24/7 Customer Support
Littelfuse KLPC800 - Class L Bolt-In Fuse 800A@600V (300kA AIC)
