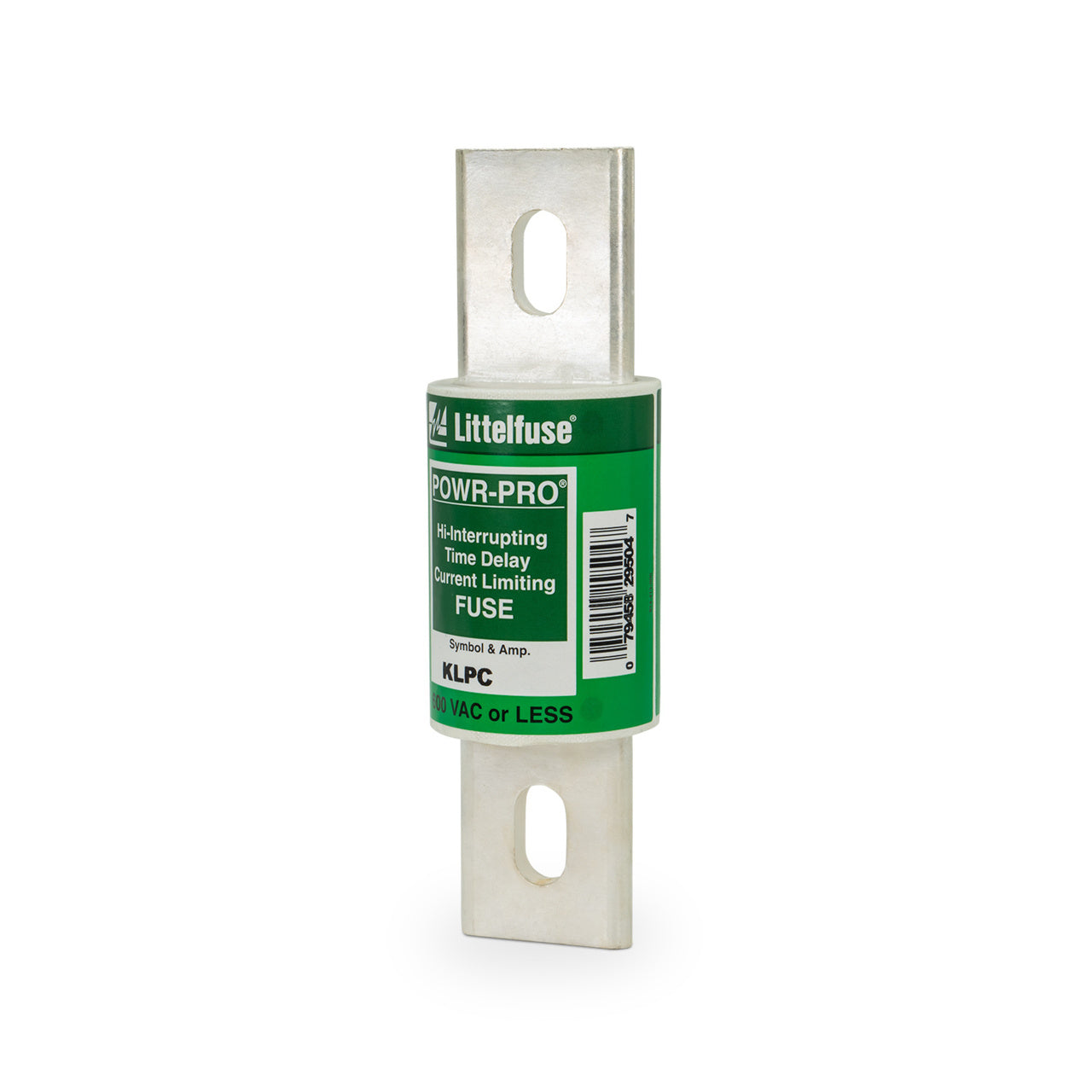

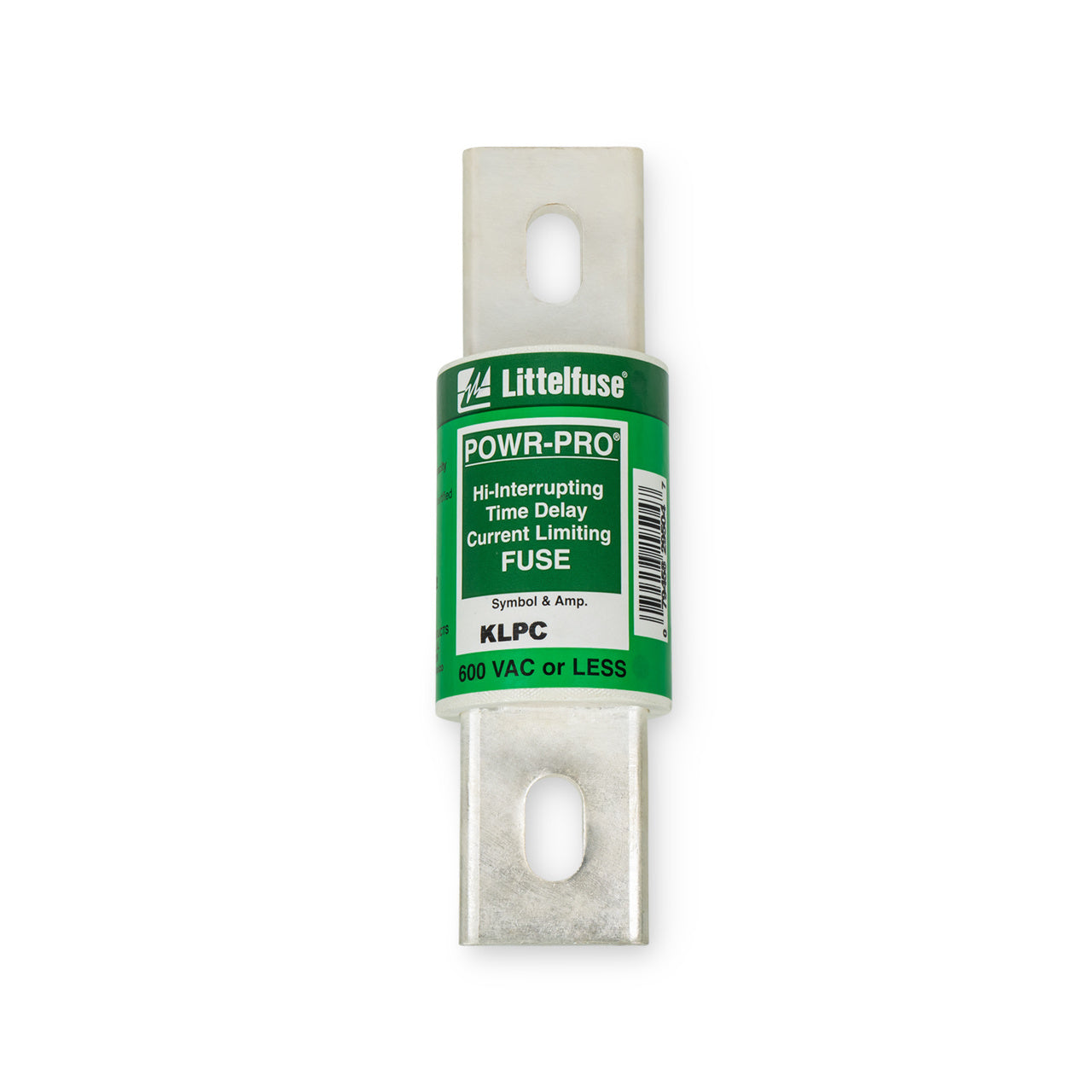

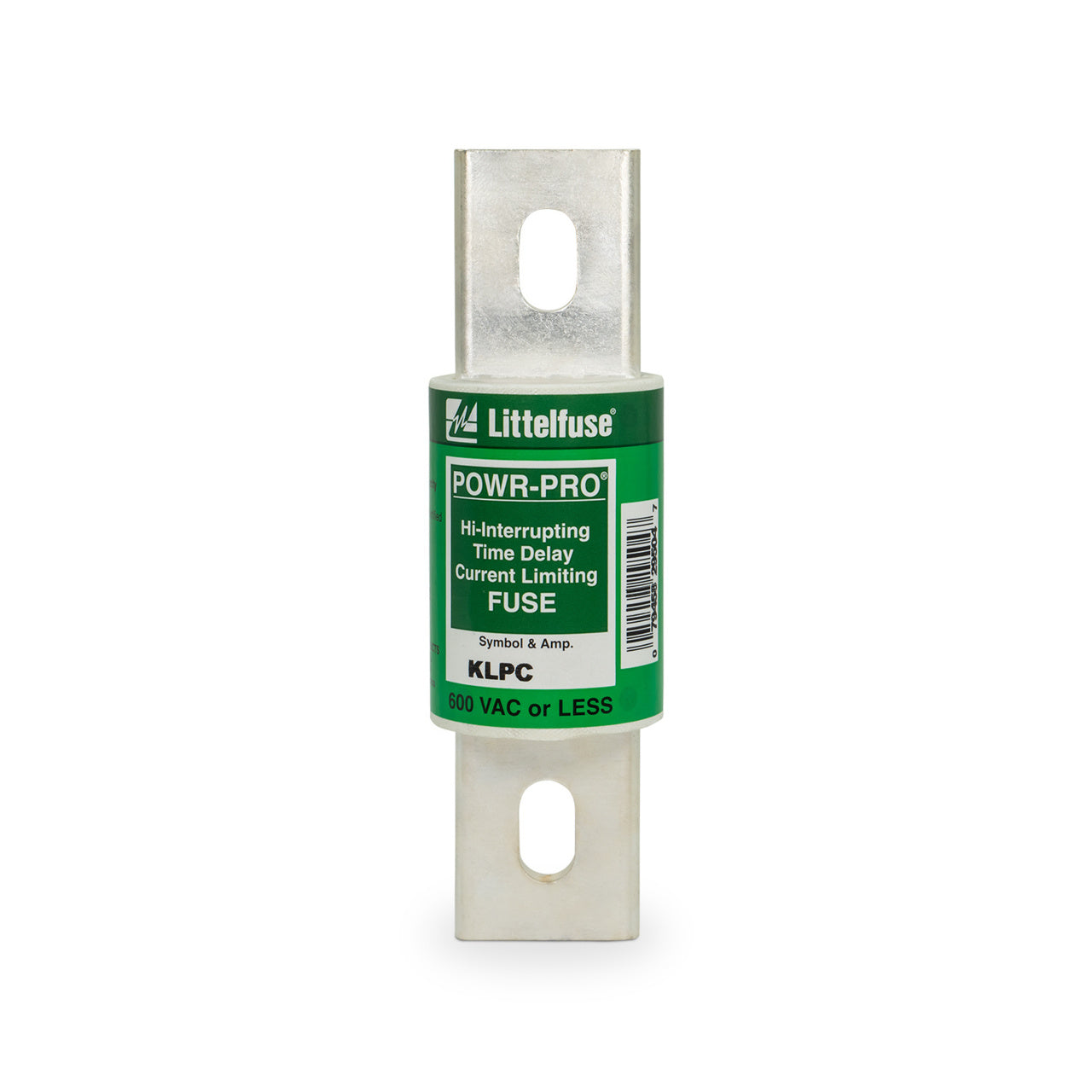

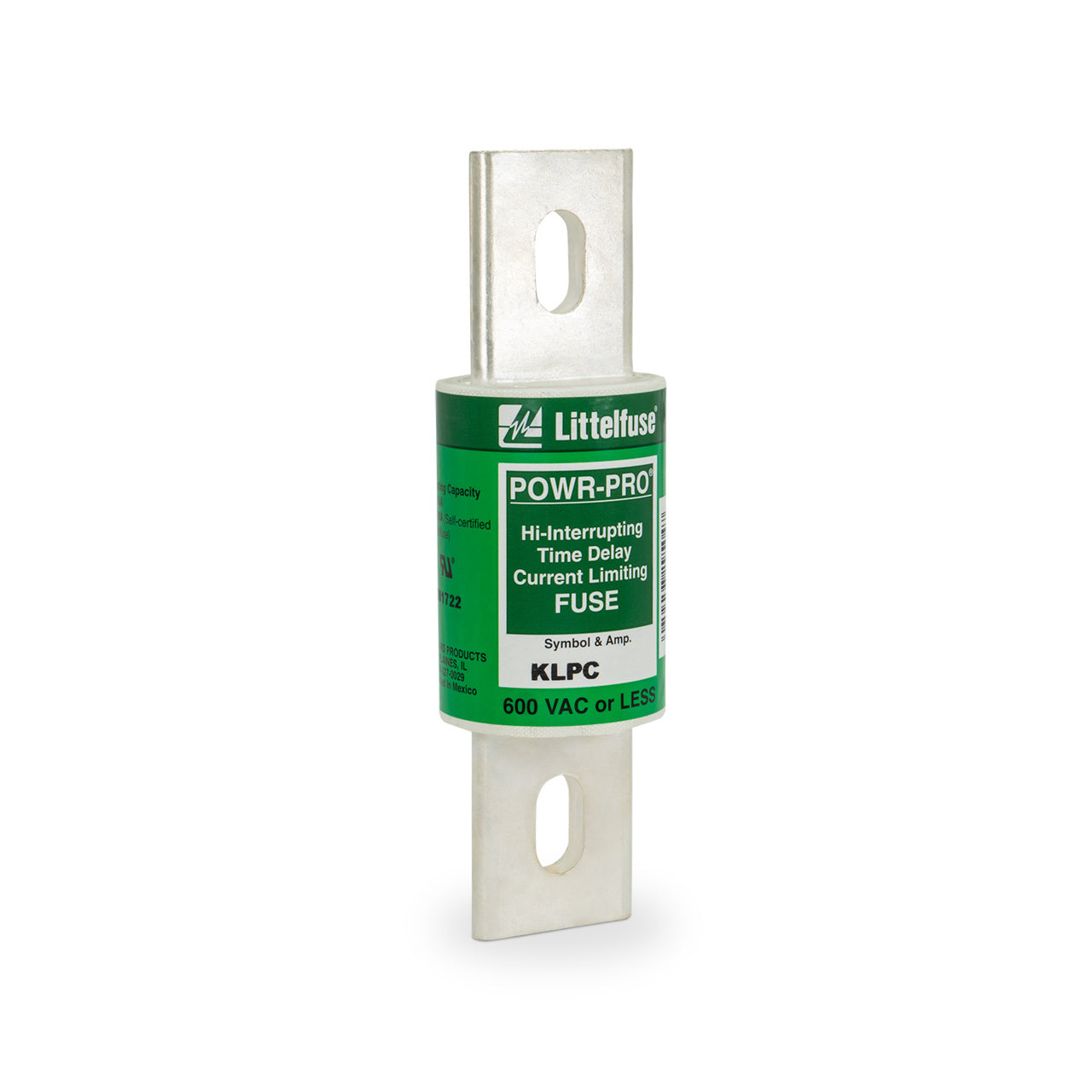

Littelfuse KLPC600 is a low-voltage bolt-in fuse designed for high-current circuit protection in industrial power distribution systems. Rated for 600V AC/DC with a 600A current capacity, it features a 300kA interrupting rating at 600V for reliable fault protection. The fuse has a compact 2.5" diameter bolt-in design with 6.75" clip centers and meets Class L standards for time-delay characteristics. UL-recognized and CSA-certified, this durable fuse is commonly used in motor control centers, switchgear, and industrial power panels requiring high interrupting capacity.
Key Features & Specifications
Type: Class L time-delay fuse, bolt-in configuration
Voltage Rating: 600V AC/DC
Current Rating: 600A
Dimensions: 2.5" diameter, 6.75" clip centers
Standards: UL Recognized, CSA Certified
Applications: Industrial power distribution, motor control centers, switchgear
AIC rating: 300kA@600V
Connection: Bolt-in
Barrels: 1
Class Rating: L
Weight: 3.62 lb
Product Identification
UPC: 079458295078
GTIN: 00079458295078
