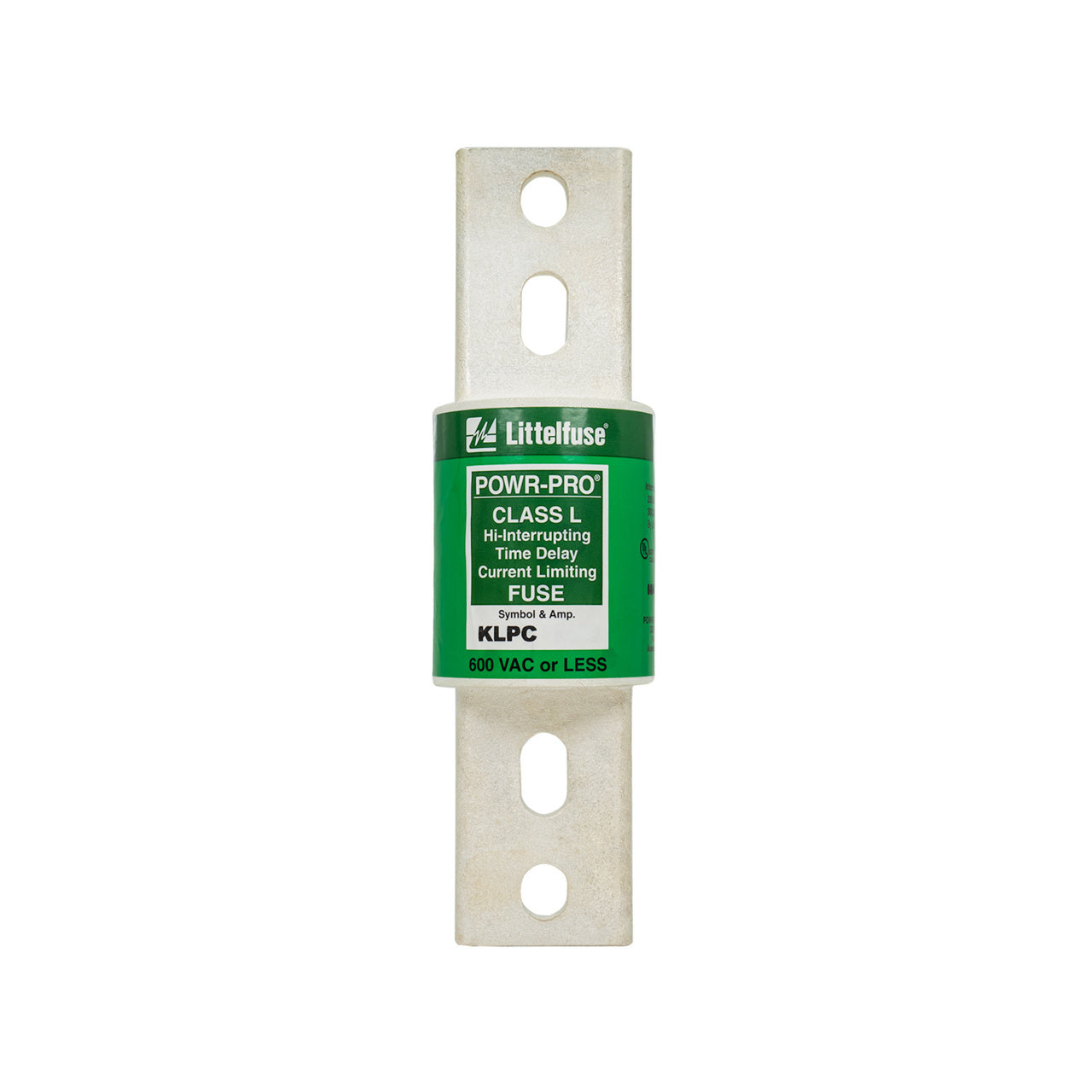

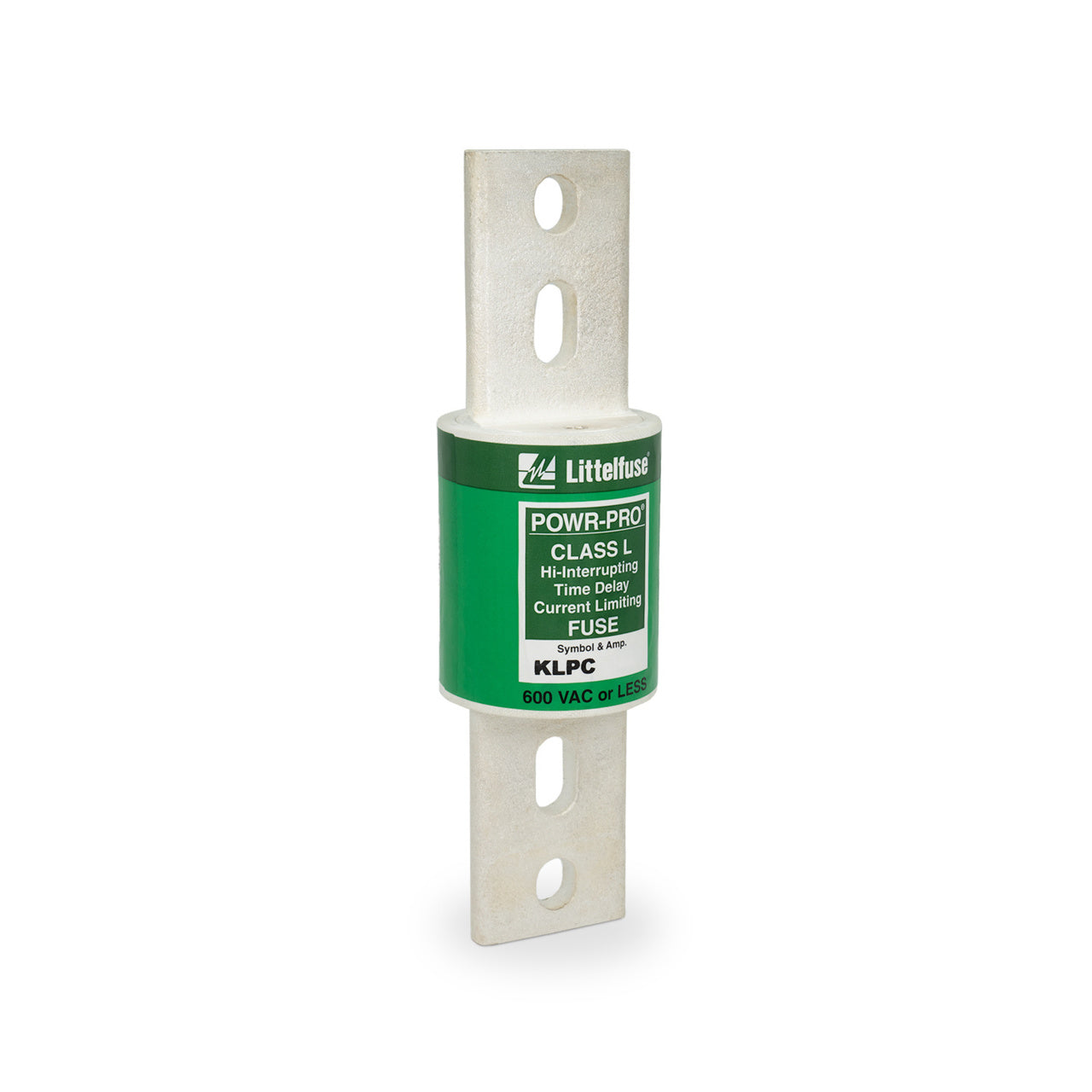

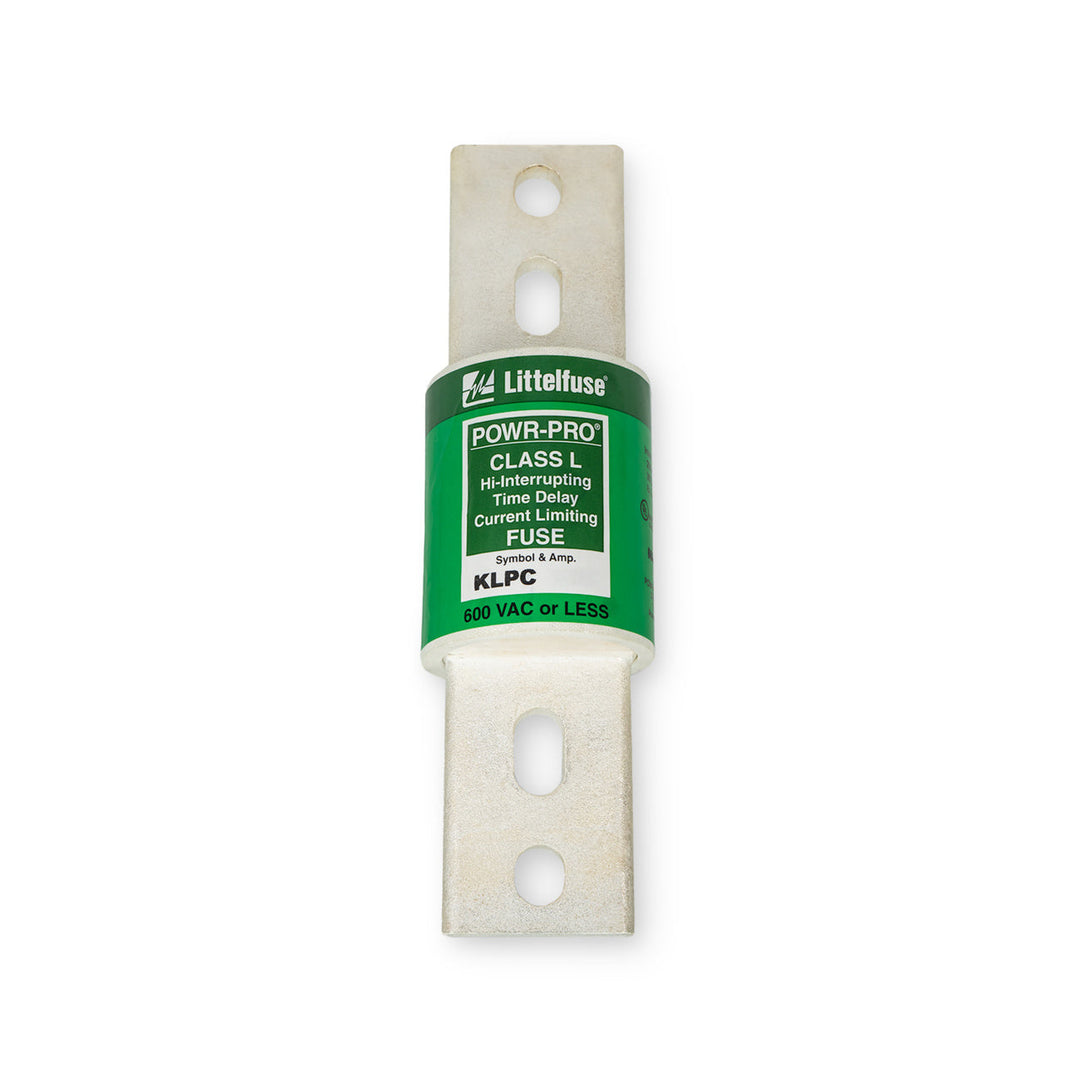

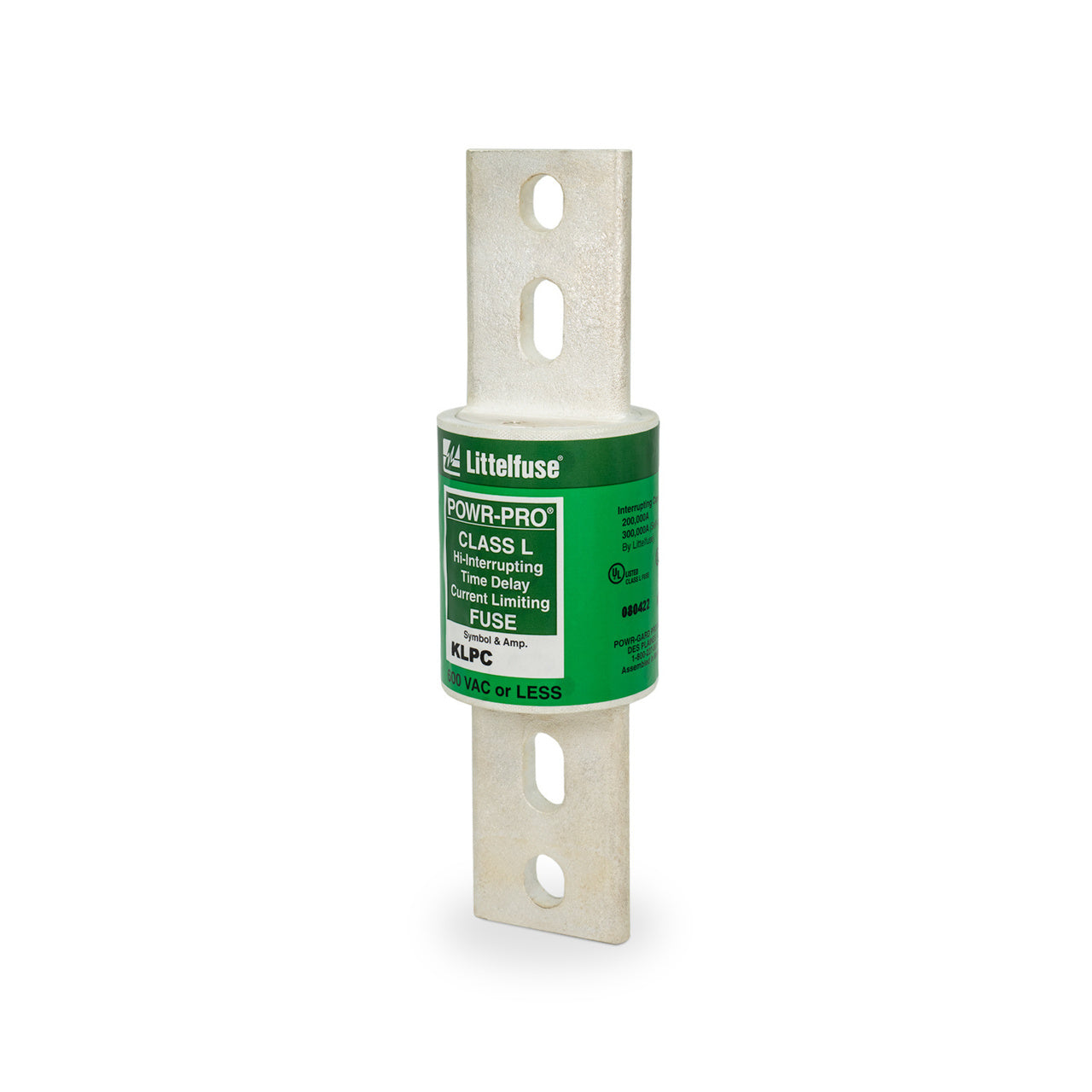

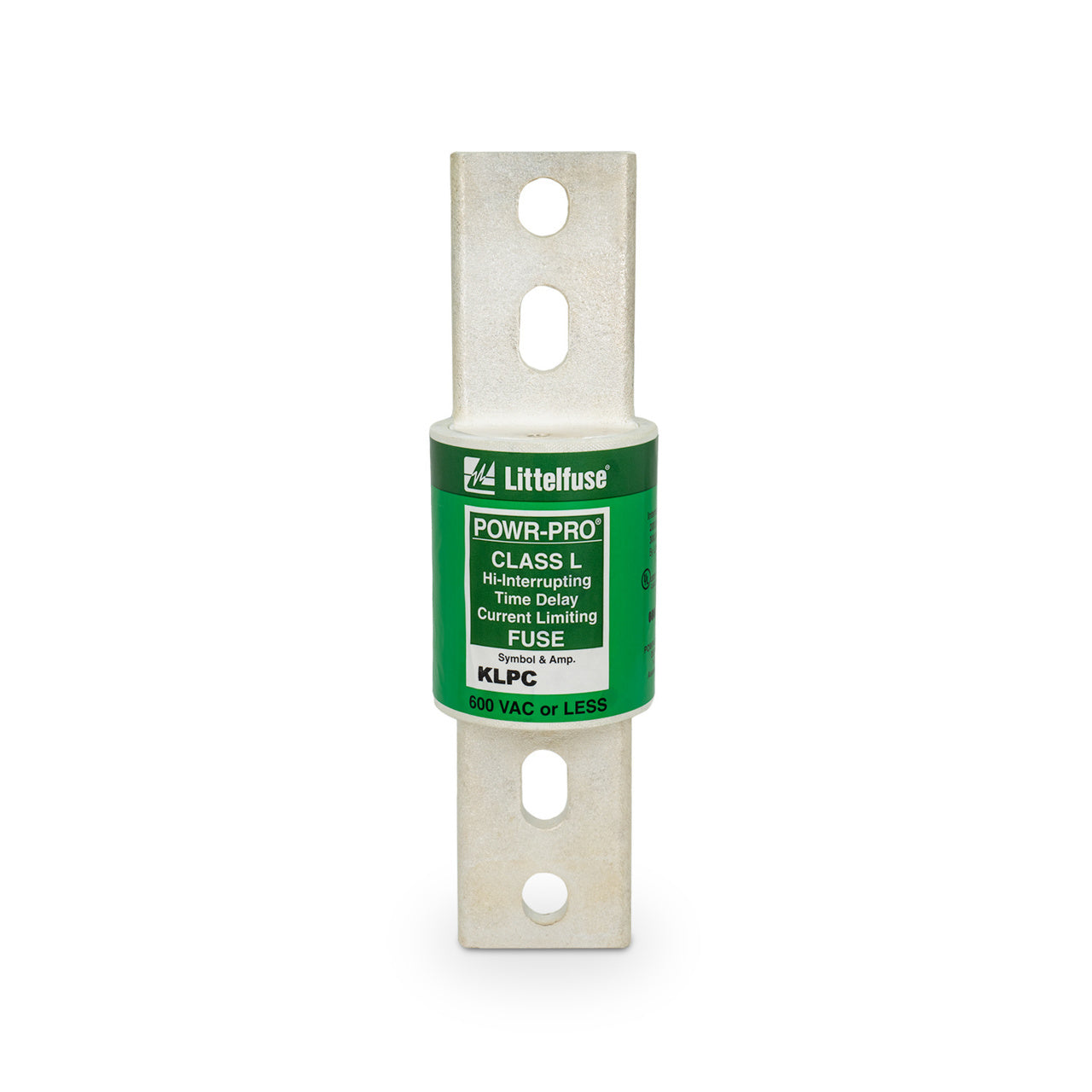

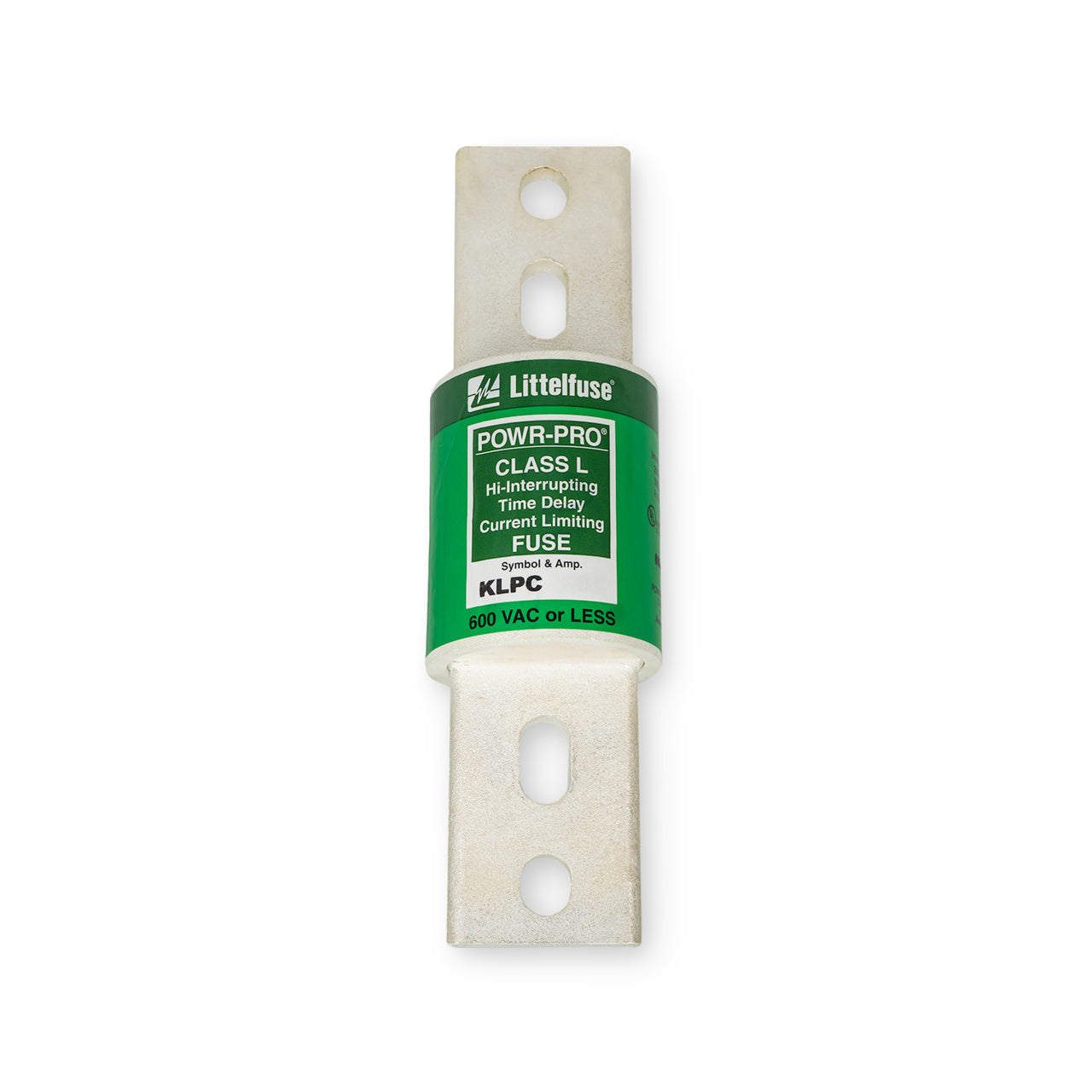

Littelfuse KLPC1600 - Class L Fuse 1600A 600V (300kA AIC)

Price
Regular price $1,153.30
Regular price $1,850.48 Sale price $1,153.30
Save $697.18
/
Title
  • Low stock - 3 items left
  • Backordered, shipping soon
Littelfuse KLPC1600 is a low-voltage current-limiting fuse designed for high-capacity circuit protection in industrial power distribution systems. This Class L fuse features a 600V AC rating with a 1600A current capacity and 300kA interrupting rating at 600V for reliable short-circuit protection. The bolt-on connection fuse has a robust 3-inch diameter construction with a 5 lb weight, meeting UL/CSA standards for safety and performance. Its current-limiting design provides enhanced equipment protection by rapidly interrupting fault currents. Typical applications include service entrance equipment, switchboards, and motor control centers requiring high interrupting capacity.

Key Features & Specifications
  • Type: Class L current-limiting fuse with bolt-on termination
  • Voltage Rating: 600V AC
  • Current Rating: 1600A
  • AIC Rating: 300kA @ 600V
  • Diameter: 3 inches
  • Weight: 5 lb
  • Standards: UL/CSA listed
  • Applications: Industrial power distribution, switchgear protection
  • Connection: Bolt-on
  • Class Rating: L
Product Identification
  • UPC: 079458301106
  • GTIN: 00079458301106
