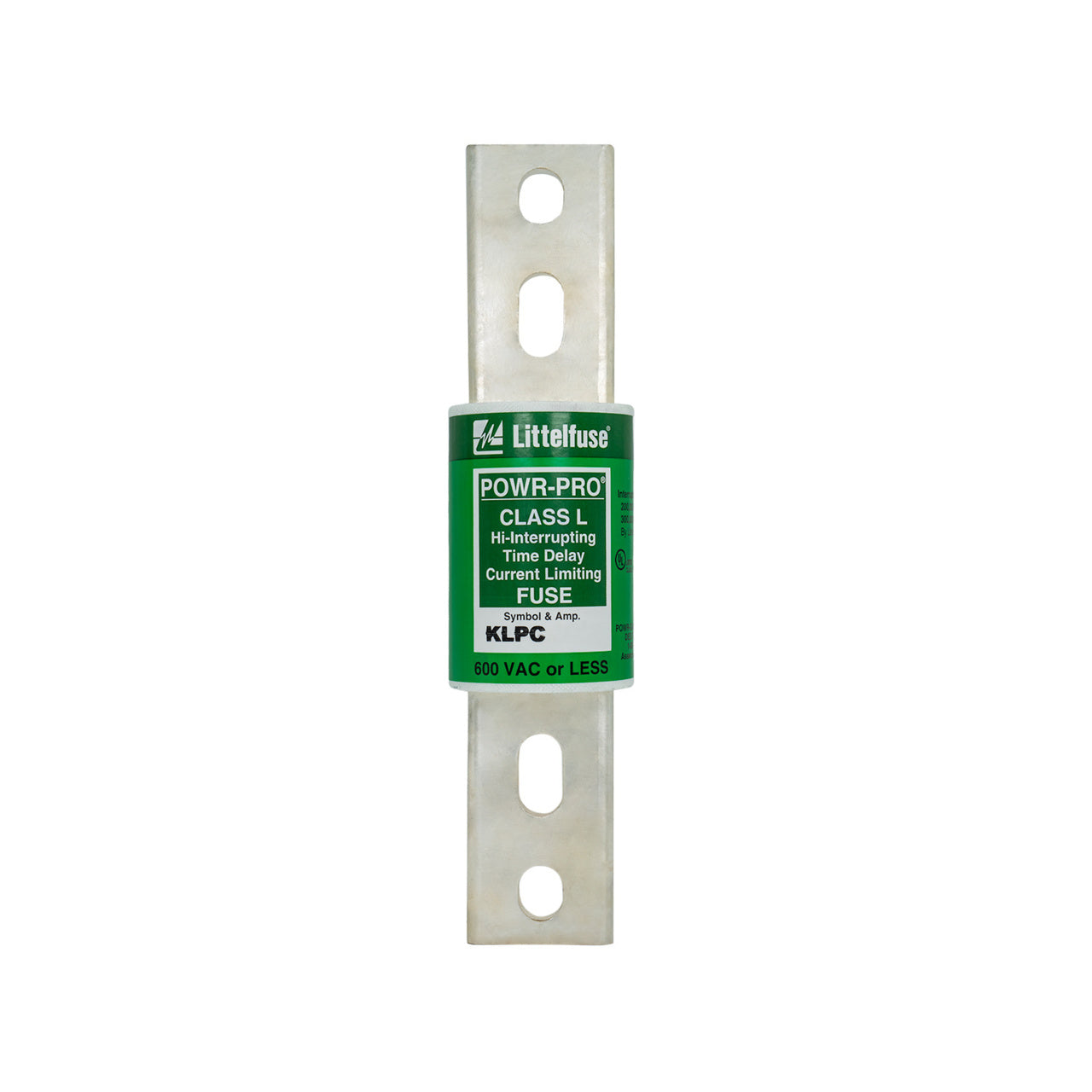

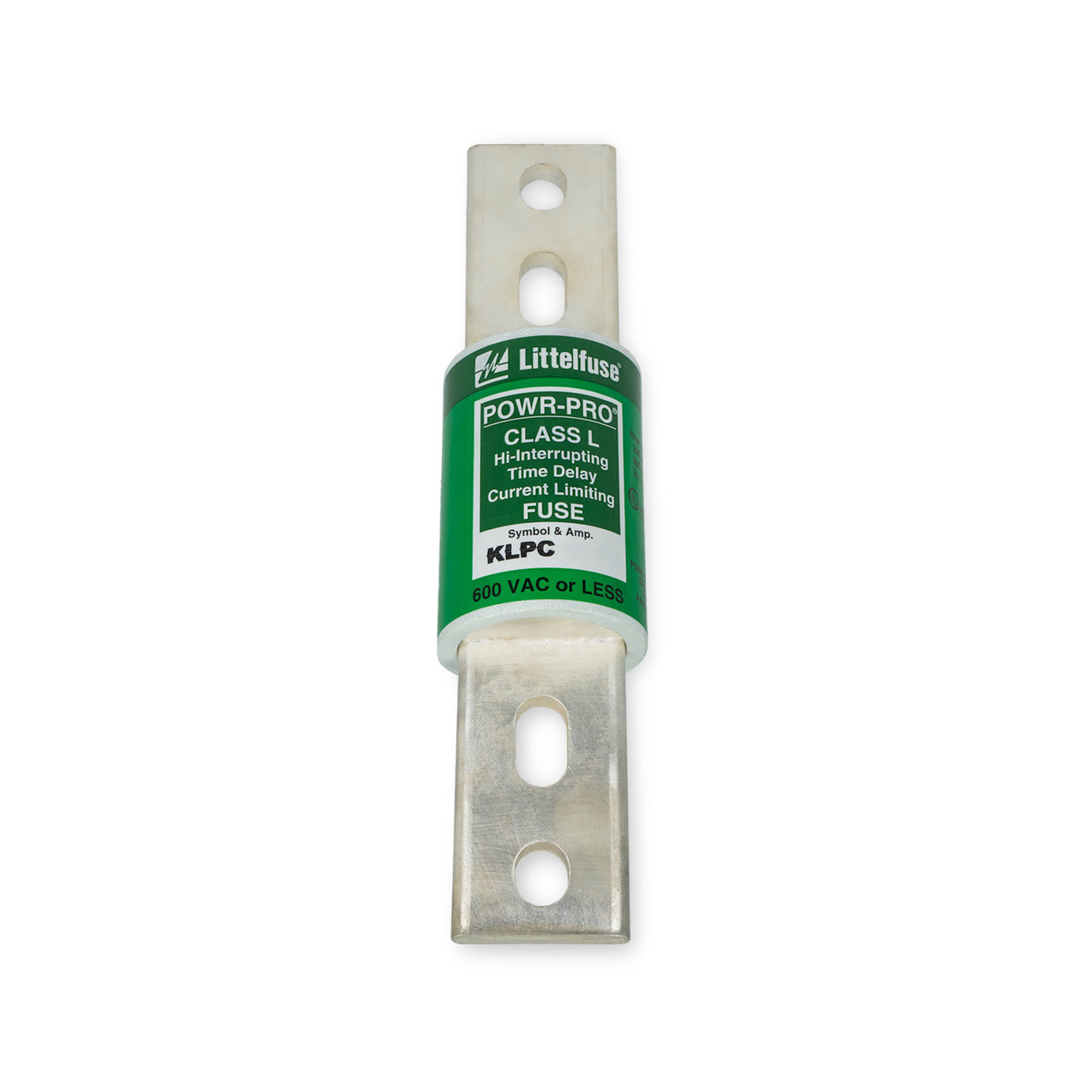

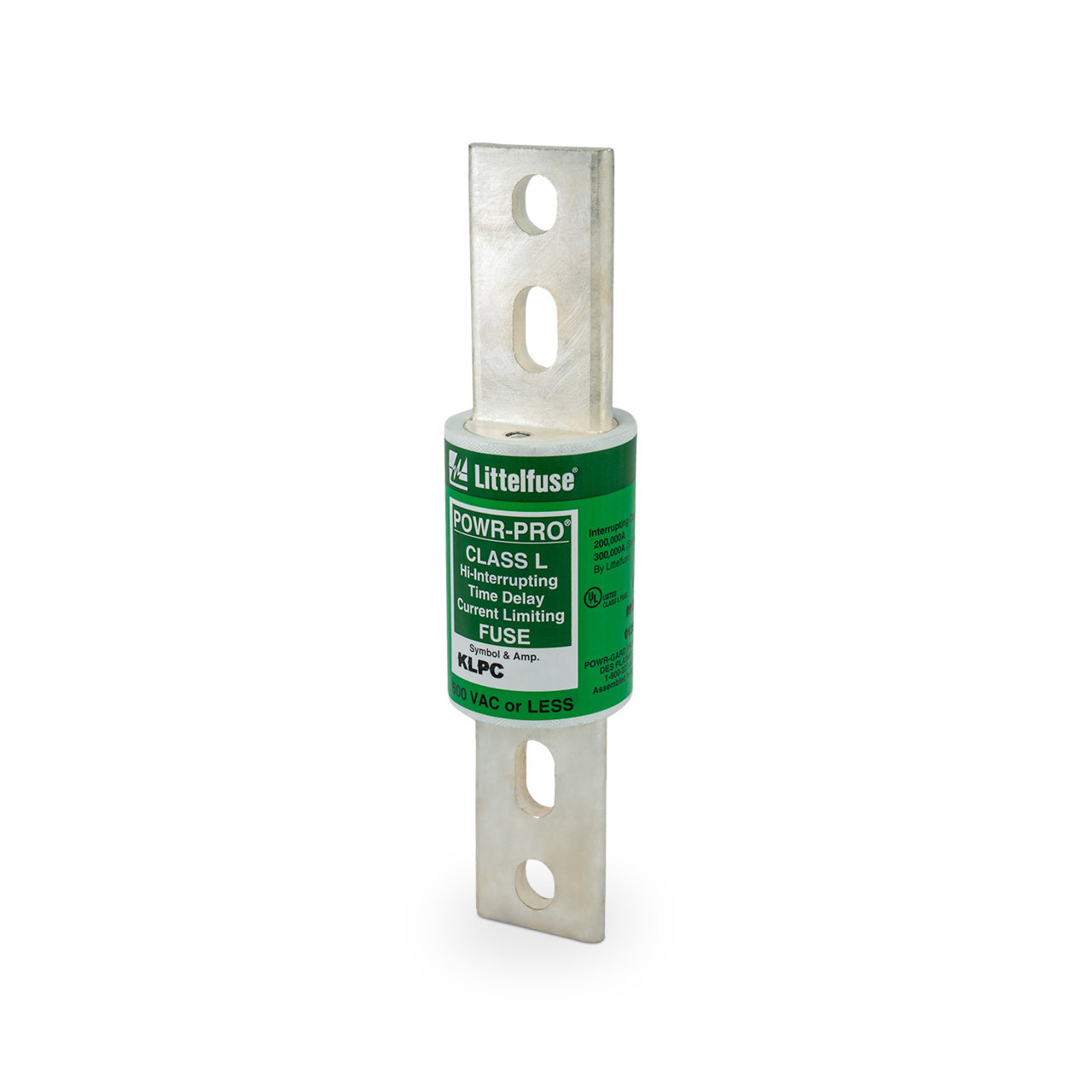

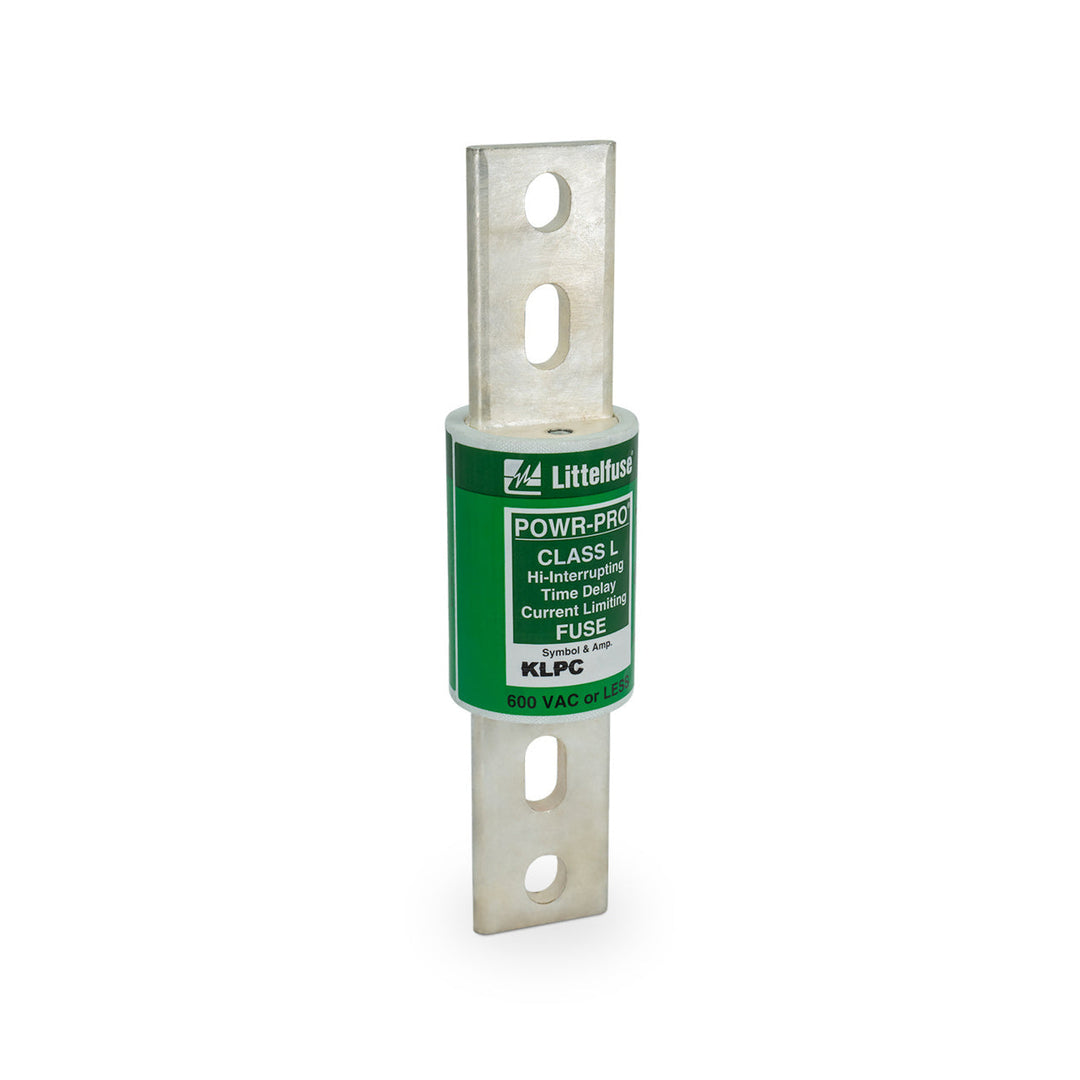

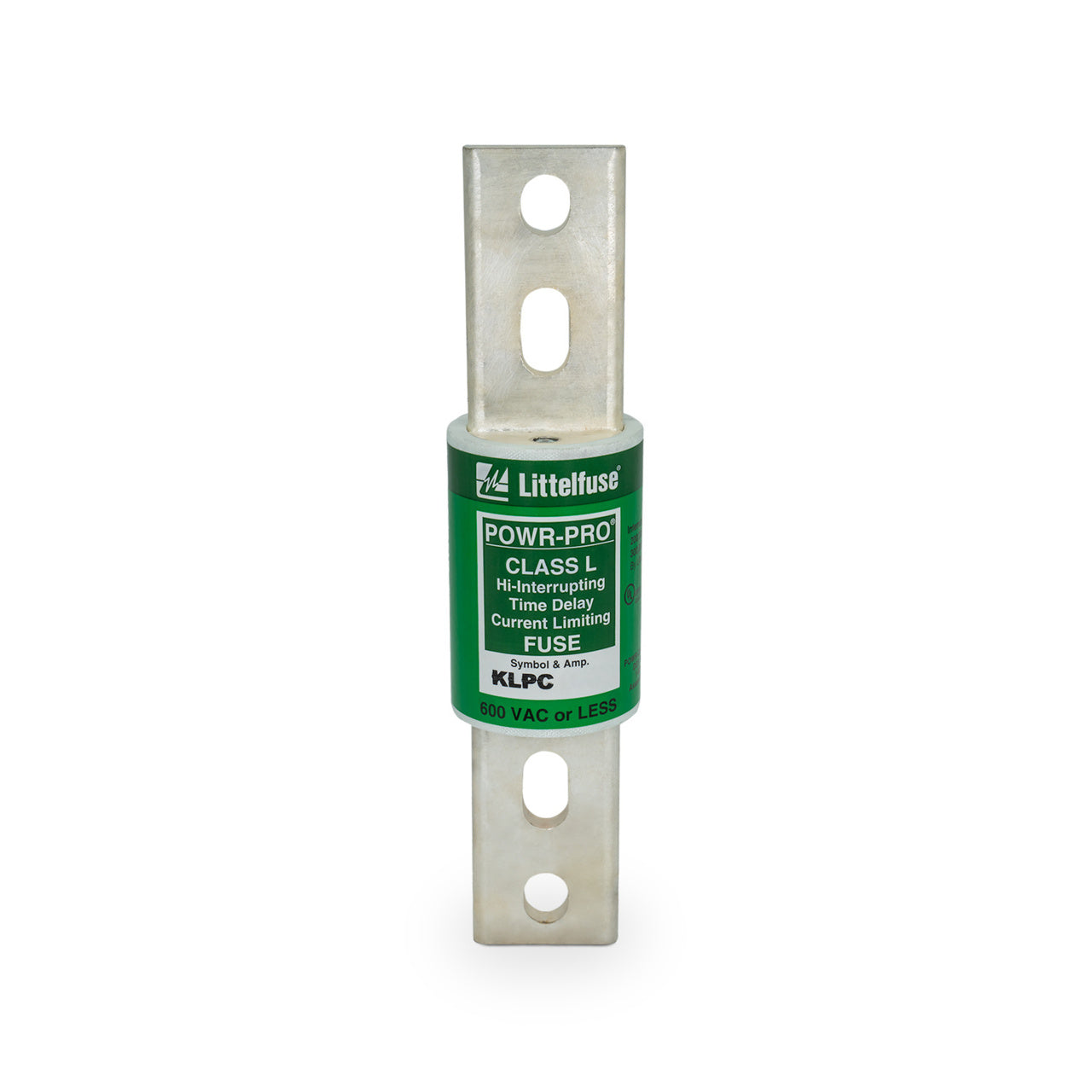

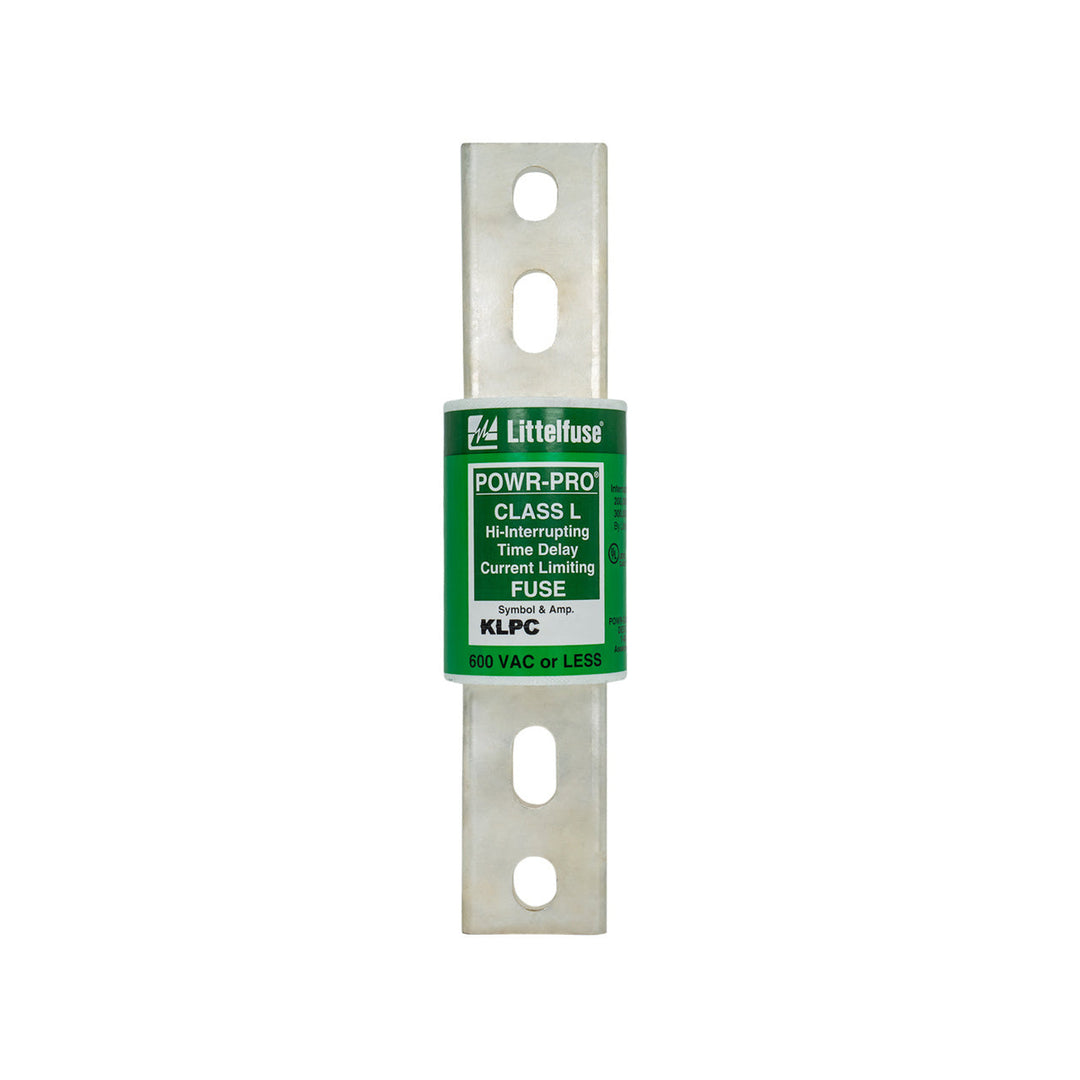

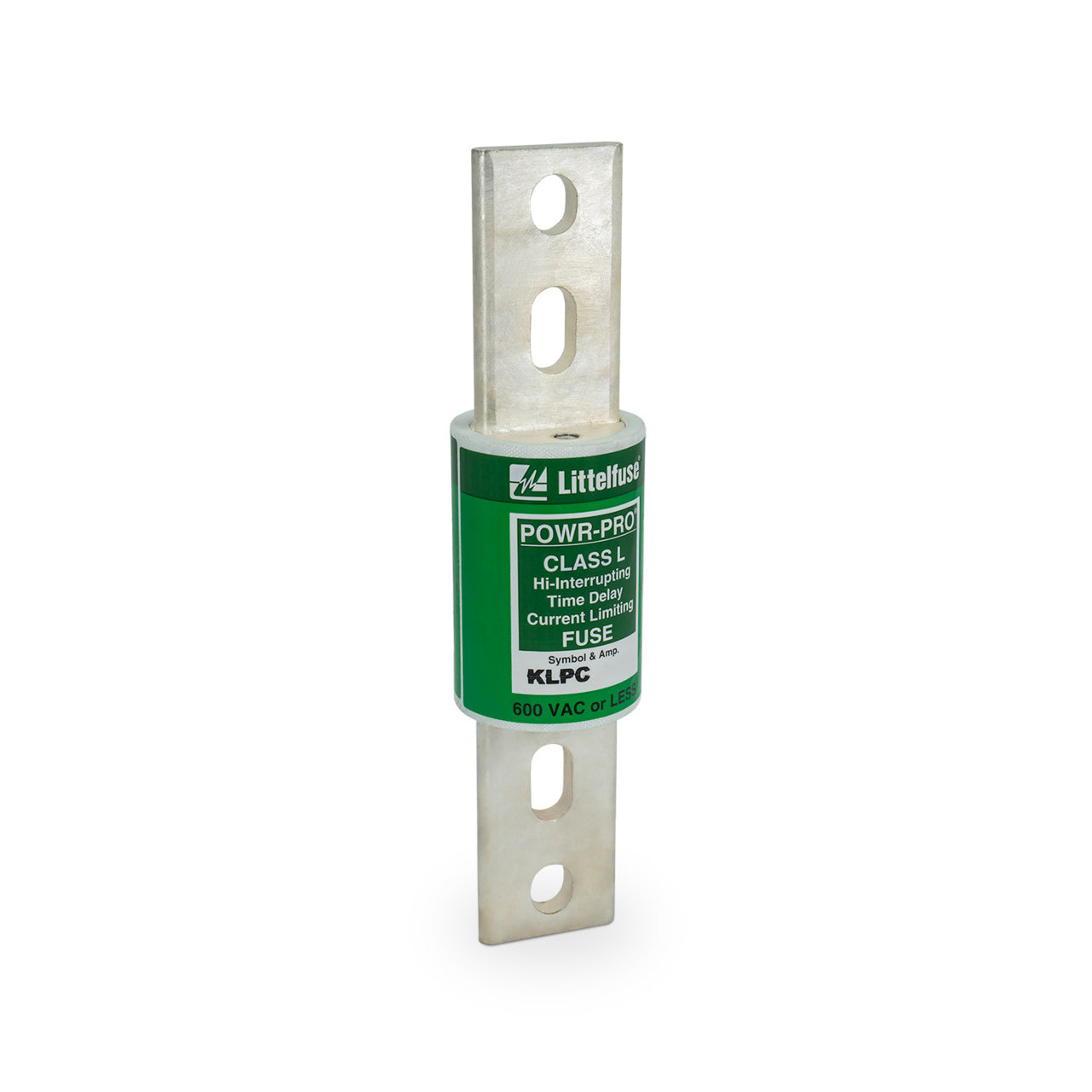

Littelfuse KLPC1000 is a Class L bolt-in fuse designed for high-current circuit protection in industrial power distribution systems. Rated for 600V AC/DC applications with a 1000A current capacity, it features a rugged 2.5-inch diameter design with 300kA interrupting capacity at rated voltage. The single-barrel construction with 6.75-inch clip centers meets UL/CSA standards for Class L fuses, providing reliable protection for motor control centers, service entrance equipment, and heavy industrial machinery requiring high fault current interruption.
Key Features & Specifications
Type: Class L current-limiting fuse with bolt-in connection
Voltage Rating: 600V AC/DC
Current Rating: 1000A
Dimensions: 2.5" diameter
Standards: UL/CSA Class L
Applications: Industrial power distribution, motor protection, service entrance
AIC rating: 300kA@600V
Connection: Bolt-In
Barrels: 1
Clip Center: 6.75"
Weight: 4.03 lb
Product Identification
UPC: 079458301052
GTIN: 00079458301052
