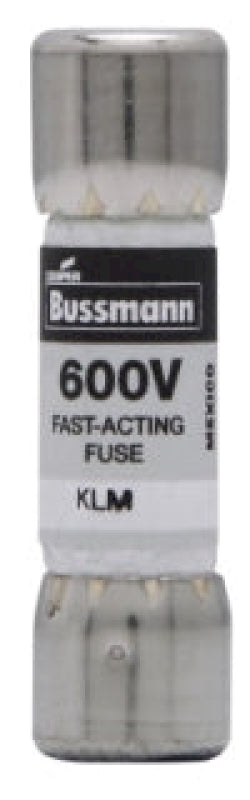

Eaton Bussmann KLM-12 - Low Voltage Fuse 12A 600V (100kA AIC Rating)

Eaton Bussmann KLM-12 is a low-voltage current-limiting fuse designed for overcurrent protection in industrial electrical systems. It features a 600V AC voltage rating with a 12A current rating, providing reliable circuit protection under demanding conditions. The fuse measures 1-1/2 inches in length with a 0.41-inch diameter ferrule connection and single-barrel construction, weighing 1 lb for robust physical durability. It meets CE, CSA, and UL Listed certification standards, ensuring compliance with international safety requirements. Typical applications include motor protection, transformer circuits, and industrial control panels where its 100kA interrupting rating at 600V delivers superior fault current protection.

Key Features & Specifications

• Type: Low-voltage current-limiting fuse, ferrule connection, single barrel
• Voltage Rating: 600V AC
• Current Rating: 12A
• Dimensions: 1-1/2 inch length, 0.41 inch diameter
• Standards: CE, CSA, UL Listed
• Applications: Motor protection, transformer circuits, industrial control panels
• AIC rating: 100kA@600V
• Connection: Ferrule
• Barrels: 1
• Certification: CE, CSA, UL Listed
• Weight: 1 lb
• Family: KLM Series
• Country of Origin: Mexico

Product Identification

• UPC: 051712562652
• GTIN: 00051712562652
