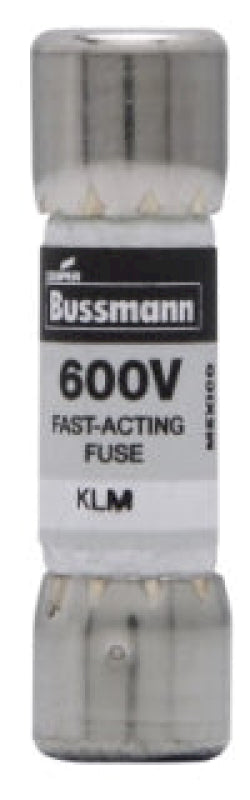

Bussmann KLM-10 - Low Voltage Fuse 10A (600V, 100kA AIC)

Bussmann KLM-10 is a low-voltage current-limiting fuse designed for industrial circuit protection applications. It features a 10A current rating and 600V voltage rating with ferrule connections for secure installation. The fuse measures 1-1/2 inches in length with a 0.41-inch diameter and is constructed as a single-barrel design weighing 1 lb. Certified to CE, CSA, and UL standards, it provides 100kA interrupting capacity at 600V for reliable protection in demanding industrial environments including motor control centers, industrial control panels, and power distribution systems.

Key Features & Specifications

• Type: Low-voltage current-limiting fuse with ferrule connection, single barrel construction
• Voltage Rating: 600V AC
• Current Rating: 10A
• Dimensions: 1-1/2 inch length, 0.41 inch diameter
• Standards: CE, CSA, UL Listed
• Applications: Industrial control panels, motor control centers, power distribution systems
• Connection: Ferrule
• Barrels: 1
• AIC rating: 100kA@600V
• Certification: CE, CSA, UL Listed
• Weight: 1 lb
• Family: KLM Series
• Country of Origin: Mexico

Product Identification

• UPC: 051712695152
• GTIN: 00051712695152
