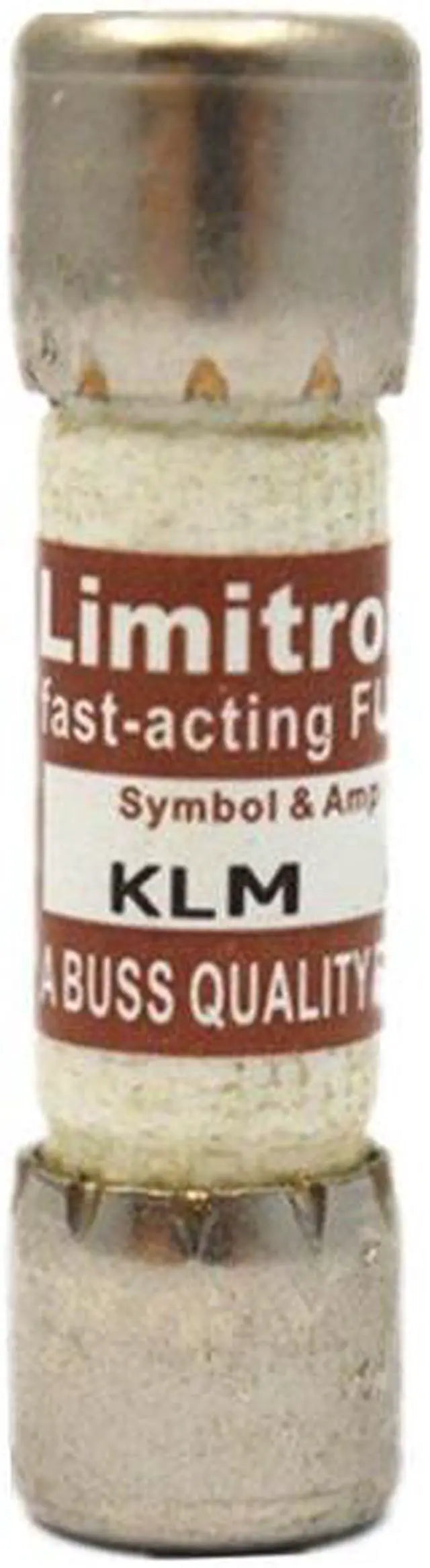

Eaton Bussmann KLM-1-1/2 - KLM Fuse 1A (100kA AIC, 600V)
Eaton Bussmann KLM-1-1/2 - KLM Fuse 1A (100kA AIC, 600V)
Eaton Bussmann KLM-1-1/2 - KLM Fuse 1A (100kA AIC, 600V)
Eaton Bussmann KLM-1-1/2 - KLM Fuse 1A (100kA AIC, 600V)

Eaton Bussmann KLM-1-1/2 - KLM Fuse 1A (100kA AIC, 600V)

Bussmann
Price
Save $1,166.05
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Eaton Bussmann KLM-1-1/2 is a low-voltage, current-limiting fuse designed for protecting electrical circuits and equipment from overcurrent and short-circuit faults. It features a 1A current rating and a 600V AC voltage rating, with a compact physical construction measuring 1-1/2 inches in length and 0.41 inches in diameter using a single-barrel, ferrule connection design. The fuse is certified to CE, CSA, and UL standards and offers an interrupting rating of 100,000 amperes at 600V AC. Its typical applications include industrial control panels, motor branch circuits, and transformer protection where reliable, high-interrupting capacity is required.

Key Features & Specifications
  • Type: KLM Series, current-limiting, low-voltage fuse with ferrule connection
  • Voltage Rating: 600V AC
  • Current Rating: 1A
  • Dimensions: 1-1/2 in length, 0.41 in diameter
  • Standards: CE, CSA, UL Listed
  • Applications: Industrial control circuits, motor protection, transformer protection
  • AIC rating: 100kA @ 600V AC
  • Connection: Ferrule
  • Barrels: 1
  • Certification: CE, CSA, UL Listed
  • Family: KLM Series
  • Country of Origin: Mexico
  • Weight: 0.18 lb


Product Identification
  • UPC: 051712695084
  • GTIN: 00051712695084
