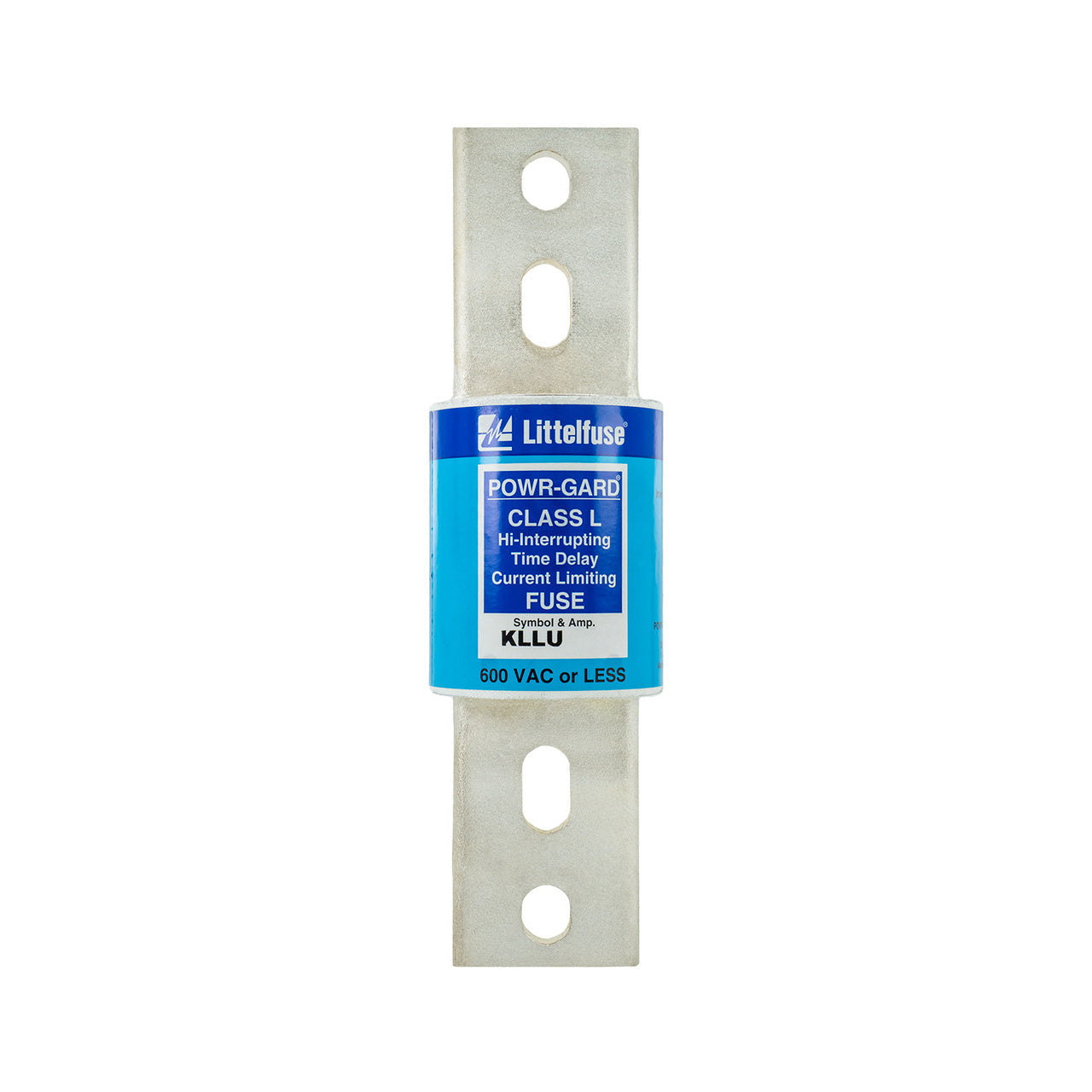

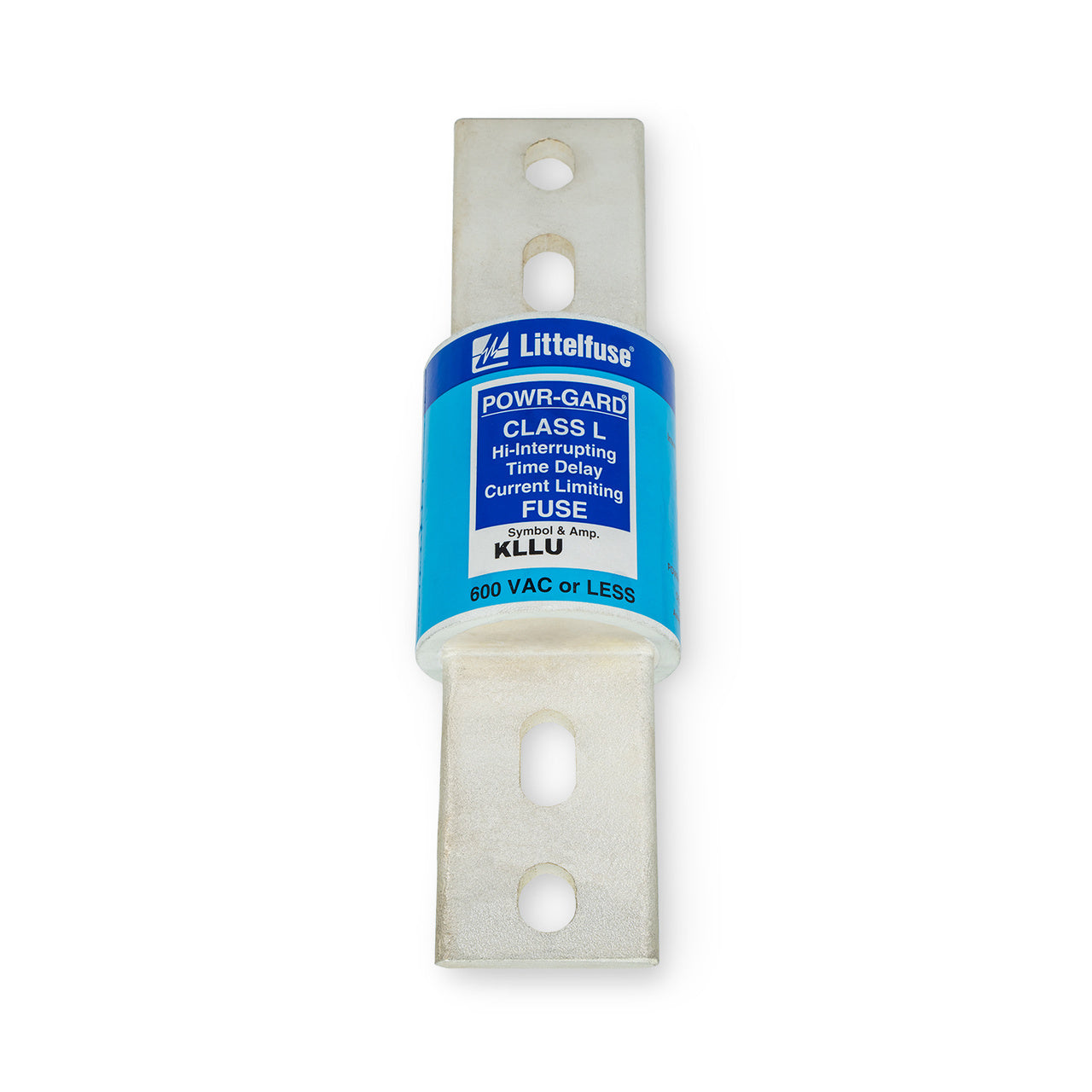

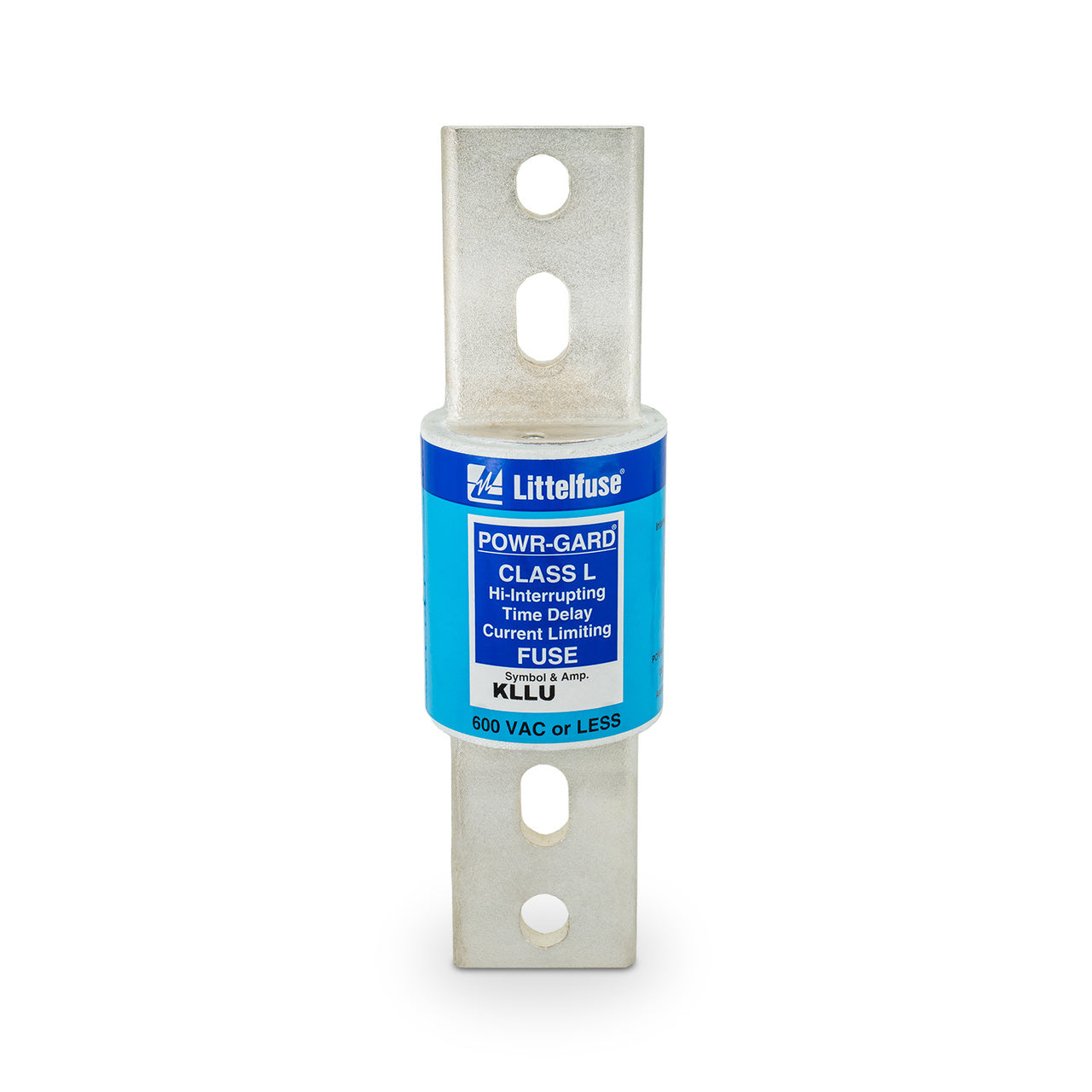

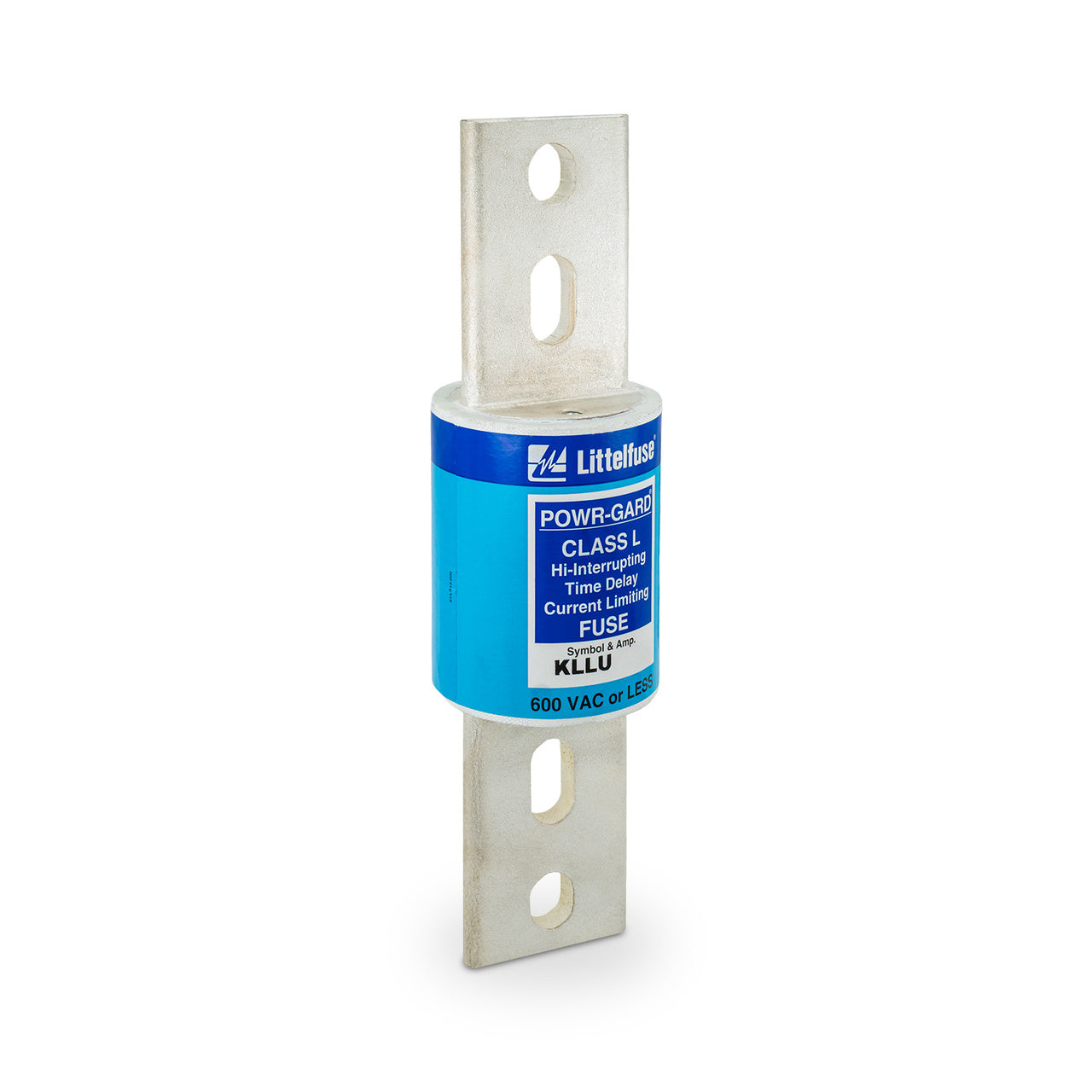

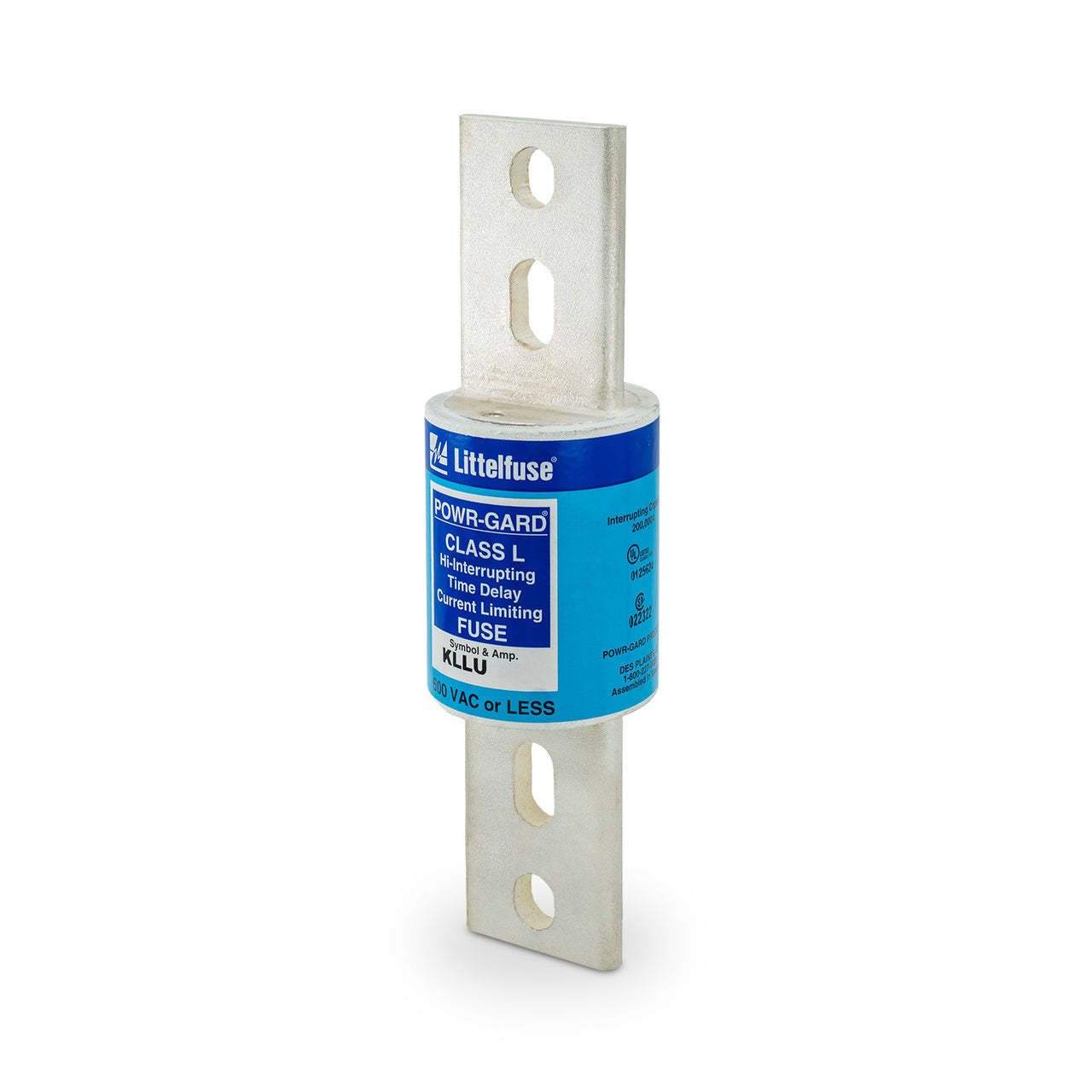

Littelfuse KLLU750 is a low-voltage bolt-in fuse designed for high-current circuit protection in industrial power distribution systems. Rated for 600V AC/DC applications with a 750A current capacity, this Class L fuse features a robust single-barrel construction with a 2-inch diameter and 200kA interrupting rating at 600V for reliable fault protection. The 3 lb bolt-in design meets stringent industry standards for high-performance electrical safety in demanding environments. Typical applications include switchgear, motor control centers, and service entrance equipment where high interrupting capacity is critical.
Key Features & Specifications
Type: Class L bolt-in fuse with single-barrel construction
Voltage Rating: 600V AC/DC
Current Rating: 750A
Dimensions: 2" diameter
Standards: UL/CSA certified
Applications: Industrial power distribution, switchgear, motor control centers
AIC rating: 200kA@600V
Connection: Bolt-In
Weight: 3 lb
Class Rating: L
Product Identification
UPC: 079458271027
GTIN: 00079458271027
