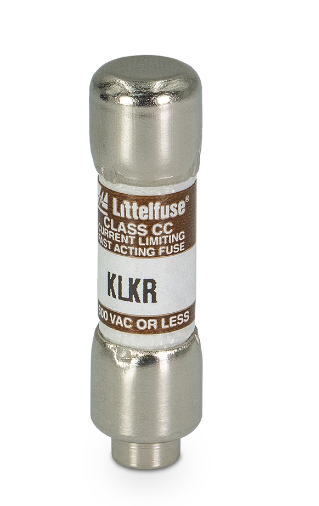

Littelfuse KLKR8 - Class CC Fuse 8A 600V (200kA AIC)

Littelfuse KLKR8 is a Class CC fuse from the Powr-Gard family designed for low-voltage circuit protection in industrial applications. It features a 600V AC/DC voltage rating with an 8A current rating and provides high interrupting capacity with 200kA AIC rating at 600V. The fuse construction includes a single barrel design with 0.41-inch diameter and weighs 7 lb, meeting industry standards for reliable overcurrent protection. This fuse complies with relevant safety standards and is typically used in industrial control panels, motor branch circuits, and power distribution systems where Class CC protection is required.

Key Features & Specifications

• Type: Class CC current-limiting fuse, single barrel construction
• Voltage Rating: 600V AC/DC
• Current Rating: 8A
• Dimensions: 0.41-inch diameter
• Standards: UL/CSA Class CC
• Applications: Industrial control panels, motor protection, power distribution
• AIC rating: 200kA@600V
• Class Rating: CC
• Barrels: 1
• Weight: 7 lb
• Item Subcategory: Low Voltage
• Family: Powr-Gard
