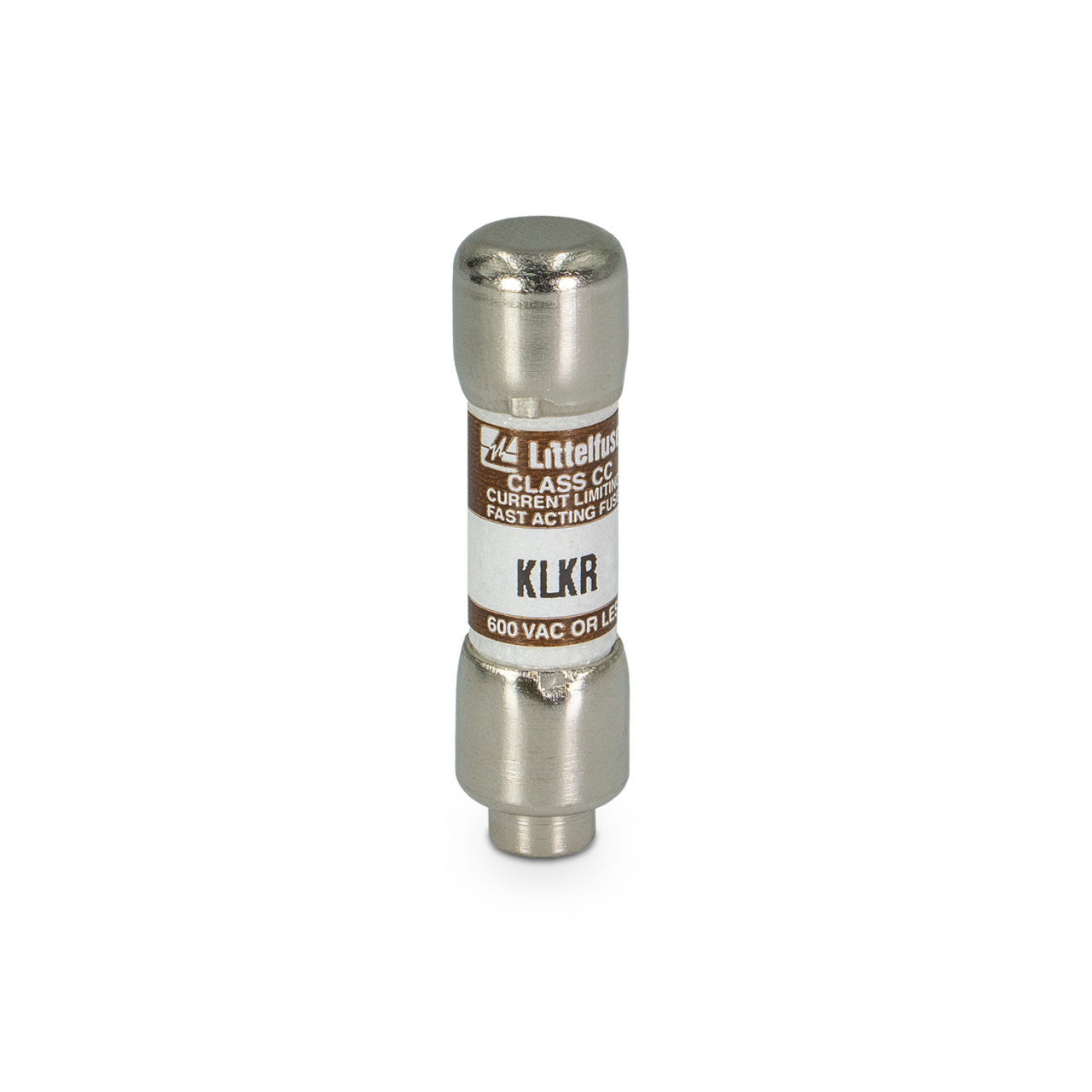

Littelfuse KLKR30 - Class CC Fuse 30A 600V (200kA AIC)

Littelfuse KLKR30 is a Class CC current-limiting fuse designed for protecting control circuits, transformers, and motors in industrial applications. It features a 600V AC voltage rating and a 30A current rating, providing reliable overcurrent protection. The fuse is constructed as a single-barrel design with a 0.41-inch diameter and weighs 5.19 lb, built to withstand harsh industrial environments. It complies with industry standards for current-limiting fuses and offers an interrupting rating of 200kA at 600V AC. Typical applications include industrial control panels, motor branch circuits, and transformer protection where high fault current interruption is critical.

Key Features & Specifications

• Type: Class CC current-limiting fuse, single barrel design
• Voltage Rating: 600V AC
• Current Rating: 30A
• Dimensions: 0.41-inch diameter
• Standards: Class CC fuse standards
• Applications: Control circuits, transformers, motor protection
• AIC rating: 200kA@600V AC
• Class Rating: CC
• Barrels: 1
• Weight: 5.19 lb
• Family: Powr-Gard
• Item Subcategory: Low Voltage
