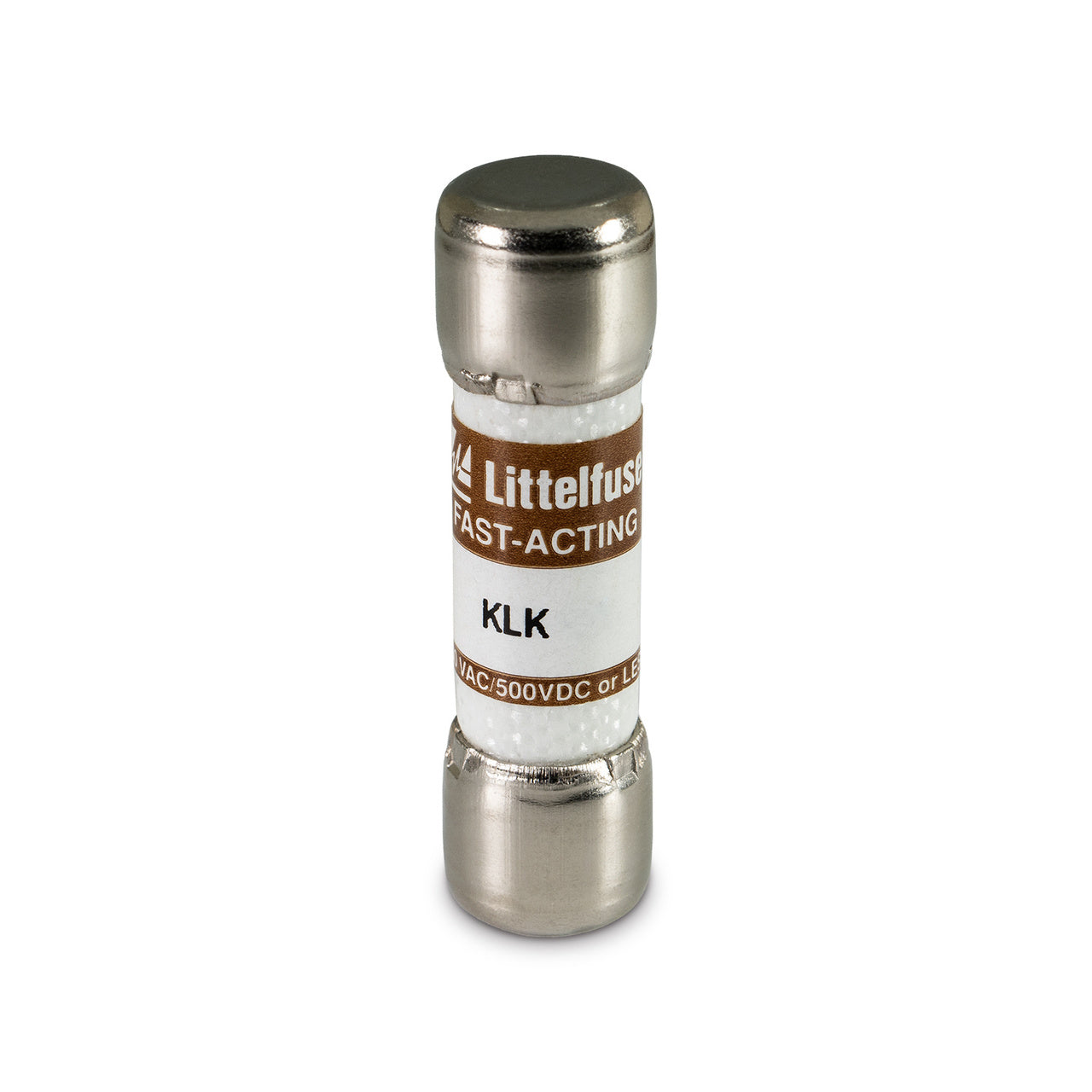

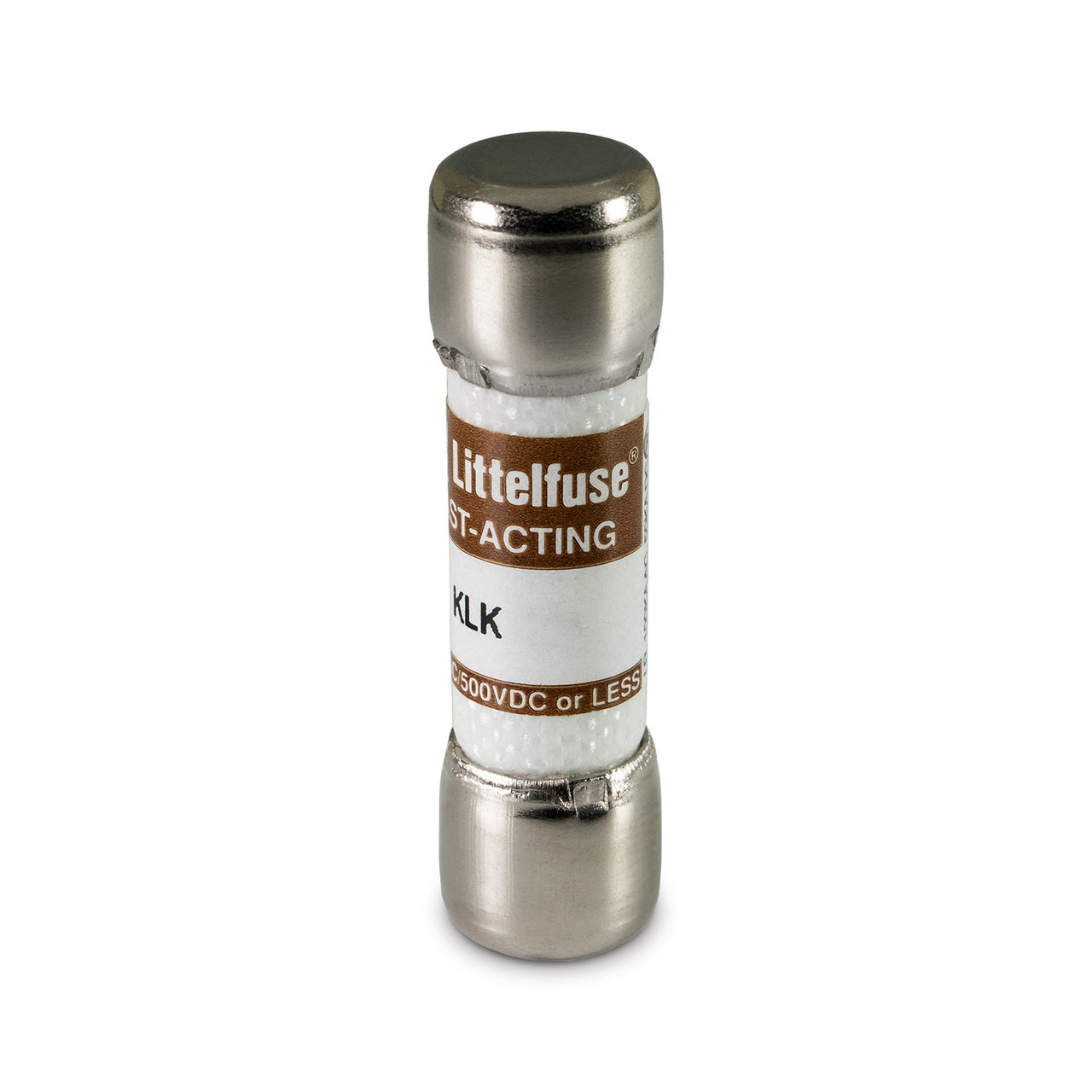

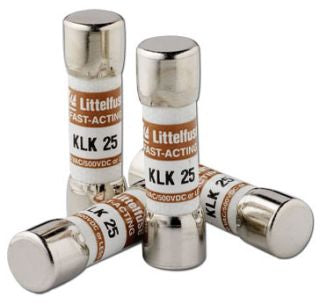

Littelfuse KLK025 - Fast-Acting Midget Fuse 25A (600V 100kA Interrupt Rating)

Littelfuse KLK025 is a fast-acting midget fuse designed for overcurrent protection in low-voltage circuits. It features a 600V AC/DC voltage rating with a 25A current rating and a compact ferrule connection design measuring 1-1/2 inches in length and 0.41 inches in diameter. The fuse meets UL, CSA, CE, QPL, and RoHS certifications with a 100kA interrupting capacity at 600V, making it suitable for industrial control panels, power supplies, and electrical equipment requiring reliable circuit protection.

Key Features & Specifications

• Type: Fast-acting midget fuse with single-barrel ferrule construction
• Voltage Rating: 600V AC/DC
• Current Rating: 25A
• Dimensions: 1-1/2 in length x 0.41 in diameter
• Standards: UL Listed, CSA Certified, CE, QPL, RoHS compliant
• Applications: Industrial control systems, power distribution, electrical equipment
• Class Rating: Midget
• Connection: Ferrule
• Barrels: 1
• Velocity: FA (Fast Action)
• AIC rating: 100kA@600V
• Weight: 8.4 lb
• Country of Origin: Mexico

Product Identification

• UPC: 079458250725
• GTIN: 00079458250725
