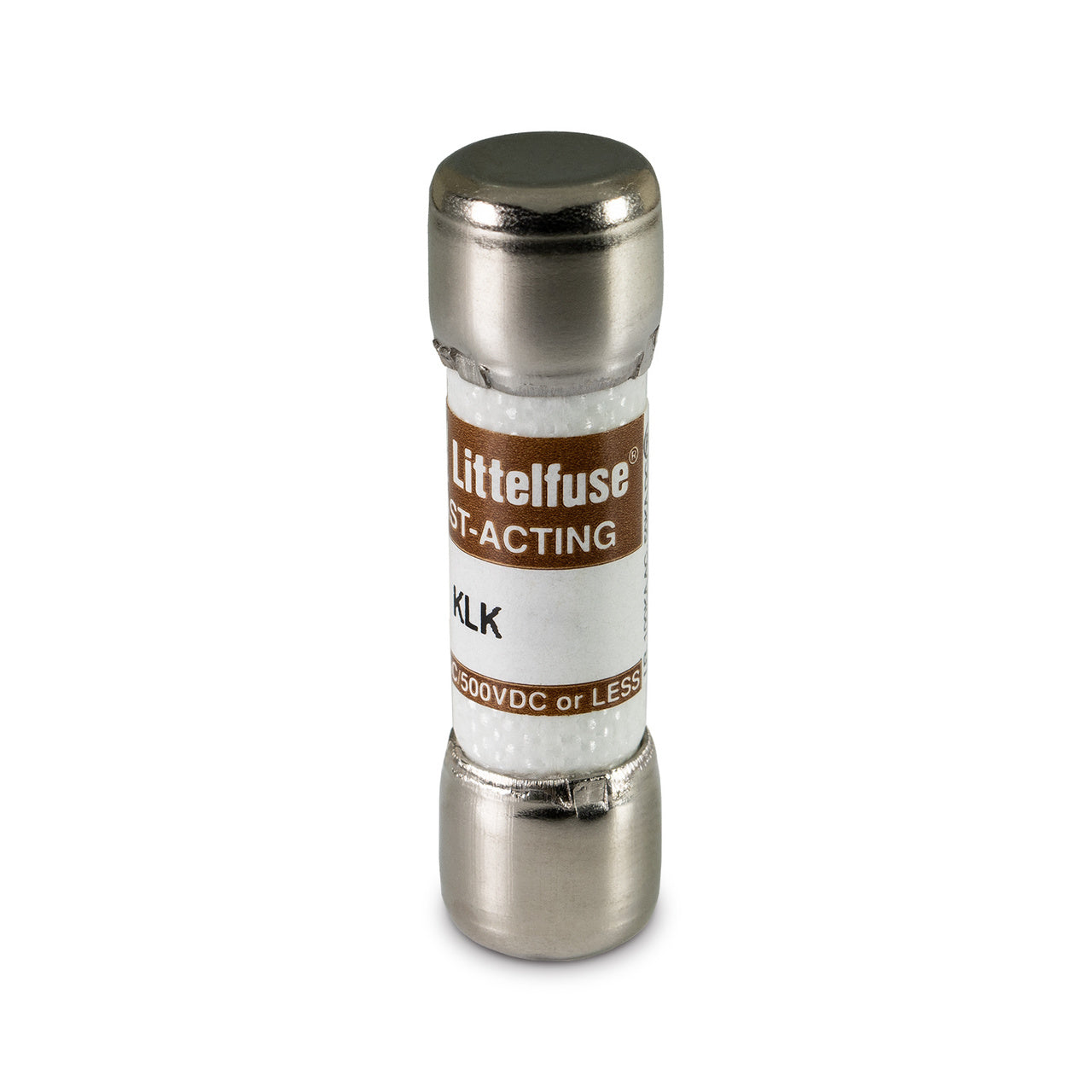

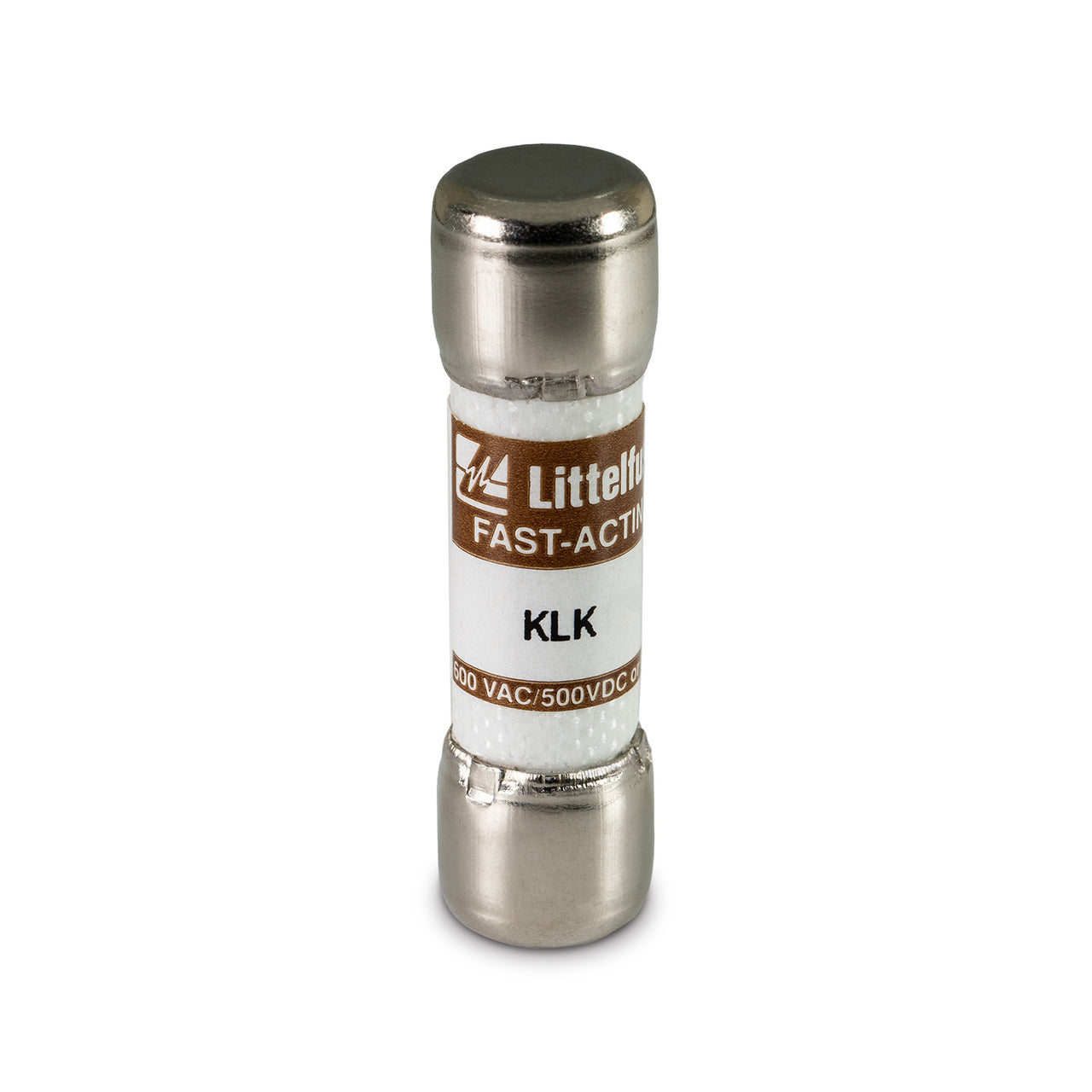

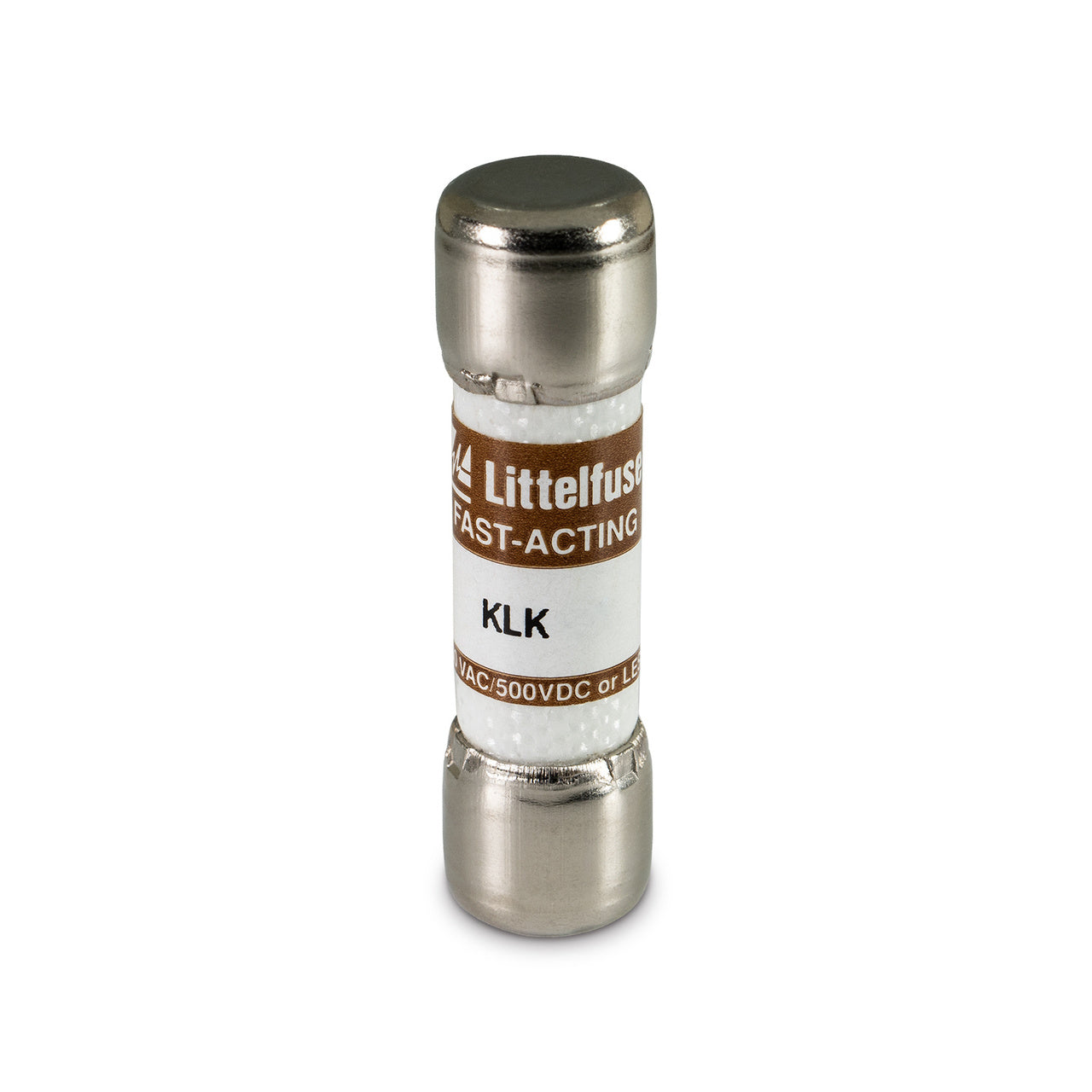

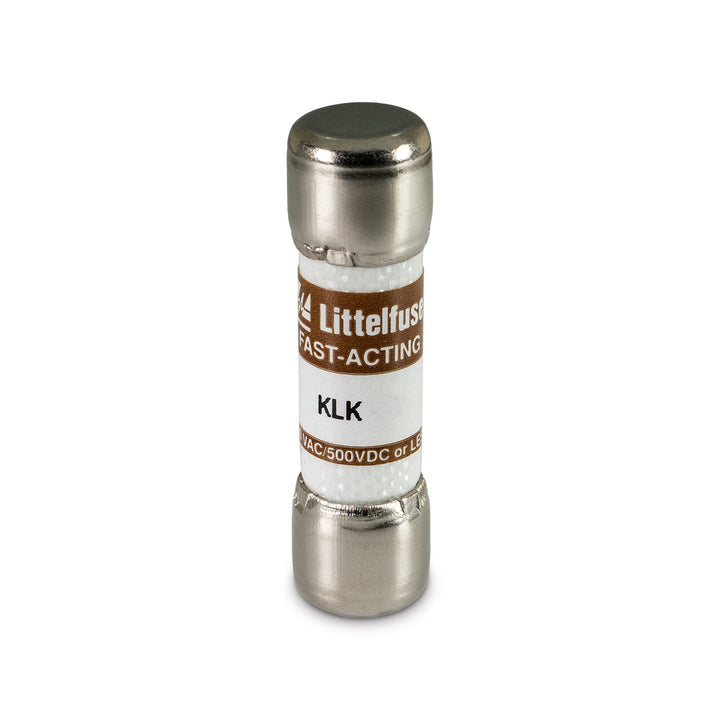

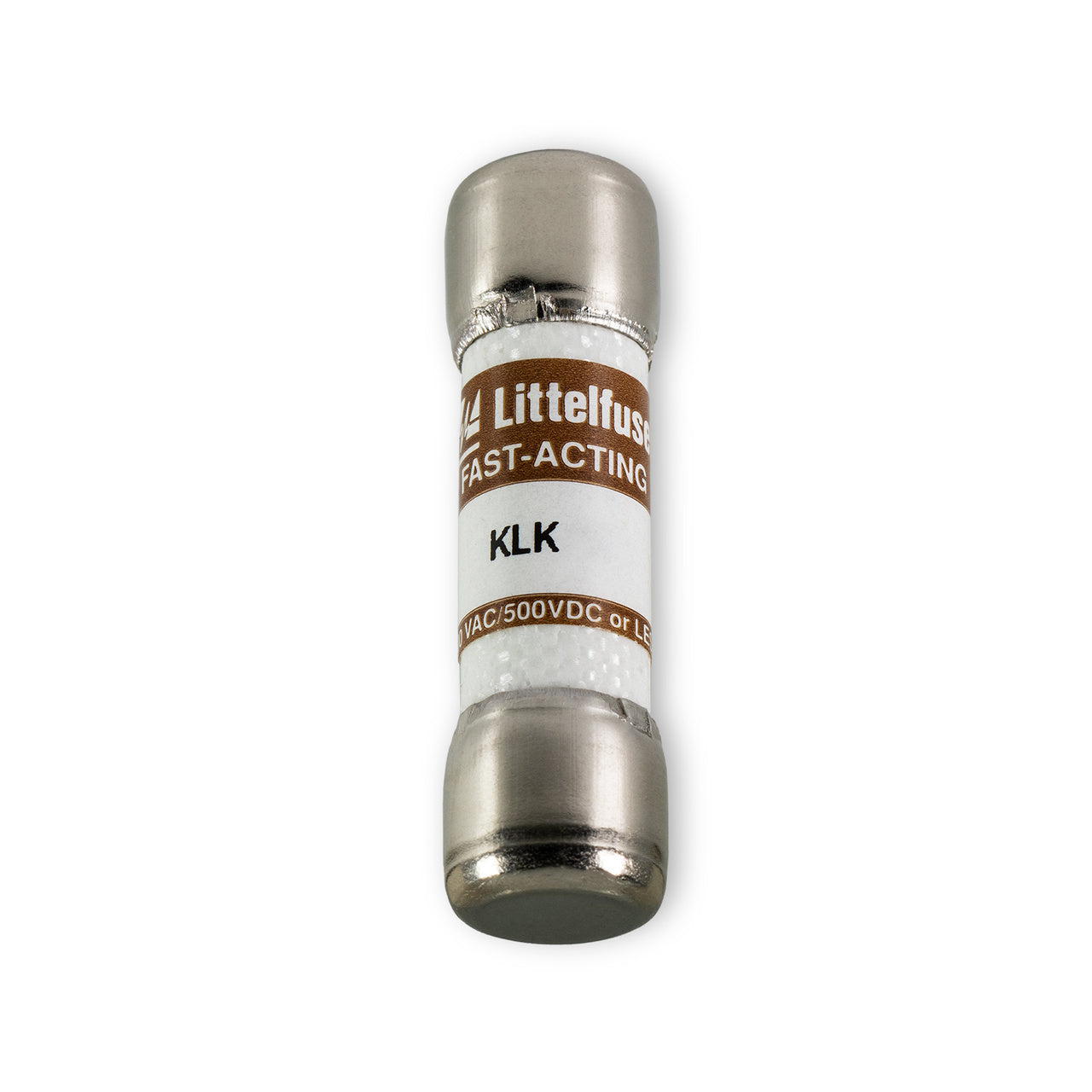

Littelfuse KLK020 - Fast-Acting Midget Fuse 20A (600V, 100kA AIC)

Littelfuse KLK020 is a fast-acting midget fuse designed for overcurrent protection in low-voltage circuits. Rated for 600V AC/DC systems with a 20A current capacity, it features a compact ferrule connection design measuring 1-1/2 inches in length and 0.41 inches in diameter. The fuse meets UL, CSA, CE, QPL, and RoHS standards with a 100kA interrupting rating at 600V, ensuring reliable protection in industrial power distribution, control panels, and equipment protection applications.

Key Features & Specifications

• Type: Fast-acting midget fuse with single-barrel ferrule construction
• Voltage Rating: 600V AC/DC
• Current Rating: 20A
• Dimensions: 1-1/2" length x 0.41" diameter
• Standards: UL Listed, CSA Certified, CE, QPL, RoHS
• Applications: Industrial power distribution, control panels, equipment protection
• Class Rating: Midget
• Connection: Ferrule
• Barrels: 1
• Velocity: FA (Fast Action)
• AIC rating: 100kA@600V
• Weight: 9.14 lb
• Country of Origin: Mexico

Product Identification

• UPC: 079458250718
• GTIN: 00079458250718
