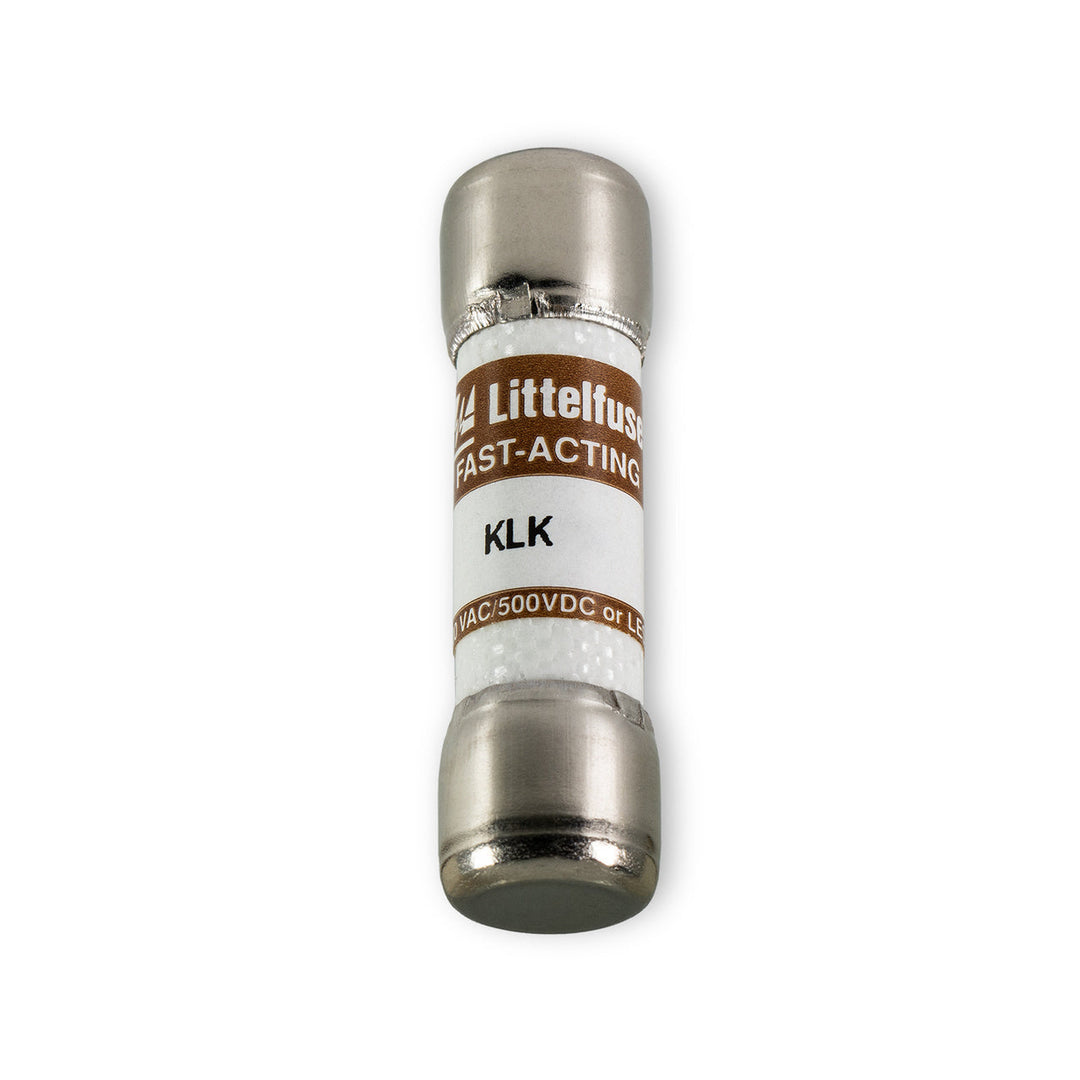

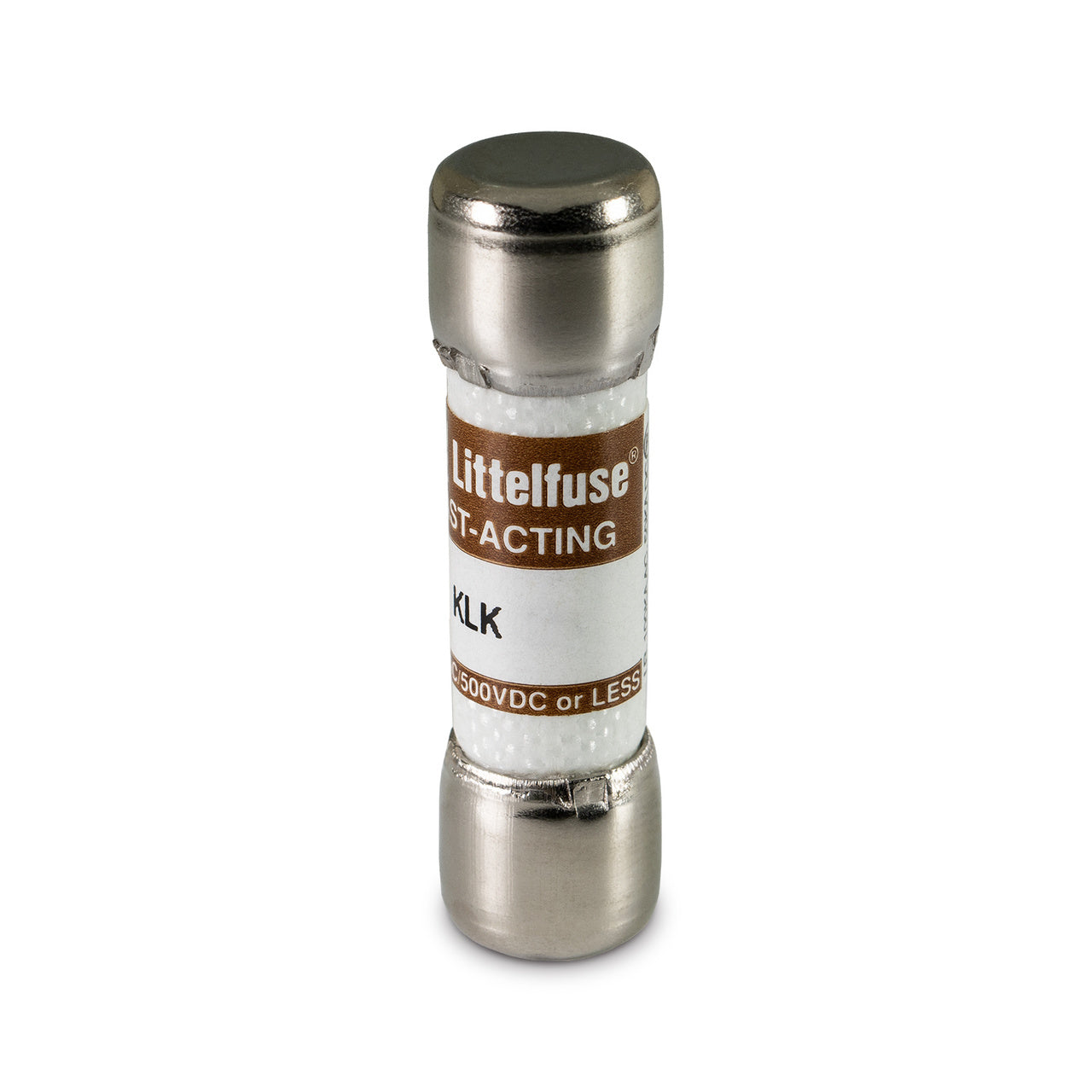

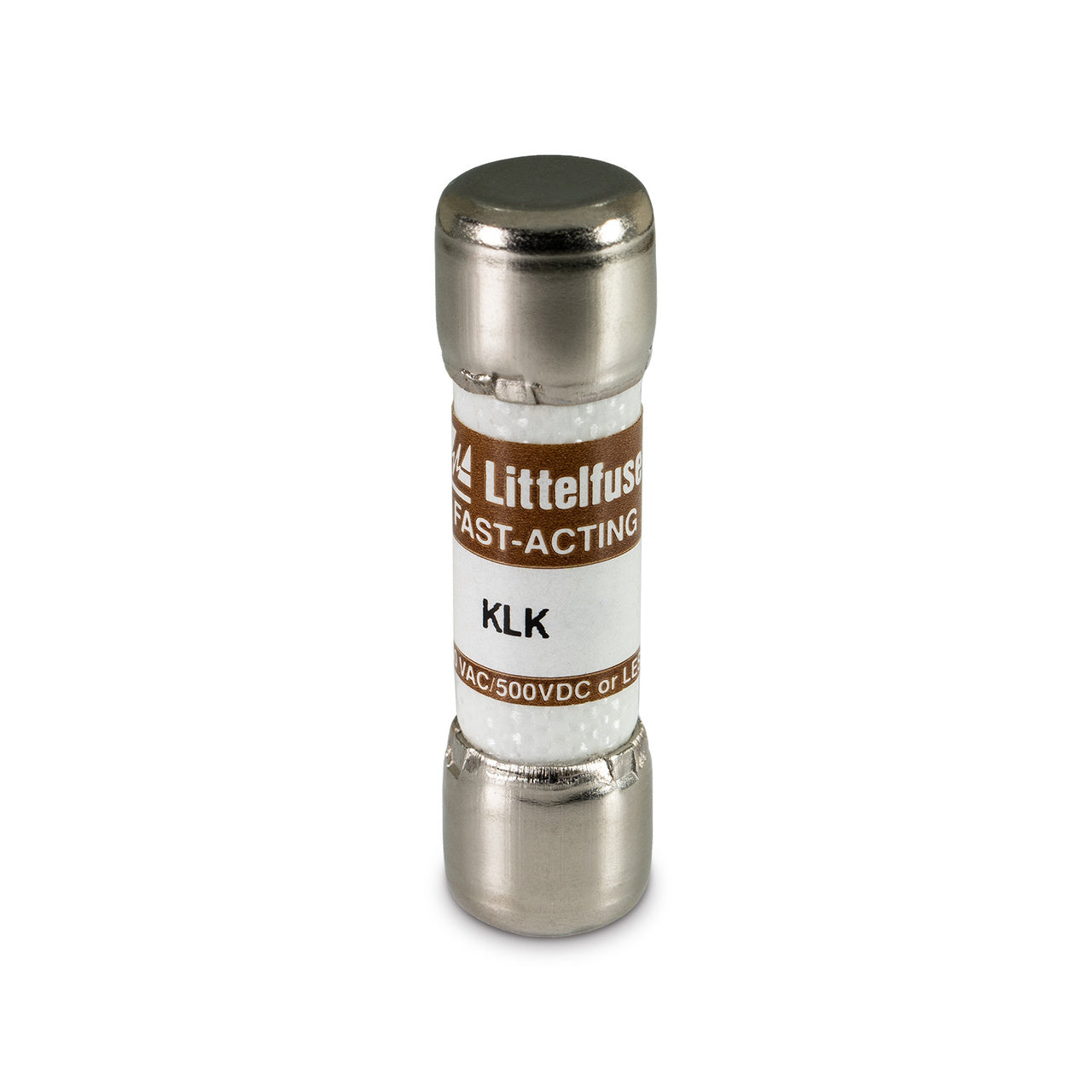

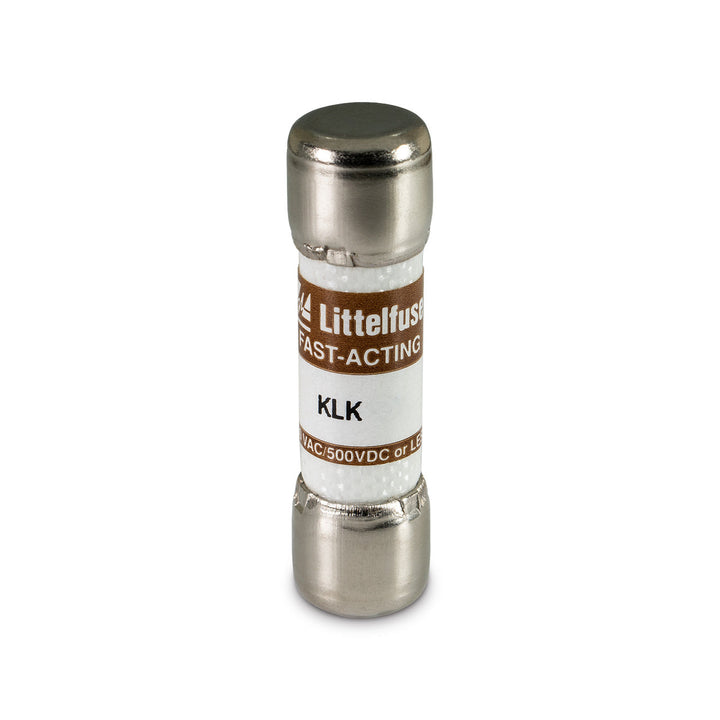

Littelfuse KLK005 - Fast-Acting Midget Fuse 5A@600V (100kA AIC)

Littelfuse KLK005 is a fast-acting midget fuse designed for overcurrent protection in low-voltage circuits. Rated for 600V AC/DC systems with a 5A current capacity, it features a compact ferrule connection design measuring 1-1/2 inches in length and 0.41 inches in diameter. This UL-listed, RoHS-compliant fuse meets CE, CSA, and QPL standards while delivering 100kA interrupting capacity at rated voltage. Typical applications include industrial control panels, power supplies, and electrical equipment requiring reliable fast-acting circuit protection.

Key Features & Specifications

• Type: Fast-acting midget fuse with single-barrel ferrule construction
• Voltage Rating: 600V AC/DC
• Current Rating: 5A
• Dimensions: 1-1/2" length x 0.41" diameter
• Standards: CE, CSA Certified, QPL, RoHS, UL Listed
• Applications: Industrial controls, power distribution, equipment protection
• Class Rating: Midget
• Connection: Ferrule
• Barrels: 1
• Velocity: FA - Fast Action
• AIC rating: 100kA@600V
• Weight: 6.9 lb
• Country of Origin: Mexico

Product Identification

• UPC: 079458250558
• GTIN: 00079458250558
