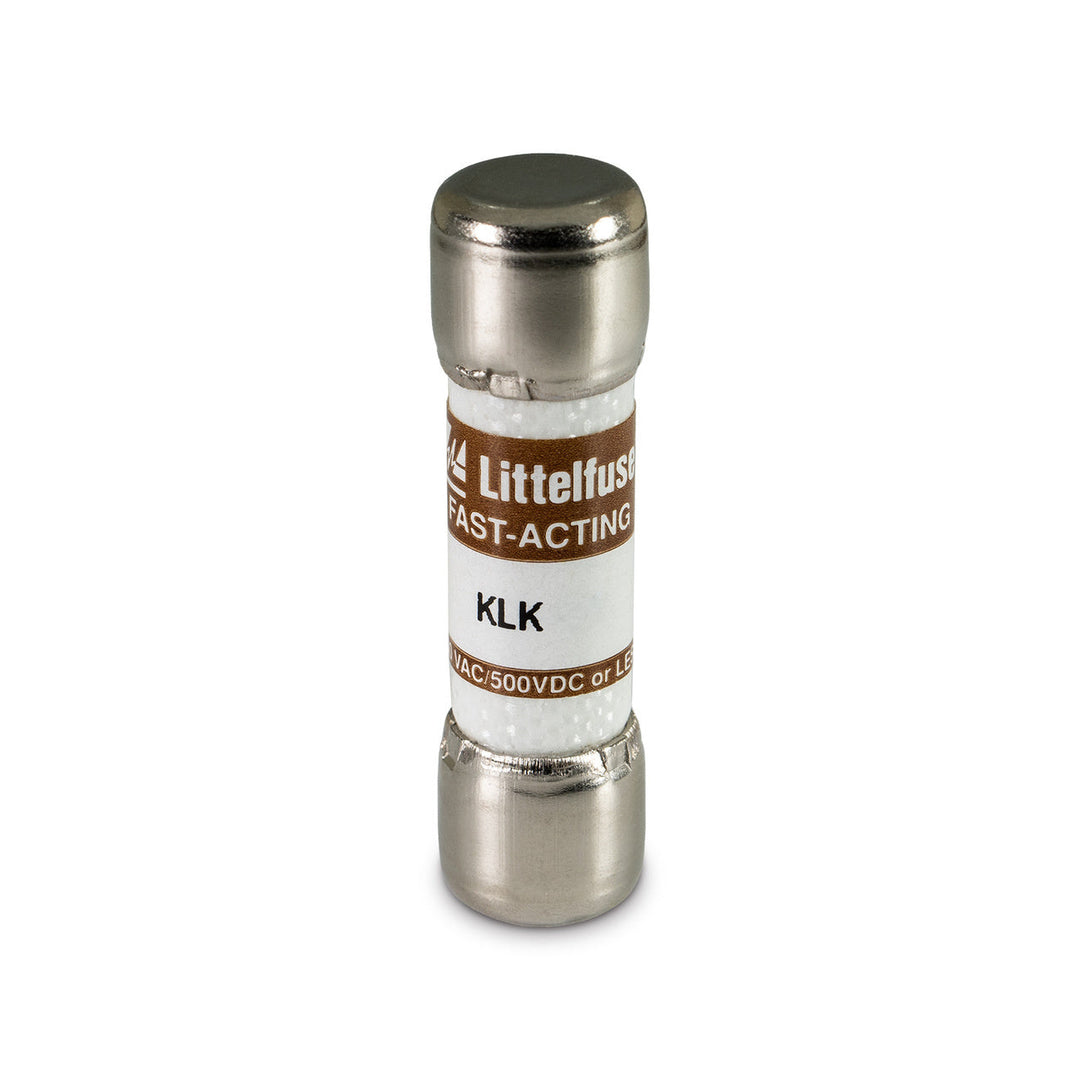

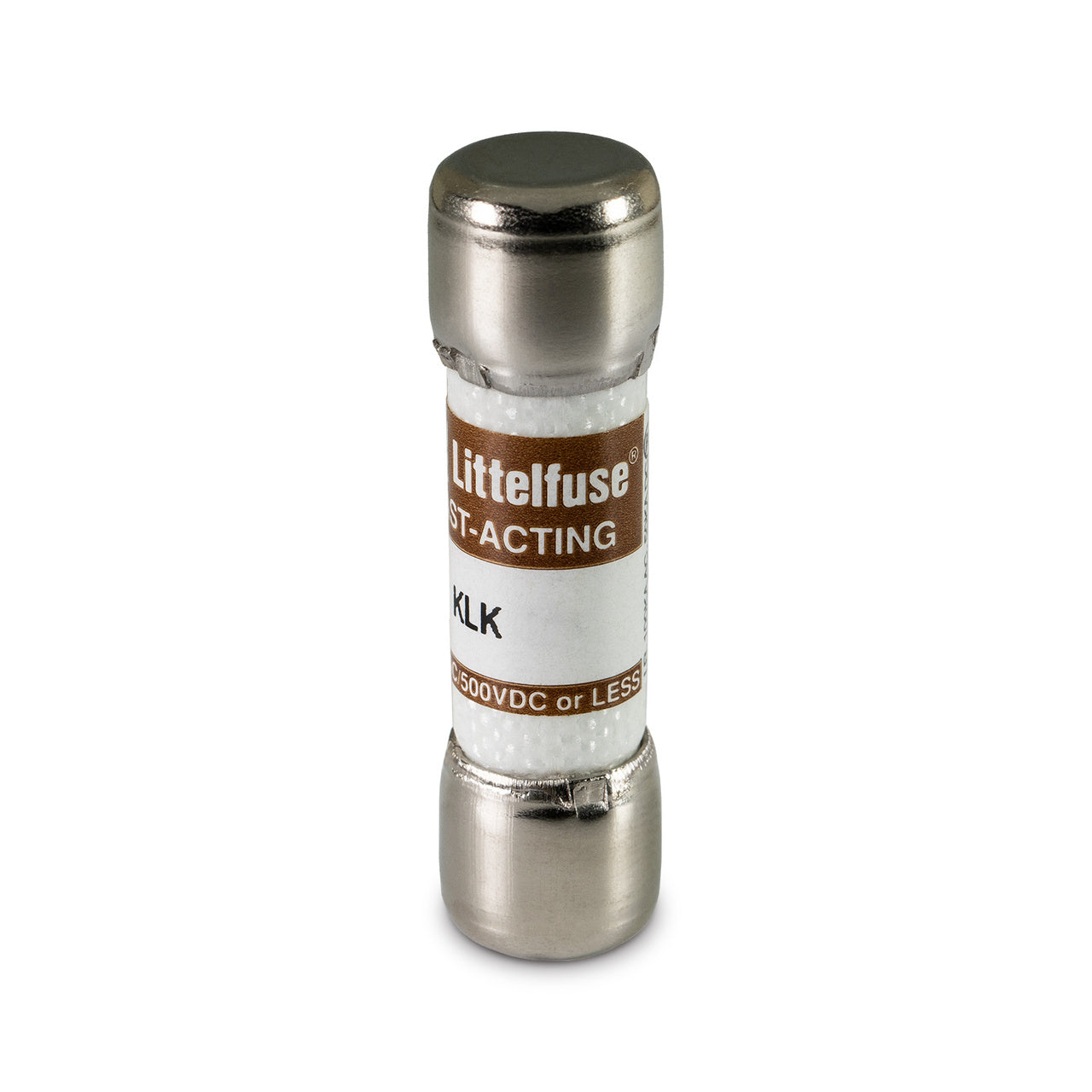

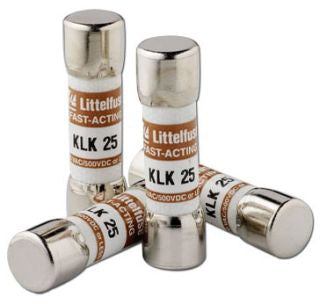

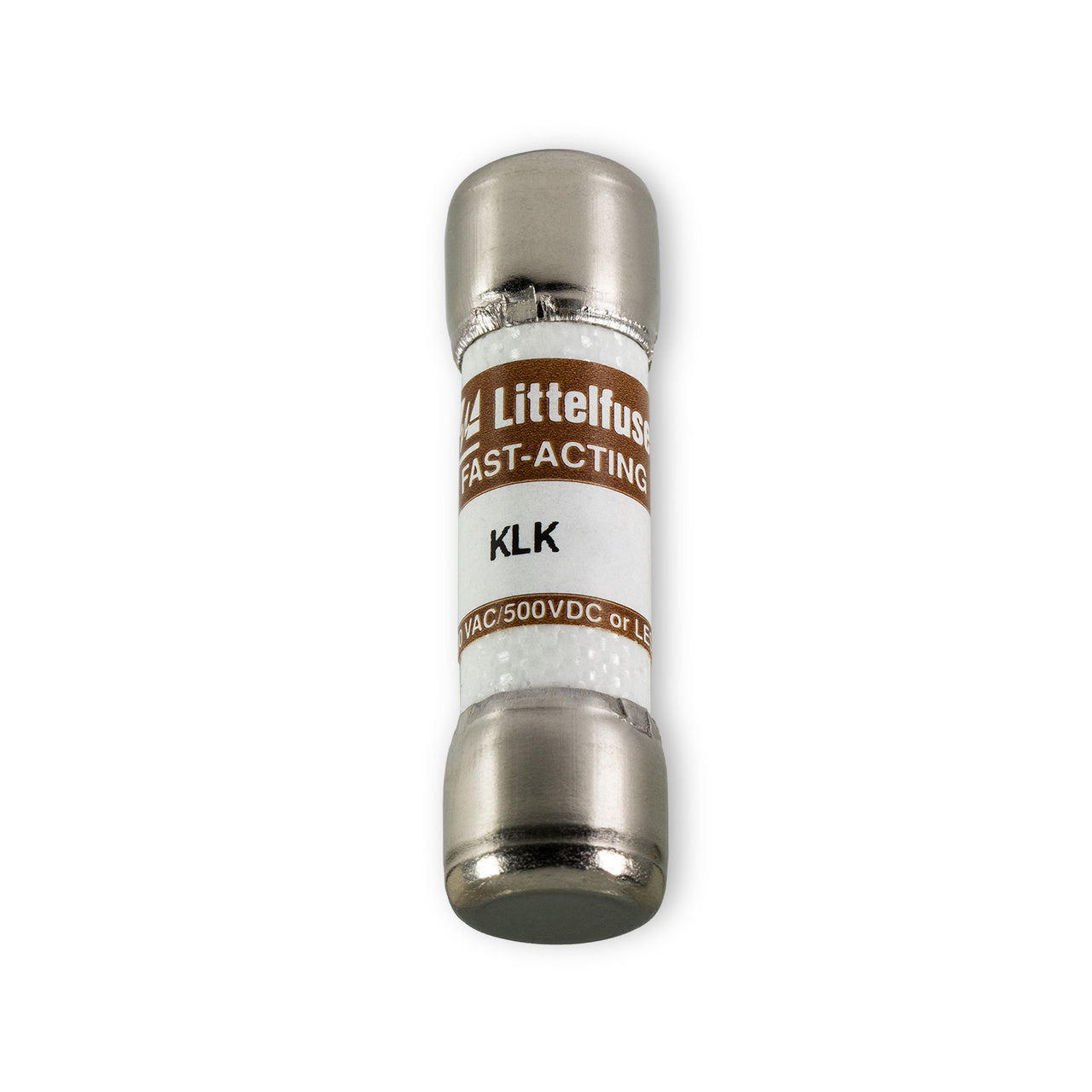

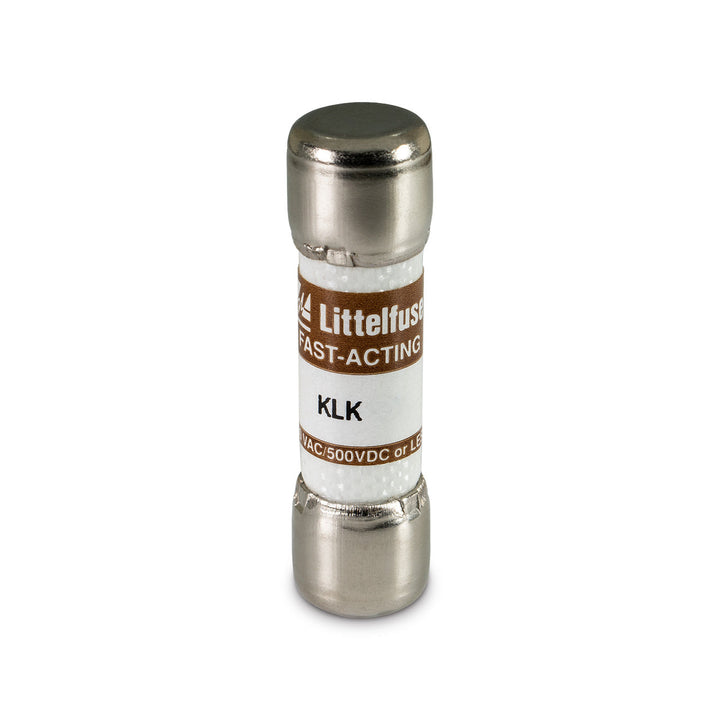

Littelfuse KLK004 - Fast-Acting Midget Fuse 3A 600V (100kA AIC)

Littelfuse KLK004 is a fast-acting midget fuse designed for overcurrent protection in low-voltage circuits. It features a 600V AC/DC voltage rating and 3A current rating with a compact ferrule connection design measuring 1-1/2 inches in length and 0.41 inches in diameter. The UL Listed, CSA Certified fuse offers 100kA interrupting capacity at 600V with RoHS-compliant construction, suitable for industrial control panels, power supplies, and electrical equipment requiring fast circuit interruption.

Key Features & Specifications

• Type: Fast-acting midget fuse with single-barrel ferrule connection
• Voltage Rating: 600V AC/DC
• Current Rating: 3A
• Dimensions: 1-1/2 in length, 0.41 in diameter
• Standards: UL Listed, CSA Certified, CE, QPL, RoHS
• Applications: Industrial controls, power distribution, electrical equipment
• Class Rating: Midget
• AIC Rating: 100kA@600V
• Connection: Ferrule
• Velocity: FA (Fast Action)
• Weight: 6.7 lb

Product Identification

• UPC: 079458250534
• GTIN: 00079458250534
