Littelfuse KLDR03.2 - Class CC Time-Delay Fuse 3.2A 600V (200kA AIC)
KLDR03.2 Littelfuse KLDR Series – Class CC Time-Delay Fuses Low Voltage Fuse 600V 3.2A Fuse - Essential Electric Supply
KLDR03.2 Littelfuse KLDR Series – Class CC Time-Delay Fuses Low Voltage Fuse 600V 3.2A Fuse - Essential Electric Supply
KLDR03.2 Littelfuse KLDR Series – Class CC Time-Delay Fuses Low Voltage Fuse 600V 3.2A Fuse - Essential Electric Supply
KLDR03.2 Littelfuse KLDR Series – Class CC Time-Delay Fuses Low Voltage Fuse 600V 3.2A Fuse - Essential Electric Supply
Littelfuse KLDR03.2 - Class CC Time-Delay Fuse 3.2A 600V (200kA AIC)

Littelfuse KLDR03.2 - Class CC Time-Delay Fuse 3.2A 600V (200kA AIC)

Littelfuse
Price
Save $0
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

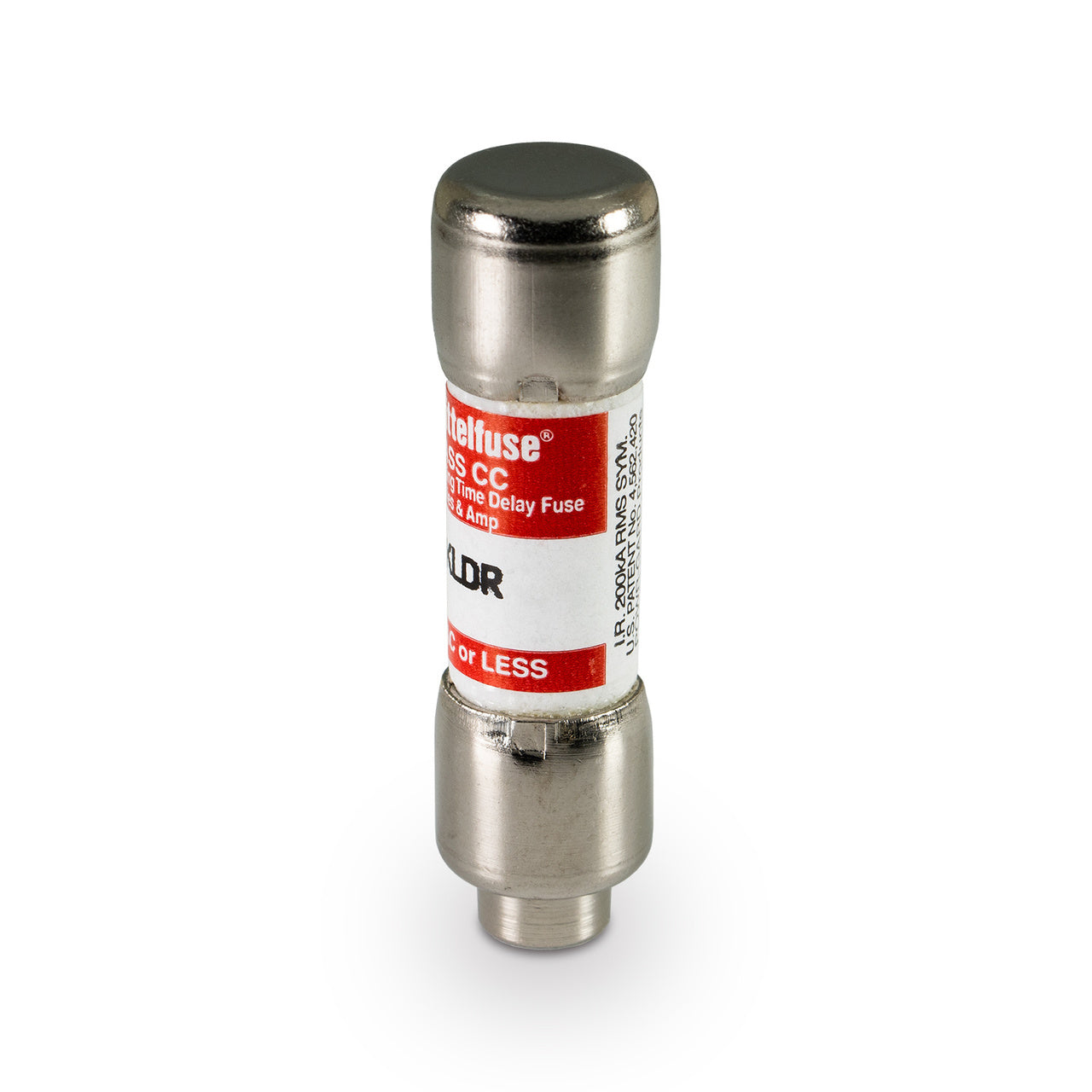

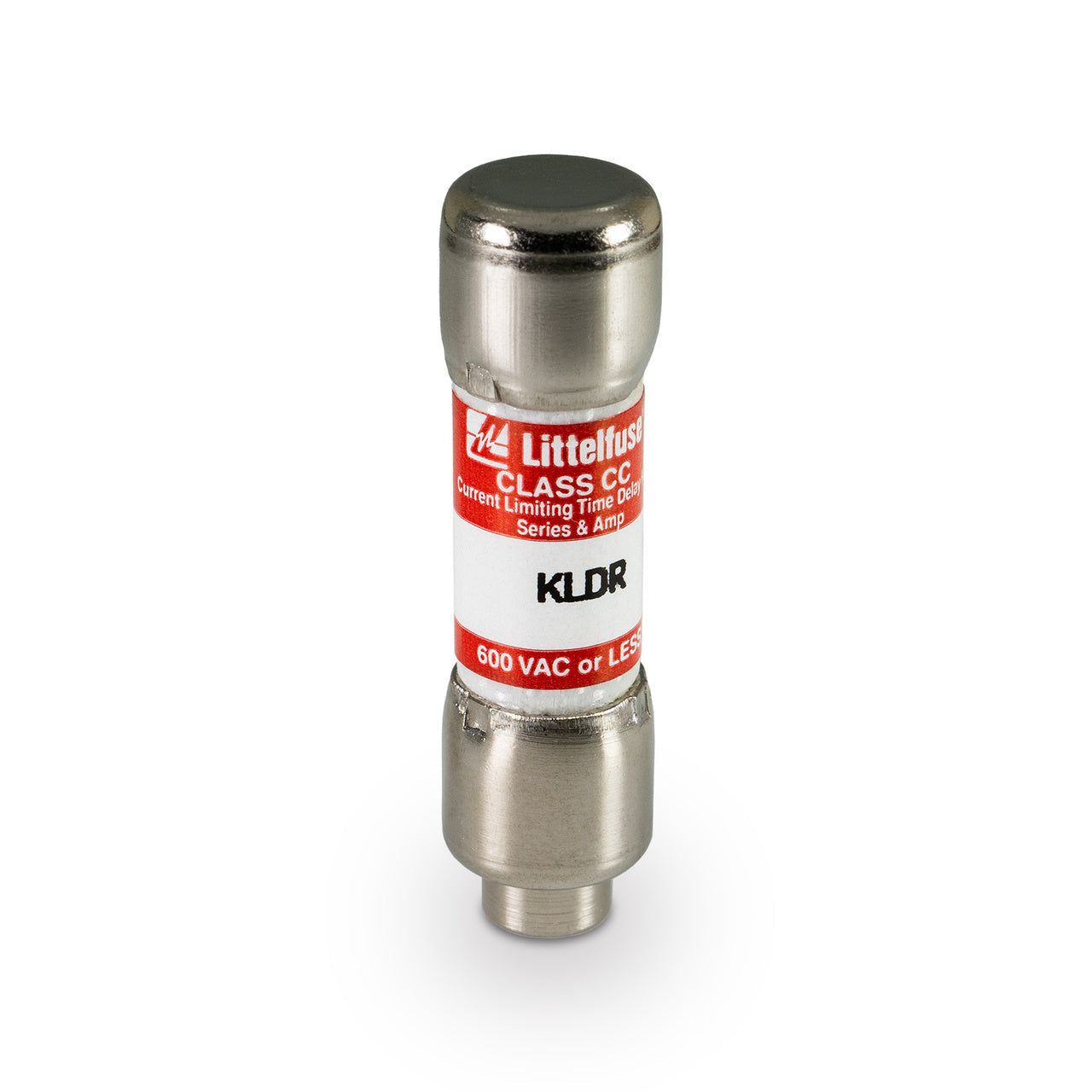

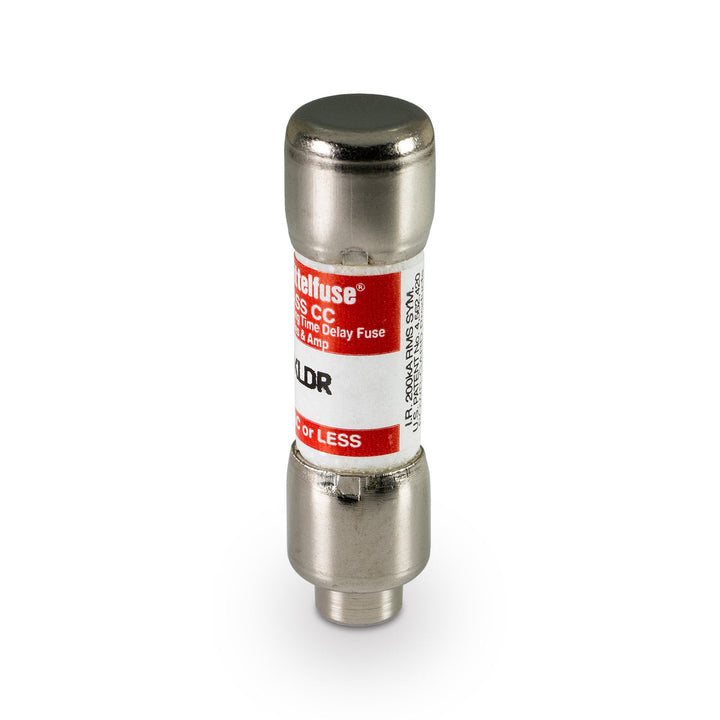

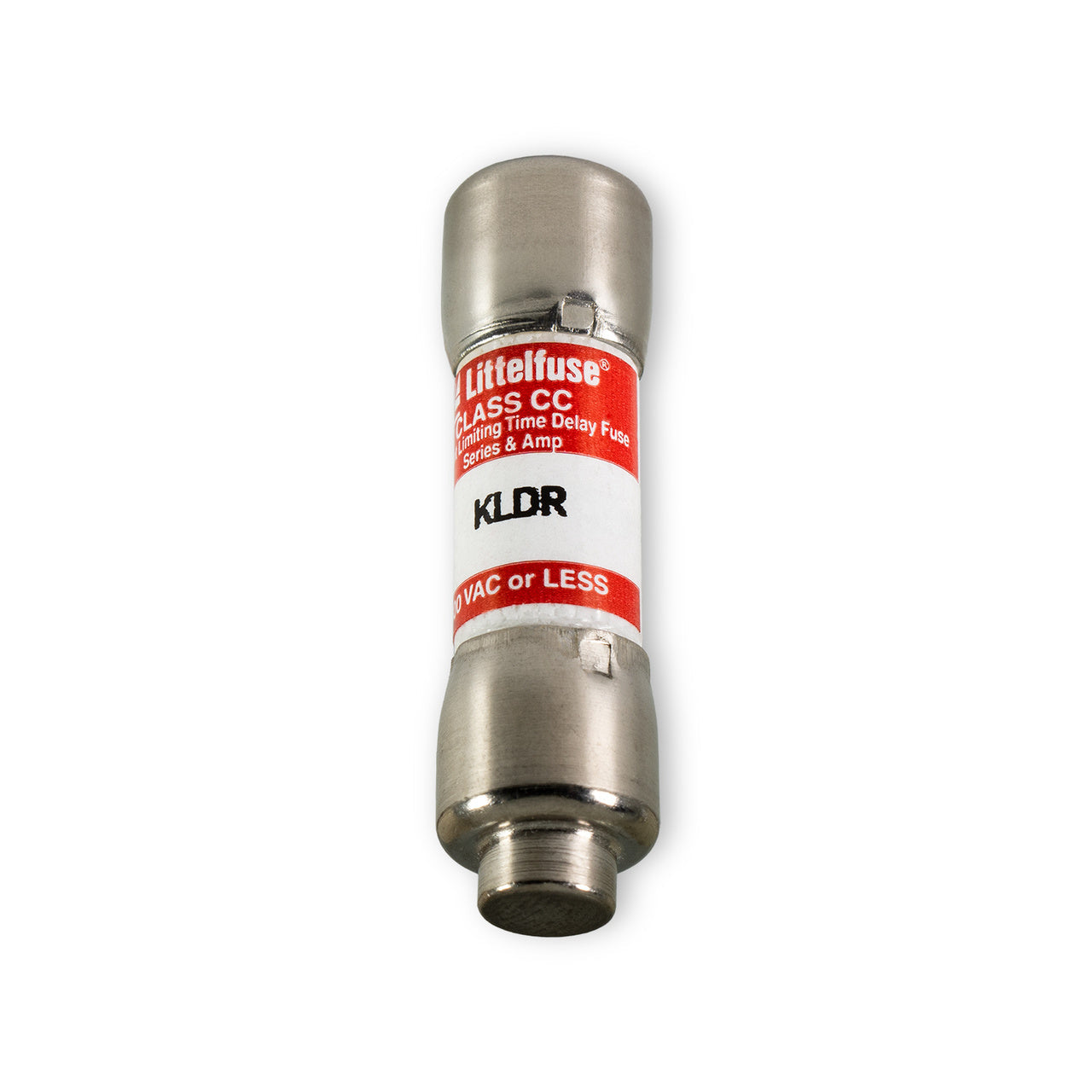

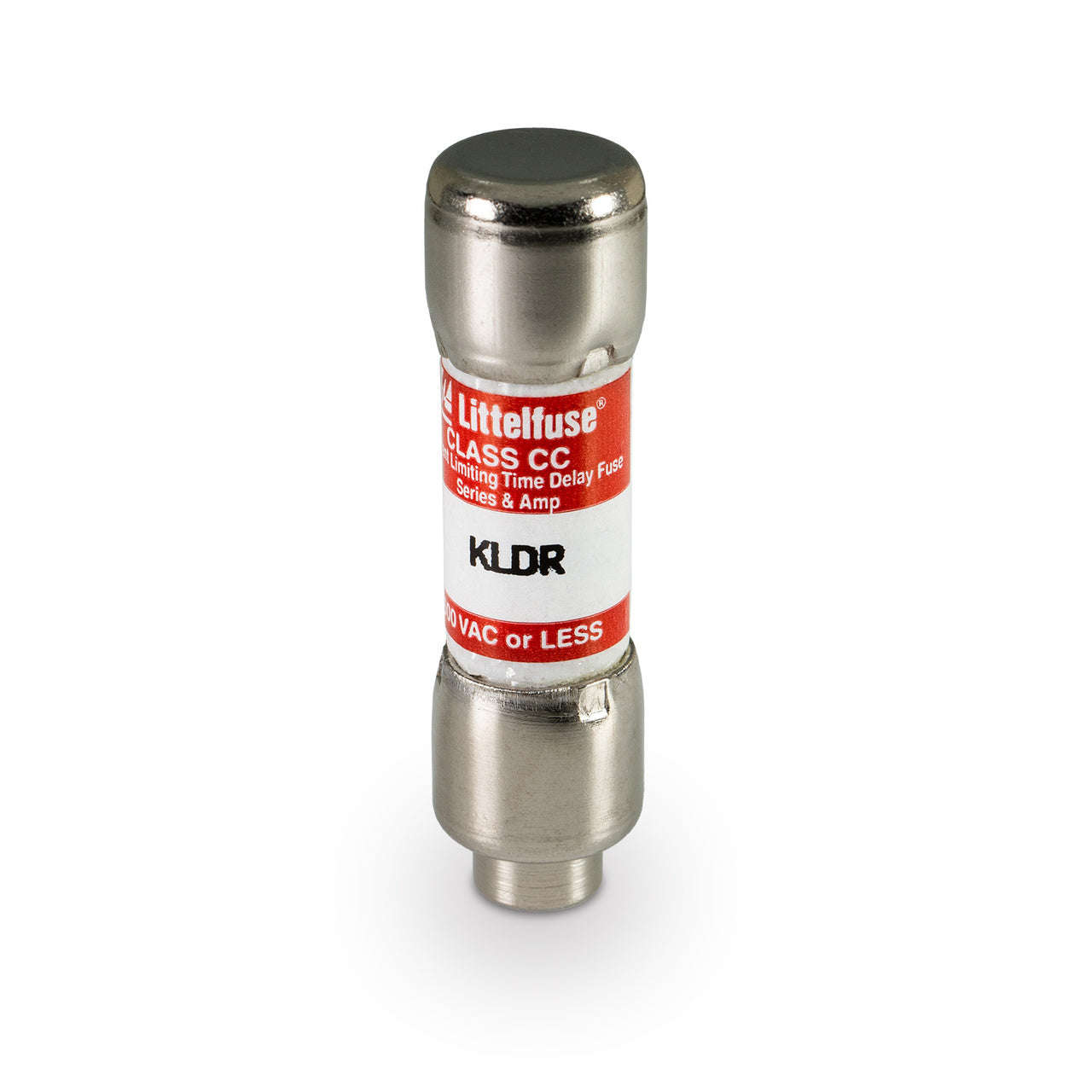

Littelfuse KLDR03.2 is a Class CC time-delay fuse designed for circuit protection in low-voltage applications. It features a 600V AC/DC voltage rating and 3.2A current rating with a 200kA interrupting capacity at 600V. The fuse has a compact ferrule connection design with a 0.41-inch diameter and 1-1/2-inch length, constructed for reliable time-delay (TD) operation. It meets UL 248-4, CSA, CE, and RoHS standards for industrial safety compliance. Typical applications include motor control centers, transformers, and power distribution equipment requiring Class CC protection.

Key Features & Specifications
  • Type: Class CC time-delay fuse with ferrule connection
  • Voltage Rating: 600V AC/DC
  • Current Rating: 3.2A
  • Dimensions: 1-1/2 in length x 0.41 in diameter
  • Standards: UL 248-4, CSA Certified, CE, RoHS compliant
  • Applications: Motor protection, transformers, power distribution
  • Class Rating: CC
  • Connection: Ferrule
  • Barrels: 1
  • Velocity: Time-Delay (TD)
  • AIC rating: 200kA@600V
  • Weight: 7 lb
  • Certification: UL Listed
Product Identification
  • UPC: 079458792591
