Littelfuse KLDR008 - Class CC Time-Delay Fuse 8A 600V (200kA AIC)
KLDR008 Littelfuse KLDR Series – Class CC Time-Delay Fuses Low Voltage Fuse 600V 8A Fuse - Essential Electric Supply
KLDR008 Littelfuse KLDR Series – Class CC Time-Delay Fuses Low Voltage Fuse 600V 8A Fuse - Essential Electric Supply
KLDR008 Littelfuse KLDR Series – Class CC Time-Delay Fuses Low Voltage Fuse 600V 8A Fuse - Essential Electric Supply
KLDR008 Littelfuse KLDR Series – Class CC Time-Delay Fuses Low Voltage Fuse 600V 8A Fuse - Essential Electric Supply
Littelfuse KLDR008 - Class CC Time-Delay Fuse 8A 600V (200kA AIC)

Littelfuse KLDR008 - Class CC Time-Delay Fuse 8A 600V (200kA AIC)

Littelfuse
Price
Save $-23.04
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

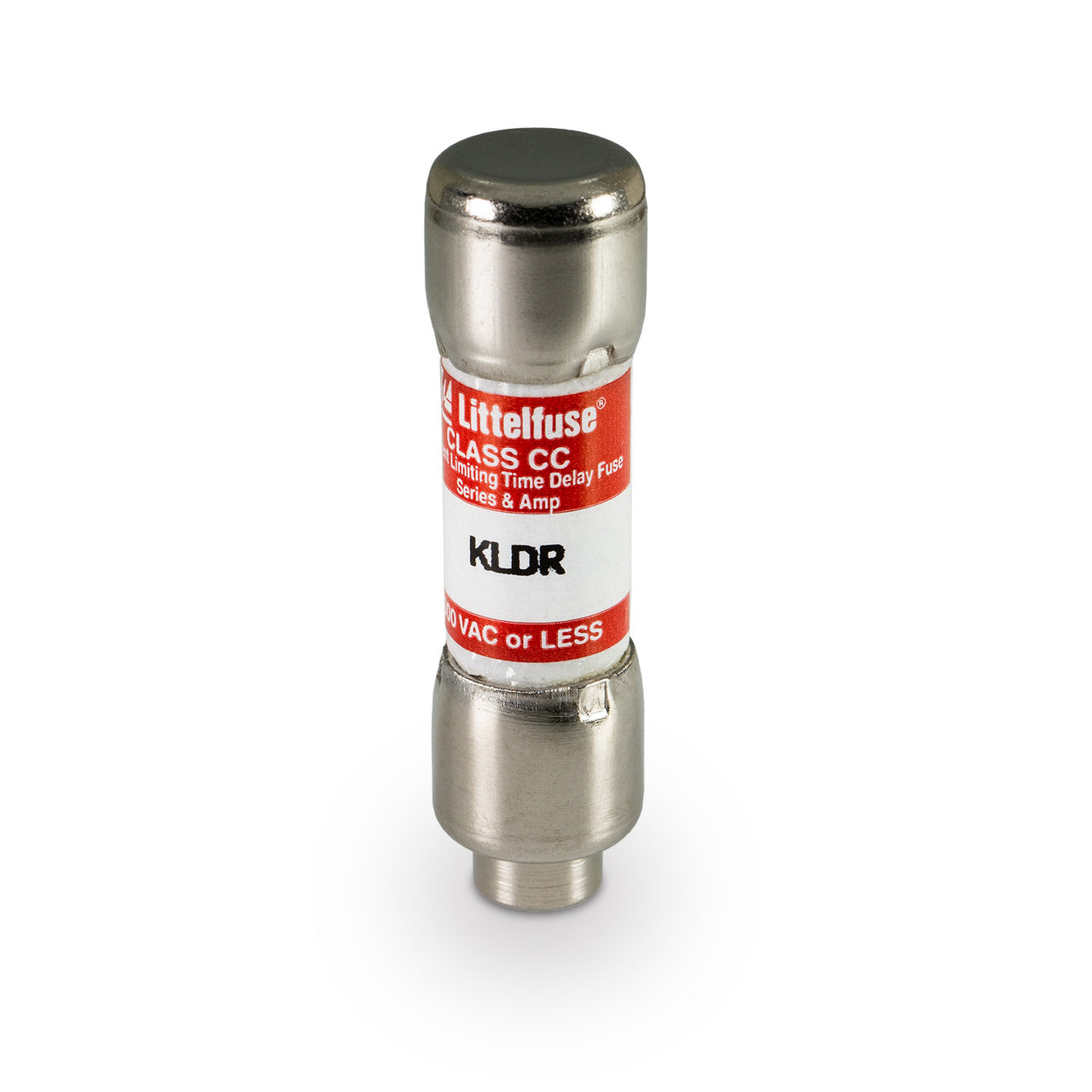

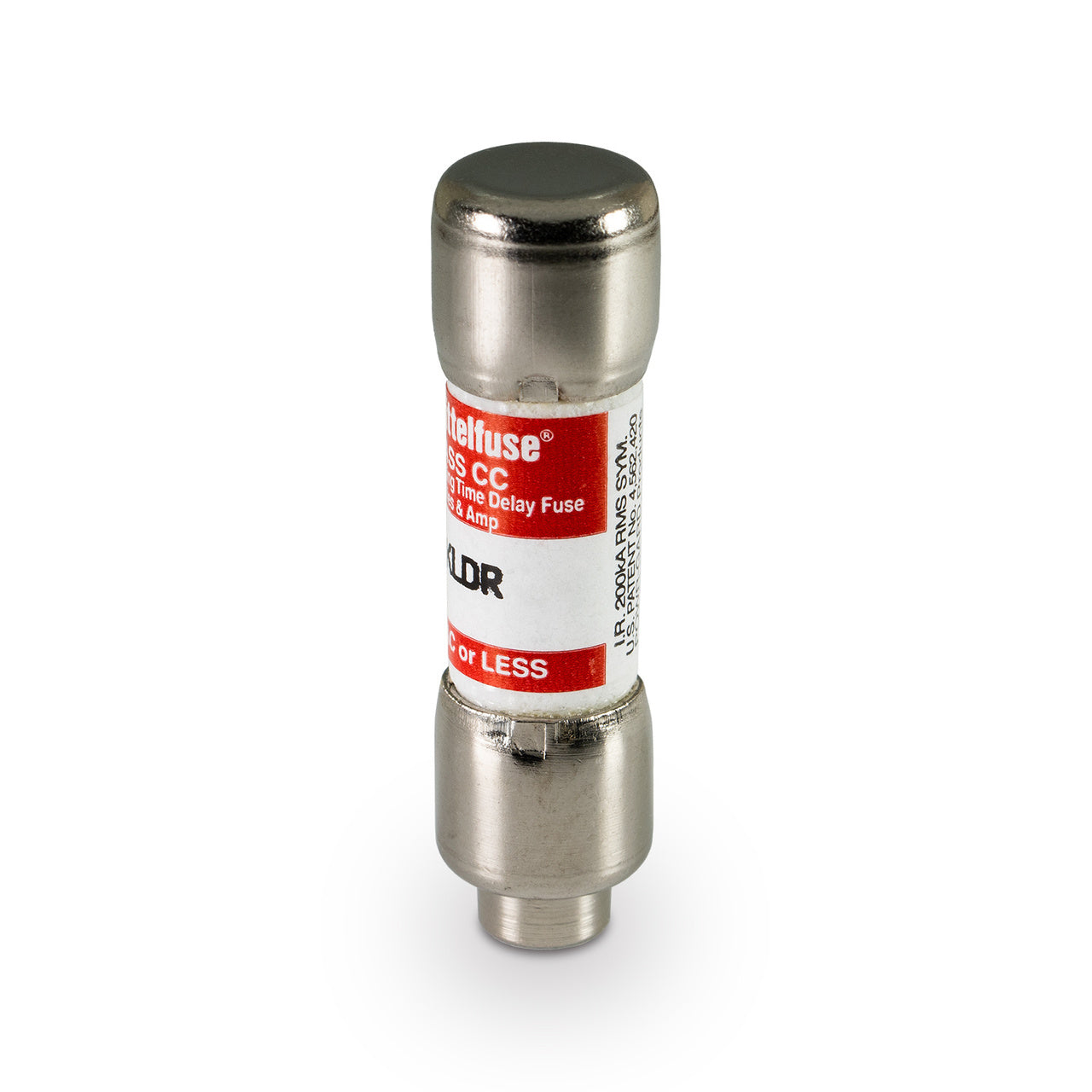

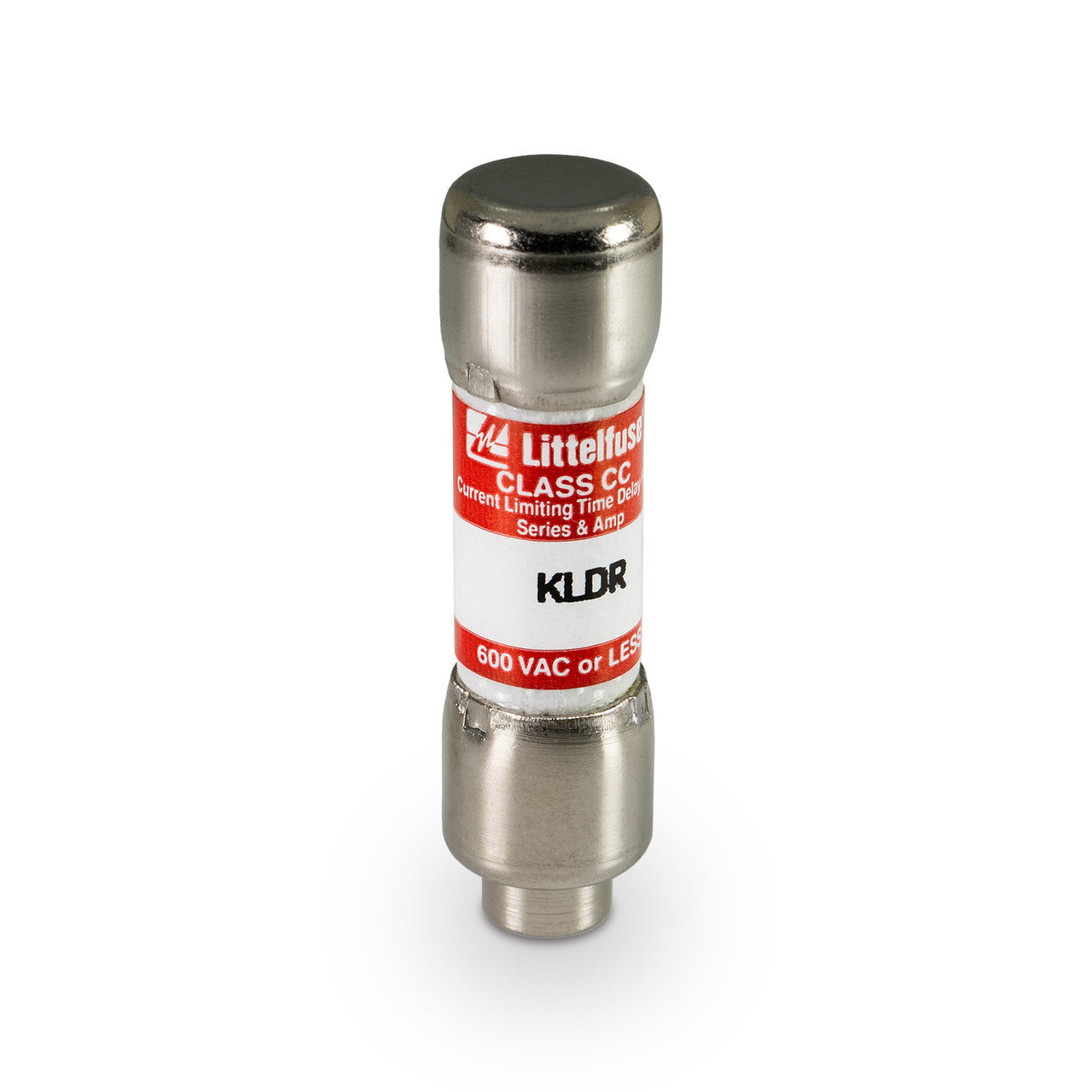

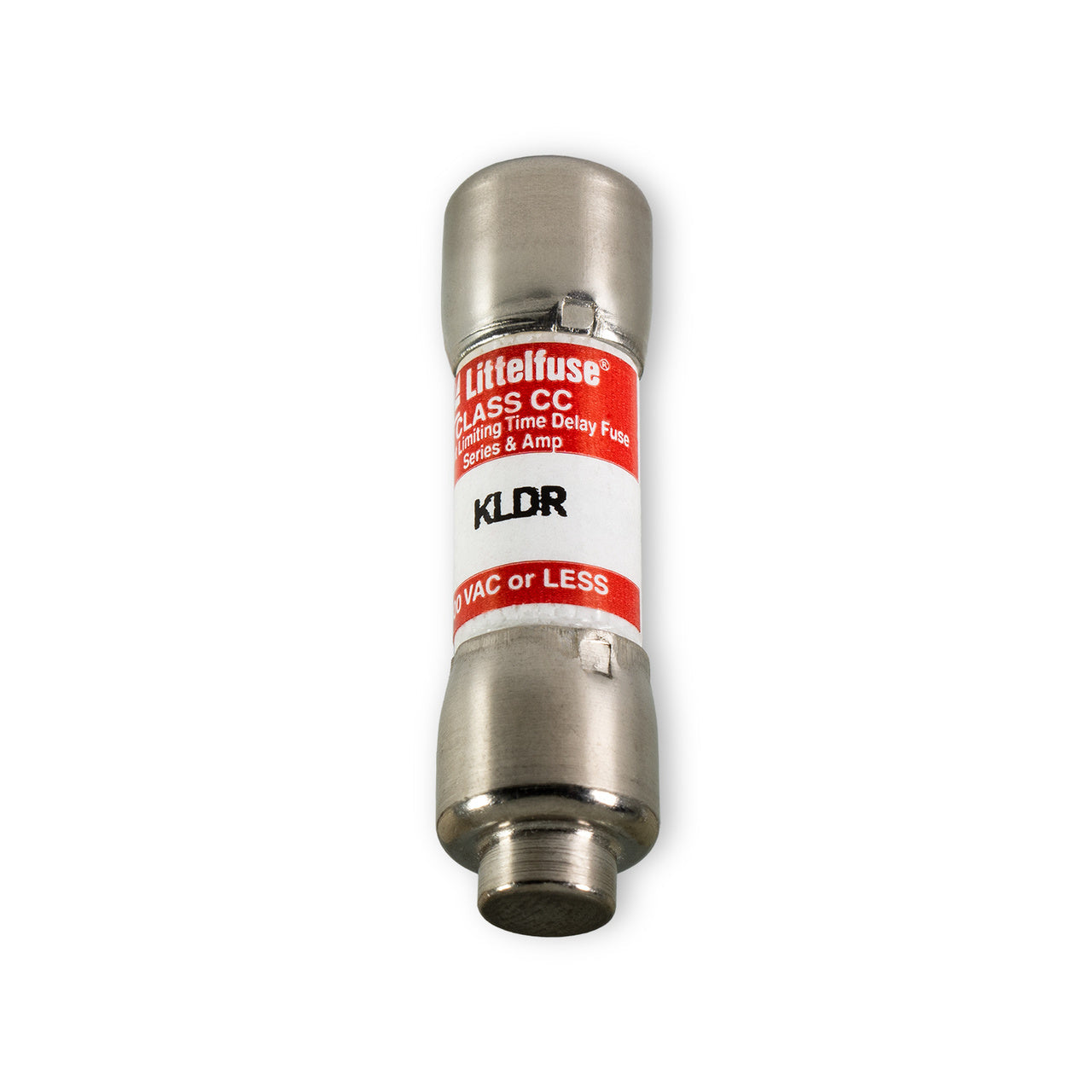

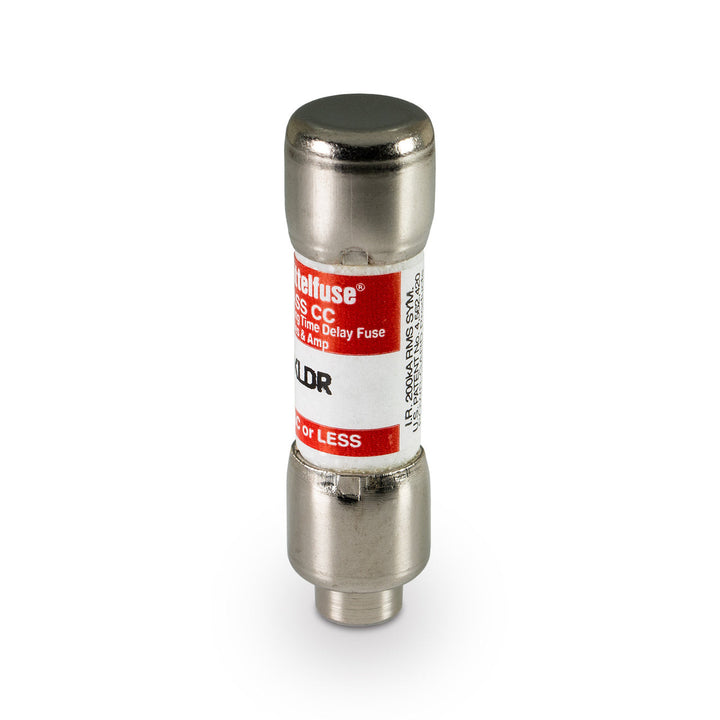

Littelfuse KLDR008 is a Class CC time-delay fuse designed for circuit protection in low-voltage applications. It features a 600V AC/DC rating with an 8A current capacity and 200kA interrupting capacity at rated voltage. The compact ferrule-connected design measures 1-1/2" in length with a 0.41" diameter, constructed for reliable time-delay operation. Certified to UL 248-4, CSA, CE, and RoHS standards, this fuse is commonly used in industrial control panels, motor circuits, and transformer protection applications.

Key Features & Specifications
  • Type: Class CC time-delay fuse with ferrule connection
  • Voltage Rating: 600V AC/DC
  • Current Rating: 8A
  • Dimensions: 1-1/2" length x 0.41" diameter
  • Standards: UL 248-4, CSA, CE, RoHS
  • Applications: Industrial controls, motor circuits, transformers
  • Class Rating: CC
  • Connection: Ferrule
  • Barrels: 1
  • Velocity: Time-Delay (TD)
  • AIC rating: 200kA@600V
  • Weight: 7 lb
  • Country of Origin: Mexico
Product Identification
  • UPC: 079458792690
