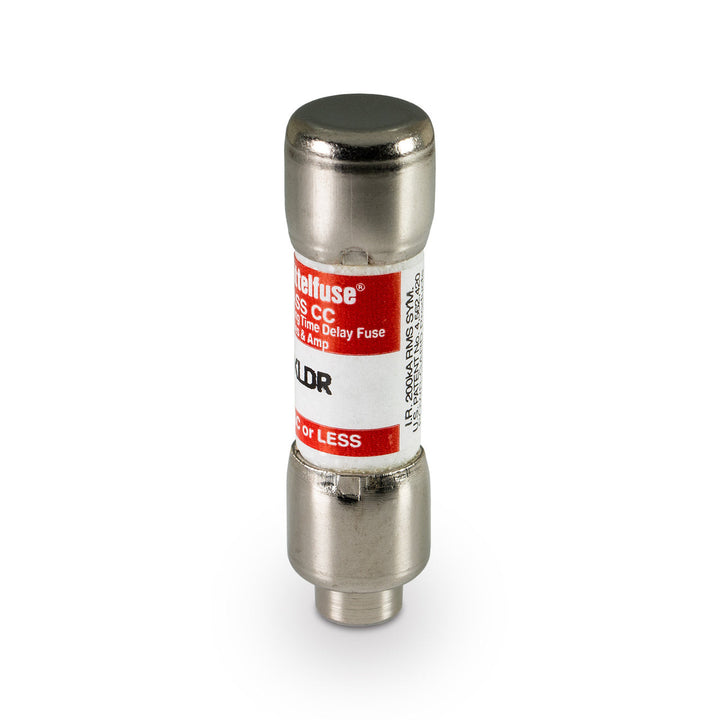

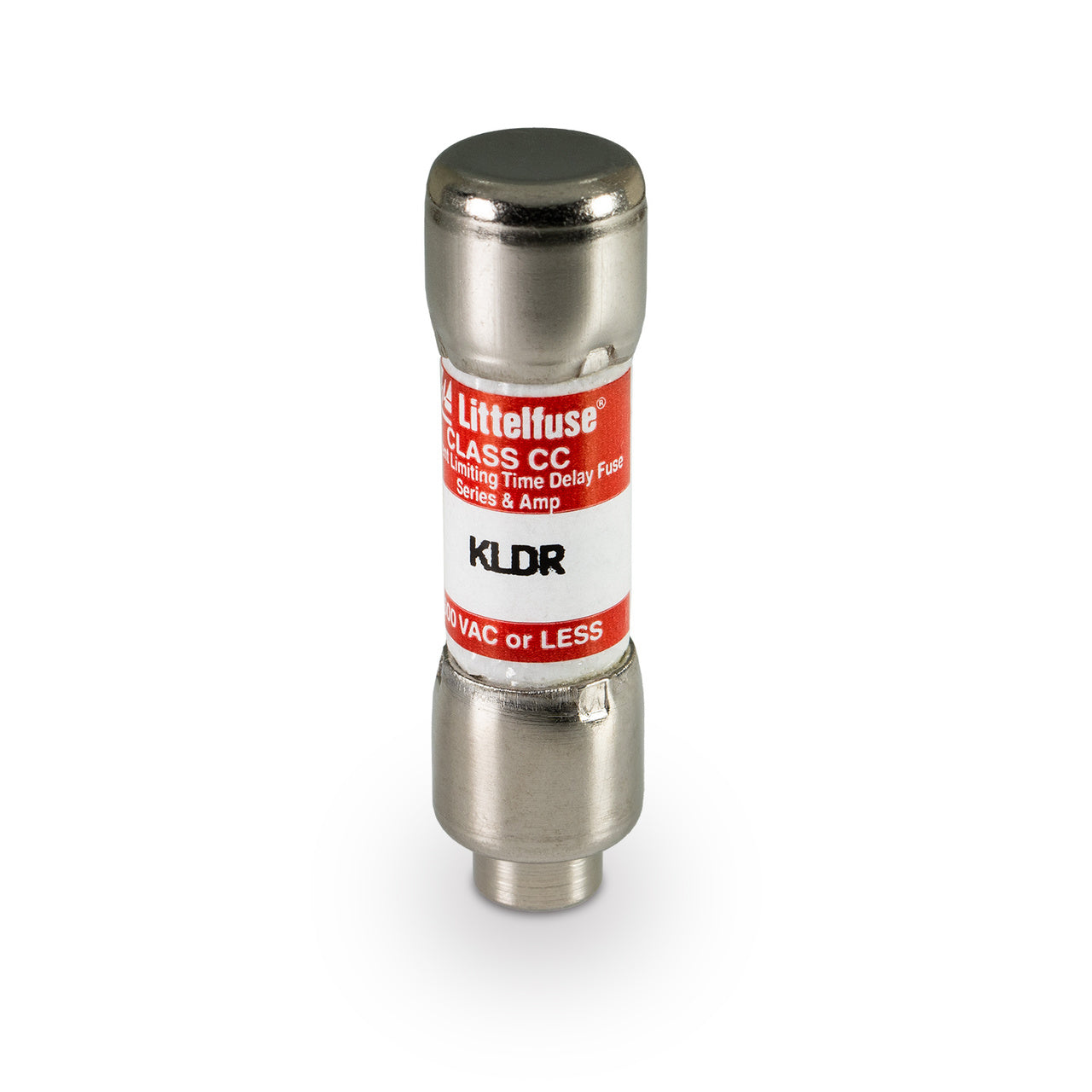

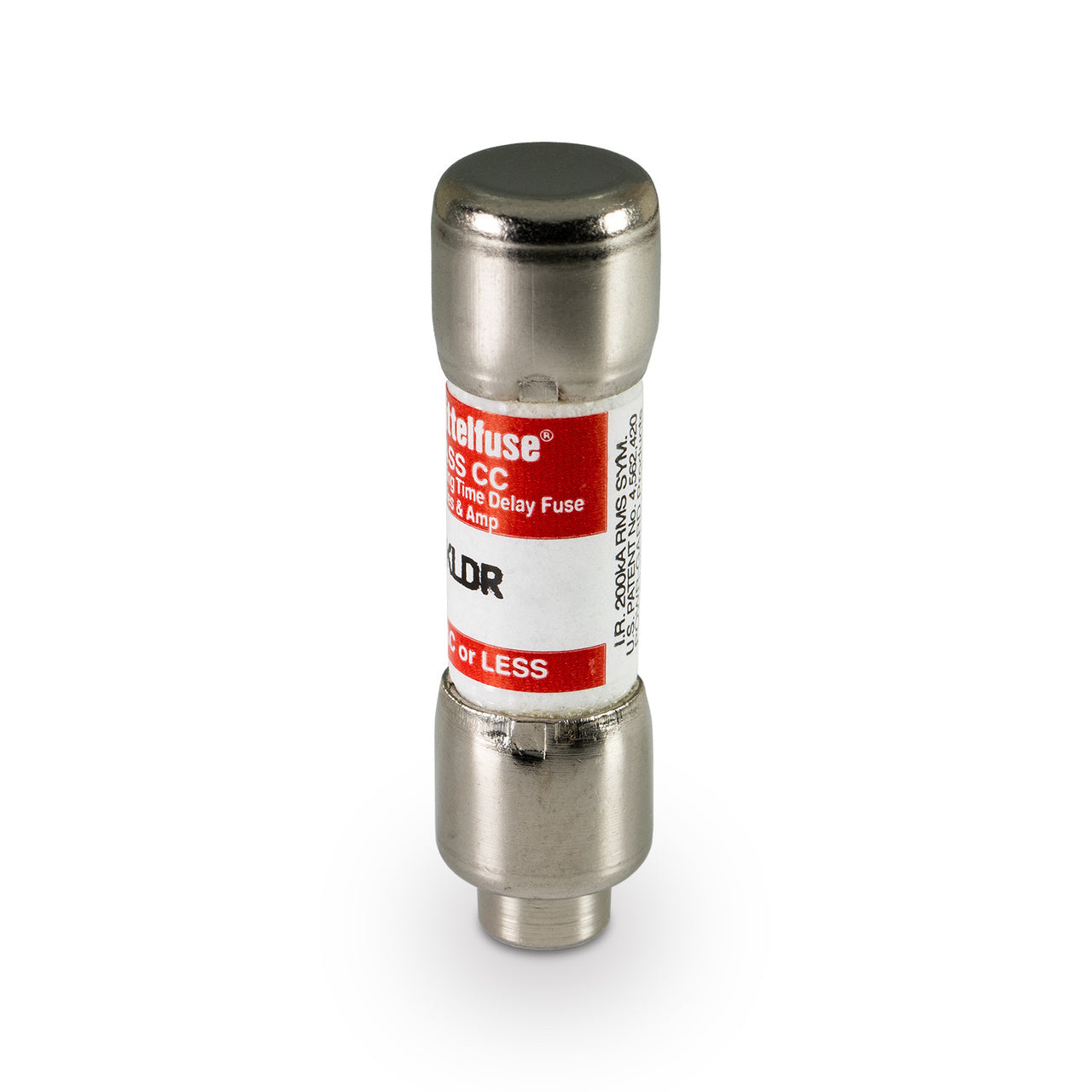

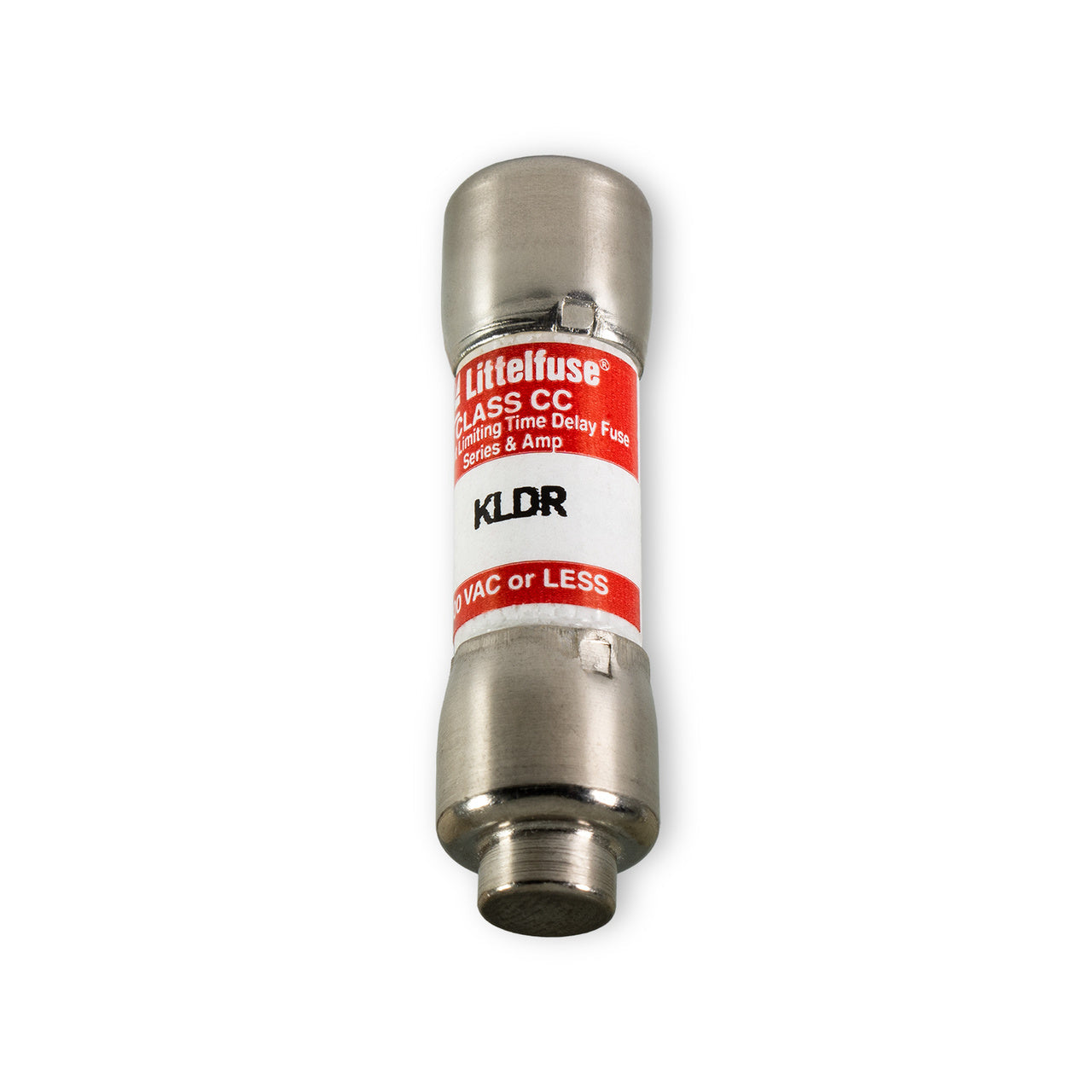

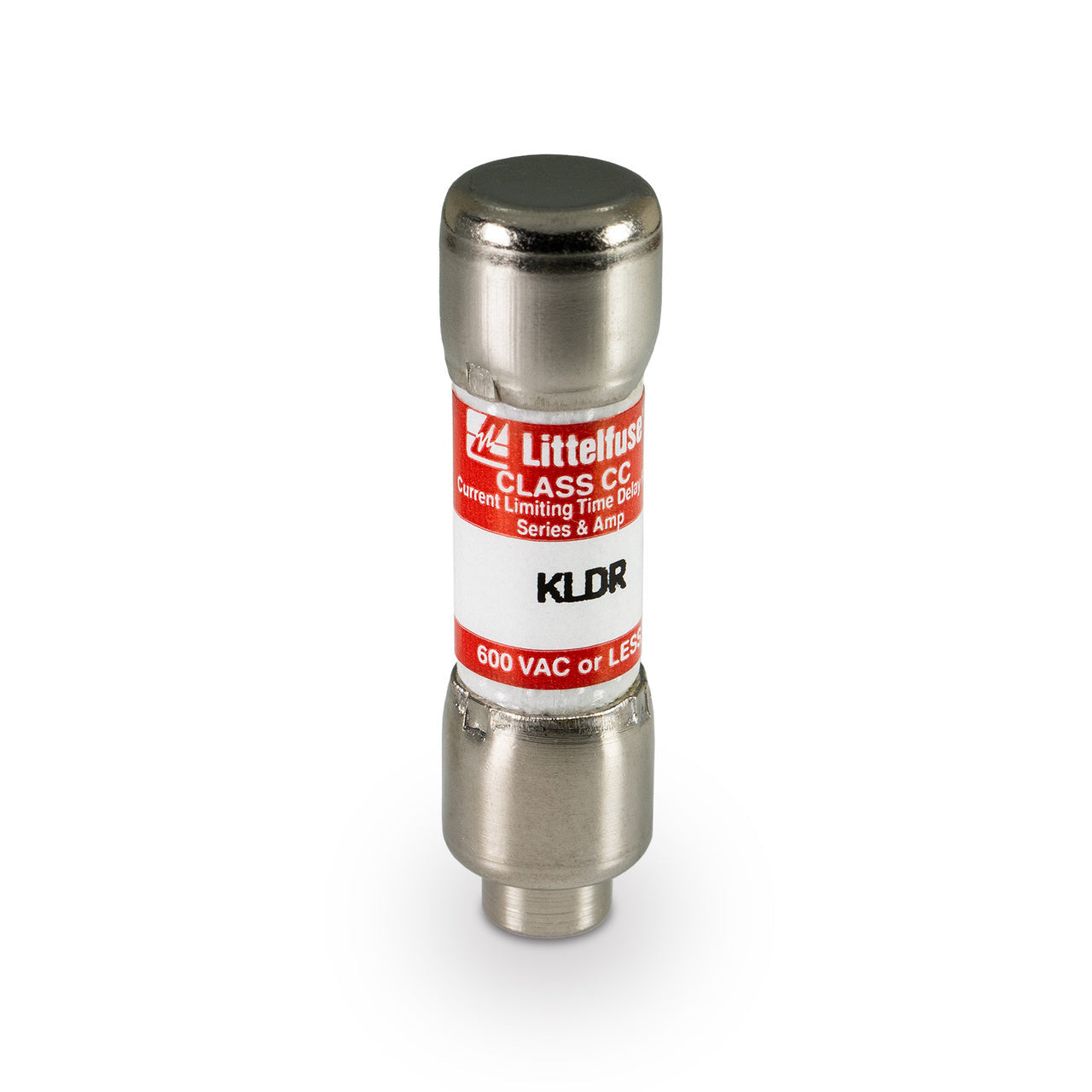

Littelfuse KLDR007 is a Class CC time-delay fuse designed for circuit protection in low-voltage applications. It features a 600V AC/DC voltage rating and 7A current rating with a 200kA interrupting capacity, housed in a compact ferrule-style construction measuring 1-1/2" in length and 0.41" diameter. The fuse meets UL 248-4, CSA, CE, and RoHS standards with time-delay characteristics for motor circuit protection. Typical applications include industrial control panels, transformers, and power distribution systems requiring reliable overcurrent protection.

Key Features & Specifications
  • Type: Class CC time-delay fuse with ferrule connection
  • Voltage Rating: 600V AC/DC
  • Current Rating: 7A
  • Dimensions: 1-1/2" length x 0.41" diameter
  • Standards: UL 248-4, CSA Certified, CE, RoHS
  • Applications: Motor circuits, control panels, power distribution
  • Class Rating: CC
  • Connection: Ferrule
  • Barrels: 1
  • Velocity: Time-Delay (TD)
  • AIC rating: 200kA@600V
  • Weight: 7 lb
  • Certification: UL Listed, CSA Certified
Product Identification
  • UPC: 079458792676
