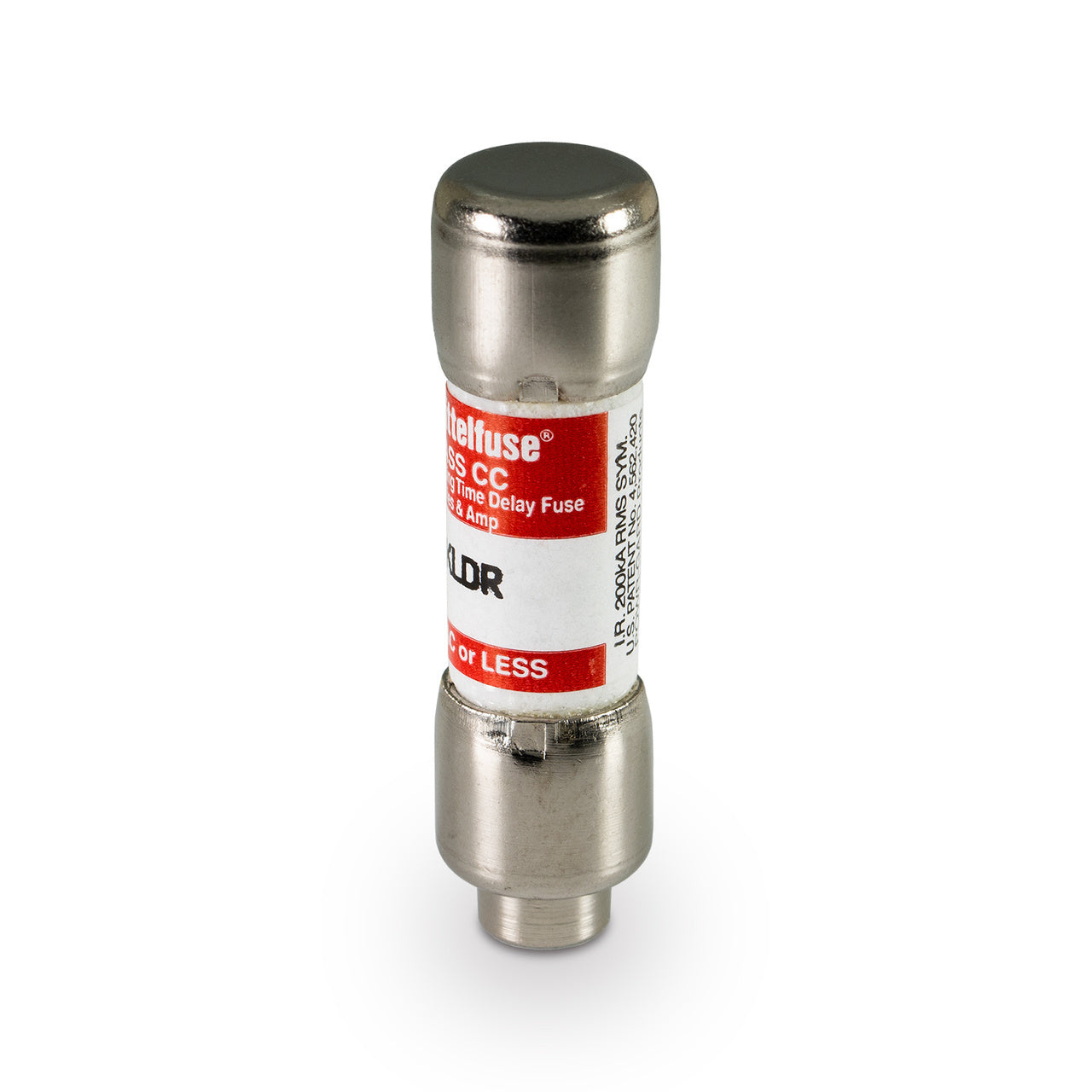

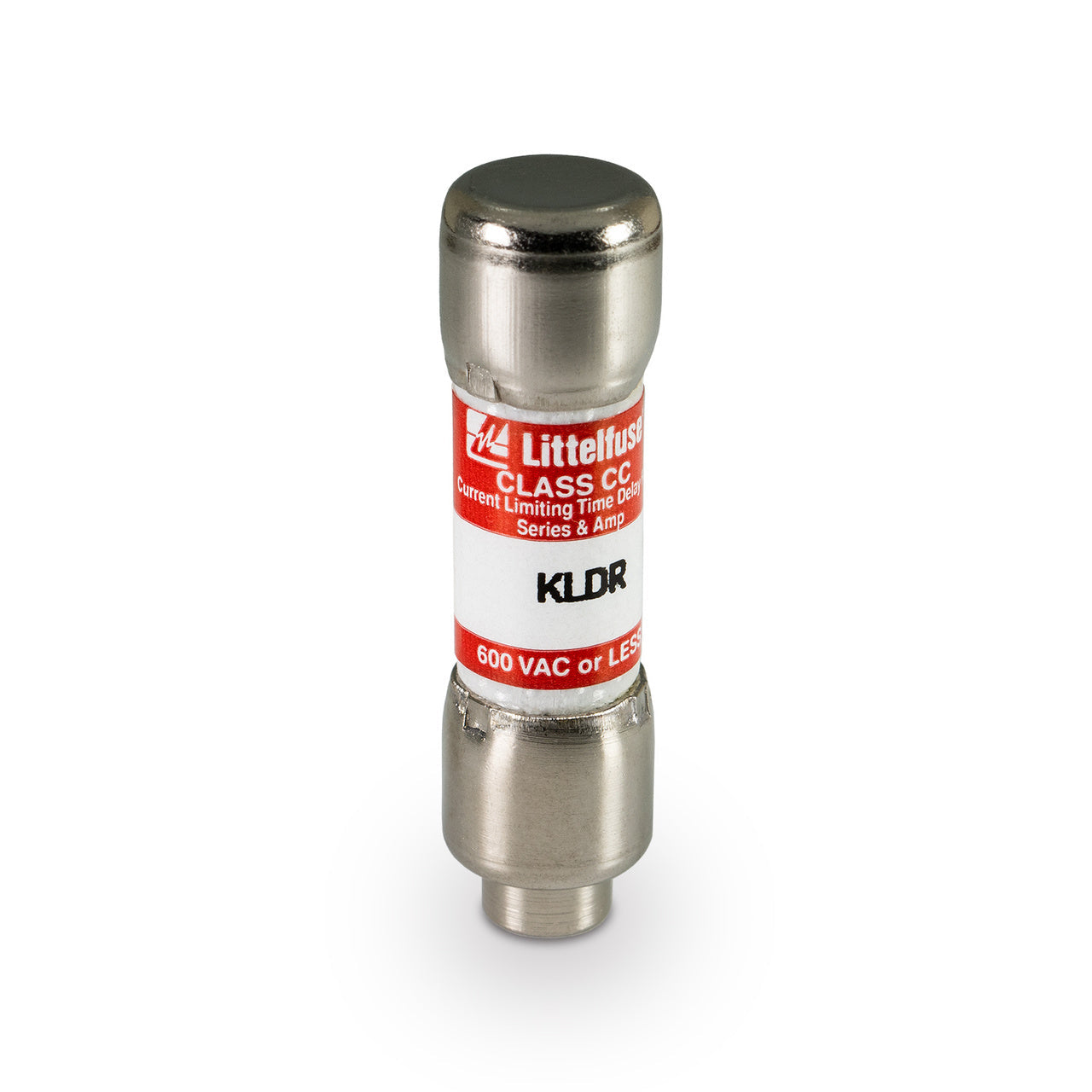

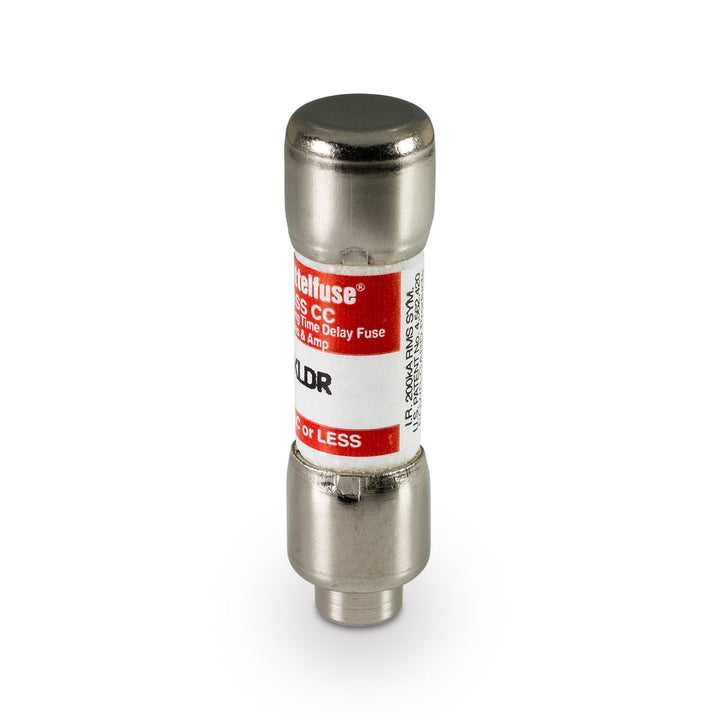

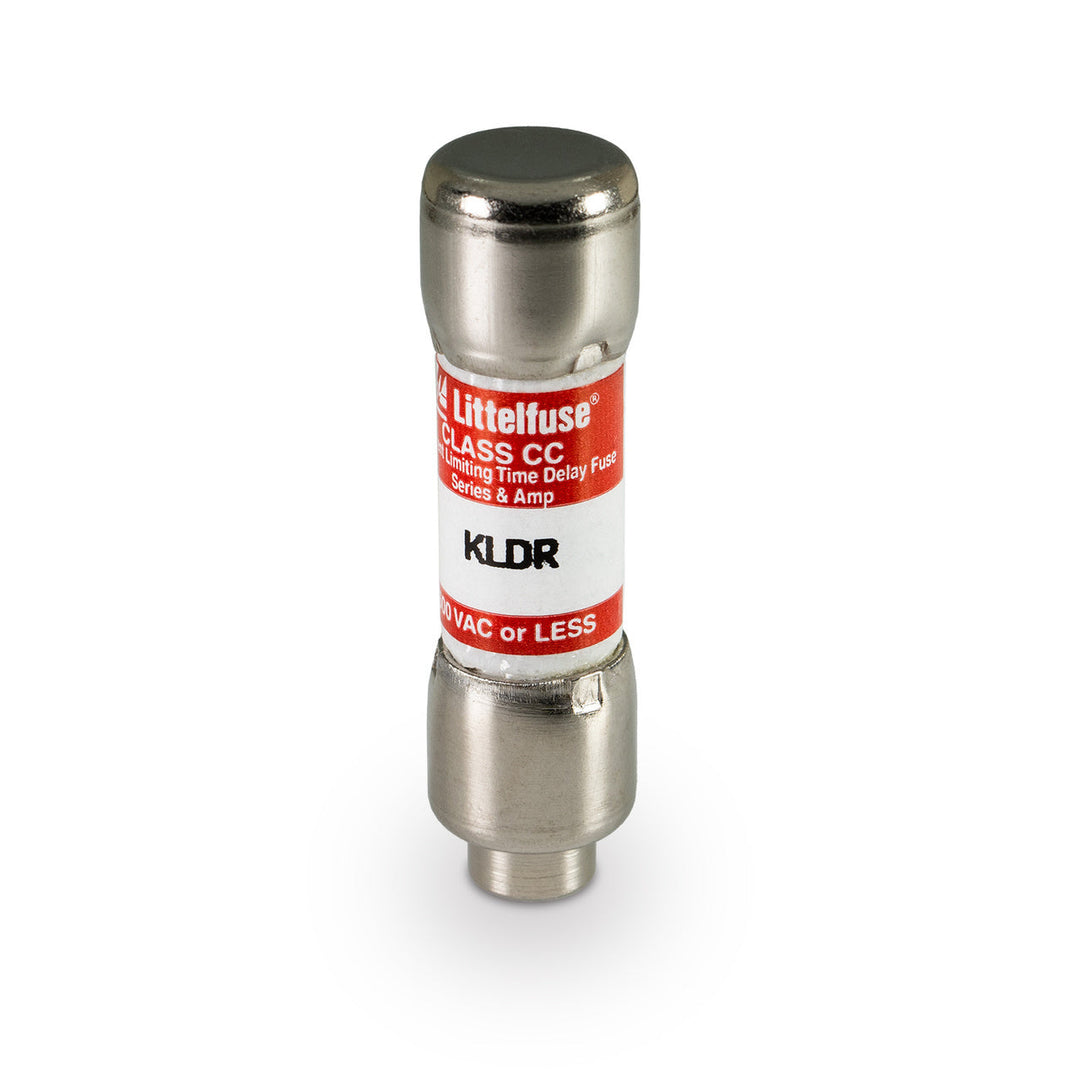

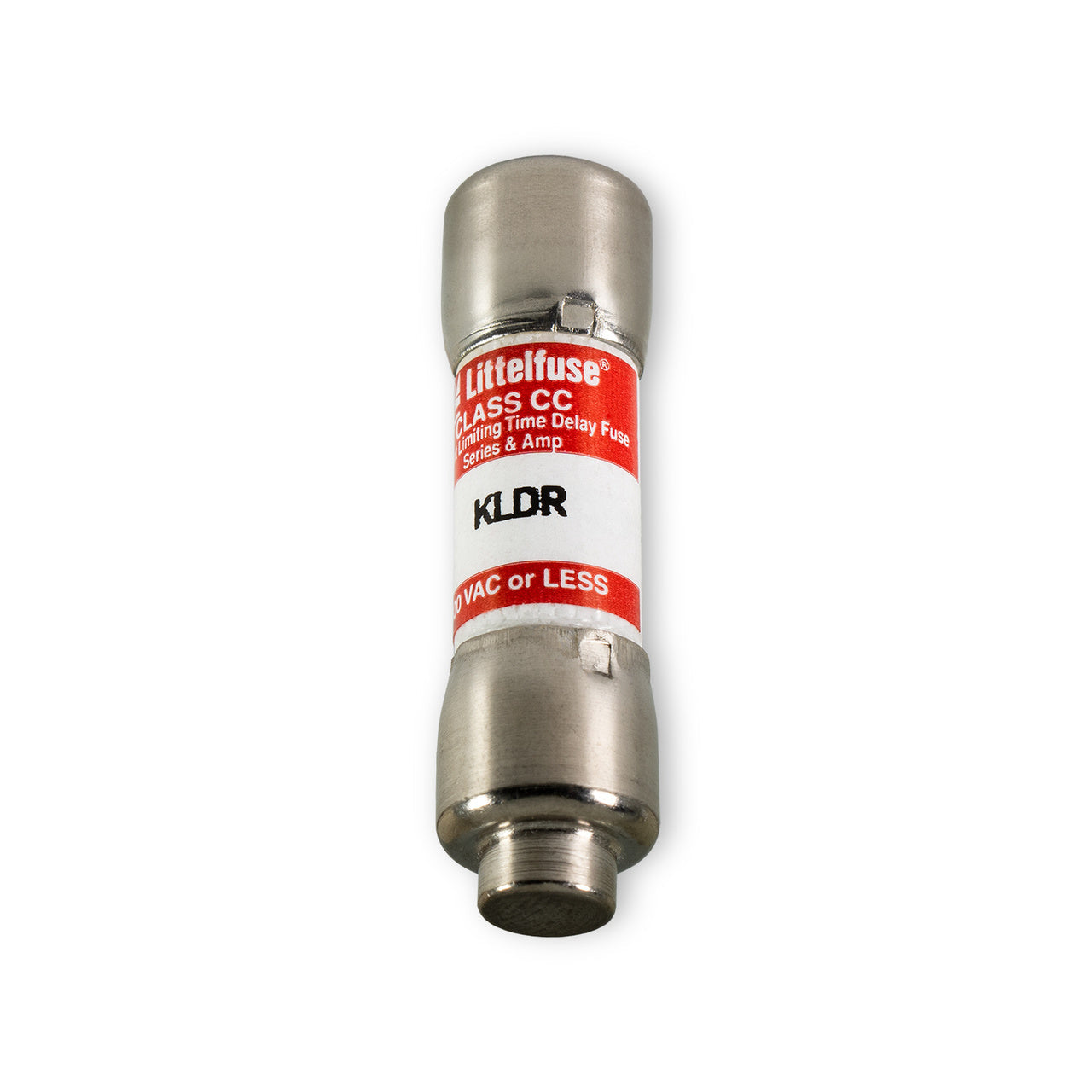

Littelfuse KLDR005 - Class CC Time-Delay Fuse 5A@600V (200kA AIC)

Littelfuse KLDR005 is a Class CC time-delay fuse designed for circuit protection in low-voltage applications. It features a 5A current rating and 600V voltage rating with a 200kA interrupting capacity, housed in a compact ferrule-style package measuring 1-1/2 inches in length and 0.41 inches in diameter. The fuse's time-delay characteristic provides overload protection while withstanding temporary inrush currents, constructed with a single-barrel design weighing 7 lb. It meets UL 248-4 standards and carries CE, CSA, and RoHS certifications for industrial use, commonly applied in control circuits, transformers, and motor branch circuits.

Key Features & Specifications

• Type: Class CC time-delay fuse with ferrule connection
• Voltage Rating: 600V AC/DC
• Current Rating: 5A
• Dimensions: 1-1/2" length x 0.41" diameter
• Standards: UL 248-4, CE, CSA, RoHS
• Applications: Control circuits, transformers, motor protection
• Class Rating: CC
• Connection: Ferrule
• Barrels: 1
• Velocity: Time-Delay (TD)
• AIC rating: 200kA@600V
• Weight: 7 lb

Product Identification

• UPC: 079458792638
