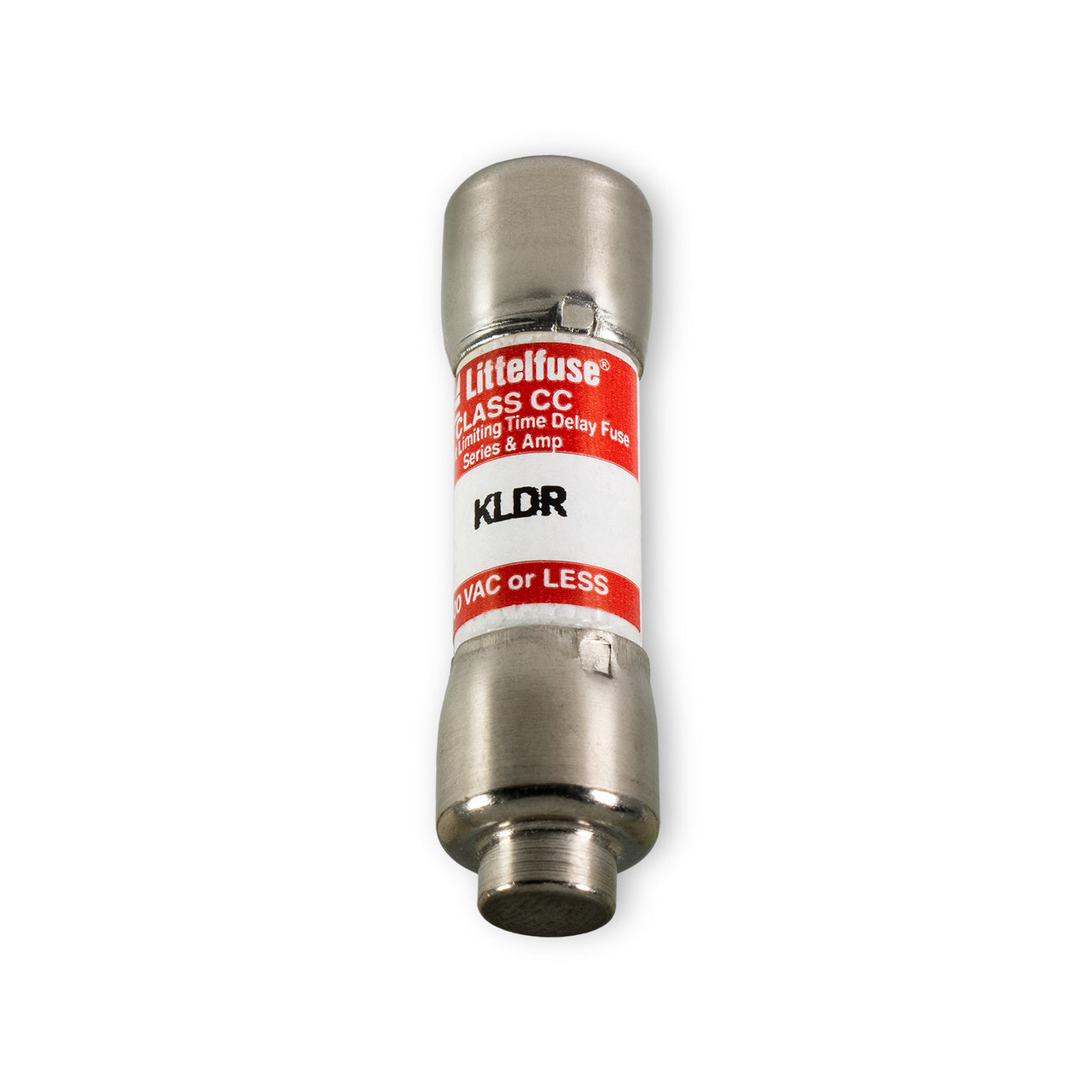

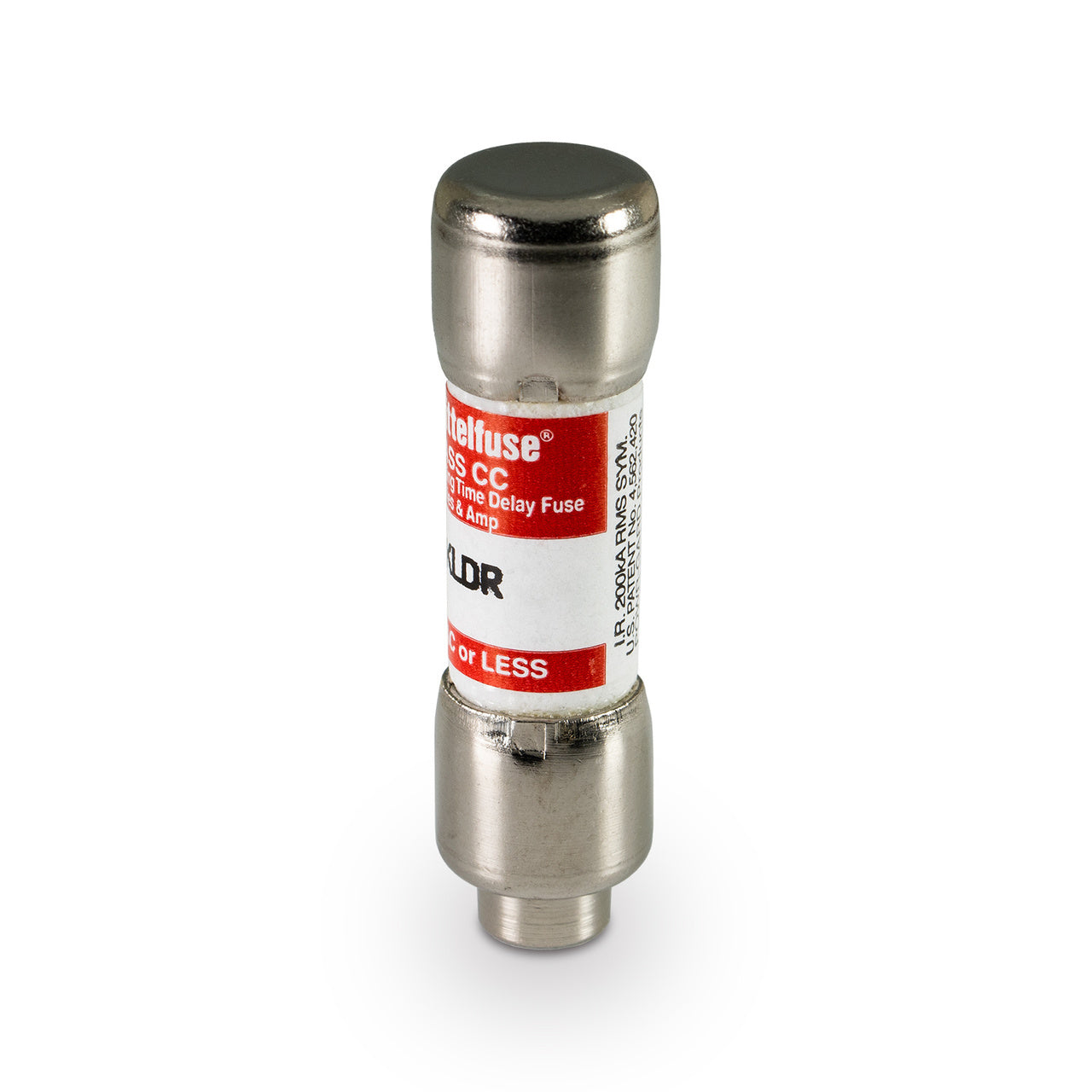

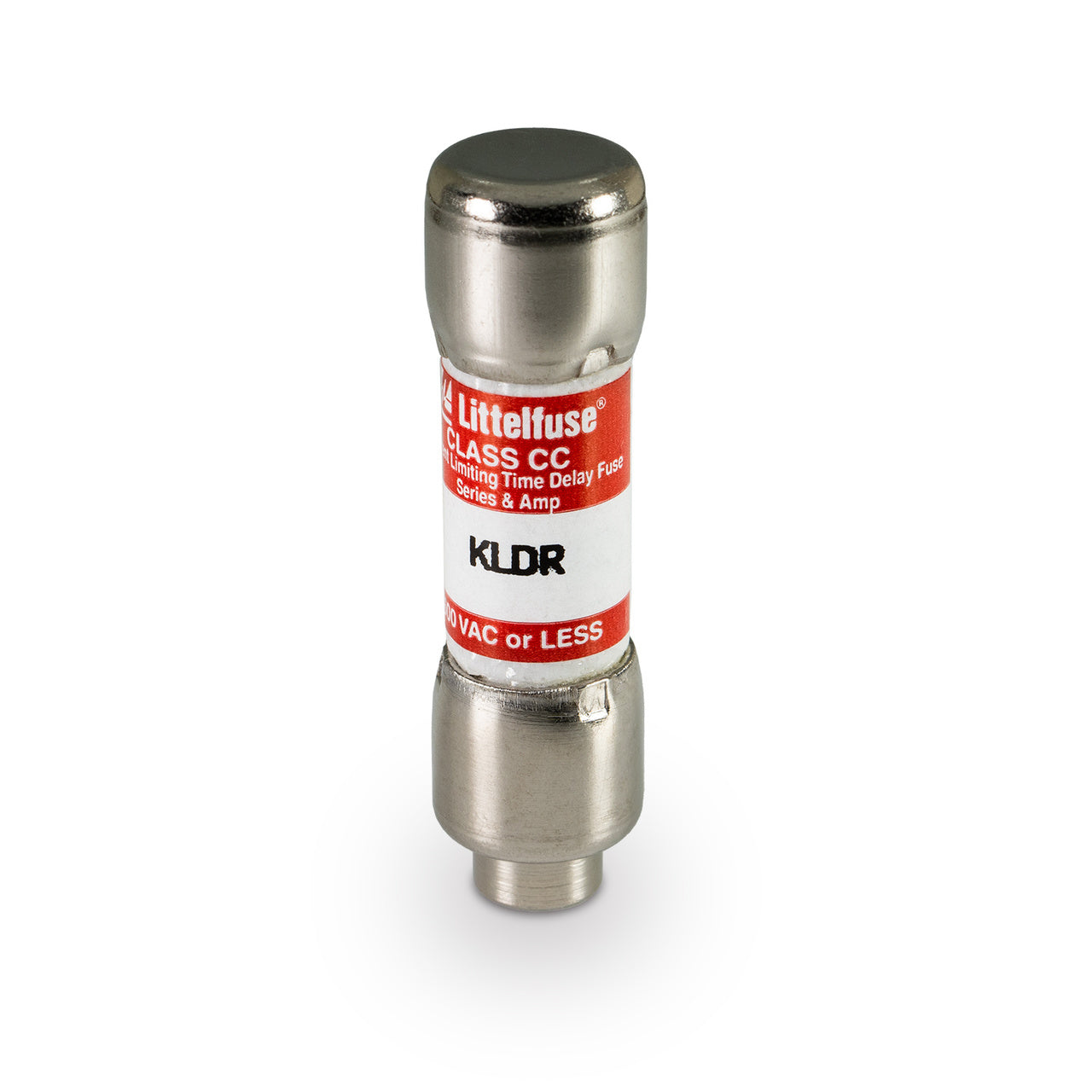

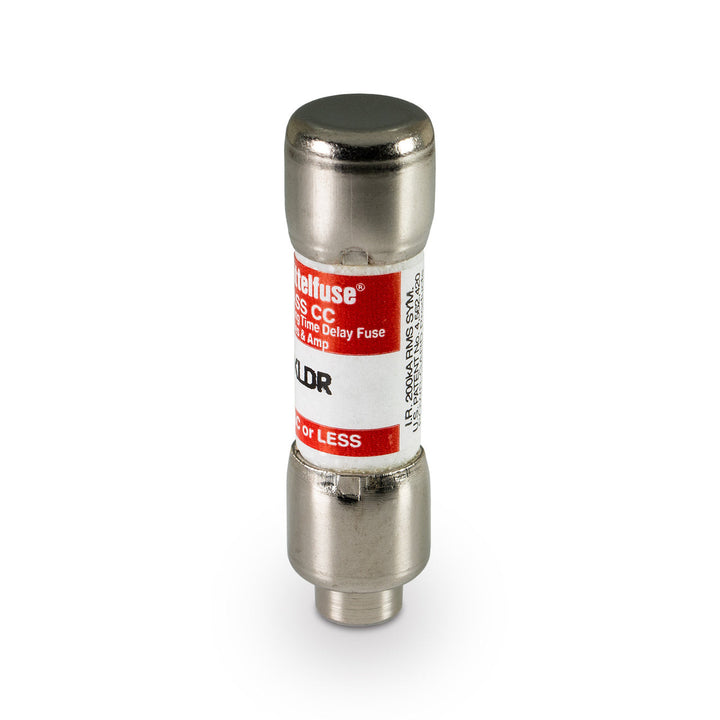

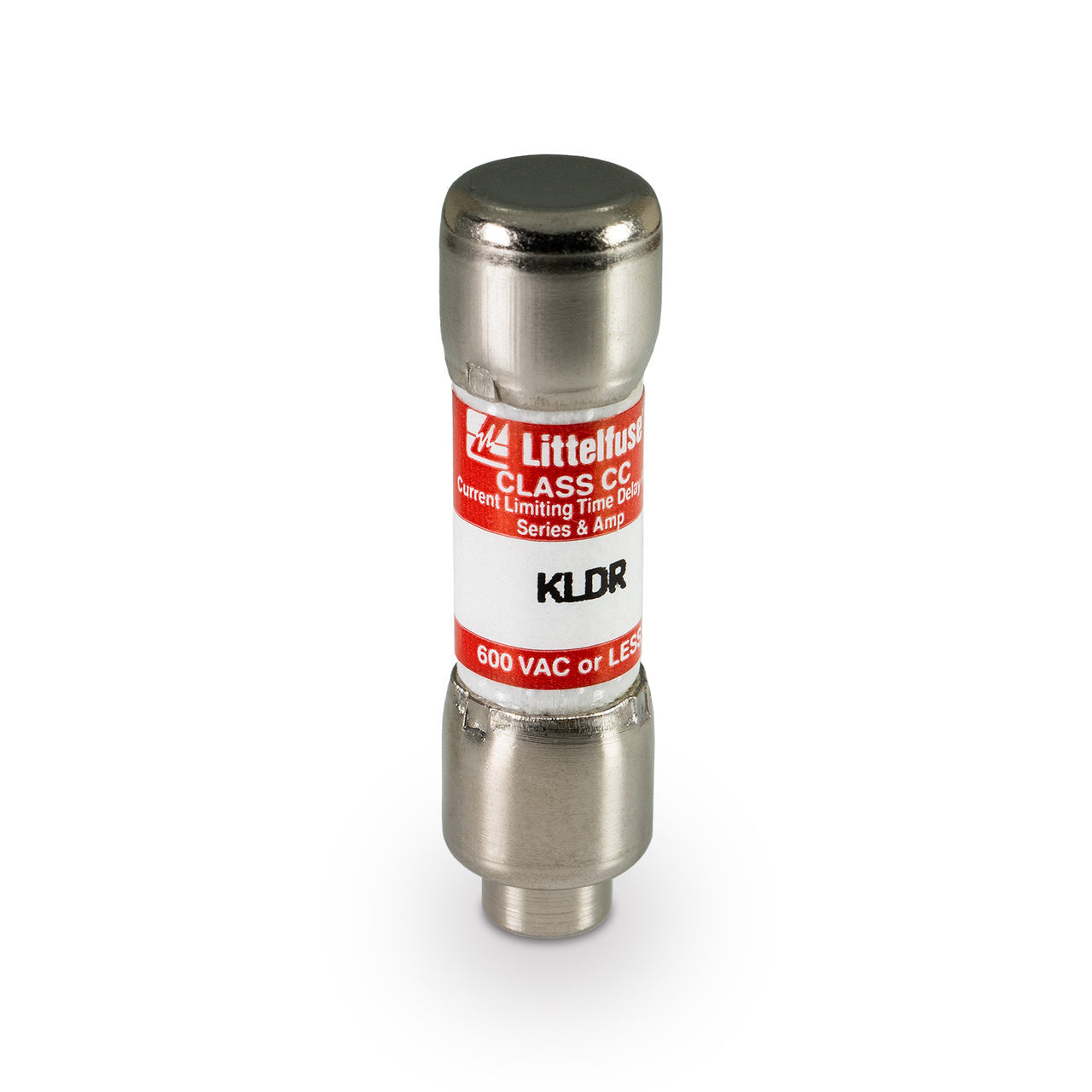

Littelfuse KLDR.150 - Class CC Time-Delay Fuse 0.15A (200kA@600V AIC)

Littelfuse KLDR.150 is a Class CC time-delay fuse designed for circuit protection in low-voltage applications. It features a 600V AC/DC voltage rating and 0.15A current rating with a 200kA interrupting capacity at 600V for robust short-circuit protection. The compact ferrule-connected fuse measures 0.41" in diameter and weighs 7 lb, constructed to UL/CSA standards for reliable operation. Compliant with industry safety requirements, this time-delay fuse is ideal for protecting control circuits, transformers, and motor loads in industrial power distribution systems.

Key Features & Specifications

• Type: Class CC time-delay fuse with ferrule connection
• Voltage Rating: 600V AC/DC
• Current Rating: 0.15A
• Dimensions: 0.41" diameter
• Standards: UL/CSA listed
• Applications: Control circuits, transformers, motor protection
• AIC rating: 200kA@600V
• Connection: Ferrule
• Barrels: 1
• Class Rating: CC
• Weight: 7 lb
