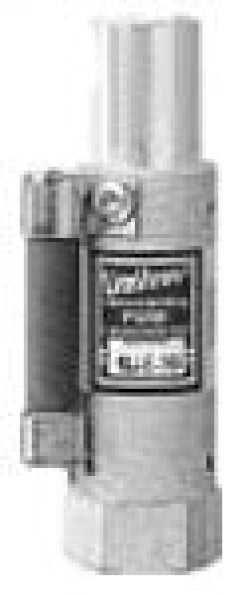

Bussmann KGJ-E-35 - Current-Limiting Fuse 35A (200kA AIC @600V)

Bussmann KGJ-E-35 is a current-limiting fuse designed for high-interrupting capacity protection in industrial electrical systems. This low-voltage fuse features a 35A current rating and 600V voltage rating with exceptional 200kA interrupting capacity at 600VAC. The unit employs a single-barrel construction with threaded connection terminals and measures 1 inch in diameter with a weight of 7 lb. It complies with industry standards for current-limiting protection and is typically applied in motor circuits, transformers, and feeder protection where high fault current interruption is critical.

Key Features & Specifications

• Type: Current-limiting fuse, single barrel construction with threaded connections
• Voltage Rating: 600V AC
• Current Rating: 35A
• Dimensions: 1 inch diameter
• Standards: UL/CSA certified
• Applications: Motor circuit protection, transformer protection, feeder circuits
• AIC rating: 200kA@600V
• Connection: Threaded
• Barrels: 1
• Weight: 7 lb
• Fuse Class: KGJ current-limiting
• Family: LIMITRON

Product Identification

• UPC: 051712650038
• GTIN: 00051712650038
