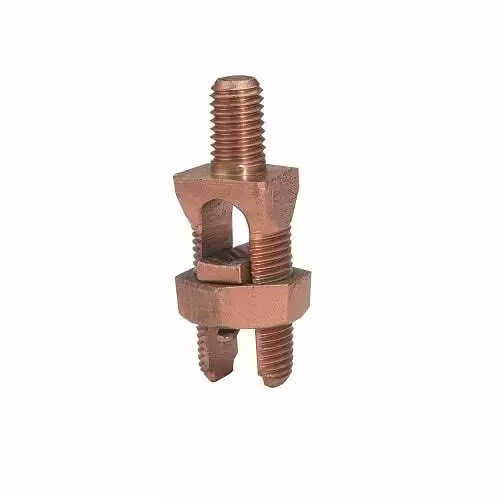

Burndy KC23B1 - Mechanical Grounding Connector 8-2 AWG
Burndy KC23B1 - Mechanical Grounding Connector 8-2 AWG

Burndy KC23B1 - Mechanical Grounding Connector 8-2 AWG

Burndy
Price
Save $-47.58
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Burndy KC23B1 is a mechanical grounding connector engineered for cable-to-flat applications, providing a reliable grounding path for one or two conductors to steel surfaces. This connector accommodates conductor sizes from 8-2 AWG stranded and 10-1 AWG solid, secured by a 3/8" stud for robust mounting. The compact unit measures 0.62 inches in width, 0.97 inches in length, and 1.05 inches in height, with a diameter of 1-1/8 inches, and weighs 5.19 lb. It is UL Listed and UL Listed for Direct Burial, complying with UL467 standards for grounding and bonding equipment. Typical industrial applications include grounding systems in commercial and industrial installations where secure cable-to-flat connections are required.

Key Features & Specifications
  • Type: Mechanical Grounding Connector
  • Application: Cable to Flat
  • Conductor Size: 8-2 AWG Stranded / 10-1 AWG Solid
  • Stud Size: 3/8"
  • Number of Conductors: 1 or 2
  • Mounting Type: Flat Surface
  • Body Width: 0.62"
  • Length: 0.97"
  • Height: 1.05"
  • Diameter: 1-1/8"
  • Weight: 5.19 lb
  • Certification: UL Listed, UL Listed-Direct Burial, UL467
  • Country of Origin: United States


Product Identification
  • UPC: 781810255506
  • GTIN: 00781810255506
