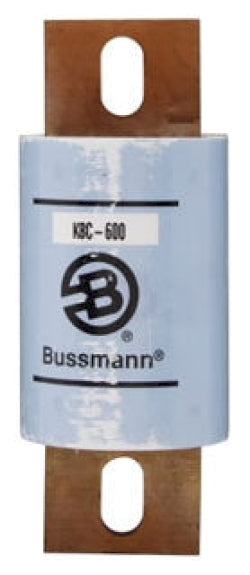

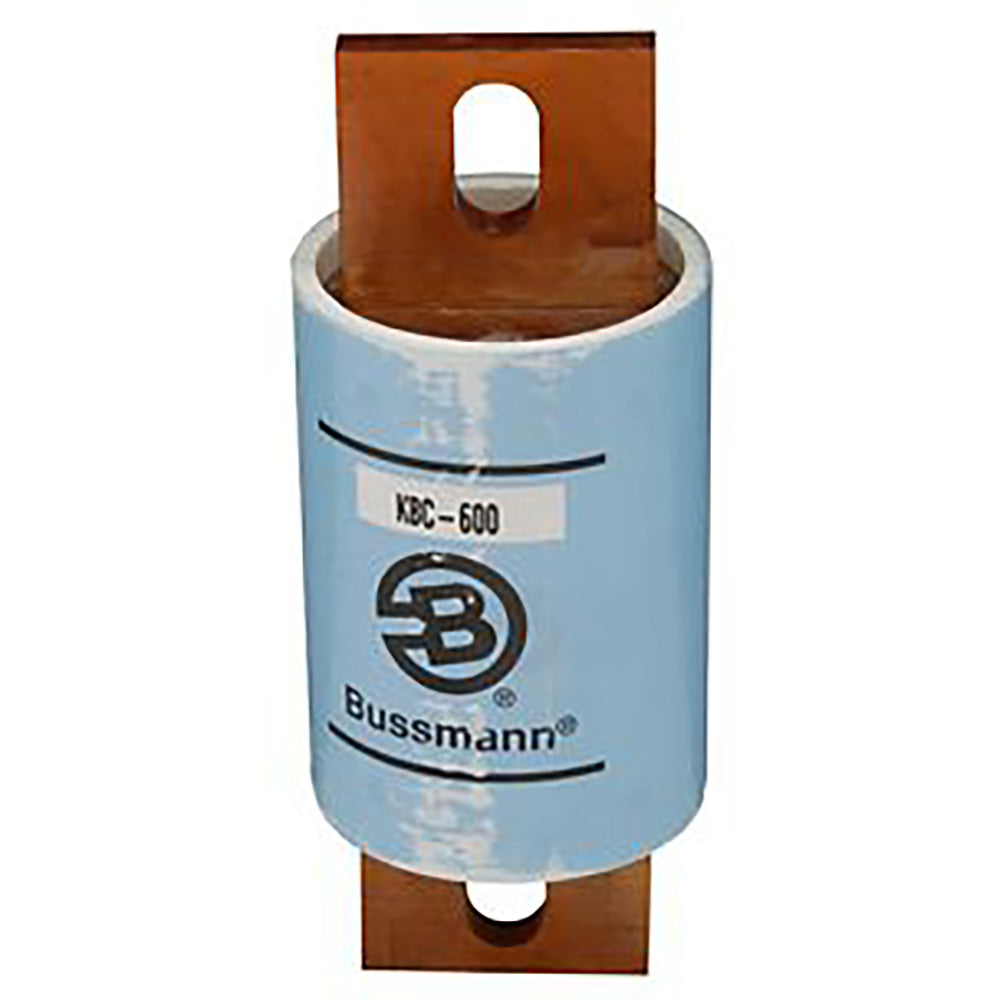

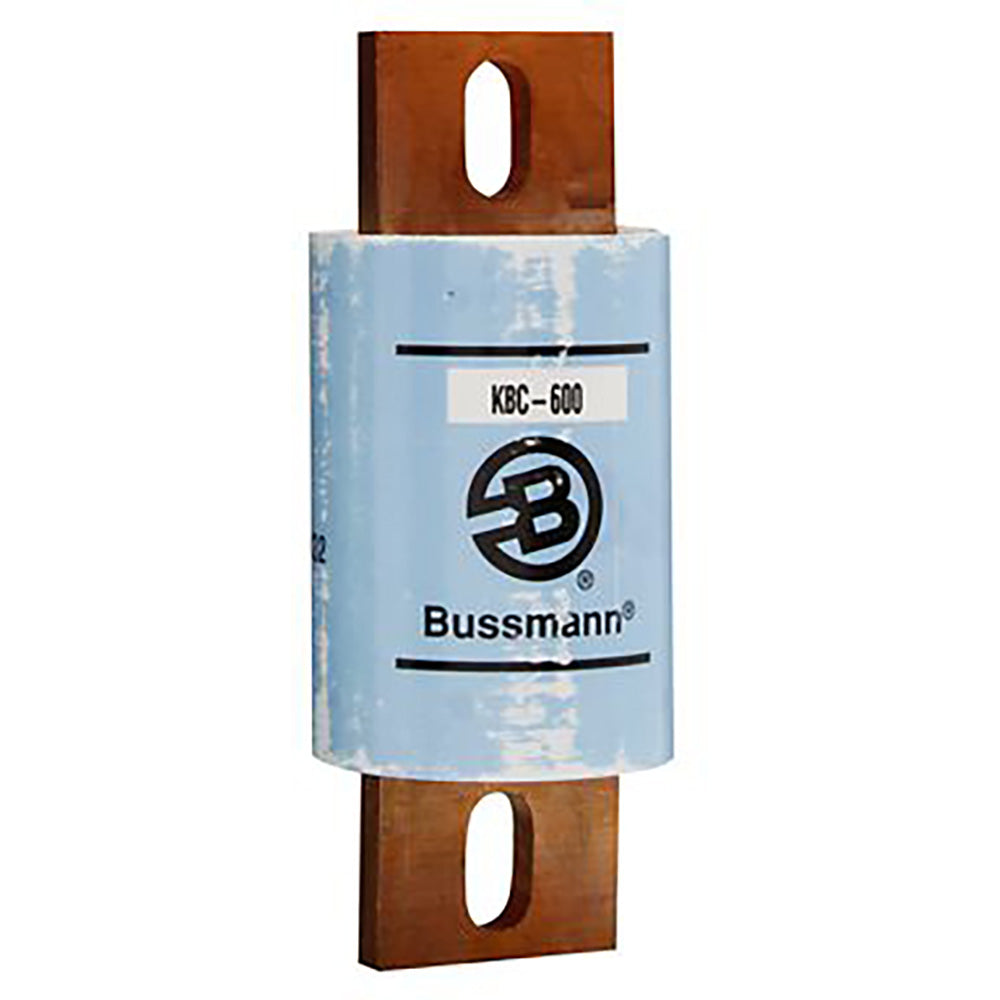

Bussmann KBC-600 - Low Voltage Fuse 600A 600V (200kA AIC Rating)

Bussmann KBC-600 is a low-voltage current-limiting fuse designed for industrial circuit protection applications requiring high interrupting capacity. It features a 600V AC voltage rating and 600A current rating with exceptional 200kA interrupting capacity at 600V for reliable fault protection. The fuse construction utilizes a single-barrel design with stud connections and measures 7 inches in length by 2.8 inches in height by 1.91 inches in width, weighing 2 lb with a 2-inch diameter. Certified to UL Recognized and CE Marked standards, this Eaton KBC Series fuse meets rigorous safety requirements for industrial power distribution systems, motor protection, and heavy equipment applications where robust circuit protection is essential.

Key Features & Specifications

• Type: Low-voltage current-limiting fuse, single-barrel construction with stud connections
• Voltage Rating: 600V AC
• Current Rating: 600A
• Dimensions: 7" L × 2.8" H × 1.91" W (177.8mm × 71.1mm × 48.5mm)
• Standards: UL Recognized, CE Marked
• Applications: Industrial power distribution, motor circuit protection, heavy equipment
• AIC rating: 200kA@600V
• Connection: Stud
• Barrels: 1
• Diameter: 2" (50.8mm)
• Weight: 2 lb (0.91 kg)
• Family: KBC Series
• Certification: UL Recognized, CE Marked

Product Identification

• UPC: 051712496001
• GTIN: 00051712496001
