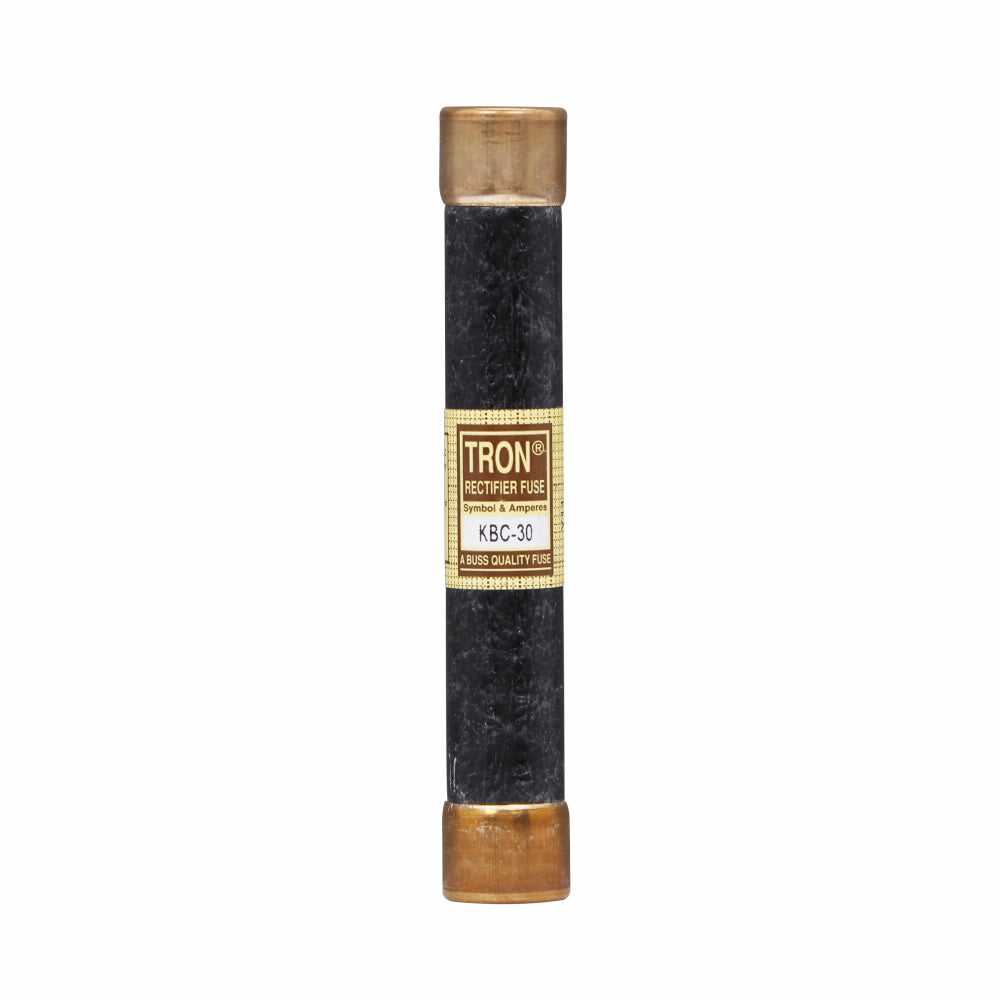

Bussmann KBC-30 - Current-Limiting Fuse 30A (200kA AIC @600V)

The Bussmann KBC-30 is a low-voltage current-limiting fuse designed for industrial circuit protection applications. It features a 600V AC voltage rating with a 30A current rating, providing reliable overcurrent protection in demanding environments. The fuse measures 5 inches in height with a 0.81-inch diameter stud connection design and single-barrel construction. Manufactured to meet industry standards, this Eaton KBC Series fuse offers 200kA interrupting capacity at 600V for robust fault protection. Typical applications include industrial control circuits, motor branch circuits, and power distribution systems requiring high interrupting capacity protection.

Key Features & Specifications

• Type: KBC Series current-limiting fuse with stud connection
• Voltage Rating: 600V AC
• Current Rating: 30A
• Dimensions: 5" height × 0.75" width × 0.75" length
• Standards: Industrial protection standards (contact factory for specific certifications)
• Applications: Industrial control circuits, motor protection, power distribution
• AIC rating: 200kA @ 600V
• Connection: Stud terminal
• Barrels: 1
• Diameter: 0.81 inches
• Weight: 1 lb
• Family: KBC Series
• Item Subcategory: Low Voltage Fuse

Product Identification

• UPC: 05171249030
• GTIN: 00051712490306
