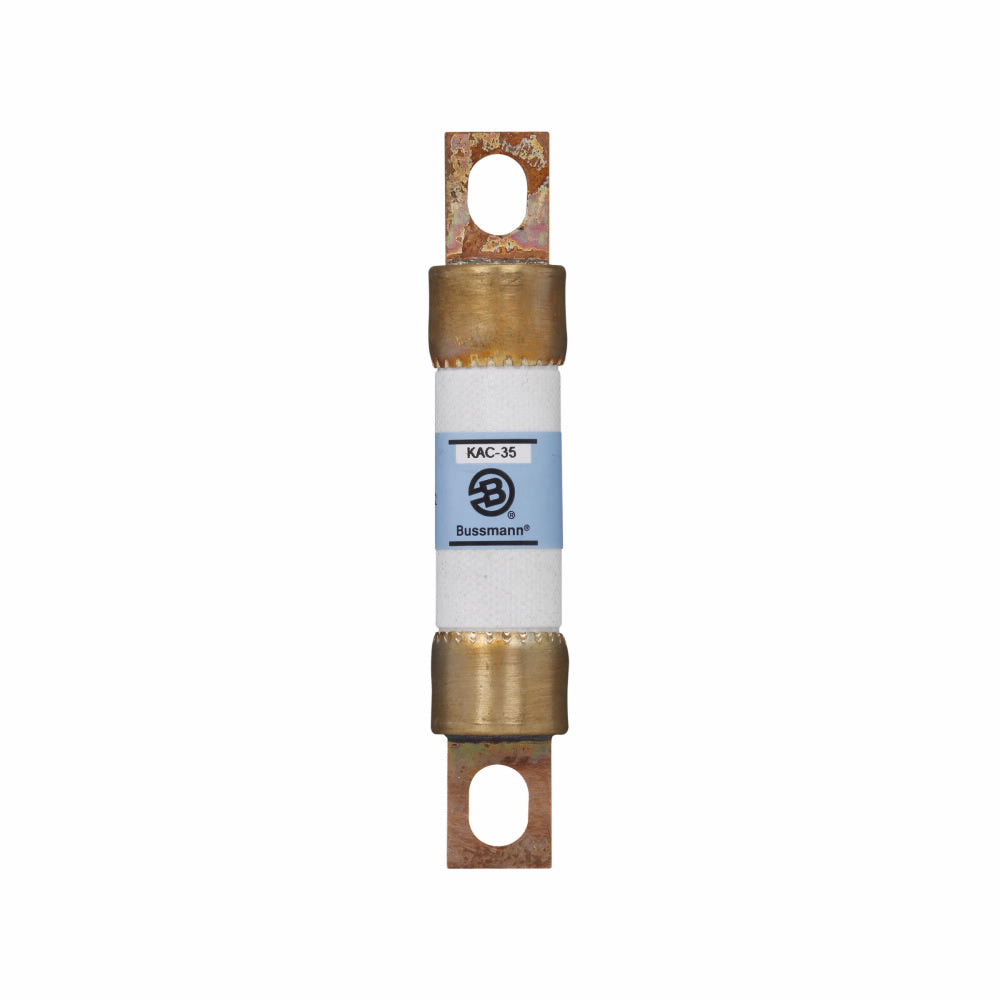

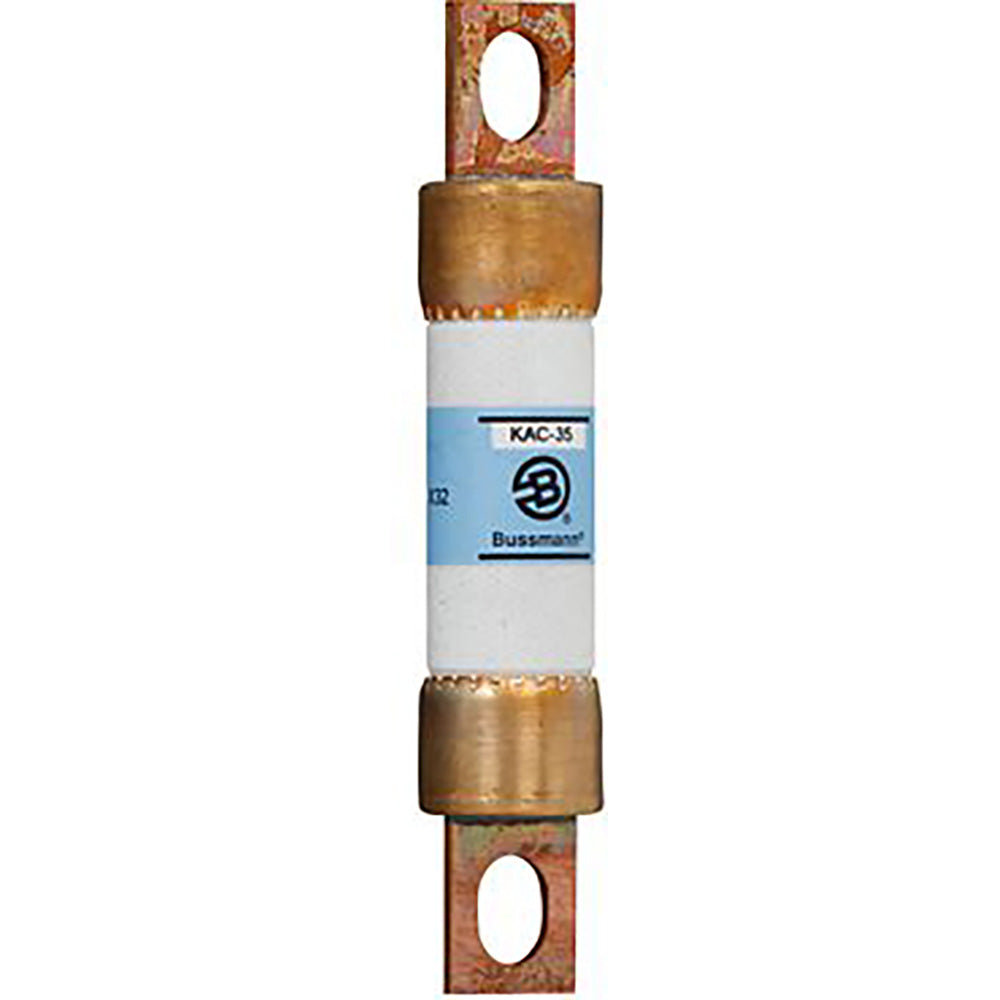

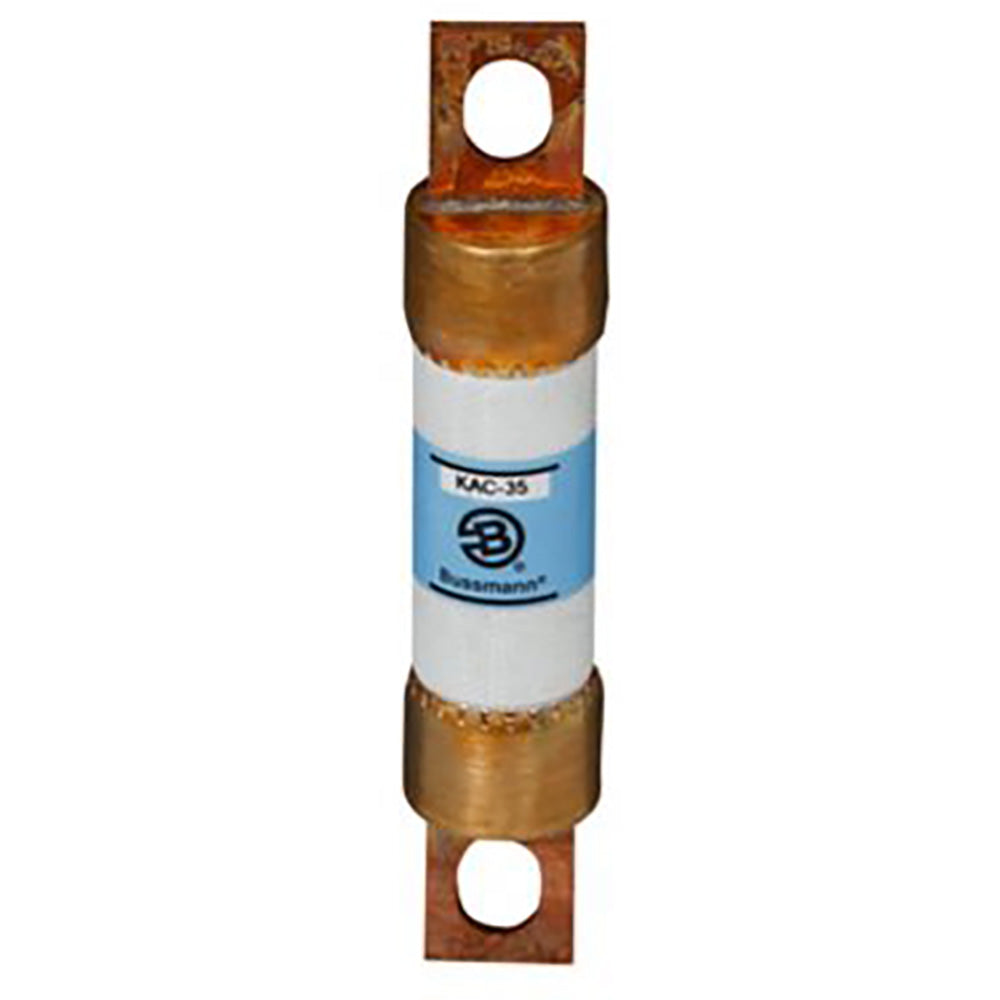

Bussmann KAC-35 - Class KAC Fuse 35A (200kA AIC @600V)

Bussmann KAC-35 is a low-voltage fuse designed for high-interrupting circuit protection in industrial electrical systems. This 35A fuse features a 600V AC/DC voltage rating with a 200kA interrupting capacity at rated voltage, housed in a durable 4-3/8" long cylindrical body with 0.81" diameter and stud connection terminals. Certified to UL, CSA, and CE standards (Guide JFHR2, File 60314, LR12636), it provides reliable protection for motor circuits, transformers, and power distribution equipment requiring Class KAC protection.

Key Features & Specifications

• Type: Class KAC current-limiting fuse with single barrel construction
• Voltage Rating: 600V AC/DC
• Current Rating: 35A
• Dimensions: 4-3/8" length x 0.81" diameter
• Weight: 1 lb
• Connection: Stud terminal
• AIC Rating: 200kA @ 600V
• Certifications: UL Recognized (File 60314), CSA Certified (LR12636), CE, Guide JFHR2
• Applications: Industrial motor protection, transformer circuits, power distribution panels

Product Identification

• UPC: 051712470353
• GTIN: 00051712470353
