Burndy KA2U - Universal Terminal 14-2 AWG (1/4 in Stud)
Burndy KA2U - Universal Terminal 14-2 AWG (1/4 in Stud)

Burndy KA2U - Universal Terminal 14-2 AWG (1/4 in Stud)

Burndy
Price
Save $-2.99
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

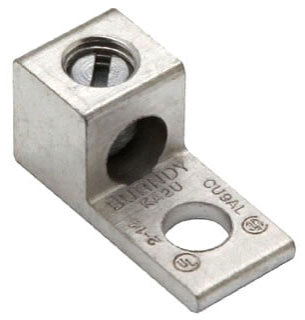

Burndy KA2U is an aluminum universal terminal designed for connecting 14-2 AWG stranded aluminum and copper conductors. This dual-rated panelboard lug is constructed from high-strength extruded aluminum alloy with electro tin plating for low contact resistance and includes a single hole with a 1/4 inch stud size. It features one slot screw for secure bolted connection, a temperature rating of 194°F, and a recommended installation torque of 50 in-lbs. The terminal is CSA Certified, UL Listed, and RoHS compliant. It is suitable for industrial panelboard and power distribution applications requiring reliable aluminum-to-copper conductor connections.

Key Features & Specifications
  • Type: Aluminum universal terminal
  • Manufacturer: Burndy
  • UPC: 781810370056
  • GTIN: 781810370056
  • Country of Origin: Mexico
  • Dimensions: 0.56 in x 1.16 in x
  • Weight: 5.19 lb
  • Certification: CSA Certified, UL Listed
  • Material: Aluminum alloy with steel hardware
  • Conductor Range: 14-2 AWG stranded copper/aluminum
  • Number of Holes: 1
  • Stud Size: 1/4 inch
  • Screw Type: Slot
  • Temperature Rating: 194°F
  • Installation Torque: 50 in-lbs recommended
  • Electro Tin Plated for low contact resistance
  • Dual Rated for Aluminum and Copper conductors
  • EU RoHS Compliant
  • Dimensions: Height 0.56 in, Hole Size 0.27 in


Product Identification
  • UPC: 781810370056
  • GTIN: 781810370056
