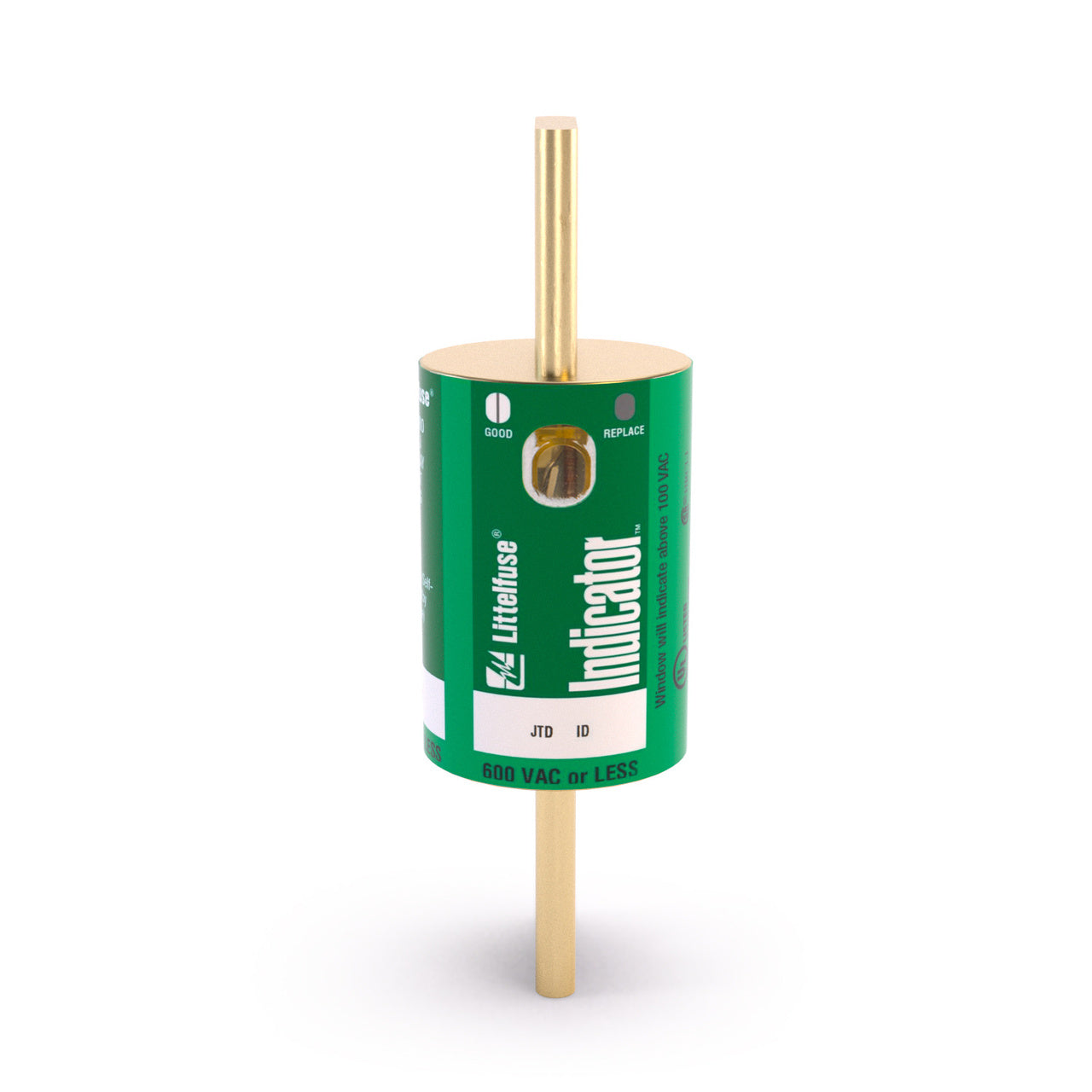

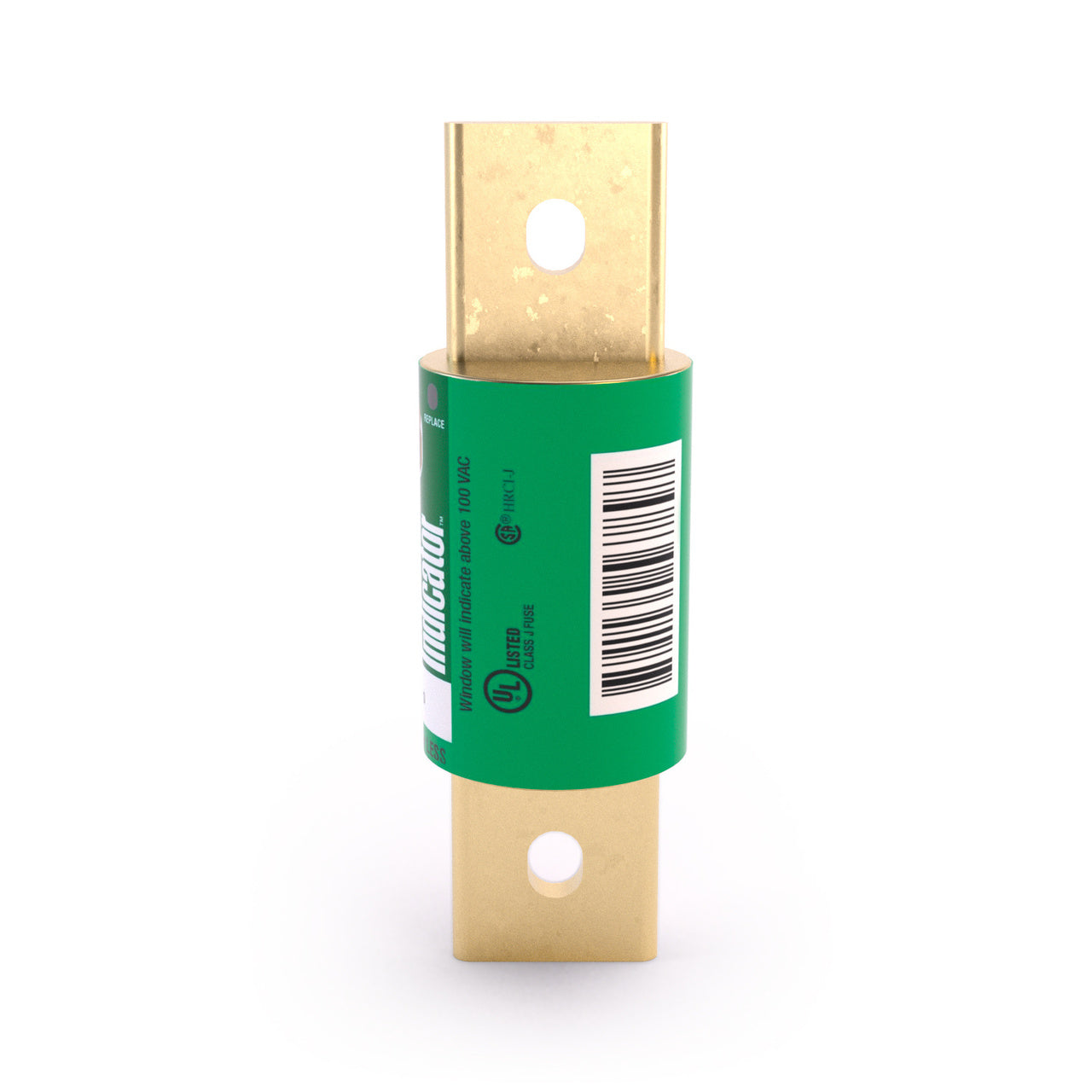

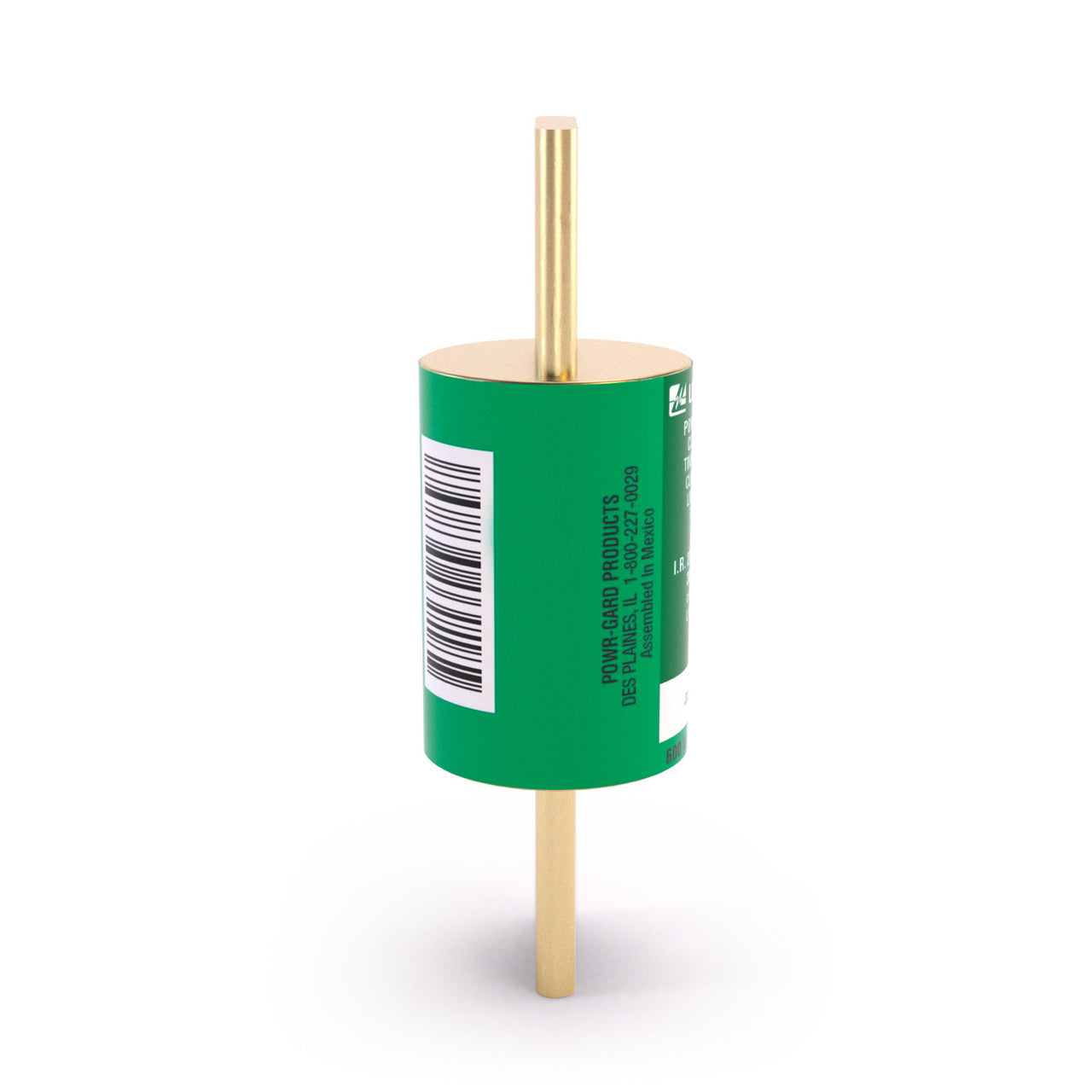

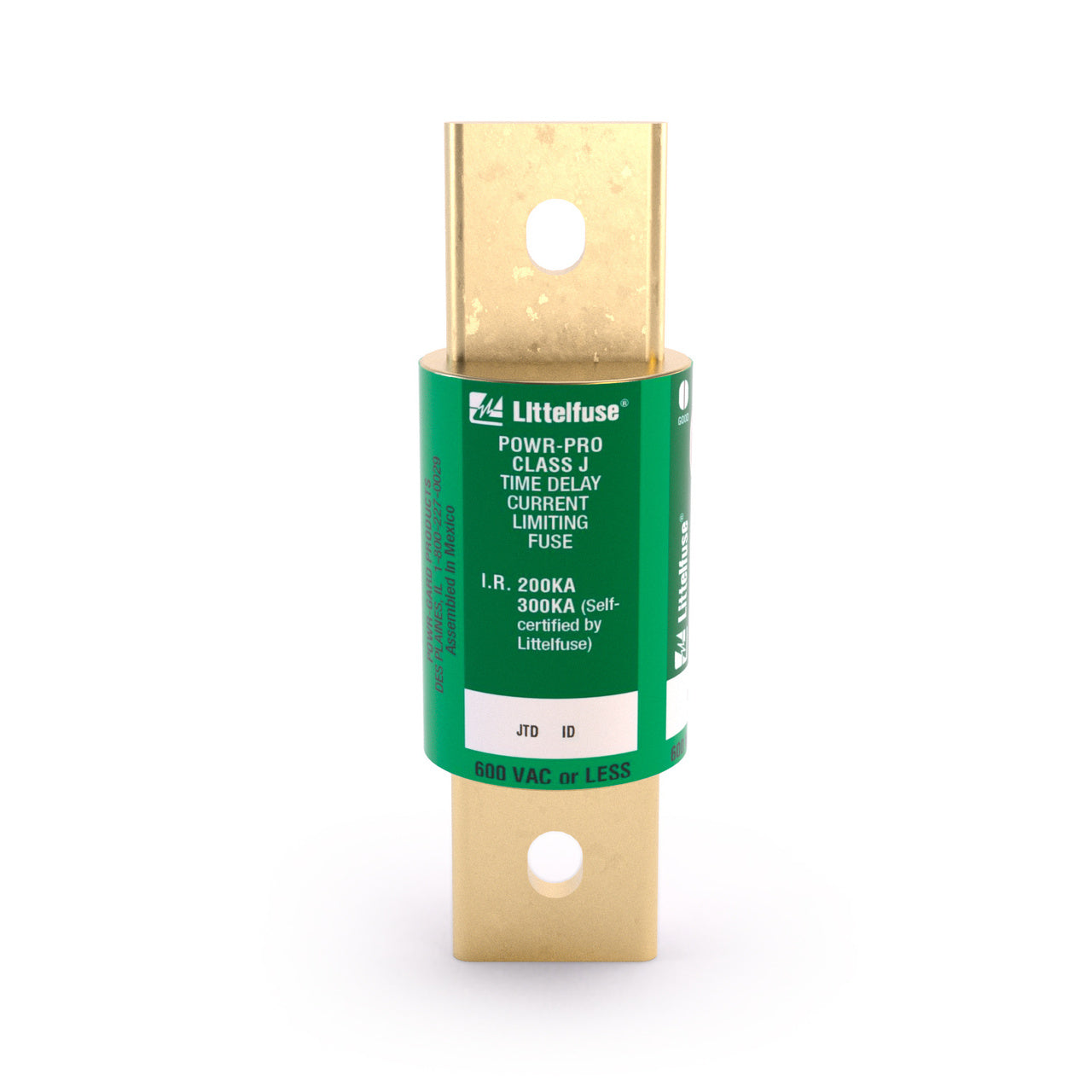

Littelfuse JTD500ID - Class J Time-Delay Fuse 500A@600V (200kA AIC)

Littelfuse JTD500ID is a UL Class J time-delay fuse with visual indication designed for circuit protection in industrial power distribution systems. It features a 600V AC voltage rating and 500A current rating with a 200kA interrupting capacity, housed in a compact 2.5-inch diameter bolt-in package weighing 3 lb. The fuse meets UL 248-8 and CSA standards with time-delay characteristics for motor circuit protection, manufactured in Mexico for reliable performance in demanding environments including HVAC systems, industrial controls, and power conversion equipment.

Key Features & Specifications

• Type: JTD_ID Series UL Class J Time-Delay Fuse with Indication
• Voltage Rating: 600V AC
• Current Rating: 500A
• Dimensions: 2.5" diameter
• Standards: UL 248-8, CSA Certified
• Applications: Motor circuits, power distribution, industrial controls
• Class Rating: J
• Connection: Bolt-In
• Barrels: 1
• AIC rating: 200kA@600V
• Weight: 3 lb
• Country of Origin: Mexico

Product Identification

• UPC: 07945803192
• GTIN: 00079458031928
