Littelfuse JTD500 - Class J Time-Delay Fuse 500A (200kA AIC @600V)
Littelfuse JTD500 Low Voltage Powr-Gard 600V 500A Fuse - Essential Electric Supply
Littelfuse JTD500 Low Voltage Powr-Gard 600V 500A Fuse - Essential Electric Supply
Littelfuse JTD500 Low Voltage Powr-Gard 600V 500A Fuse - Essential Electric Supply
Littelfuse JTD500 Low Voltage Powr-Gard 600V 500A Fuse - Essential Electric Supply
Littelfuse JTD500 Low Voltage Powr-Gard 600V 500A Fuse - Essential Electric Supply
Littelfuse JTD500 Low Voltage Powr-Gard 600V 500A Fuse - Essential Electric Supply
Littelfuse JTD500 - Class J Time-Delay Fuse 500A (200kA AIC @600V)

Littelfuse JTD500 - Class J Time-Delay Fuse 500A (200kA AIC @600V)

Littelfuse
Price
Save $515.99
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

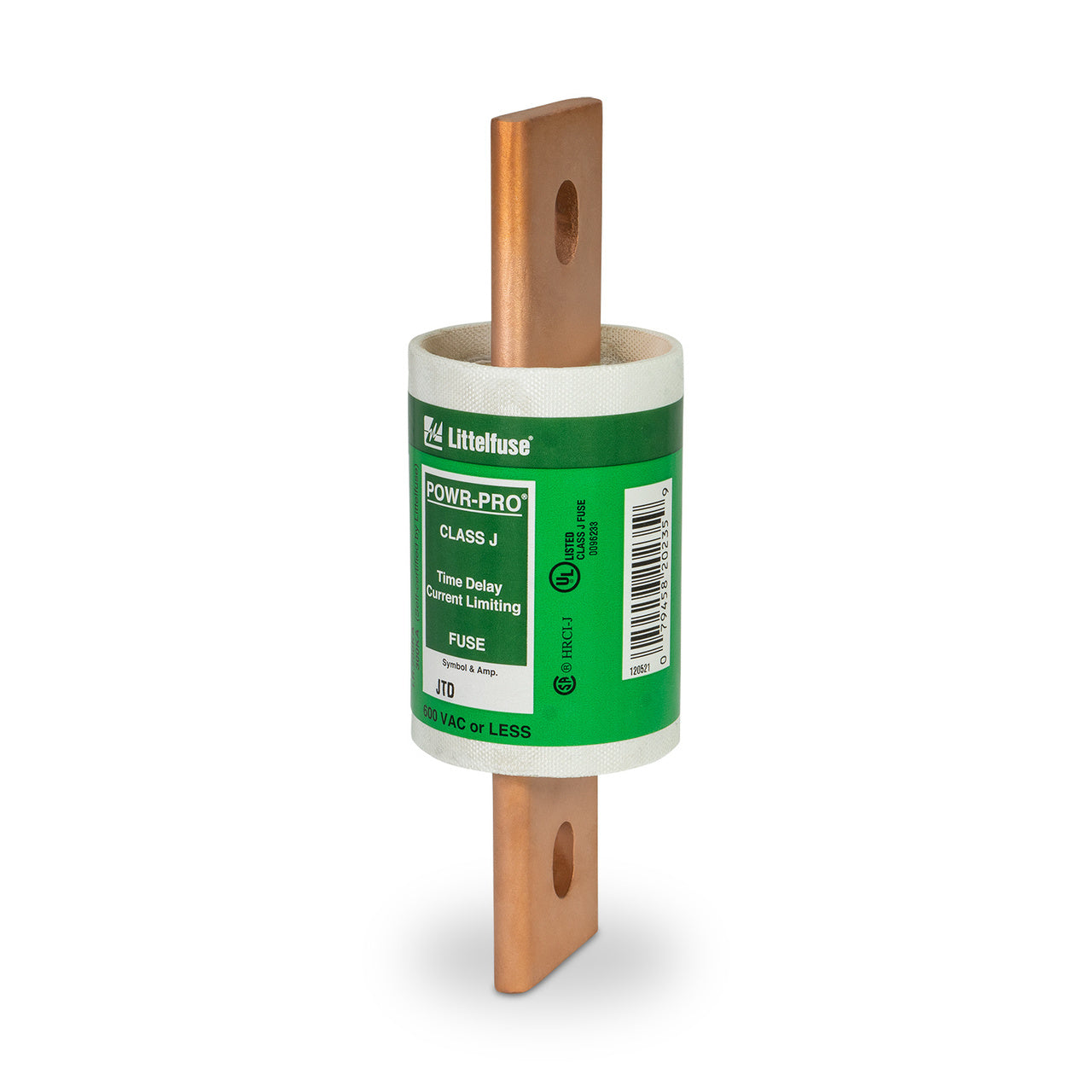

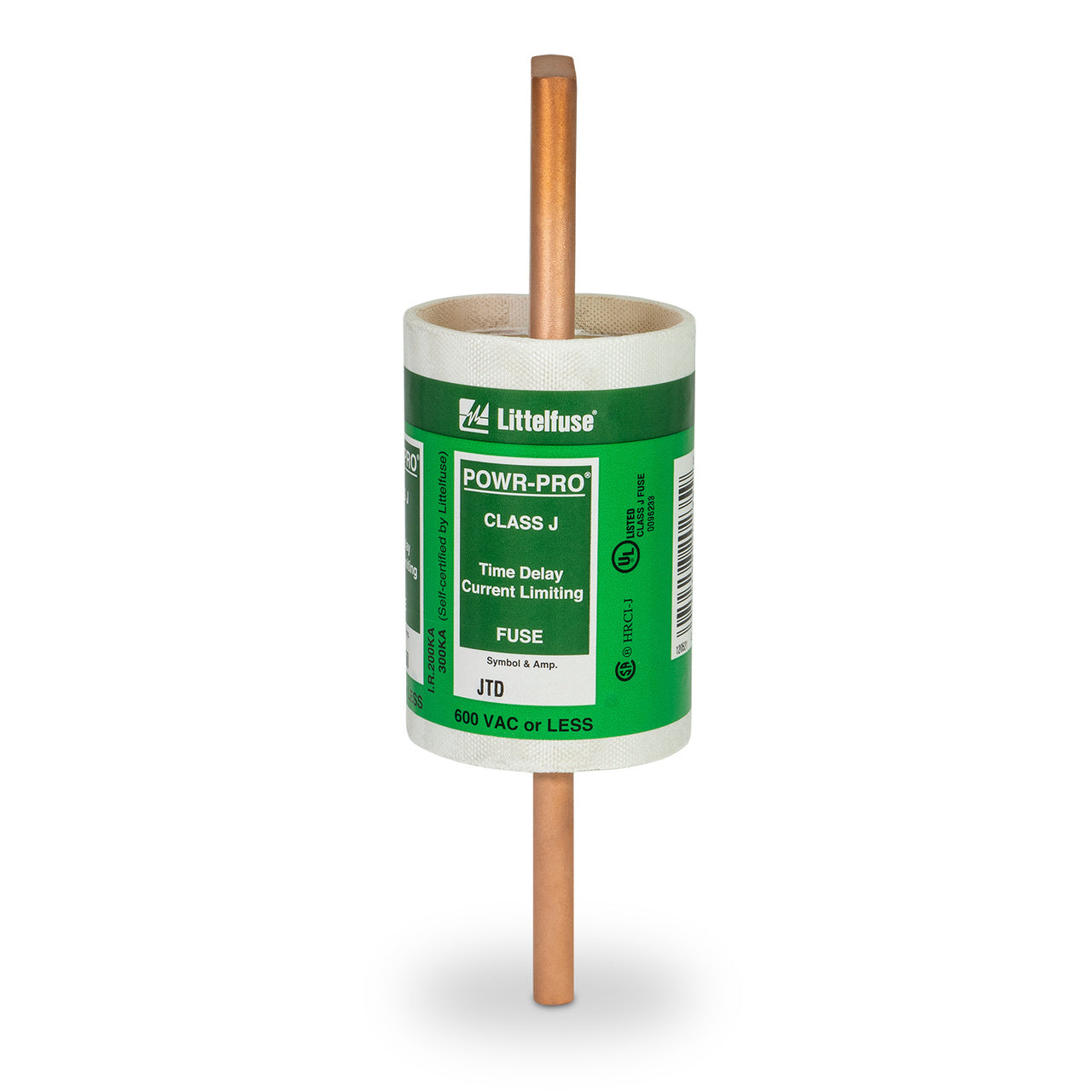

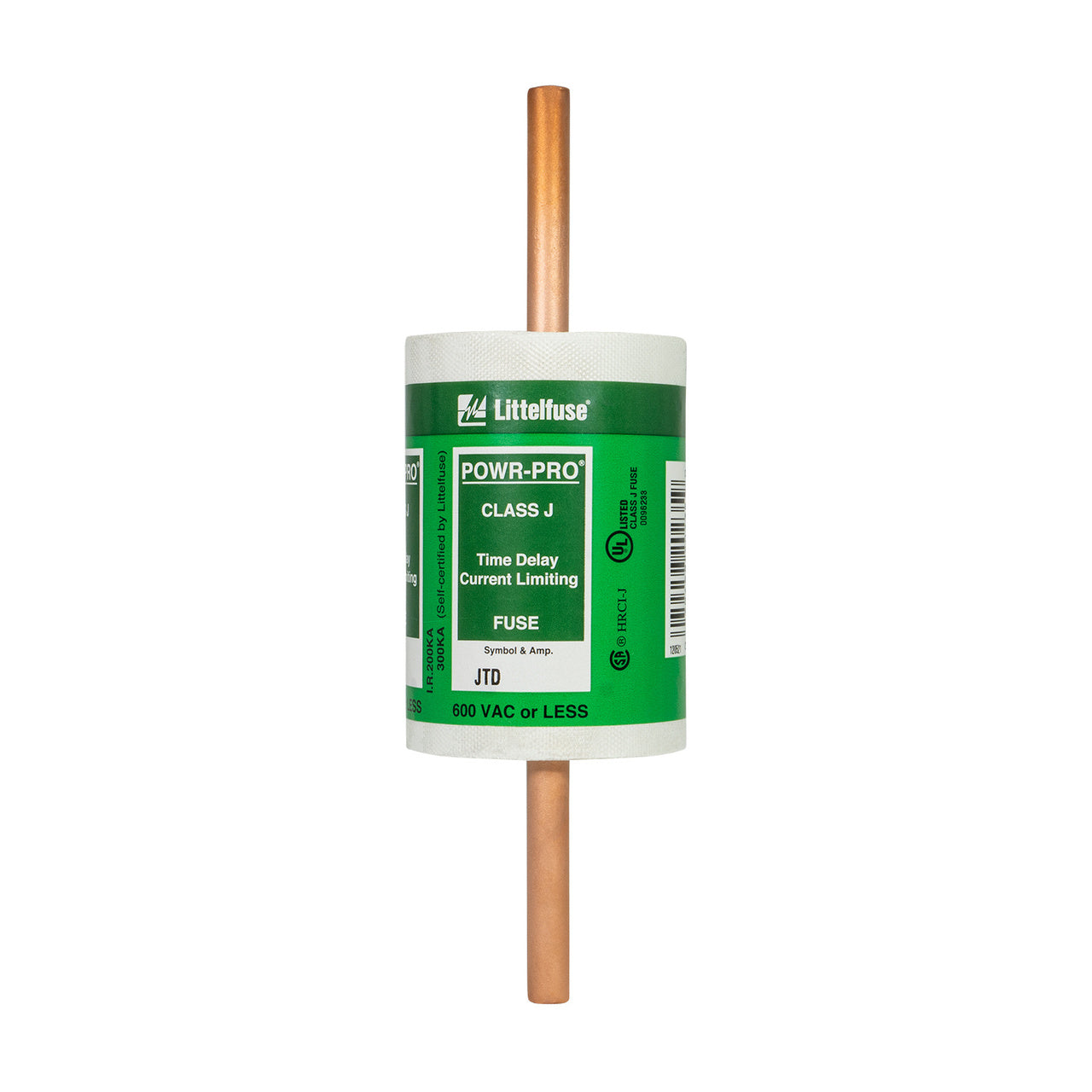

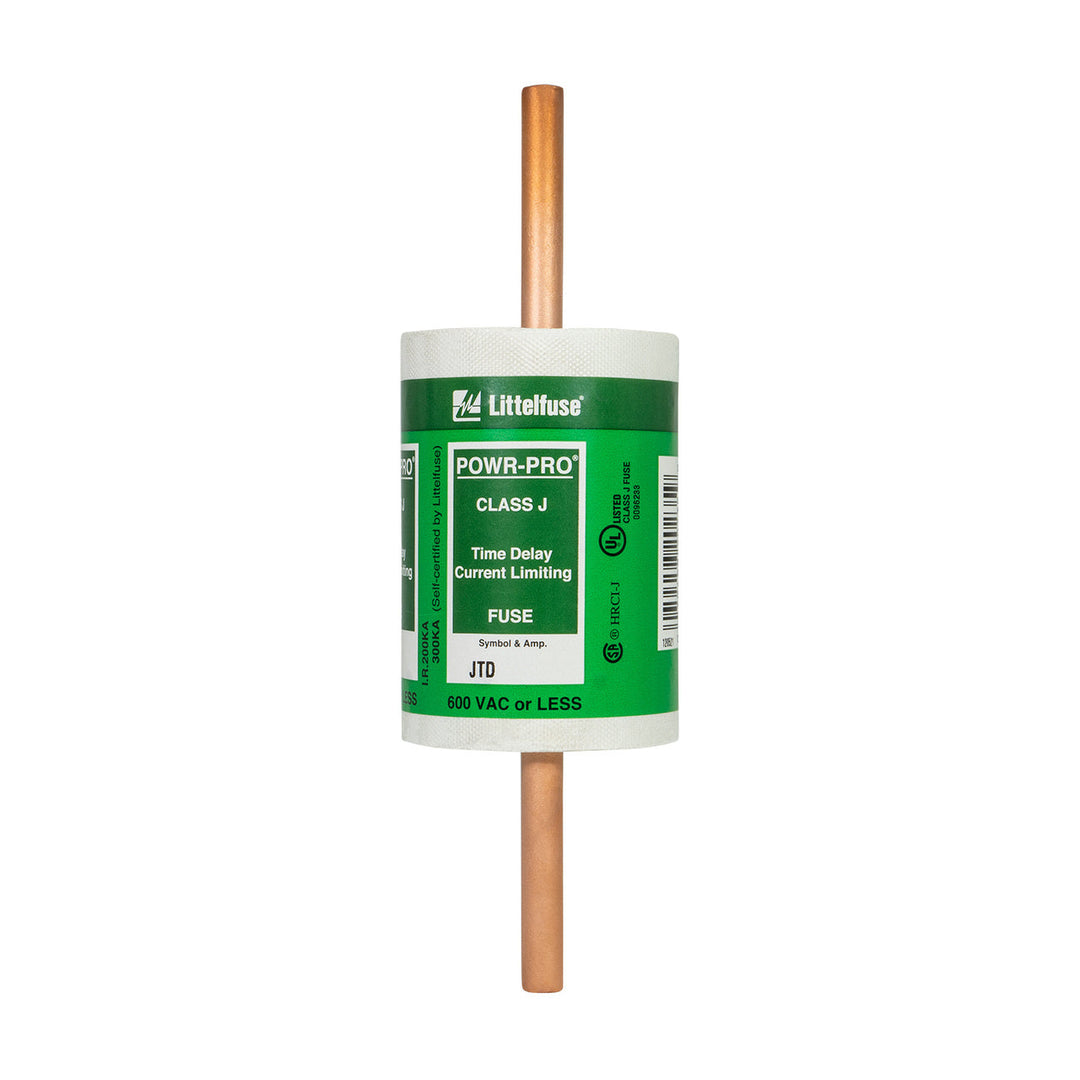

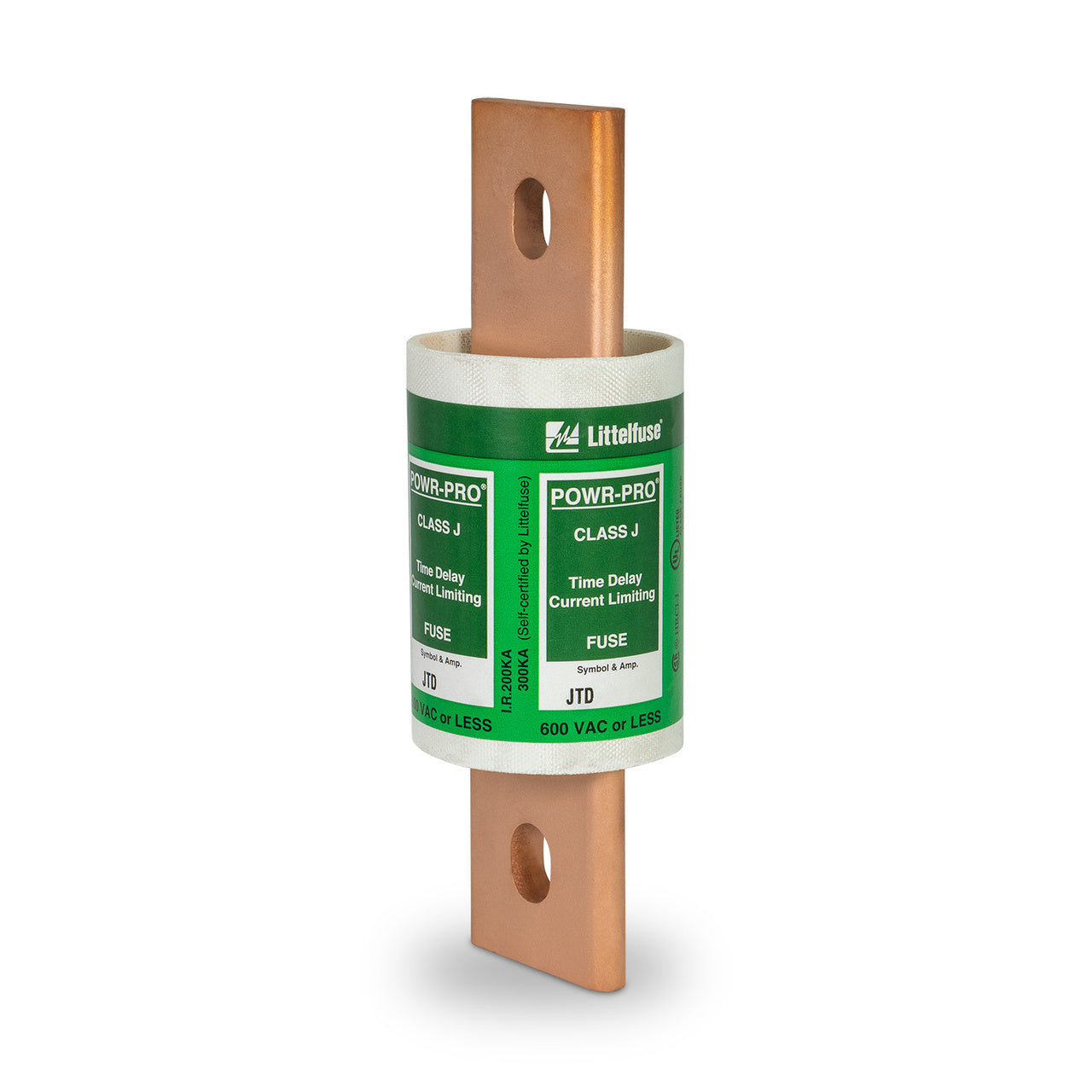

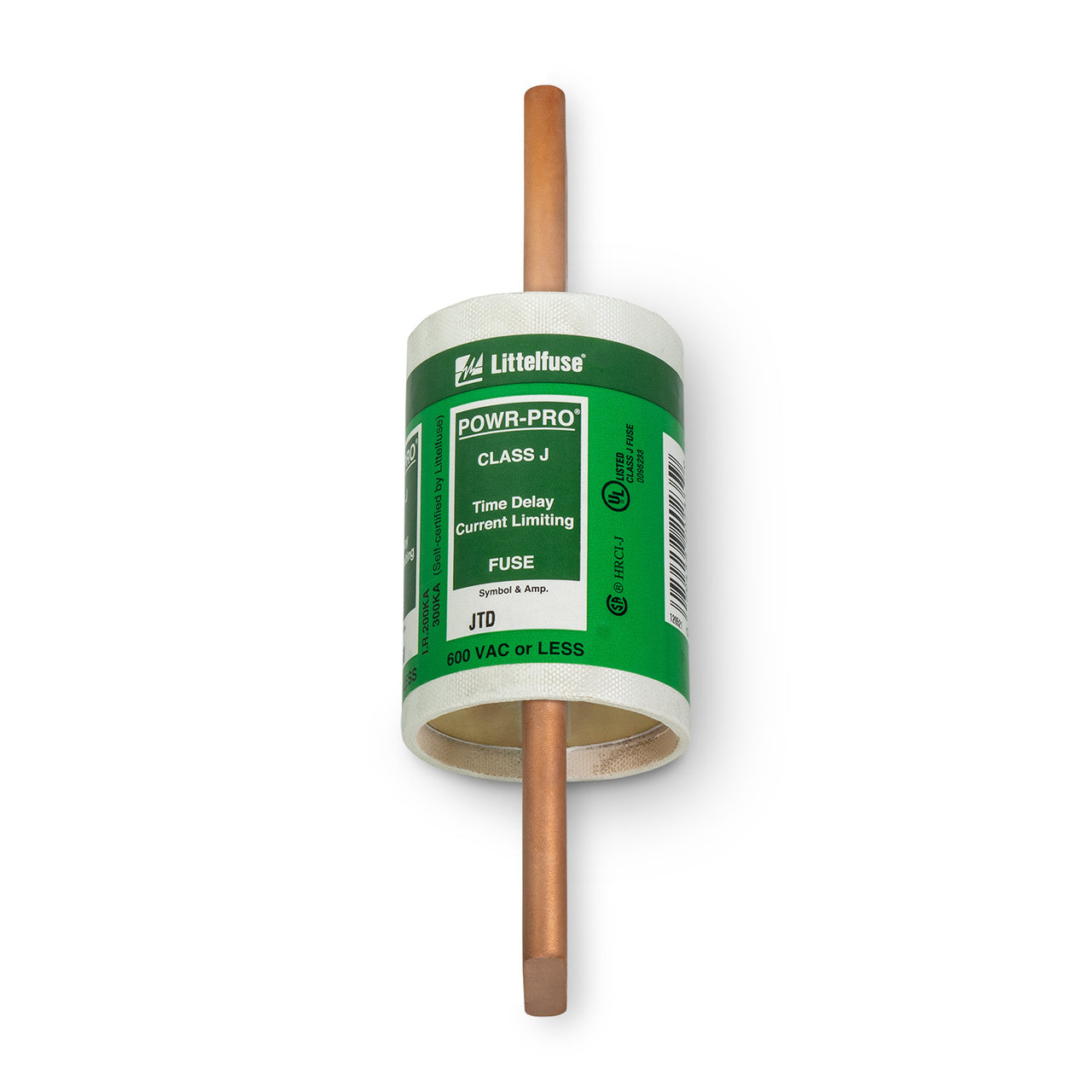

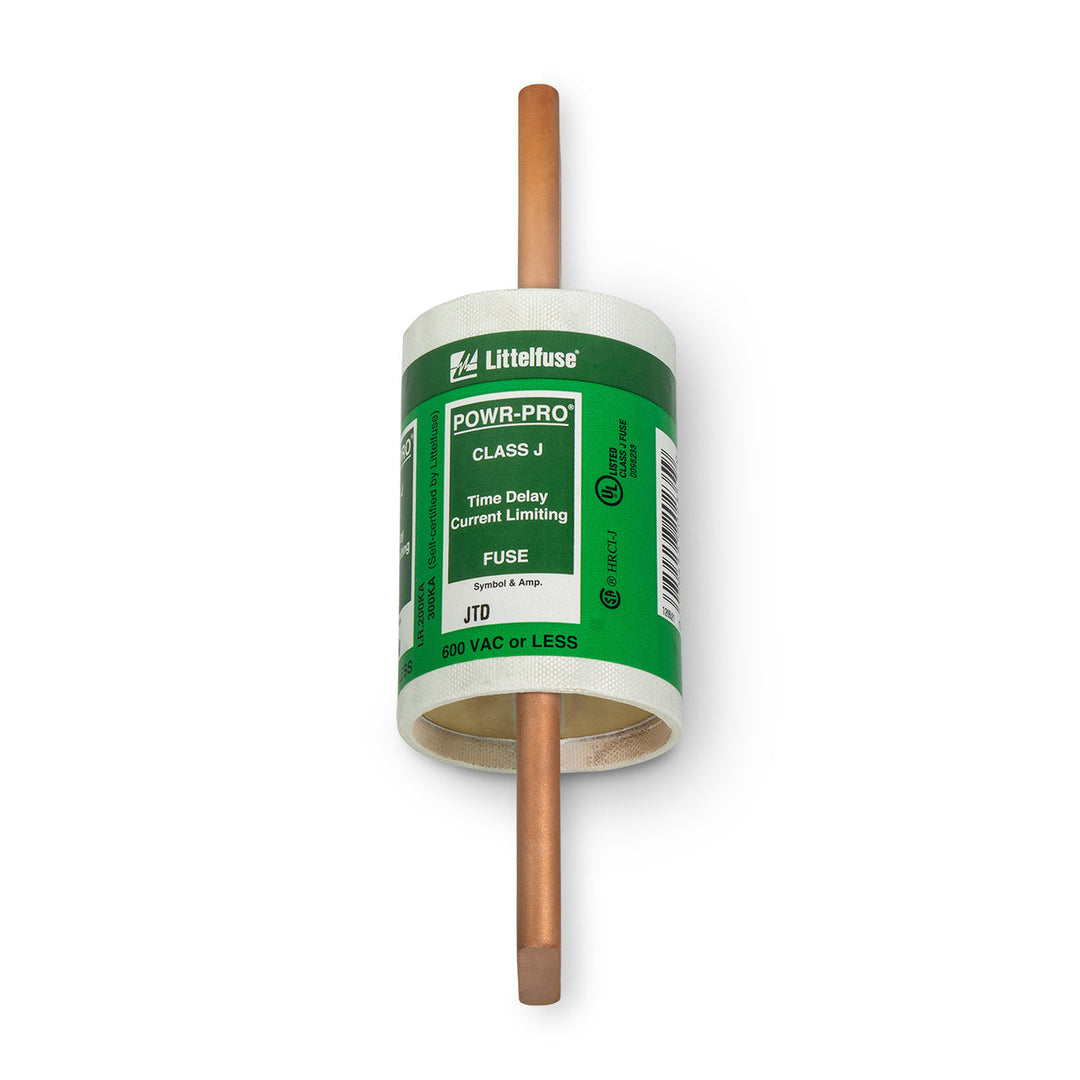

Littelfuse JTD500 is a UL Class J time-delay fuse designed for circuit protection in industrial power distribution systems. Rated for 600V AC/DC applications with a 500A current capacity, it features a bolt-in connection and 200kA interrupting capacity at rated voltage. The fuse measures 1.13" in diameter with a robust construction meeting UL 248-8 standards, certified by CE, CSA, and UL for safety compliance. Its time-delay characteristics make it ideal for motor circuits, transformers, and feeder protection where inrush currents are present.

Key Features & Specifications
  • Type: UL Class J time-delay fuse with single barrel construction
  • Voltage Rating: 600V AC/DC
  • Current Rating: 500A
  • Dimensions: 1.13" diameter x 8" length
  • Weight: 3.2 lb
  • Standards: CE, CSA Certified, UL 248-8 Class J, UL Listed
  • Applications: Motor circuits, transformers, industrial power distribution
  • Class Rating: J
  • Connection: Bolt-In
  • Barrels: 1
  • AIC rating: 200kA@600V
Product Identification
  • UPC: 079458202366
  • GTIN: 00079458202366
