Littelfuse JTD350ID - Class J Time-Delay Fuse 600V/350A (200kA AIC)
JTD350ID Littelfuse JTD_ID Series - UL Class J Time-Delay Fuses with Indication Low Voltage Fuse 600V 350A Fuse - Essential Electric Supply
JTD350ID Littelfuse JTD_ID Series - UL Class J Time-Delay Fuses with Indication Low Voltage Fuse 600V 350A Fuse - Essential Electric Supply
JTD350ID Littelfuse JTD_ID Series - UL Class J Time-Delay Fuses with Indication Low Voltage Fuse 600V 350A Fuse - Essential Electric Supply
JTD350ID Littelfuse JTD_ID Series - UL Class J Time-Delay Fuses with Indication Low Voltage Fuse 600V 350A Fuse - Essential Electric Supply
JTD350ID Littelfuse JTD_ID Series - UL Class J Time-Delay Fuses with Indication Low Voltage Fuse 600V 350A Fuse - Essential Electric Supply
Littelfuse JTD350ID - Class J Time-Delay Fuse 600V/350A (200kA AIC)

Littelfuse JTD350ID - Class J Time-Delay Fuse 600V/350A (200kA AIC)

Littelfuse
Price
Save $494.42
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

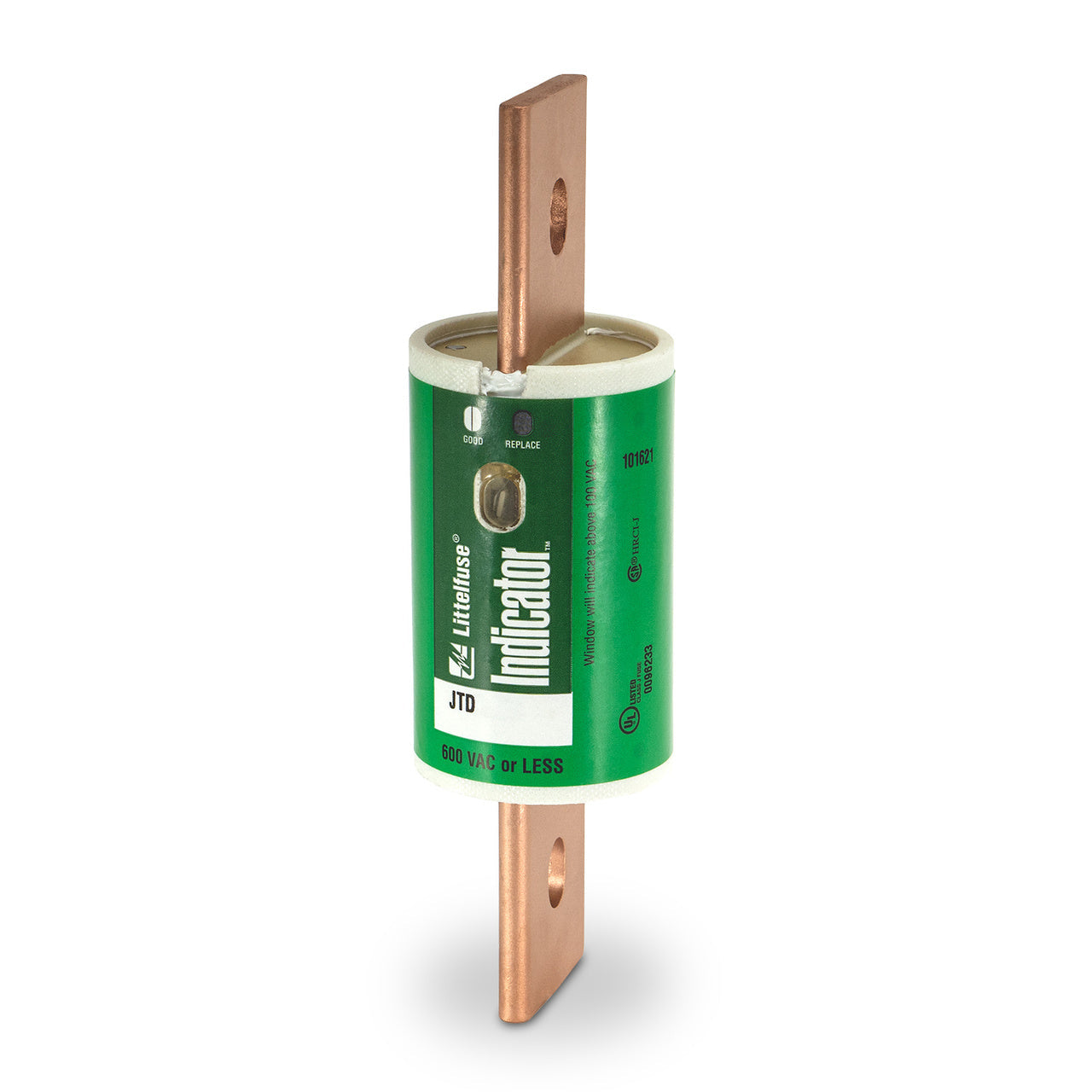

Littelfuse JTD350ID is a UL Class J time-delay fuse with visual indication designed for circuit protection in industrial power distribution systems. Rated for 600V AC/DC applications with a 350A current rating, it features a bolt-in connection and 200kA interrupting capacity at rated voltage. The fuse has a compact cylindrical design with a 2-inch diameter and meets UL 248-8/CSA standards for reliable performance. Its time-delay characteristics allow temporary overloads while providing fast response to short circuits, making it suitable for motor branch circuits, transformers, and feeder protection in harsh industrial environments.

Key Features & Specifications
  • Type: JTD_ID Series UL Class J Time-Delay Fuse with Indication
  • Voltage Rating: 600V AC/DC
  • Current Rating: 350A
  • Dimensions: 2" diameter
  • Standards: UL 248-8, CSA certified
  • Applications: Motor circuits, transformers, industrial power distribution
  • Class Rating: J
  • Connection: Bolt-In
  • Barrels: 1
  • AIC rating: 200kA@600V
  • Weight: 1 lb
  • Certification: UL Listed/CSA
Product Identification
  • UPC: 079458031898
  • GTIN: 00079458031898
