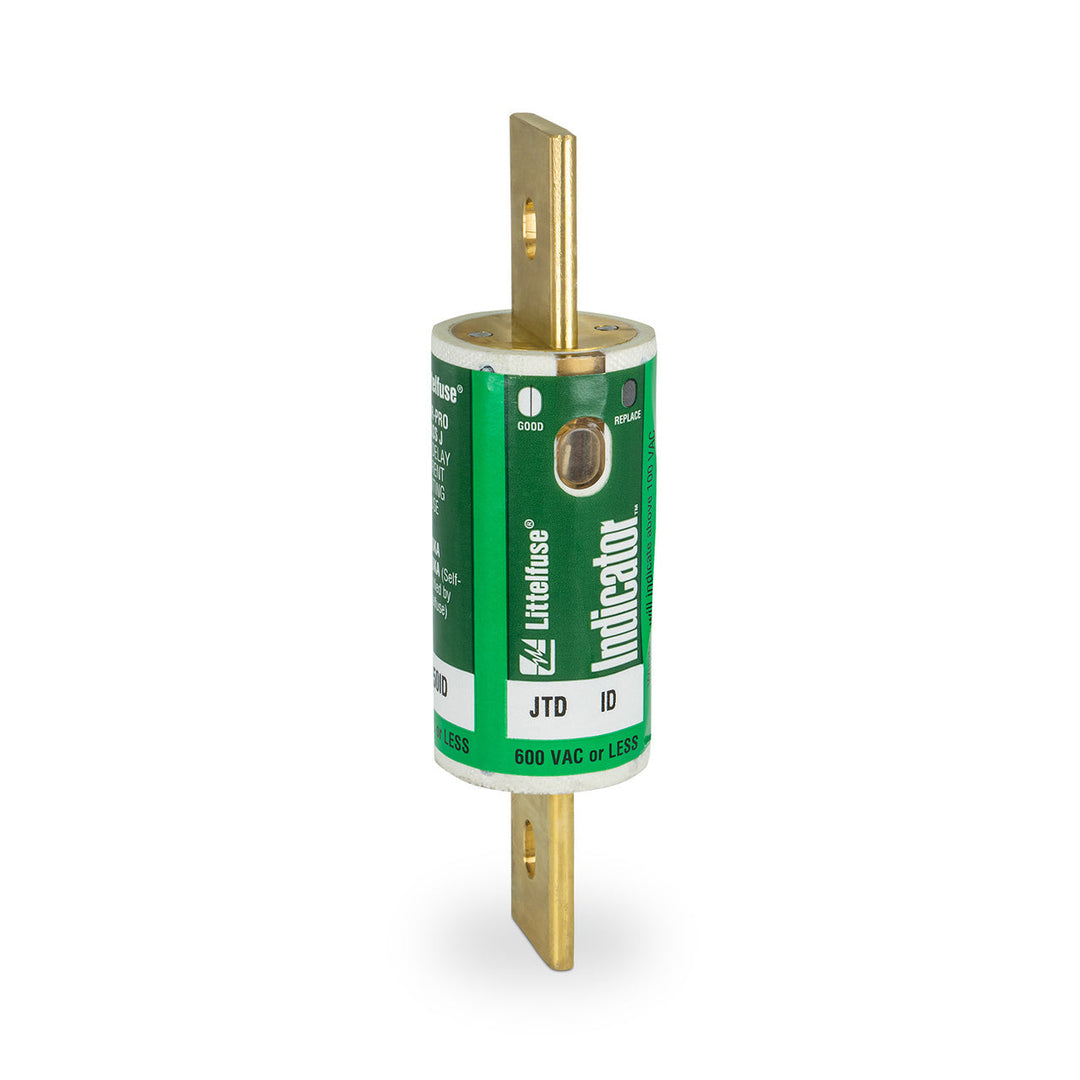

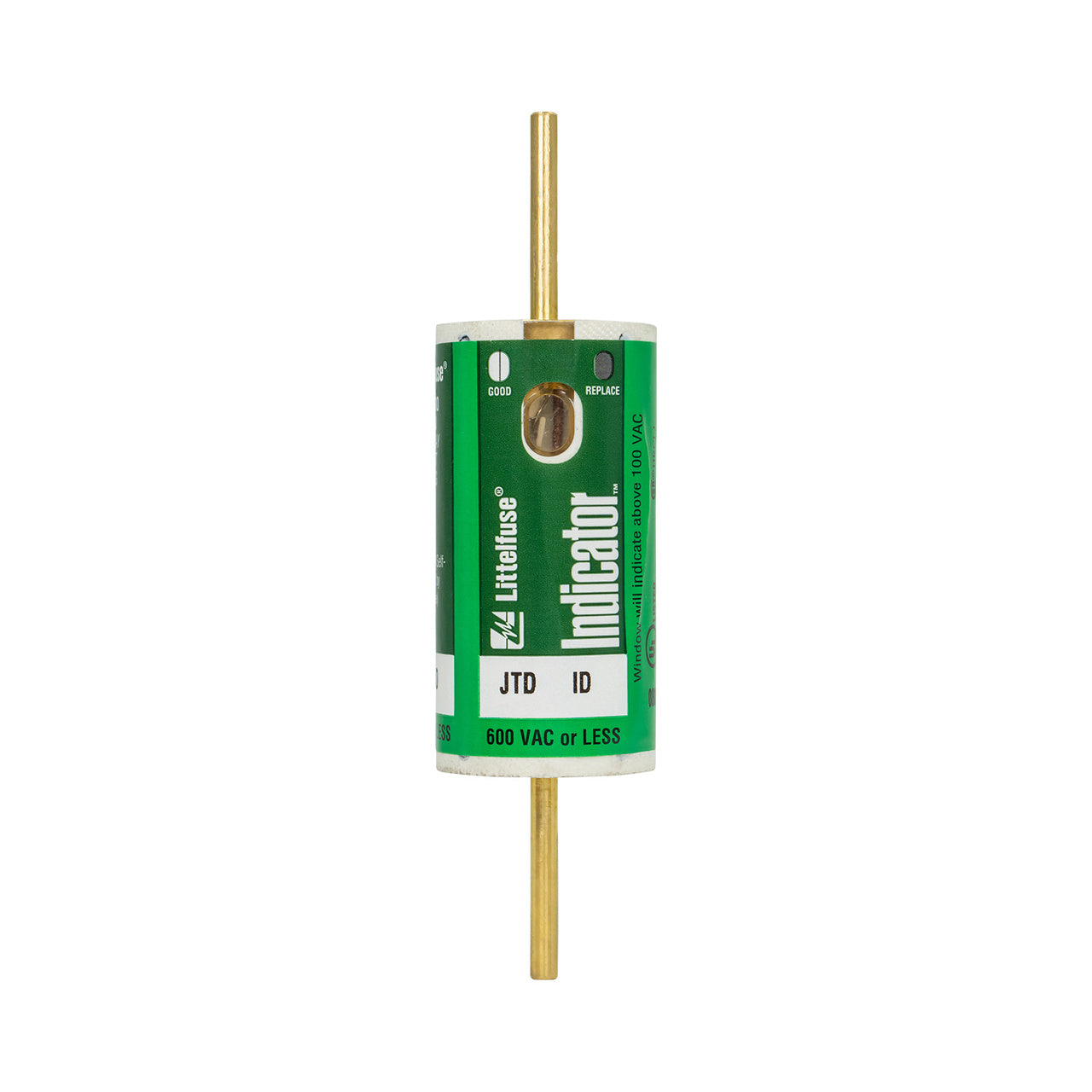

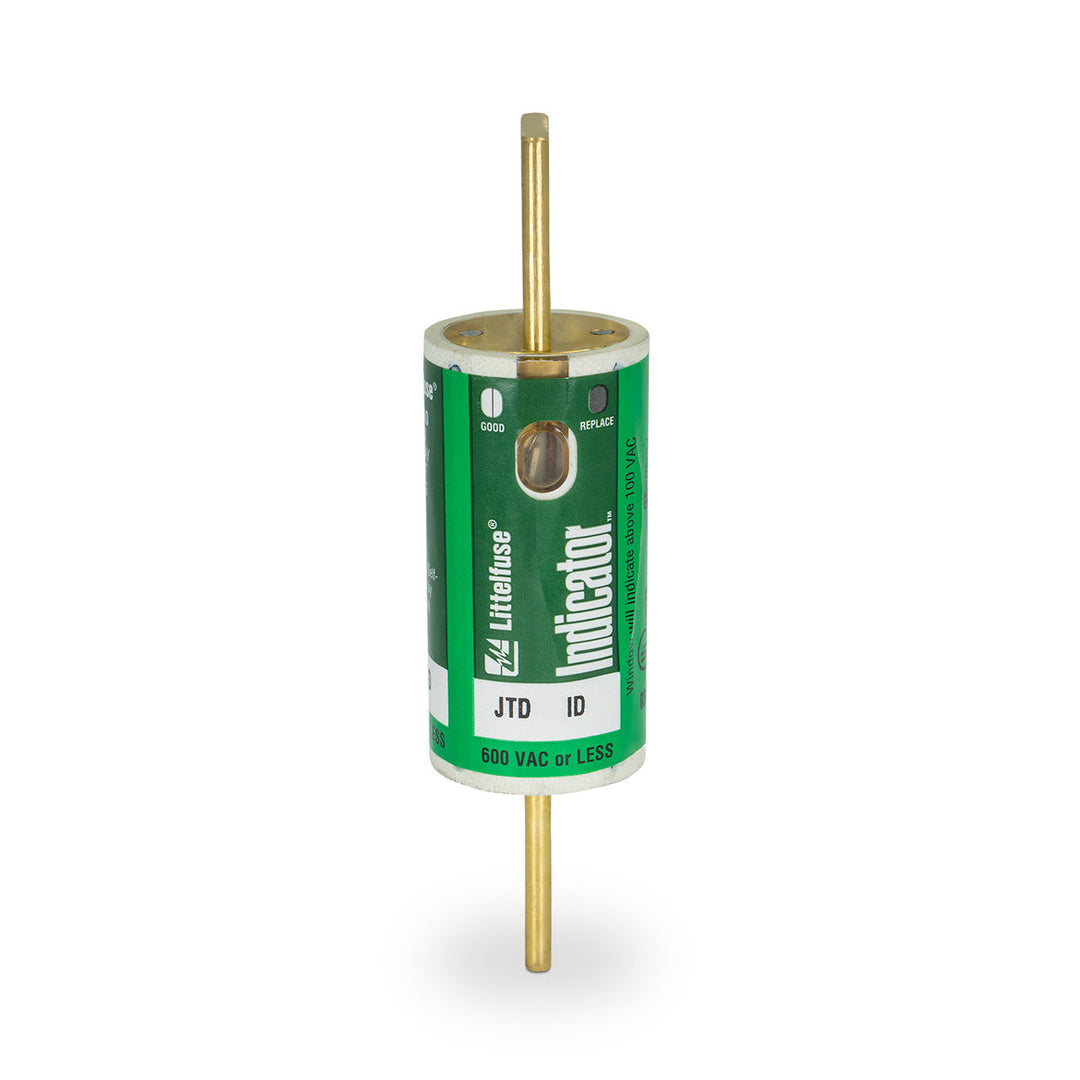

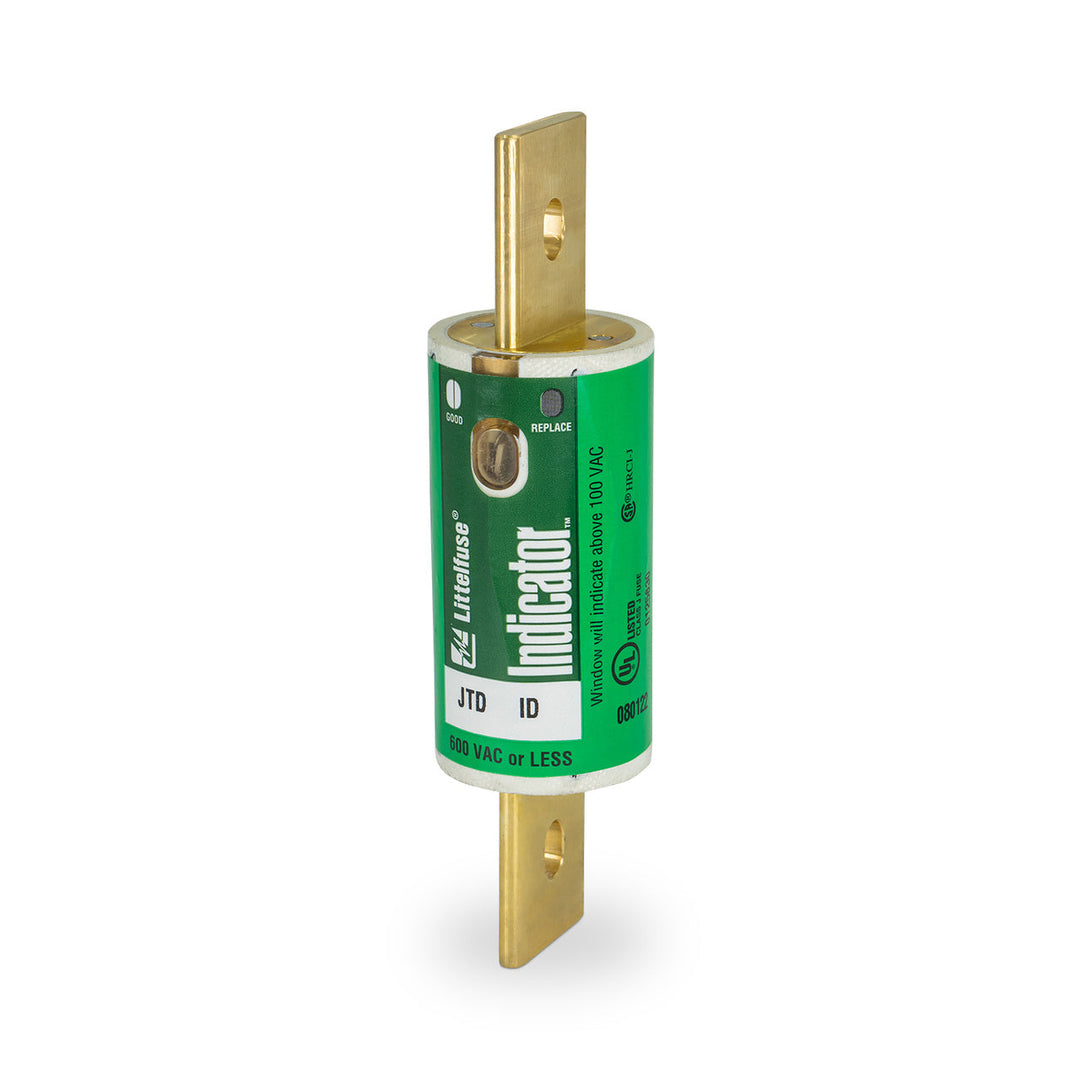

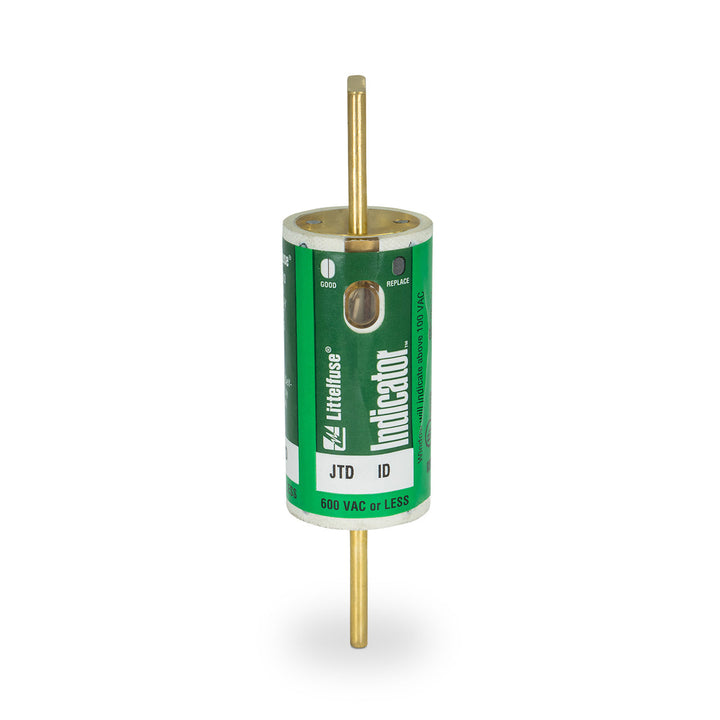

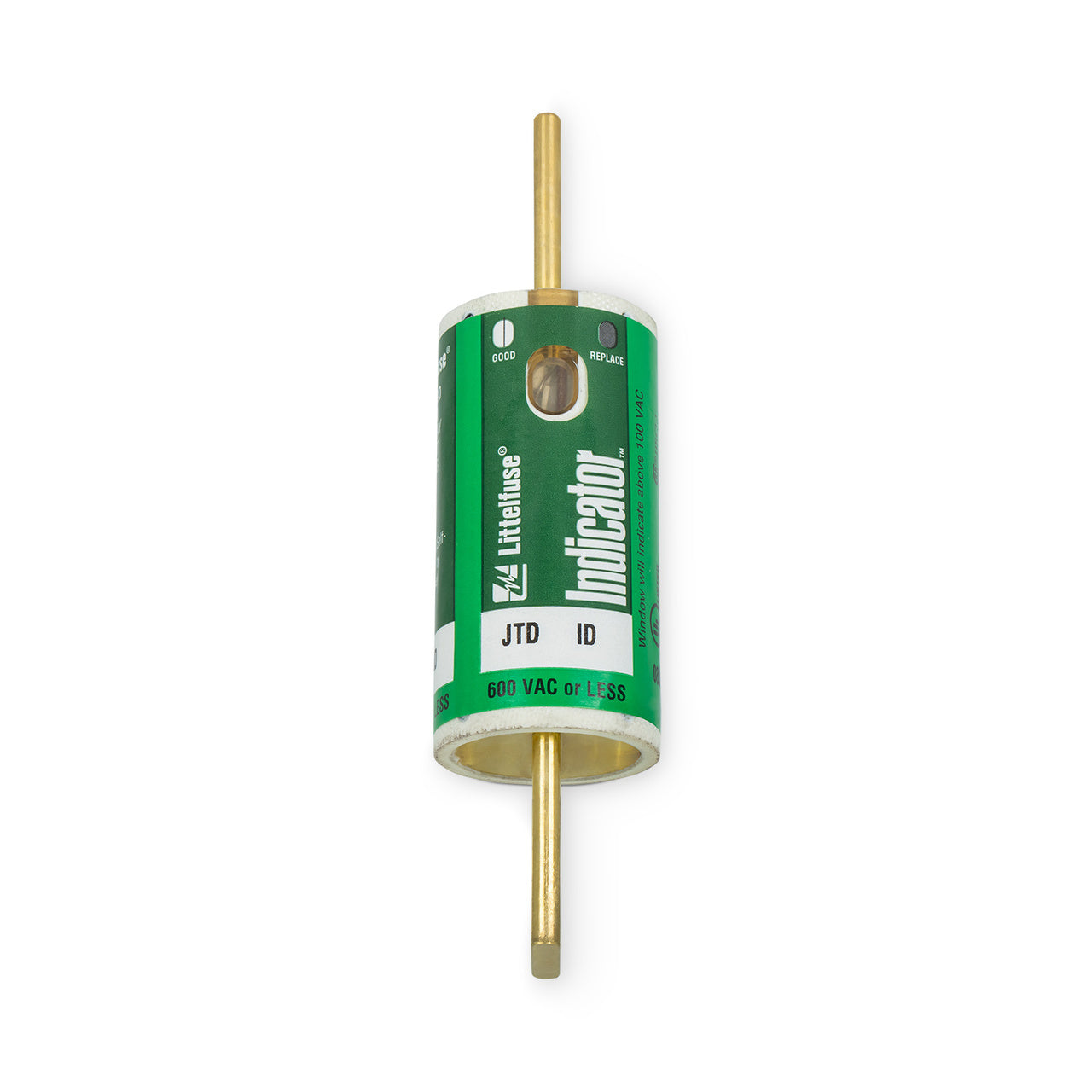

Littelfuse JTD110ID is a UL Class J time-delay fuse with visual indication designed for circuit protection in industrial applications. It features a 600V AC/DC voltage rating and 110A current rating with a 200kA interrupting capacity at 600V. The fuse has a compact bolt-in design with a 1.5" diameter and 0.68 lb weight, constructed to UL Standard 248-8 with CSA certification. Its time-delay characteristics provide motor circuit protection while withstanding temporary inrush currents, making it suitable for industrial control panels, motor starters, and power distribution systems.

Key Features & Specifications
  • Type: JTD_ID Series UL Class J Time-Delay Fuse with Indication
  • Voltage Rating: 600V AC/DC
  • Current Rating: 110A
  • Dimensions: 1.5" diameter
  • Standards: UL 248-8 Listed, CSA Certified
  • Applications: Industrial control panels, motor starters, power distribution
  • Class Rating: J
  • Connection: Bolt-In
  • Barrels: 1
  • AIC rating: 200kA@600V
  • Weight: 0.68 lb
  • Certification: Standard 248-8 UL Listed/CSA
Product Identification
  • UPC: 079458031812
  • GTIN: 00079458031812
