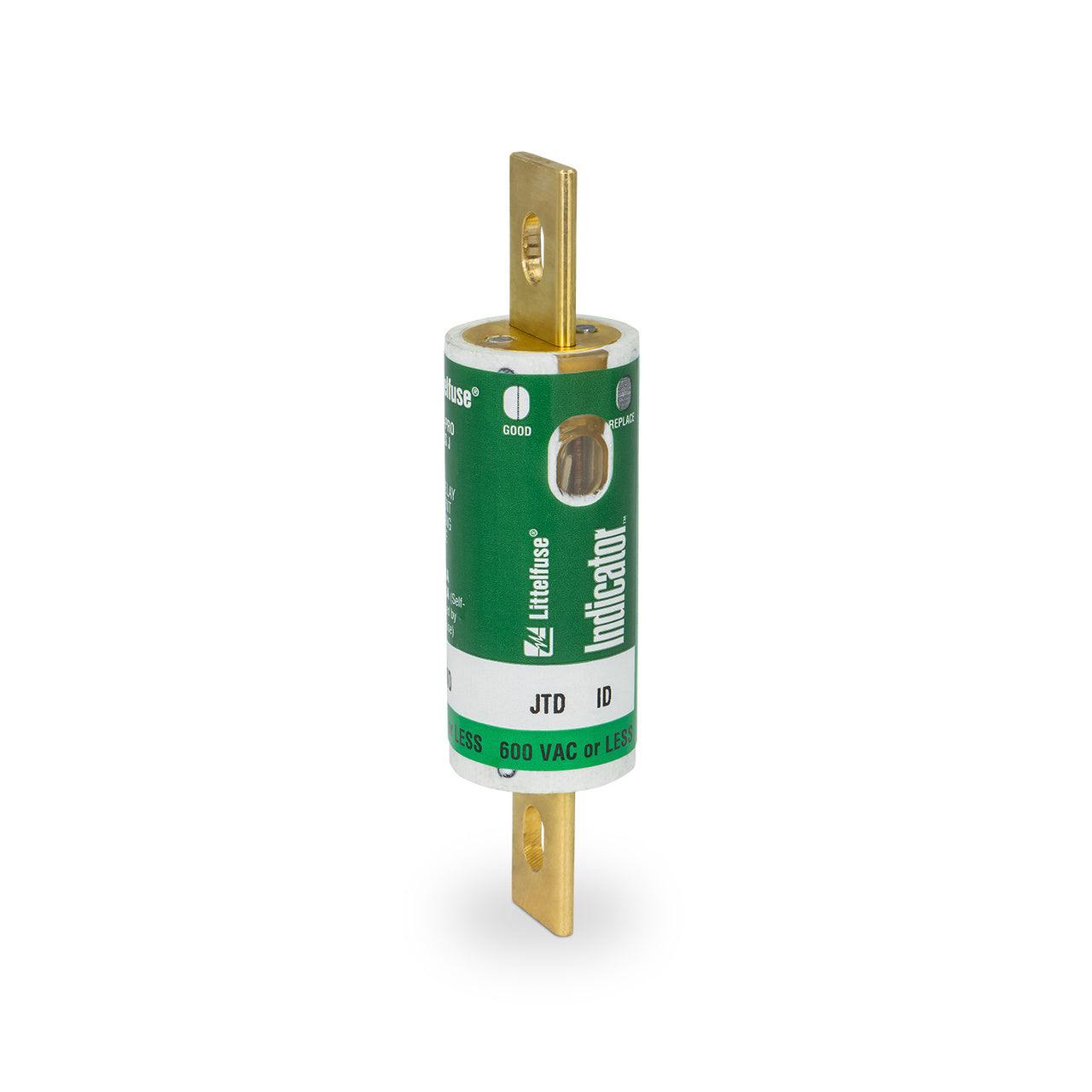

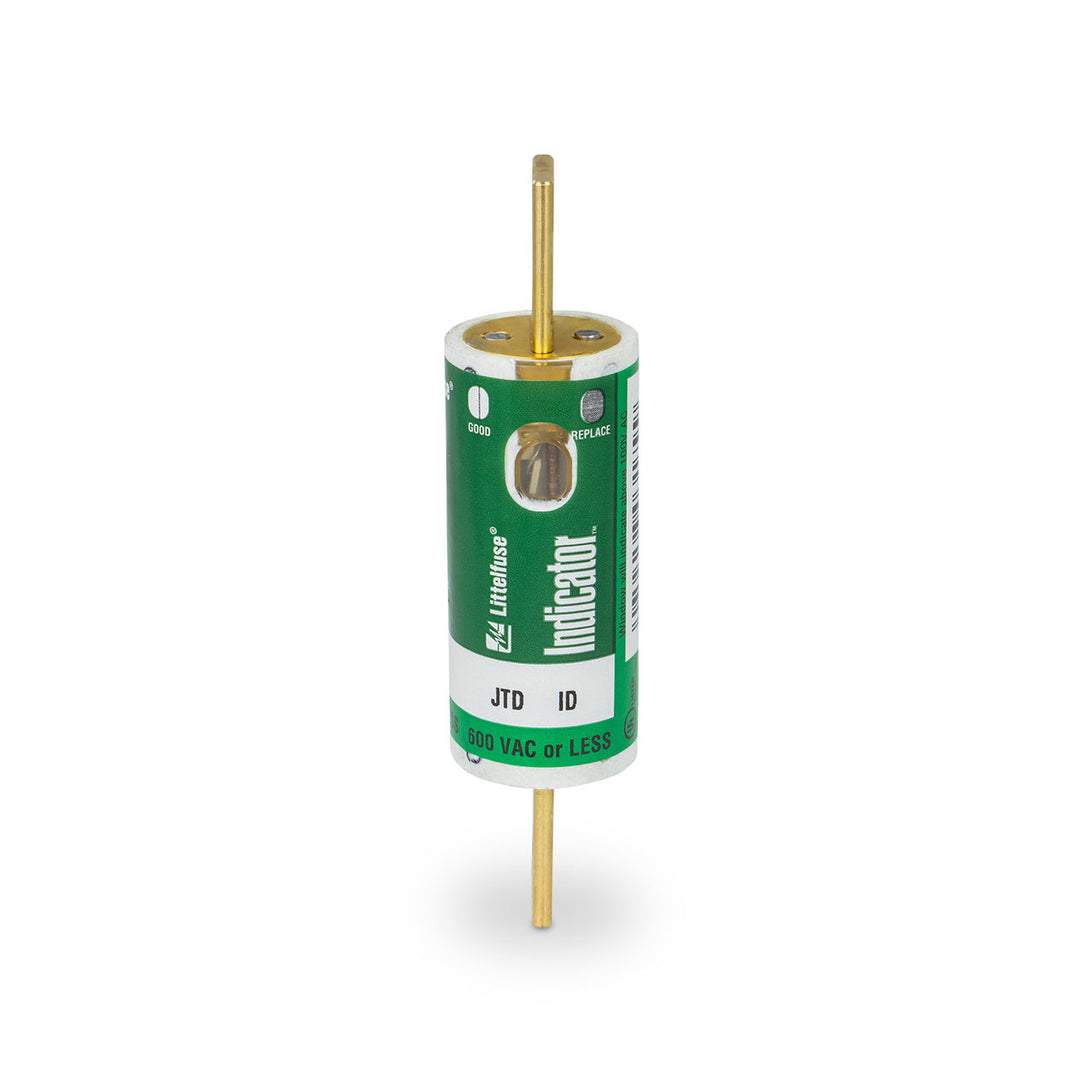

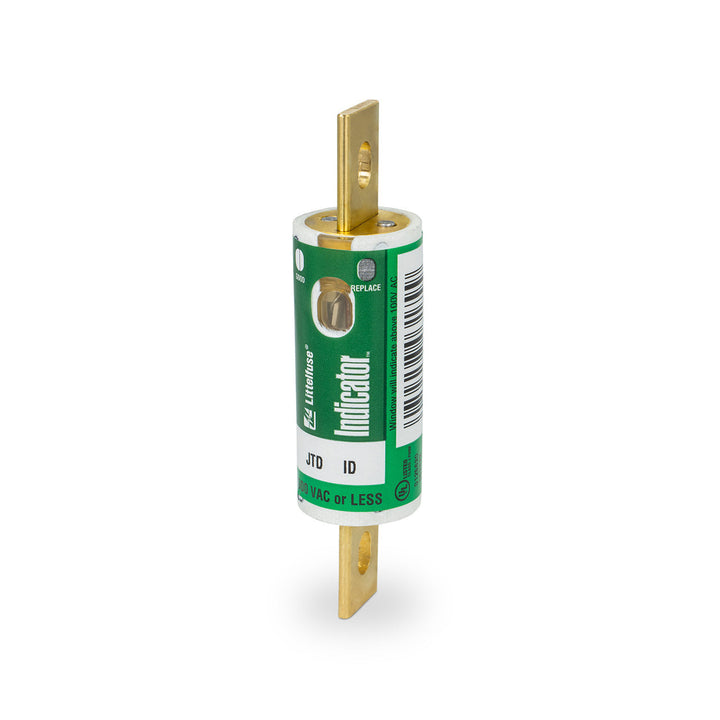

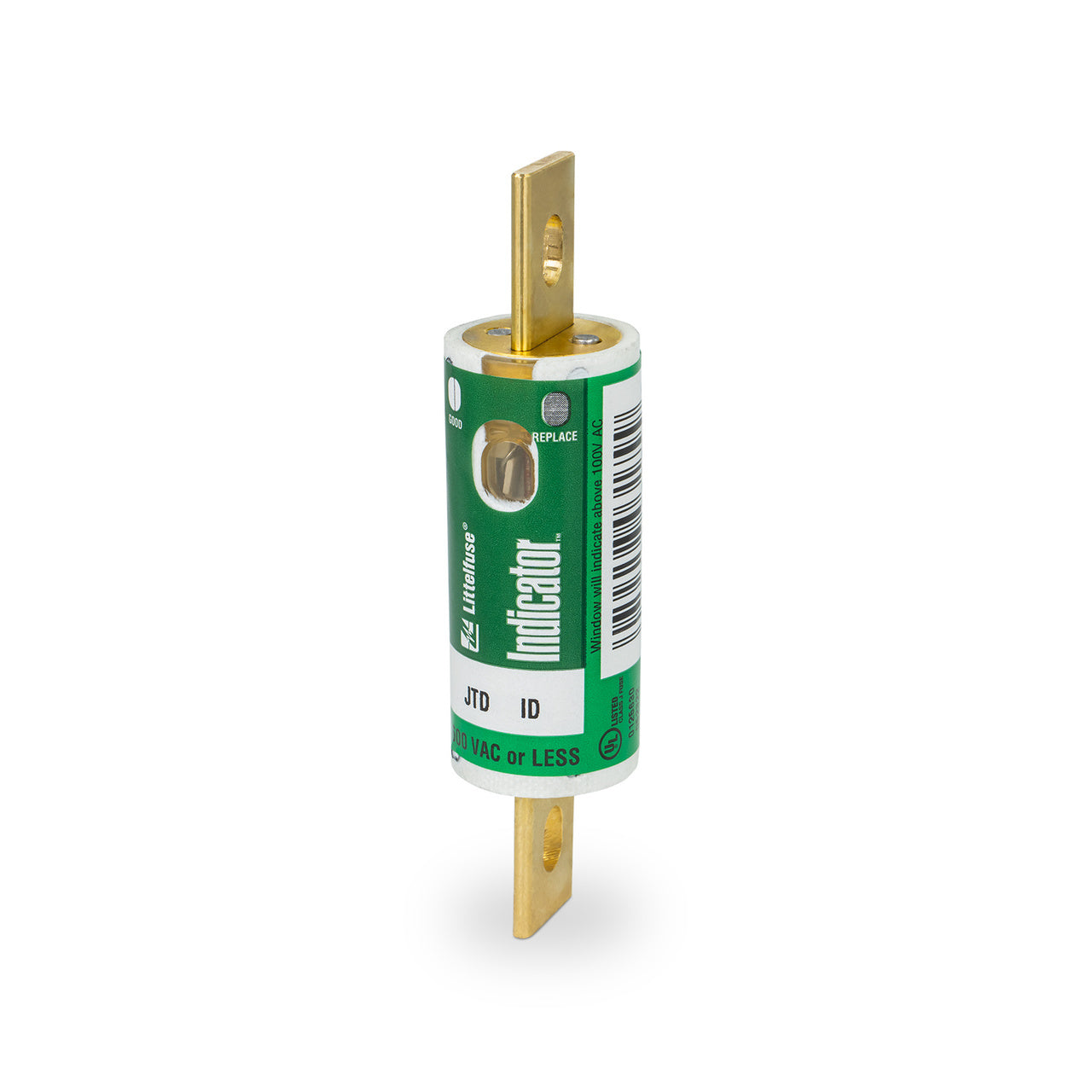

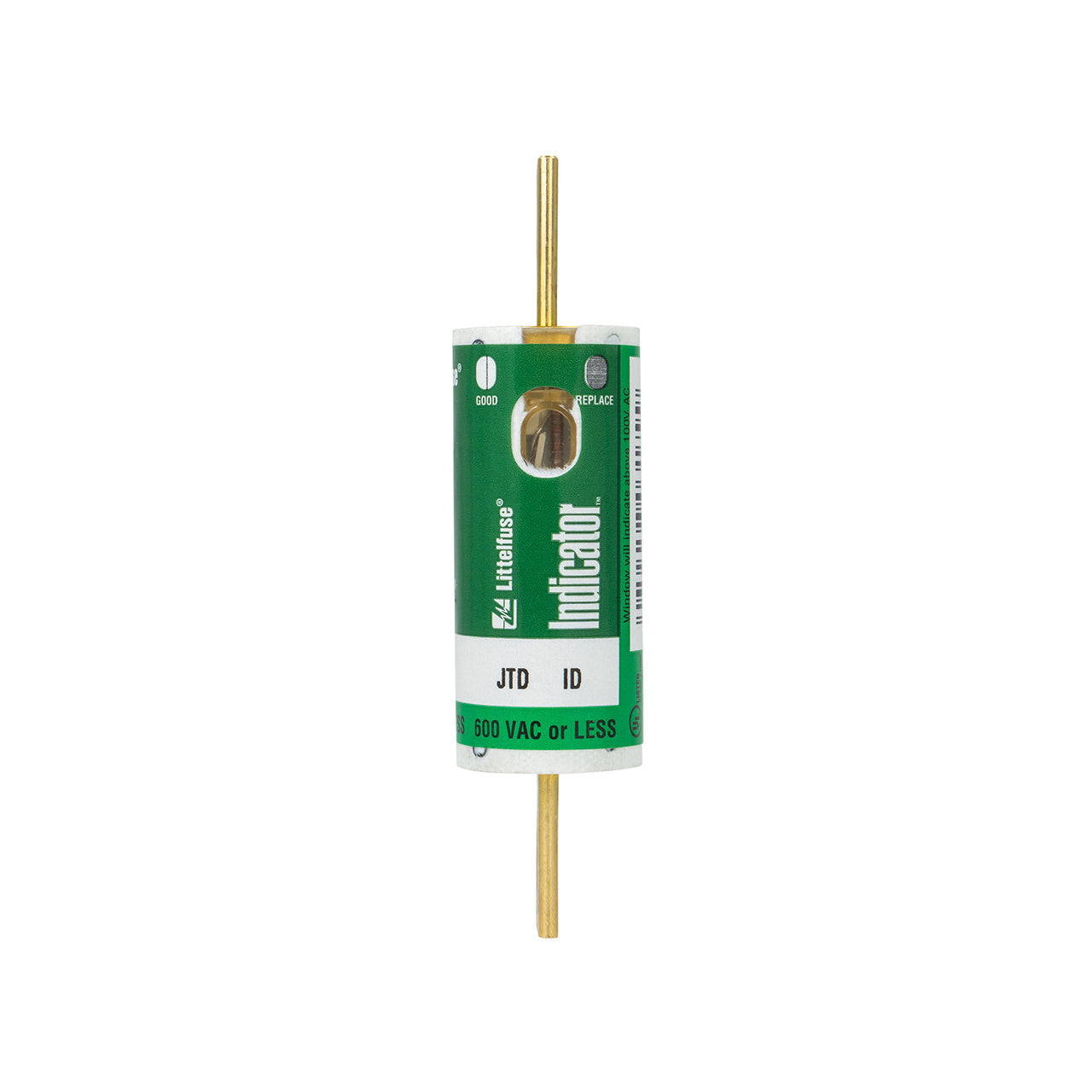

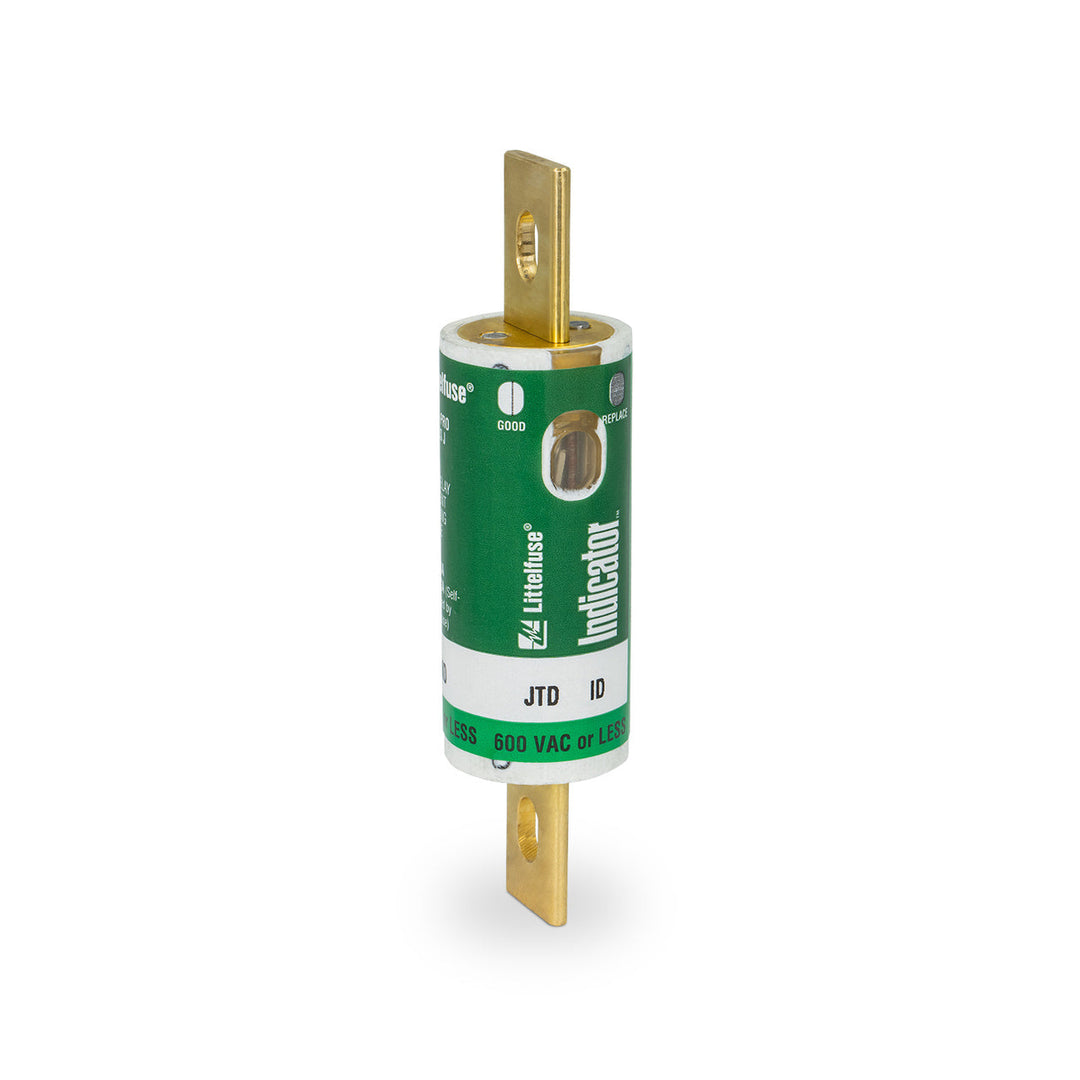

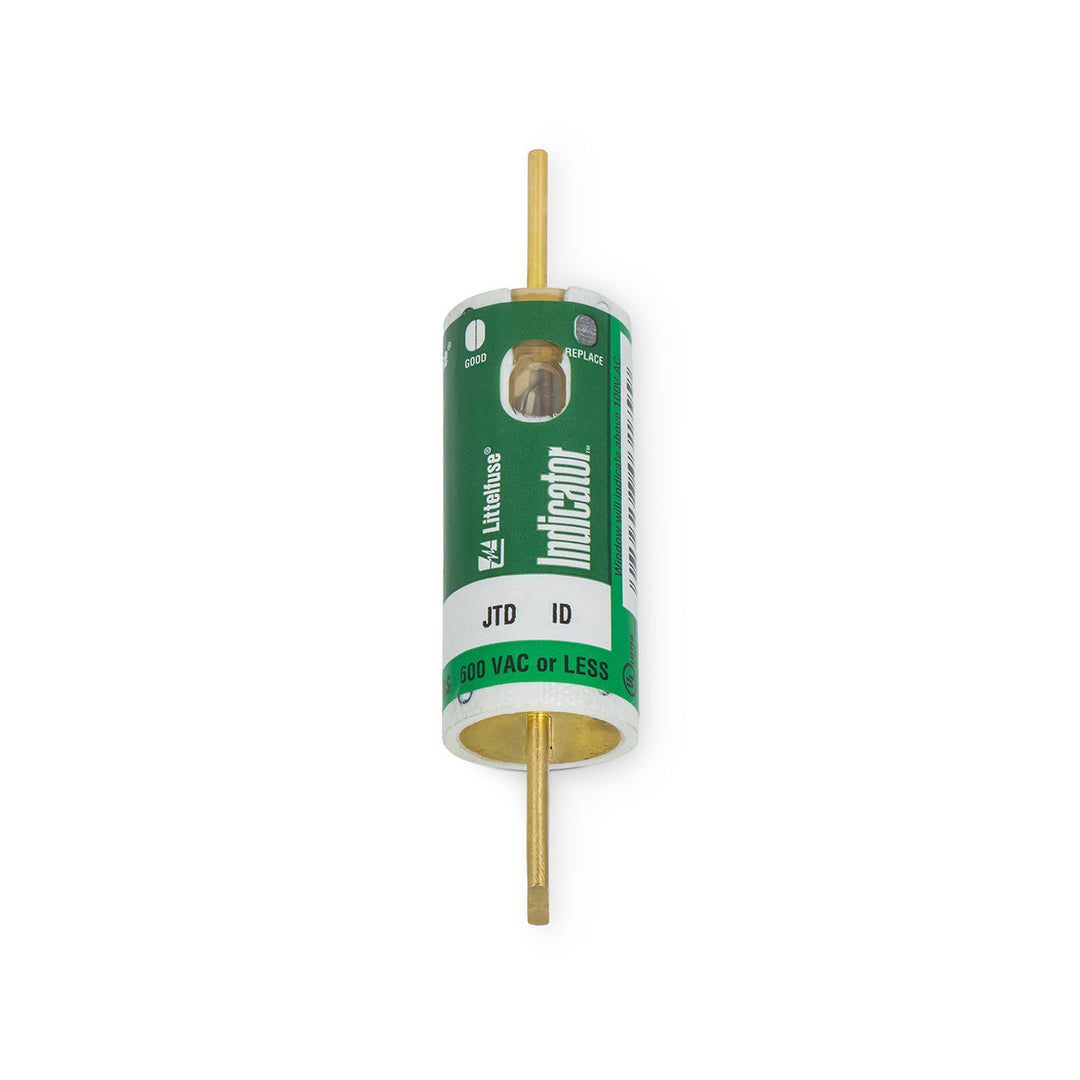

Littelfuse JTD-090ID - Time-Delay Fuse 90A 600V AC (UL/CSA Certified)

Littelfuse JTD-090ID is a time-delay fuse designed for reliable circuit protection in industrial control systems. It features a 600V AC voltage rating with a 90A current rating, providing robust overcurrent protection. The fuse utilizes a compact cylindrical design with durable construction featuring tin-plated brass end caps for optimal conductivity and corrosion resistance. This component meets UL/CSA certification standards for safety and performance compliance. Typical applications include motor branch circuits, transformer protection, and industrial control panels where time-delay characteristics prevent nuisance tripping during temporary overload conditions.

Key Features & Specifications

• Type: Time-delay, current-limiting fuse with tin-plated brass end caps
• Voltage Rating: 600V AC
• Current Rating: 90A
• Dimensions: Cylindrical body, industry-standard size
• Standards: UL/CSA certified
• Applications: Motor branch circuits, transformer protection, industrial control panels
• Fuse Class: JTD
• Item Subcategory: Low Voltage
• Mounting: Standard fuse clip/holder

Product Identification

• Manufacturer: Littelfuse
• Model: JTD-090ID
