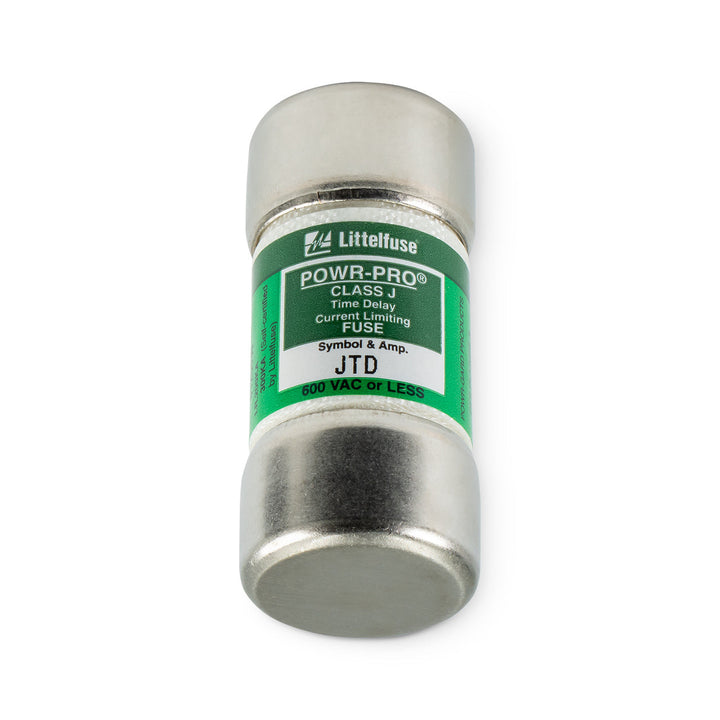

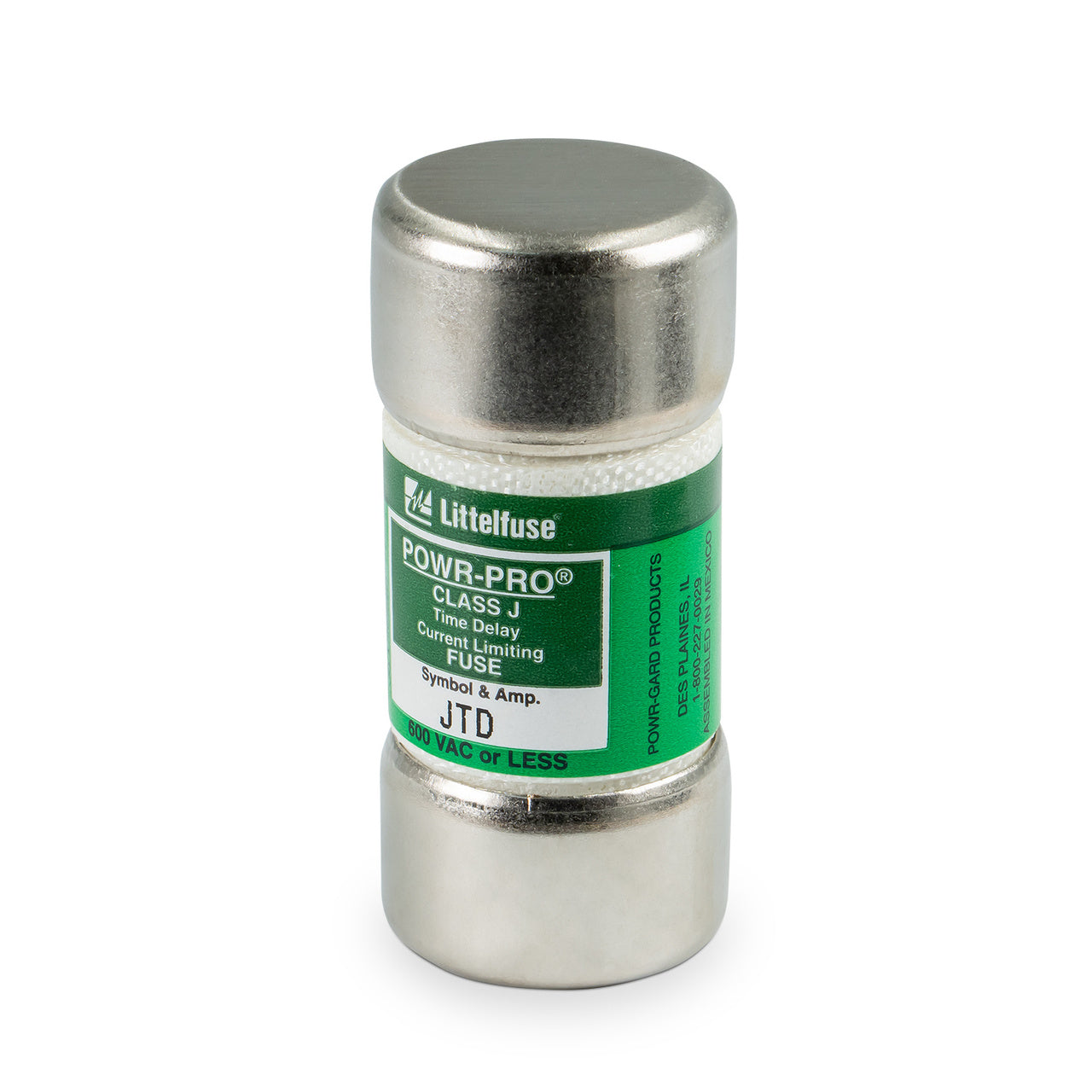

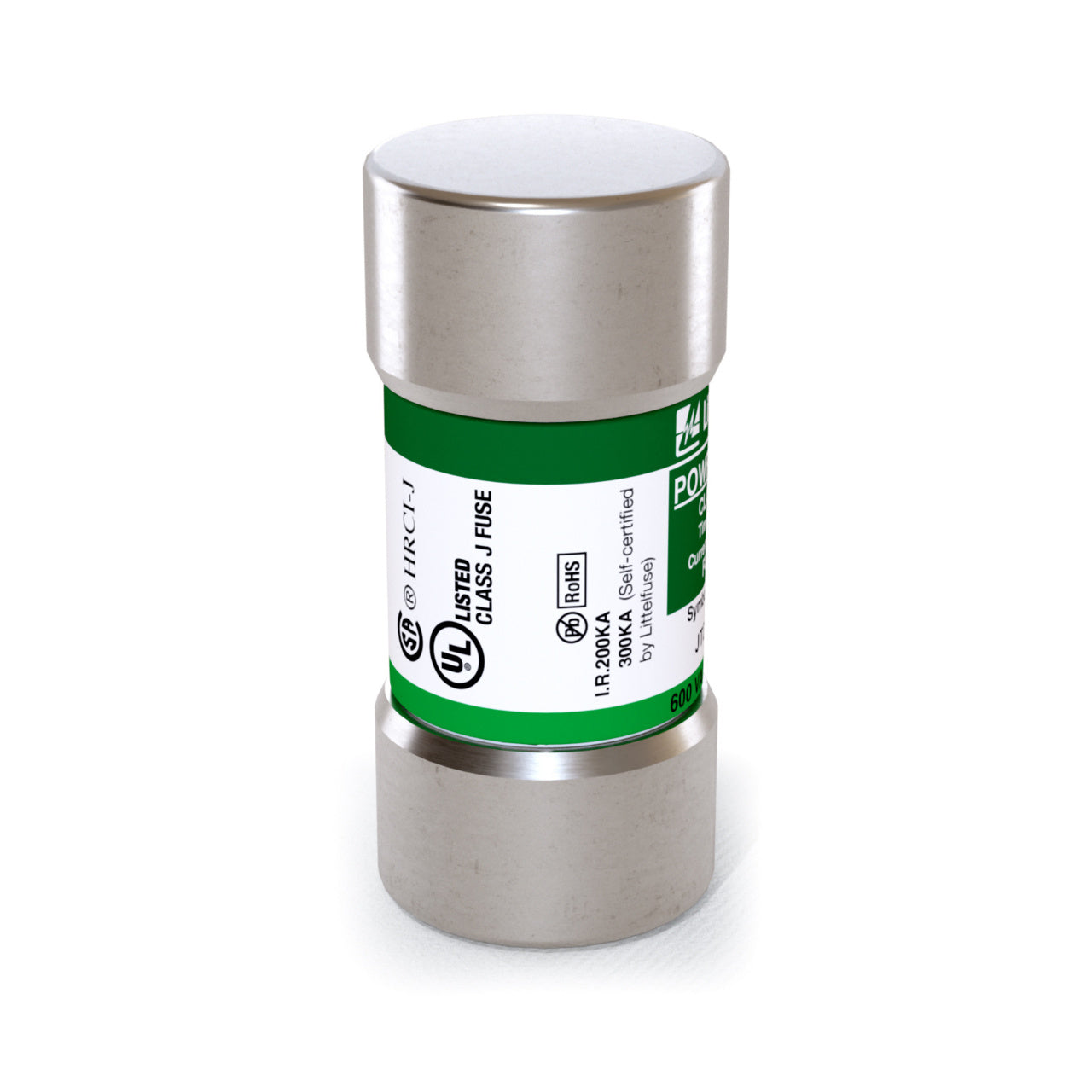

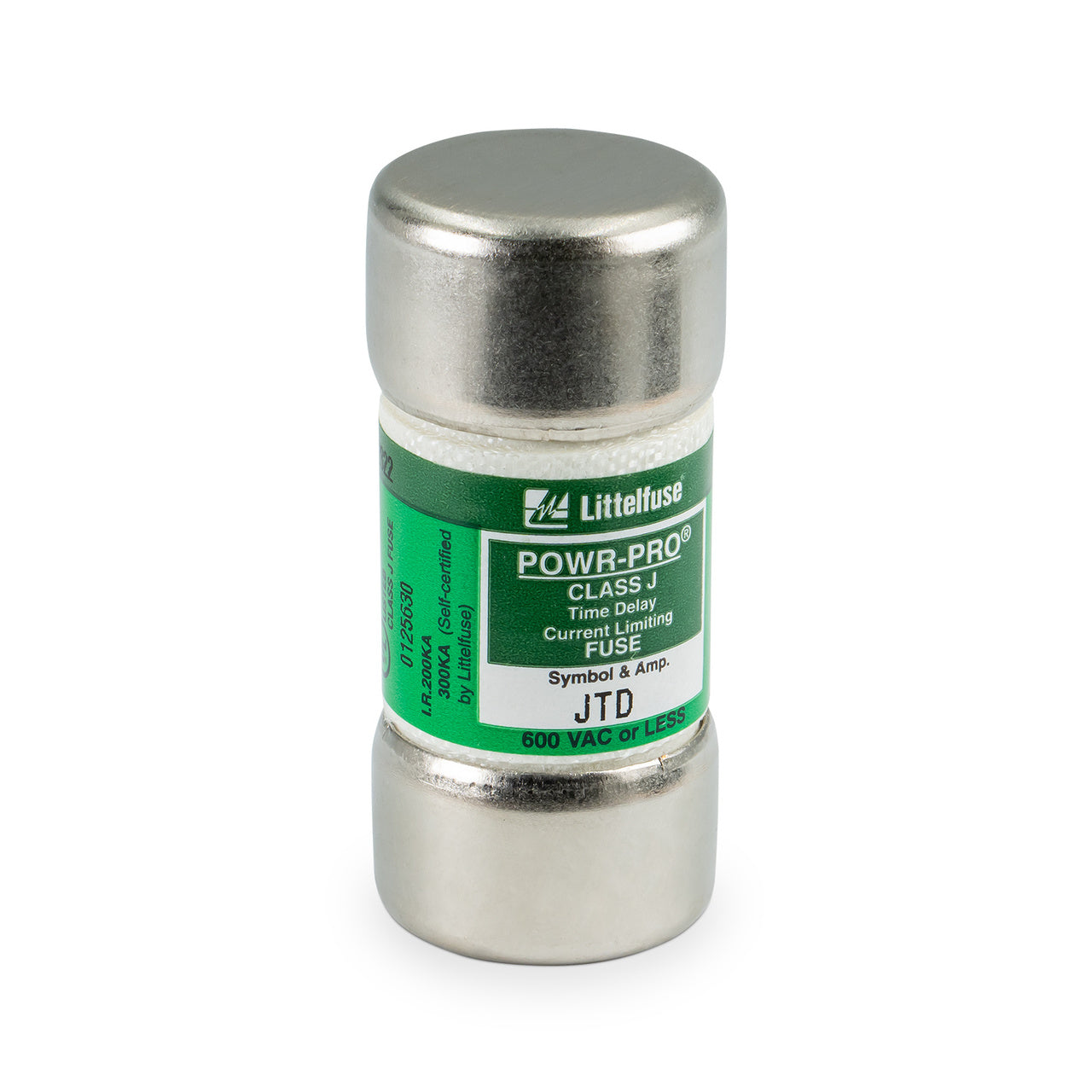

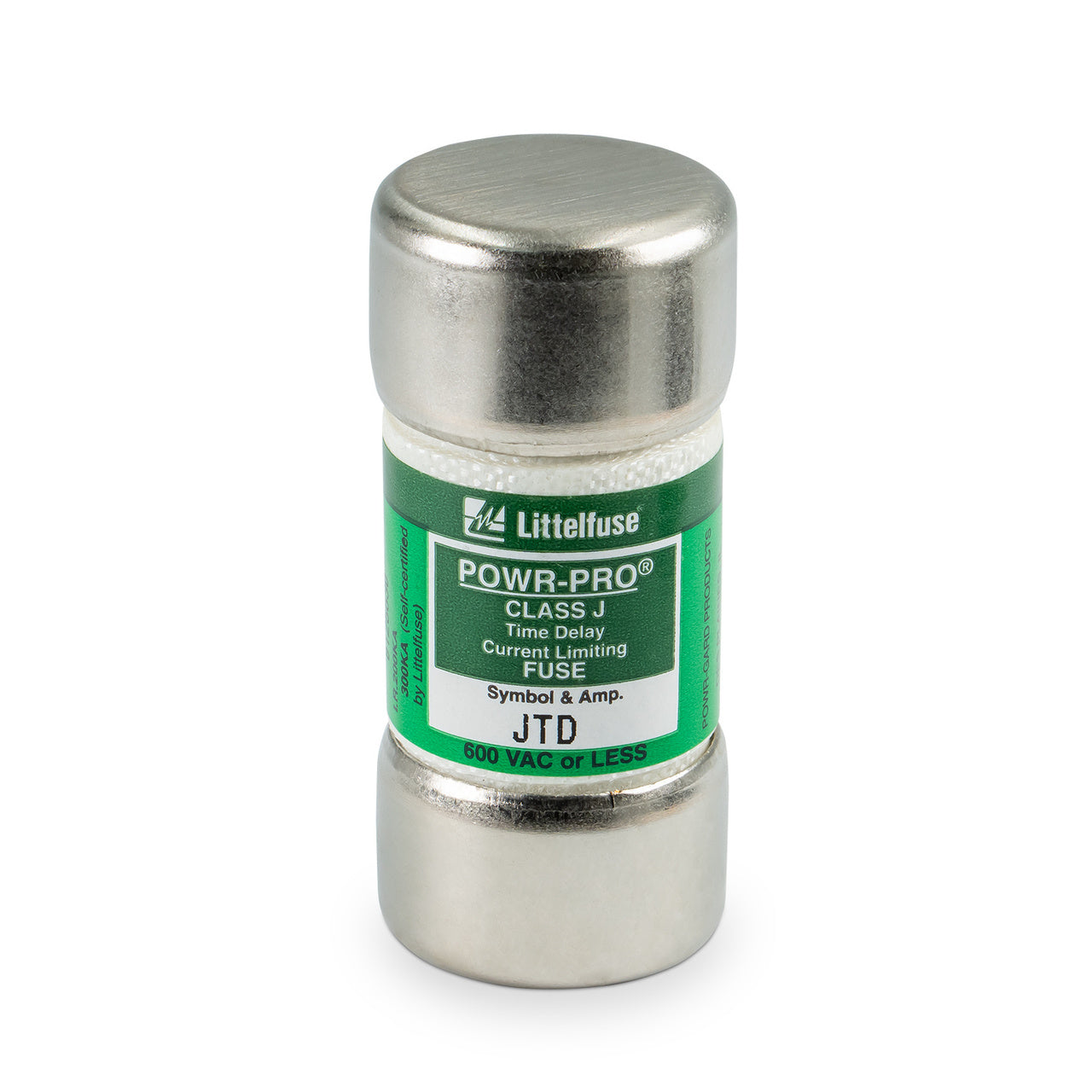

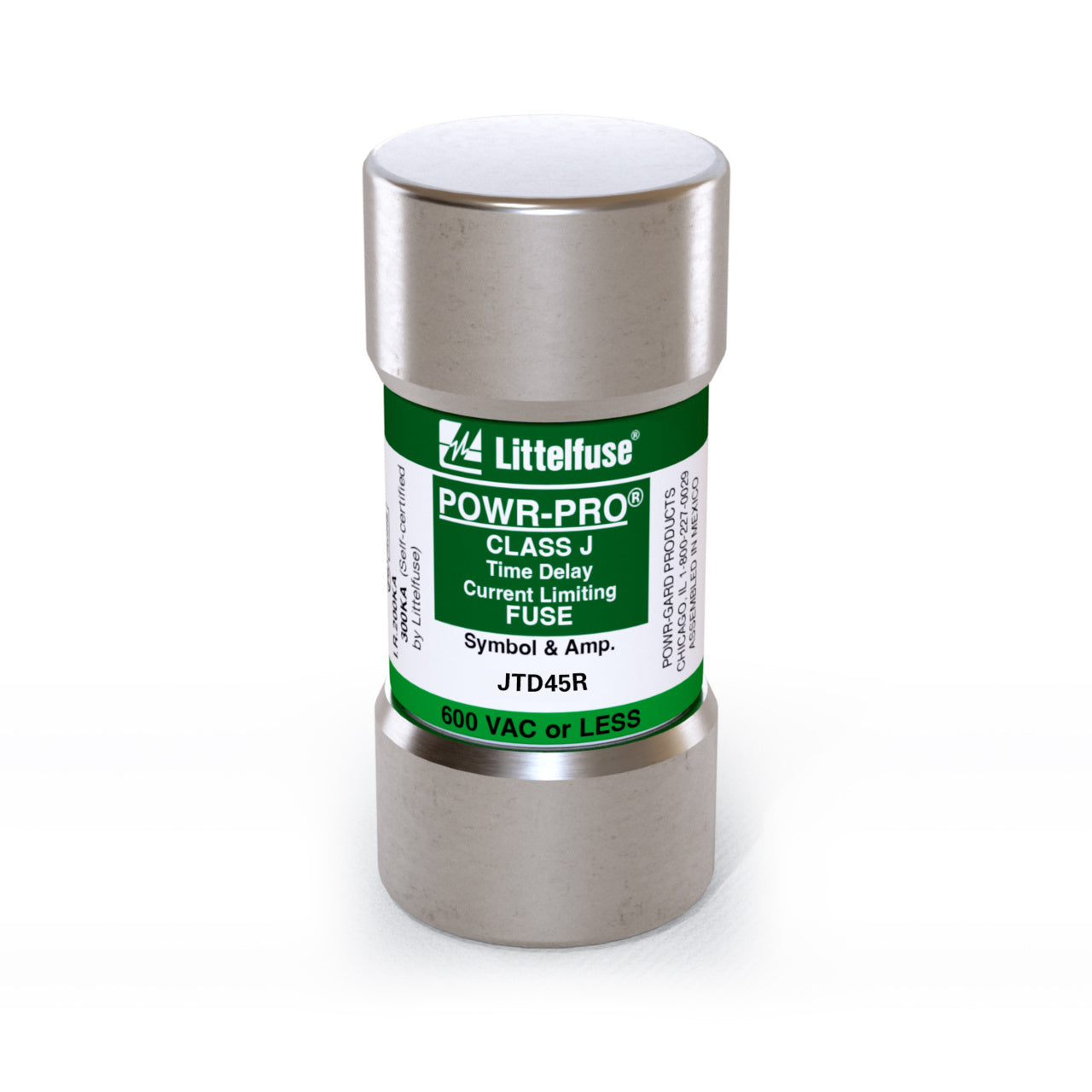

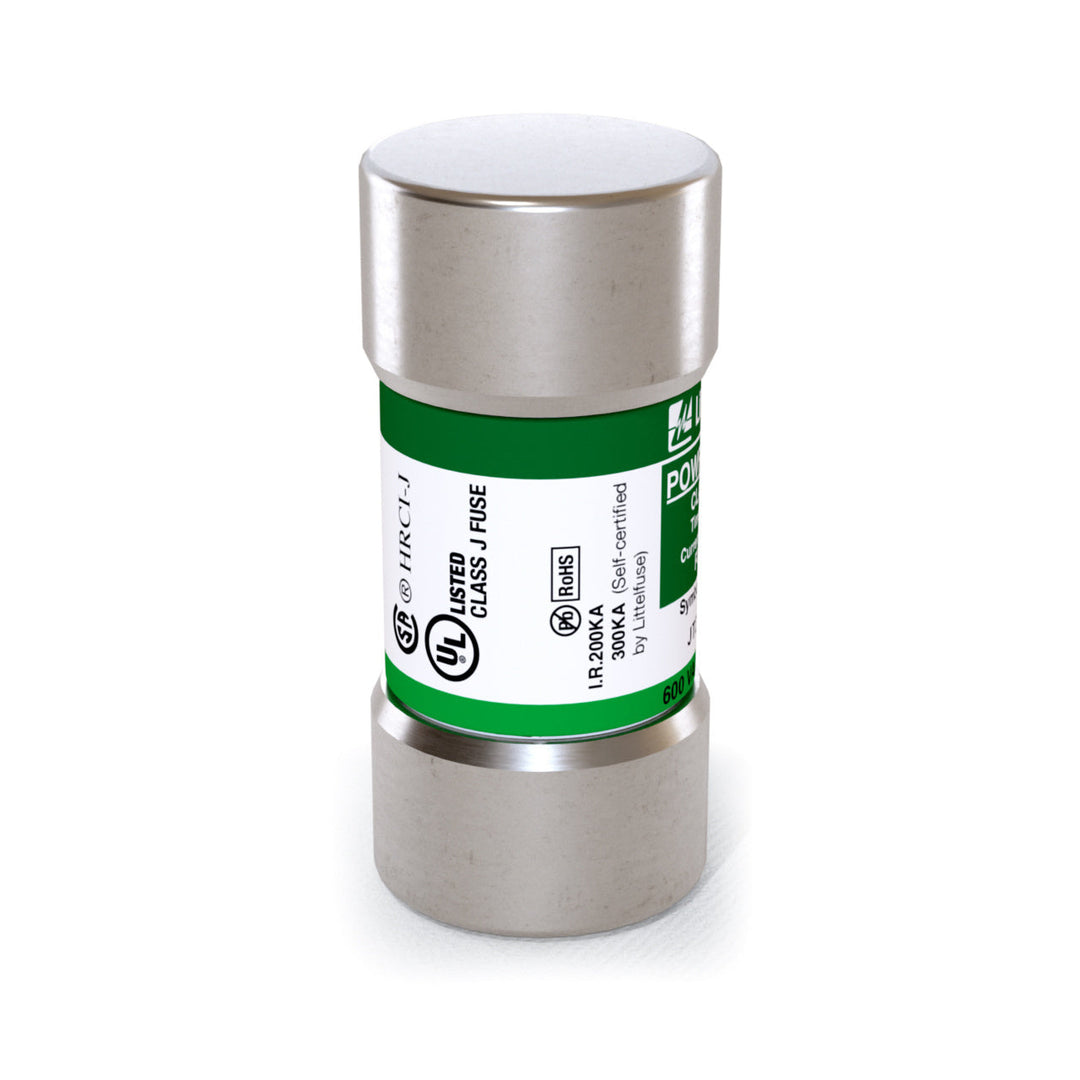

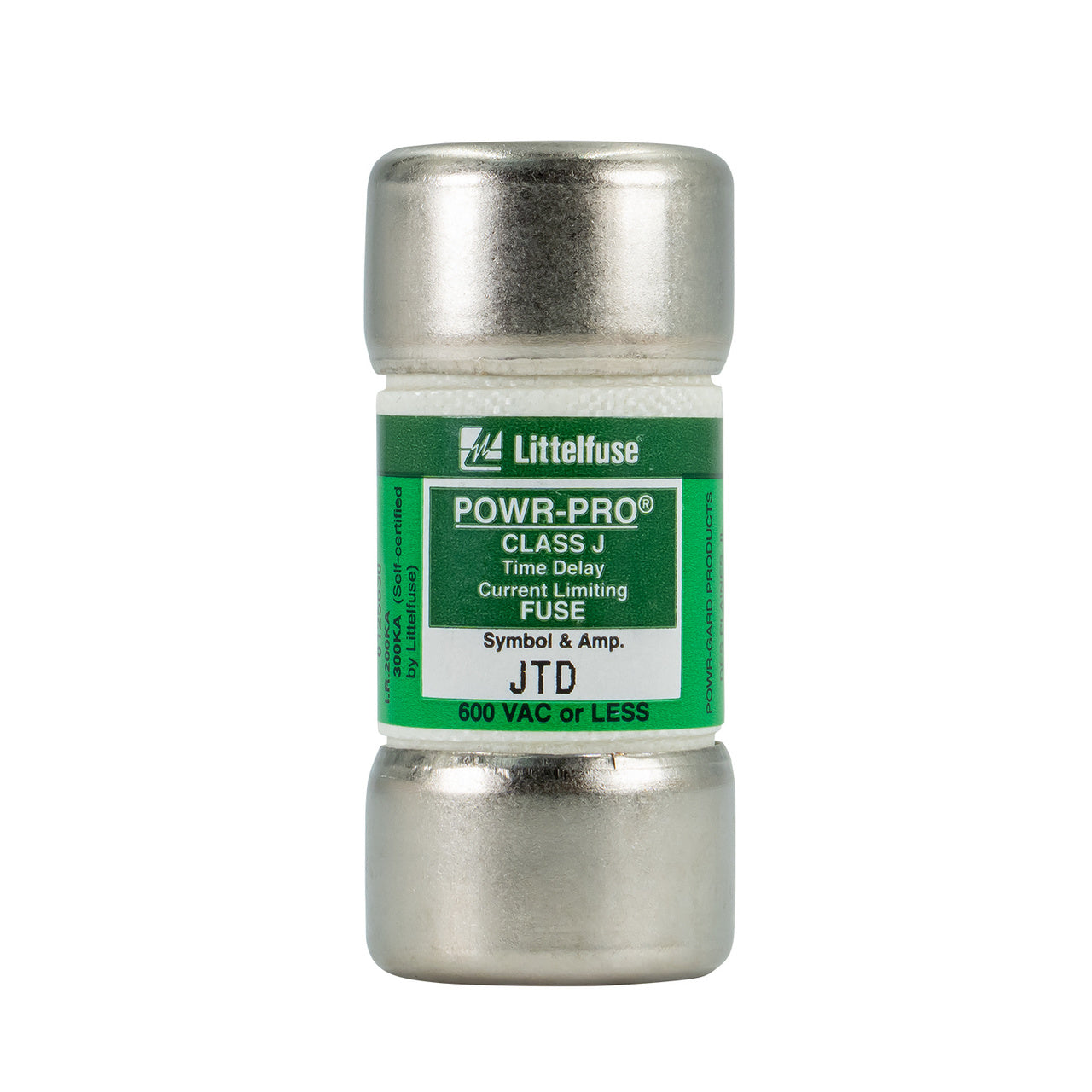

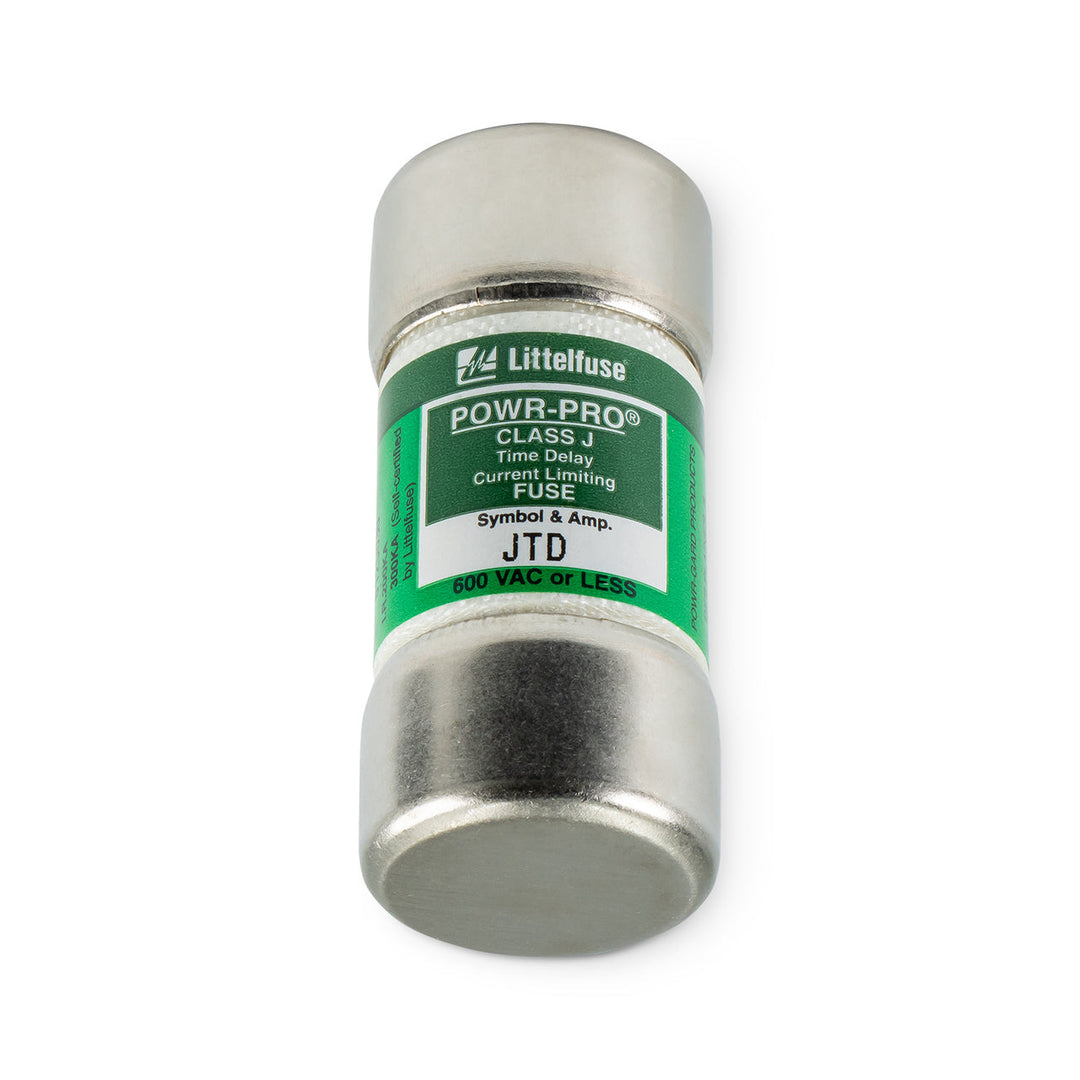

Littelfuse JTD-045 - Time-Delay Fuse 45A 600V (100kA AIC)

Littelfuse JTD-045 is a low-voltage time-delay fuse designed for circuit protection in industrial control systems. It features a 600V AC/DC voltage rating and a 45A current rating, providing reliable overcurrent protection in demanding environments. The fuse is constructed with a durable ceramic body and tin-plated copper end caps for optimal conductivity and heat resistance. It complies with UL/CSA standards and is rated for use in applications up to 100,000 AIC (Ampere Interrupting Capacity). Typical applications include motor control centers, transformers, and power distribution equipment where time-delay characteristics are required to handle inrush currents.

Key Features & Specifications

• Type: Low-voltage time-delay fuse with ceramic body and tin-plated terminals
• Voltage Rating: 600V AC/DC
• Current Rating: 45A
• Dimensions: 2.25" (57.15mm) length x 0.25" (6.35mm) diameter
• Standards: UL/CSA listed
• Applications: Motor protection, transformer circuits, industrial controls
• AIC Rating: 100,000A
• Fuse Class: JTD (Time-Delay)
• Operating Temperature: -40°C to +125°C
• Mounting: Bolt-on/screw terminal

Product Identification

• UPC: 079458202182
