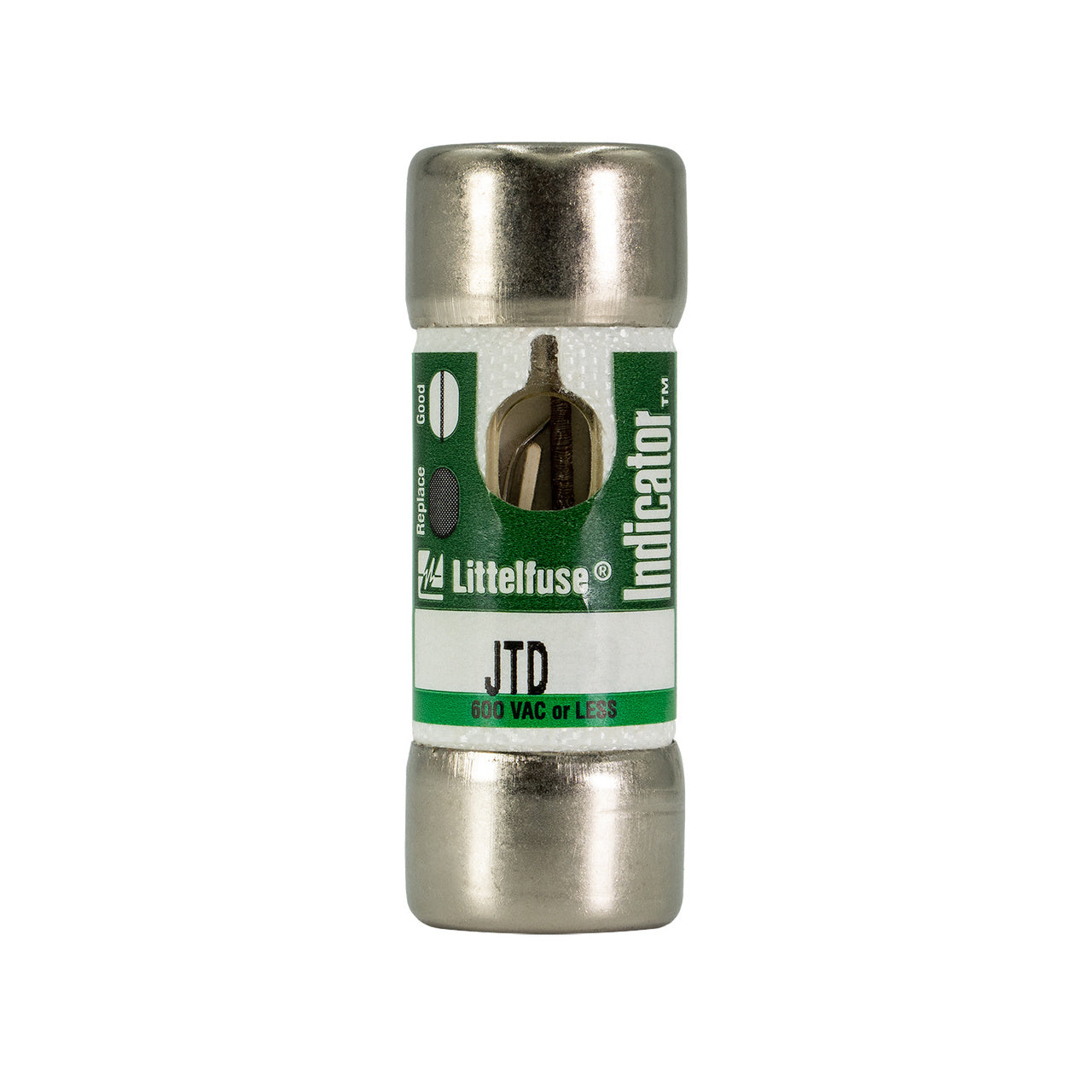

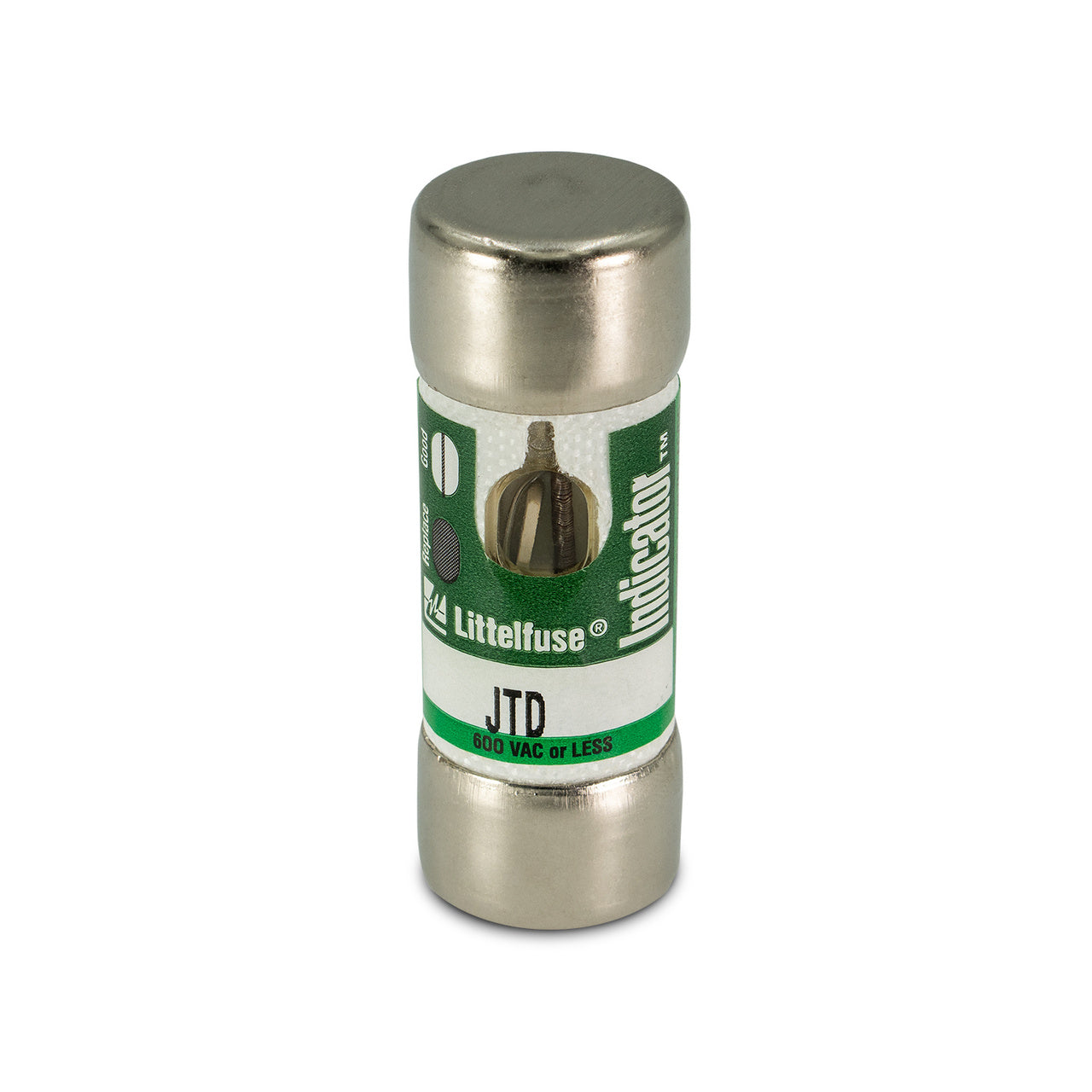

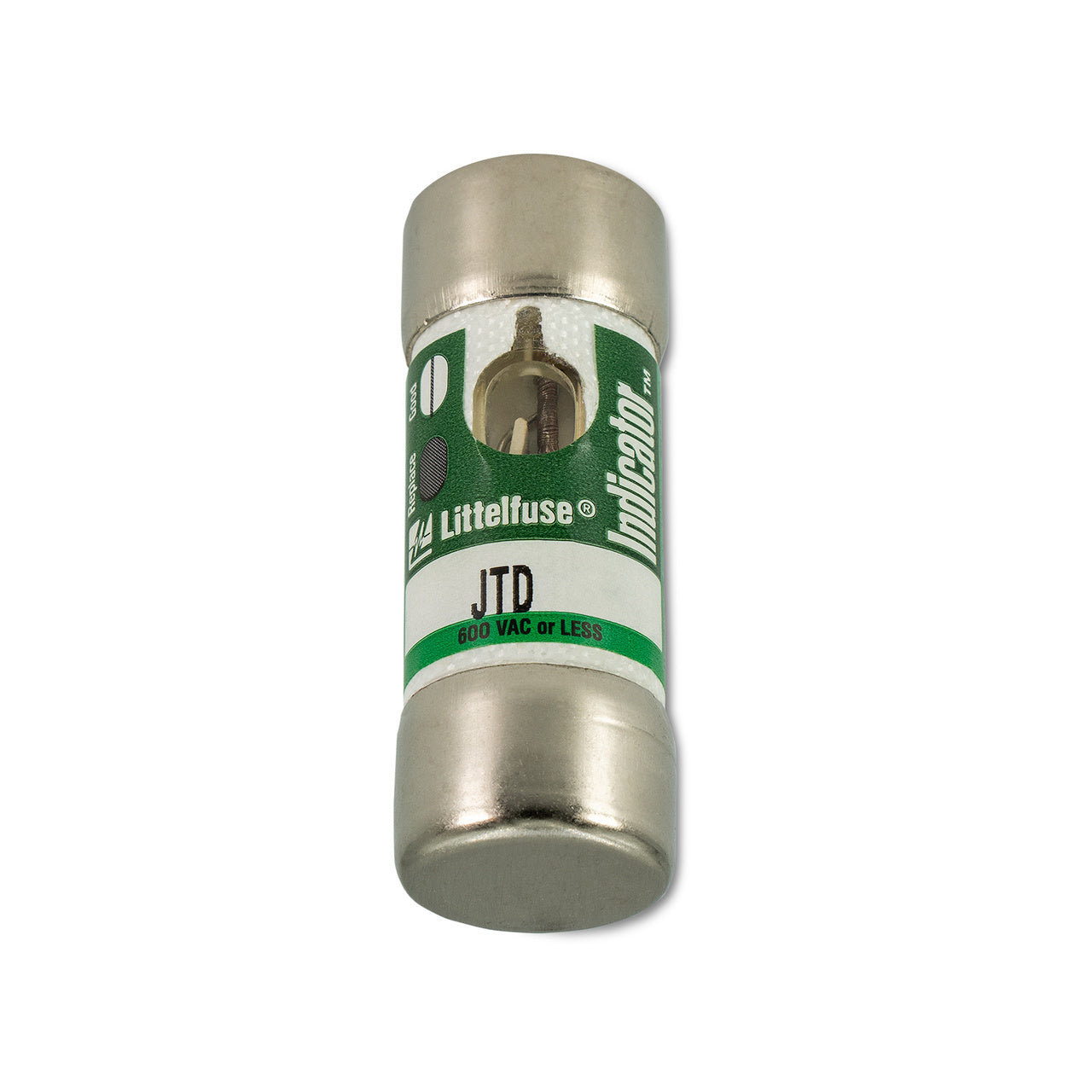

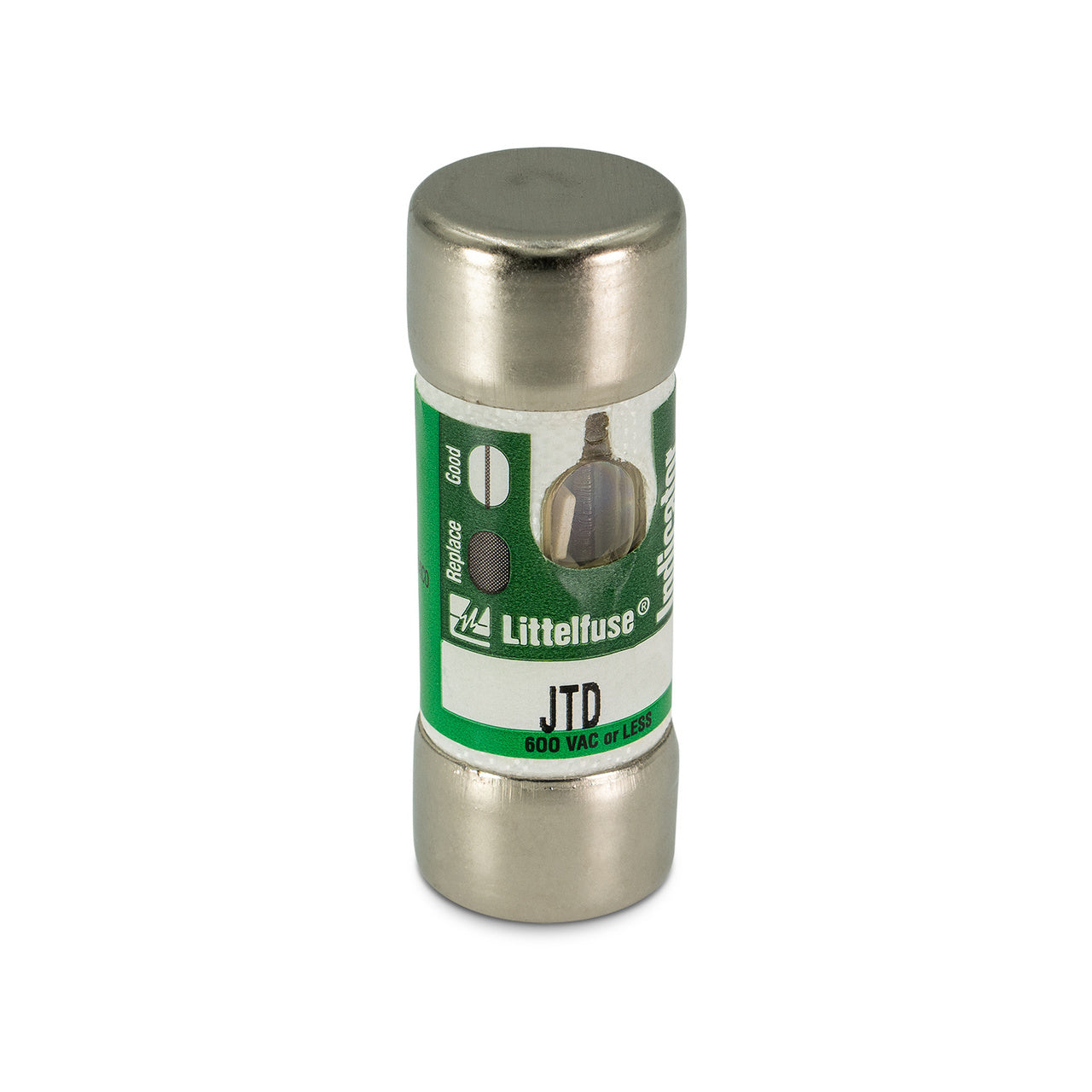

Littelfuse JTD-010ID - Low Voltage Time-Delay Fuse 10A 600V AC (UL/CSA Certified)

Littelfuse JTD-010ID is a low-voltage time-delay fuse designed for circuit protection in industrial and commercial applications. It features a 600V AC/250V DC voltage rating and a 10A current rating, providing reliable overcurrent protection with time-delay characteristics to withstand temporary inrush currents. The fuse is constructed with a ceramic body and tin-plated copper end caps for durability, measuring 10.3mm x 38.1mm (diameter x length). It complies with UL/CSA standards and is suitable for use in motor control circuits, transformers, and power distribution systems.

Key Features & Specifications

• Type: Low-voltage time-delay fuse, ceramic body, tin-plated copper terminals
• Voltage Rating: 600V AC / 250V DC
• Current Rating: 10A
• Dimensions: 10.3mm x 38.1mm (diameter x length)
• Standards: UL/CSA certified
• Applications: Motor controls, transformers, power distribution
• Fuse Class: JTD
• Mounting: Clip-in
• Operating Temperature: -55°C to +125°C

Product Identification

• UPC: 782001962401
