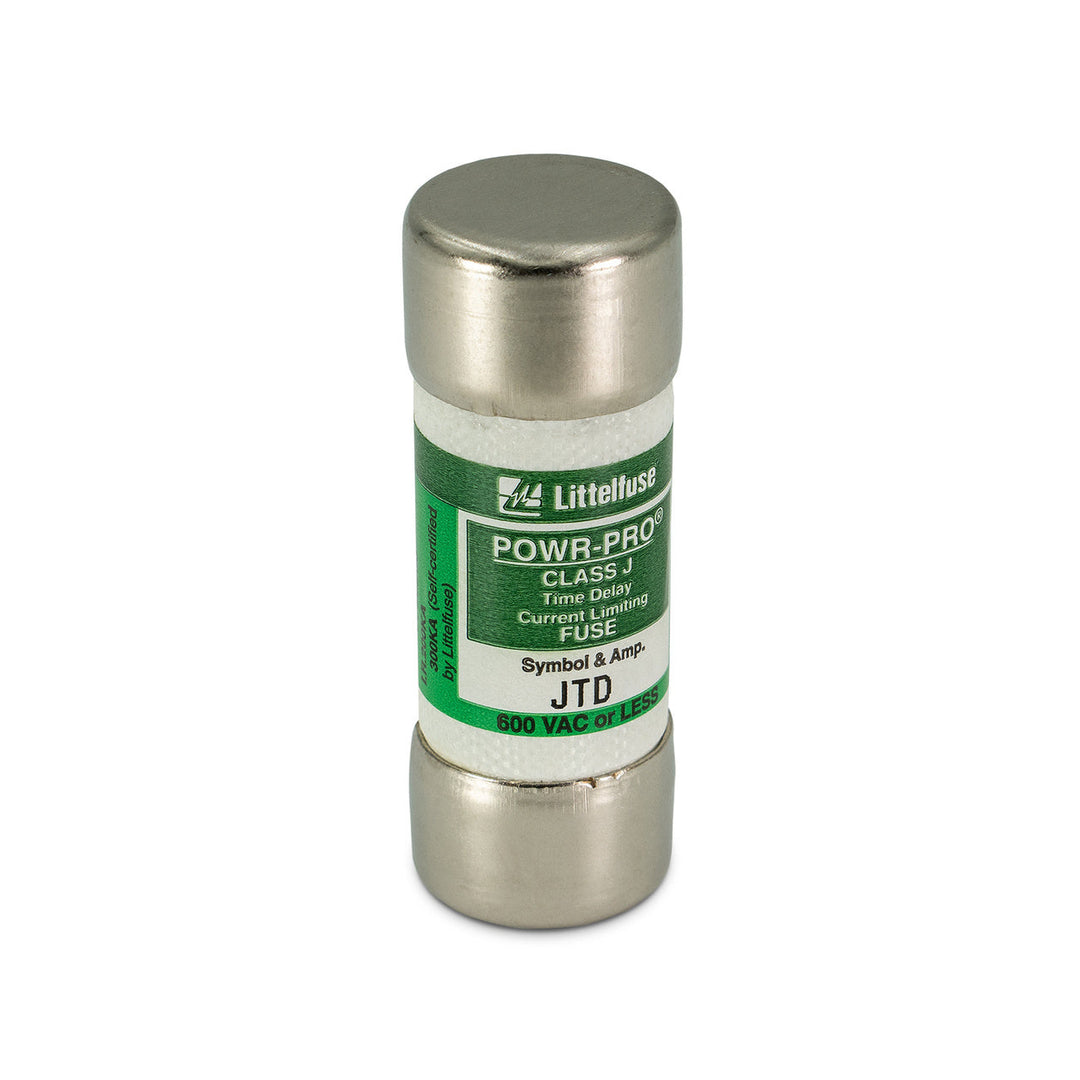

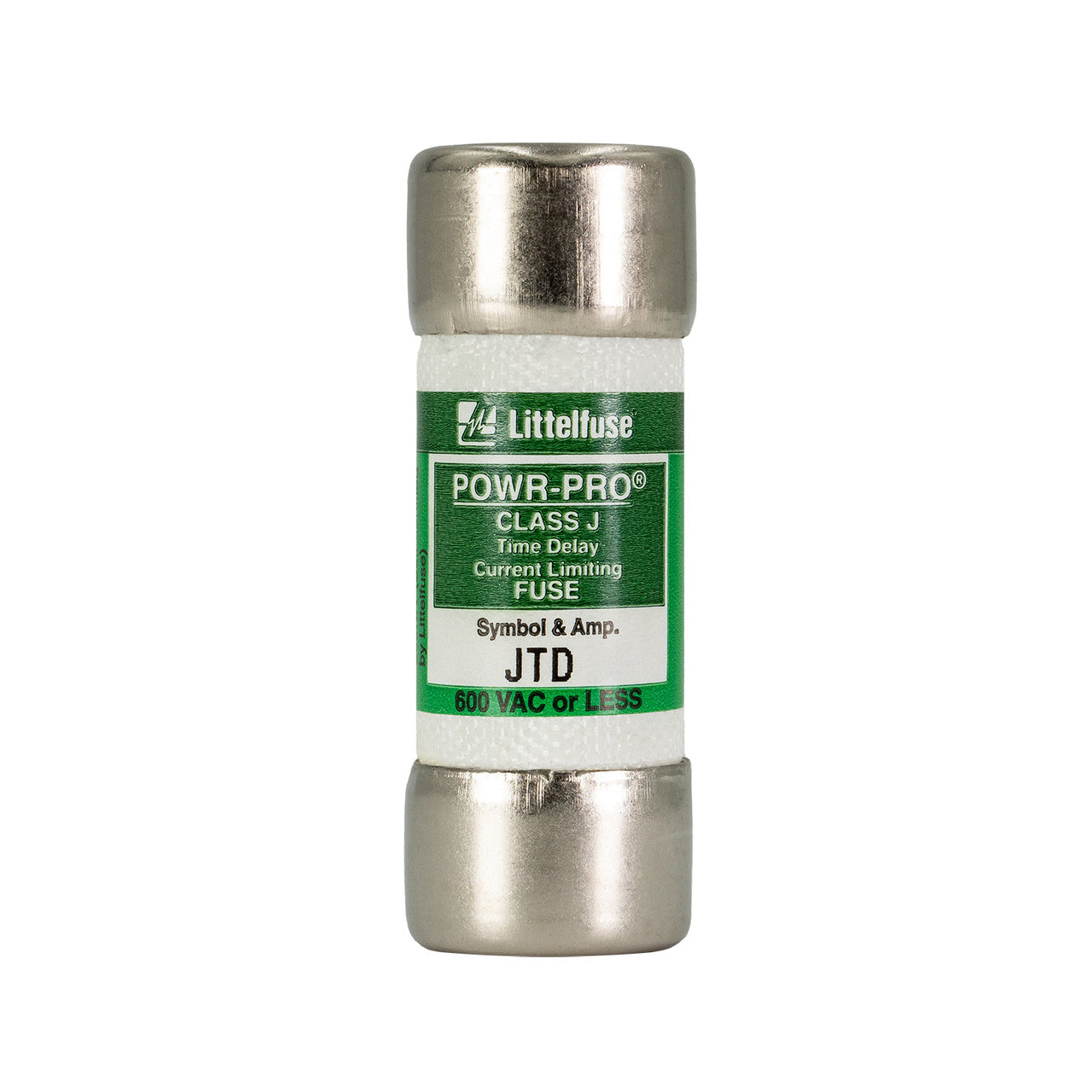

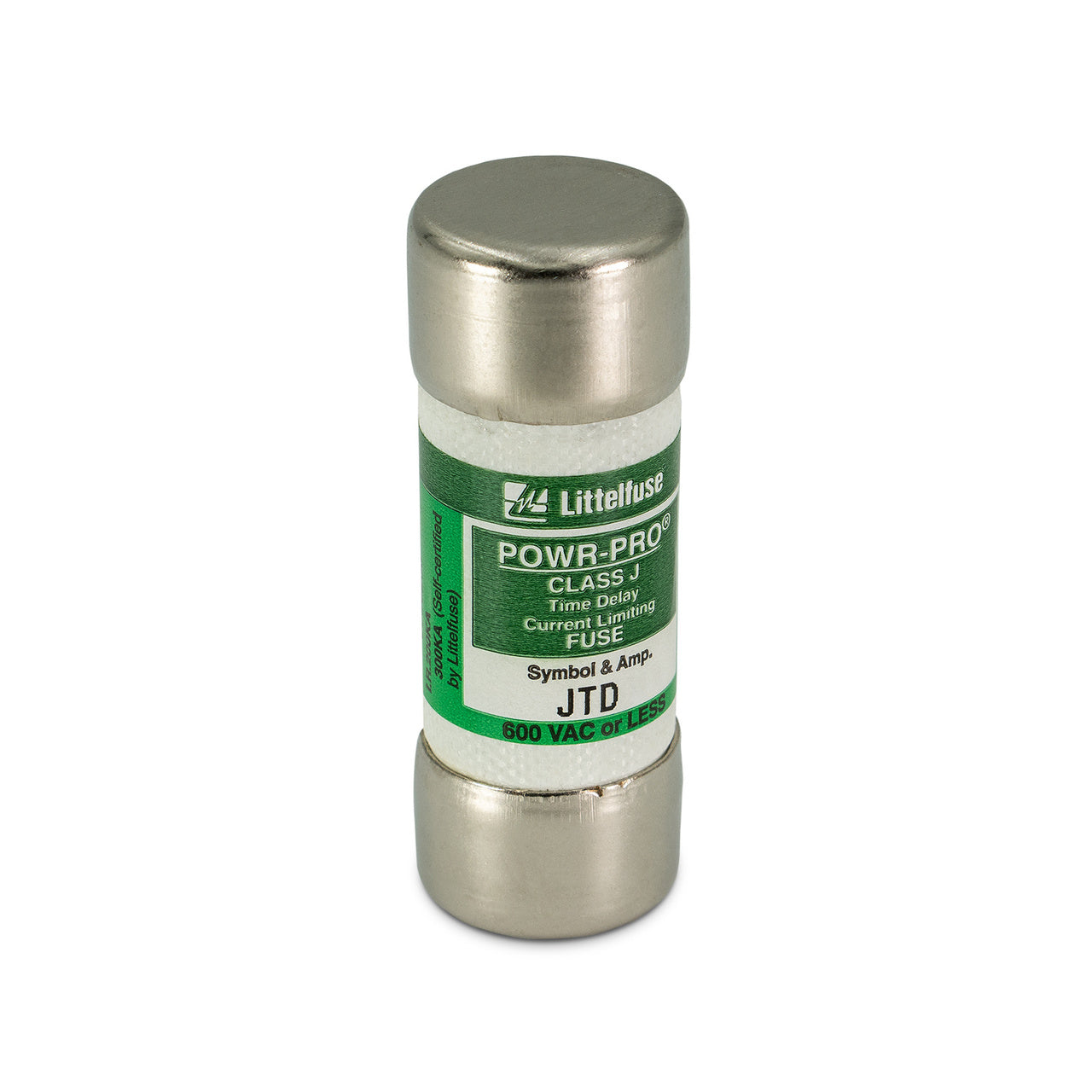

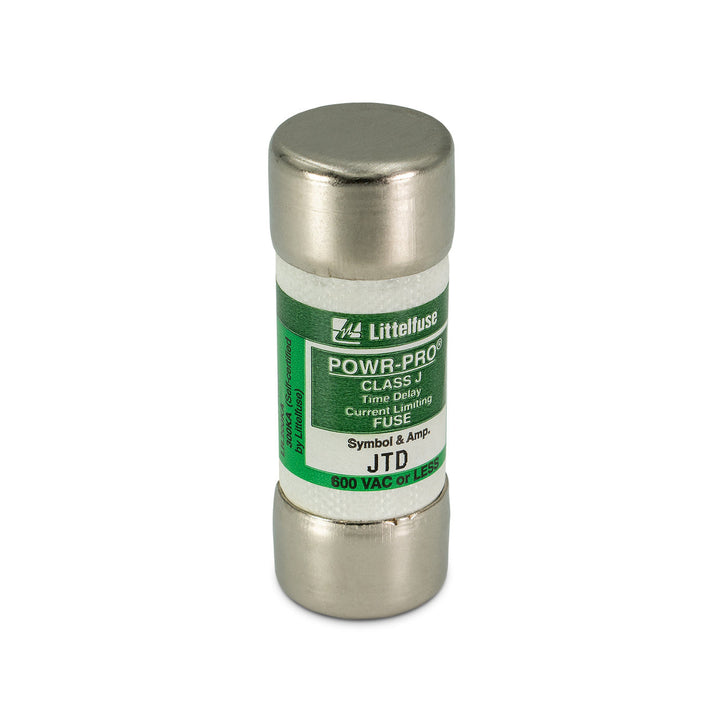

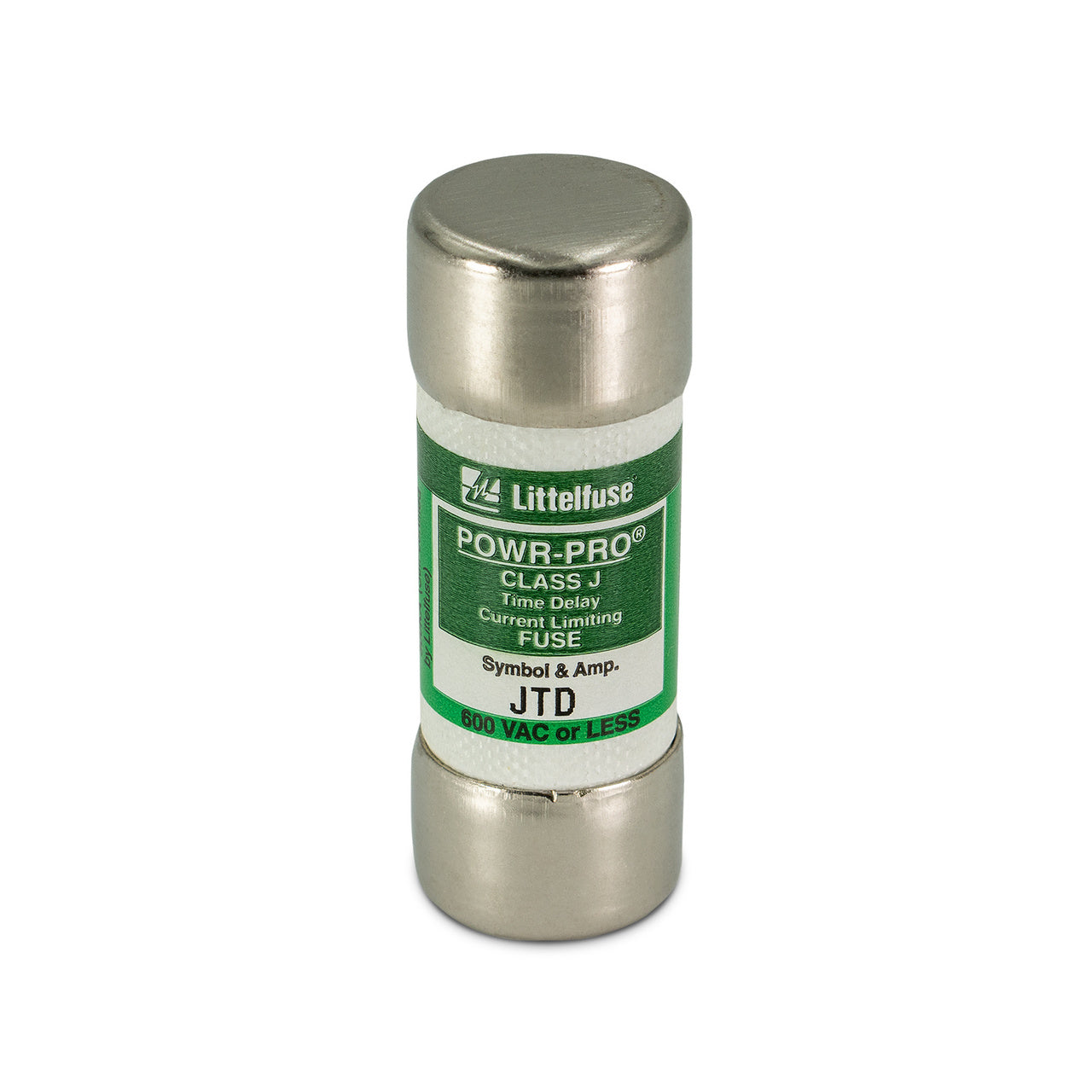

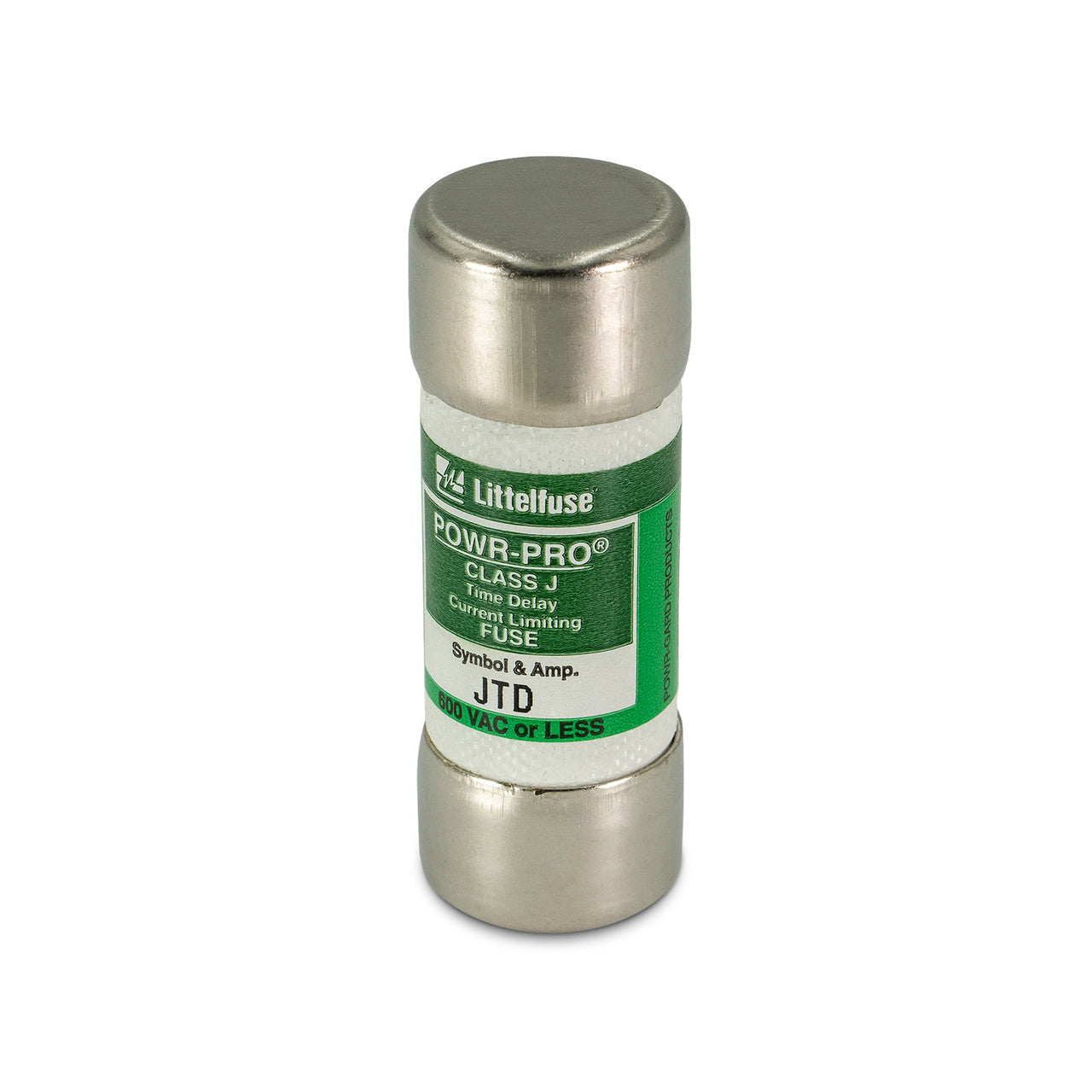

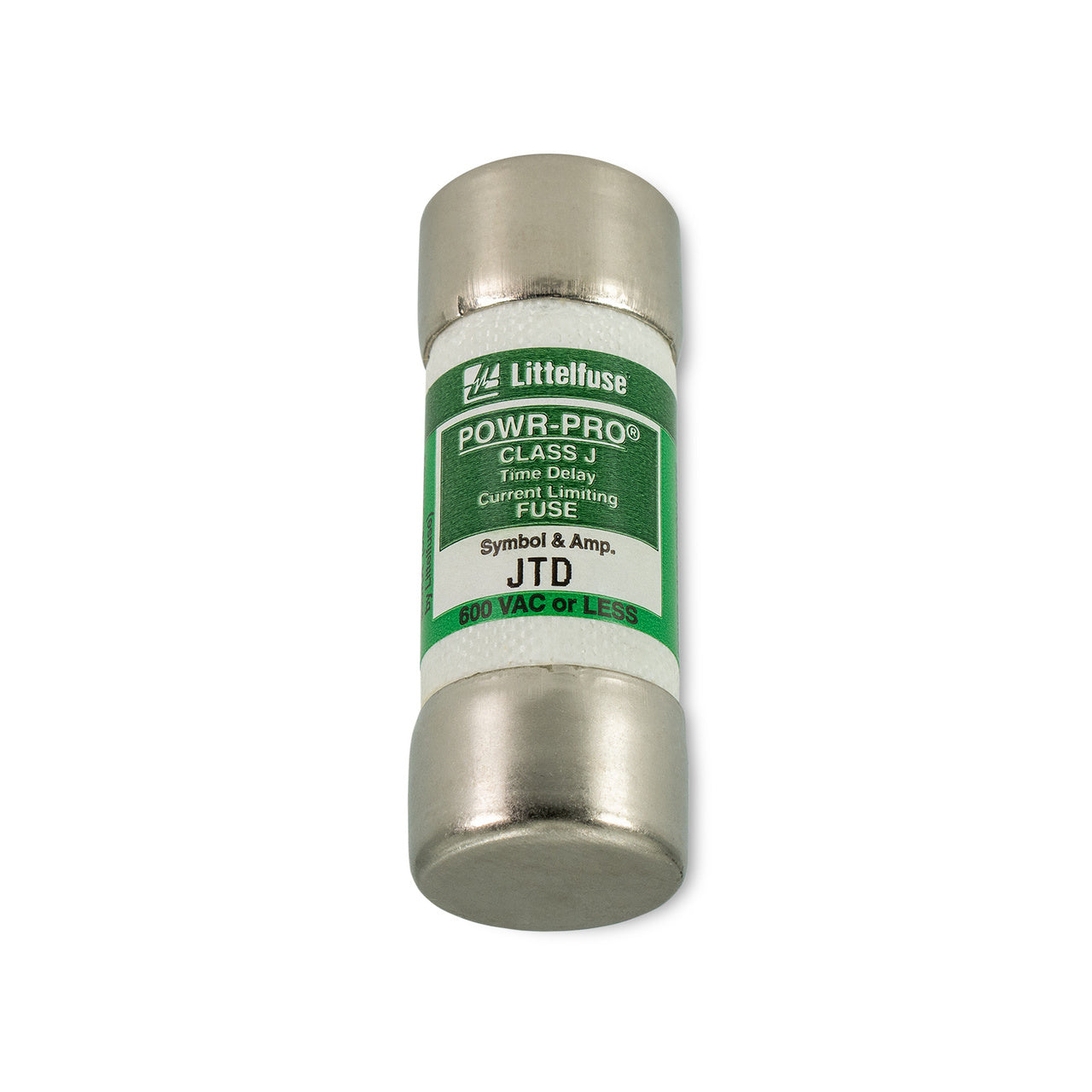

Littelfuse JTD-010 - Medium Voltage Fuse 10A 600V AC (UL/IEC Compliant)

Littelfuse JTD-010 is a medium-voltage current-limiting fuse designed for overcurrent protection in industrial power distribution systems. It features a 10A current rating with a 600V AC voltage rating, housed in a durable ceramic body with silver-plated copper end caps for reliable conductivity. The fuse meets UL 248-10 and IEC 60269 standards, ensuring compliance with international safety requirements. Its compact 10.3mm diameter x 38.1mm length form factor makes it suitable for panel-mounted applications in motor control centers, transformers, and capacitor banks.

Key Features & Specifications

• Type: Current-limiting medium-voltage fuse with ceramic body and sand-filled arc quenching
• Voltage Rating: 600V AC
• Current Rating: 10A
• Dimensions: 10.3mm diameter x 38.1mm length
• Standards: UL 248-10, IEC 60269
• Applications: Motor protection, transformer circuits, capacitor banks
• Item Subcategory: Medium Voltage Fuse

Product Identification

• UPC: 079458202090
• GTIN: 079458202090
