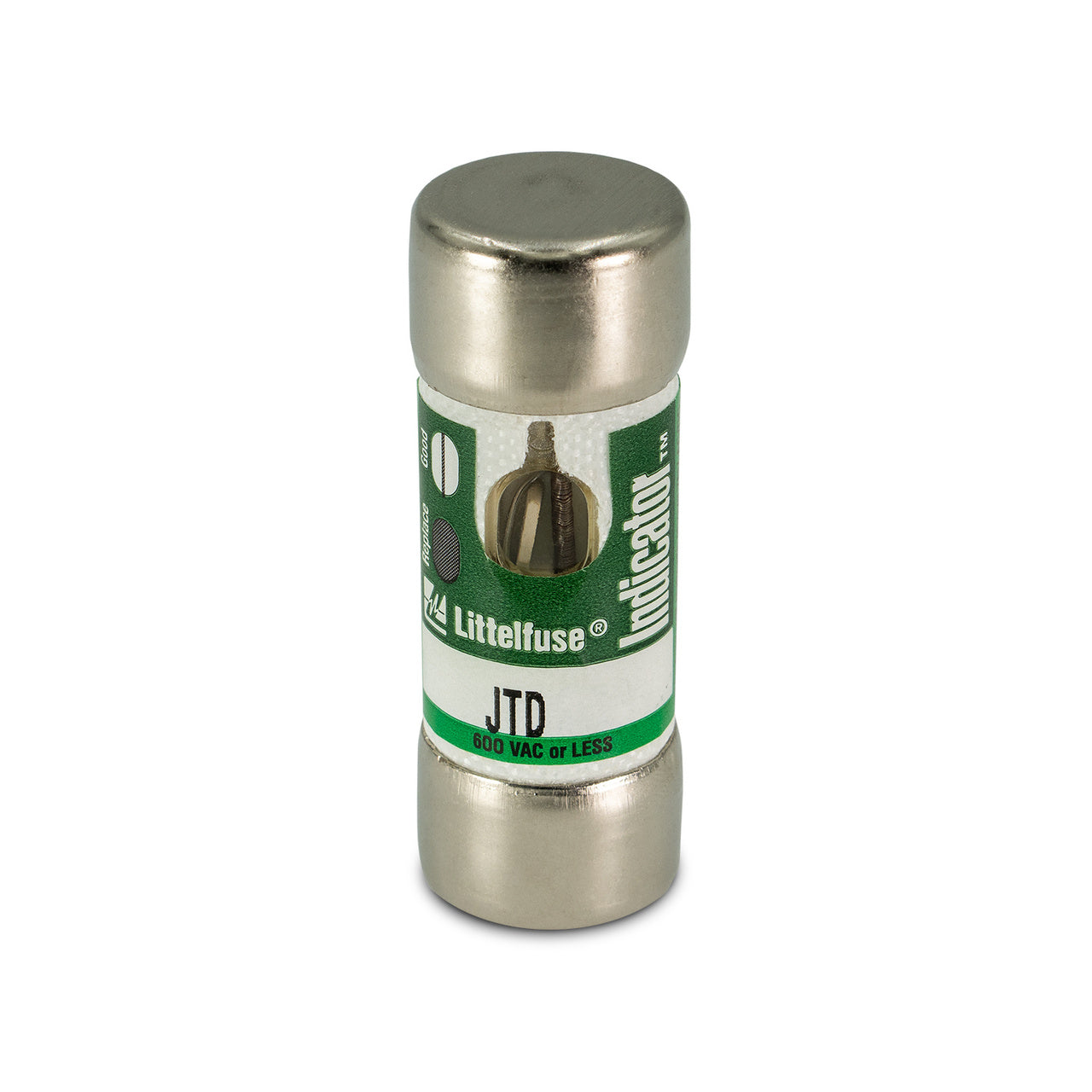

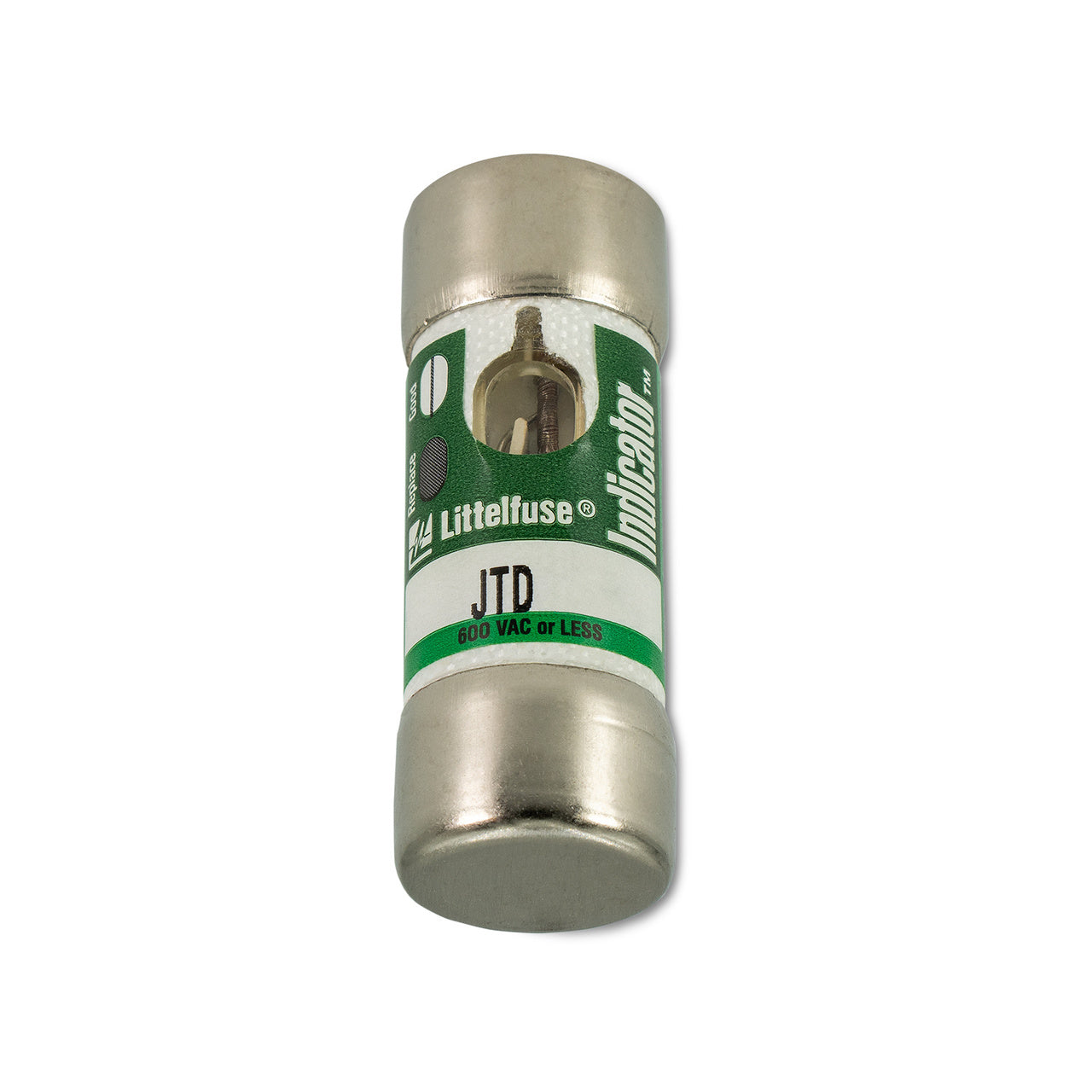

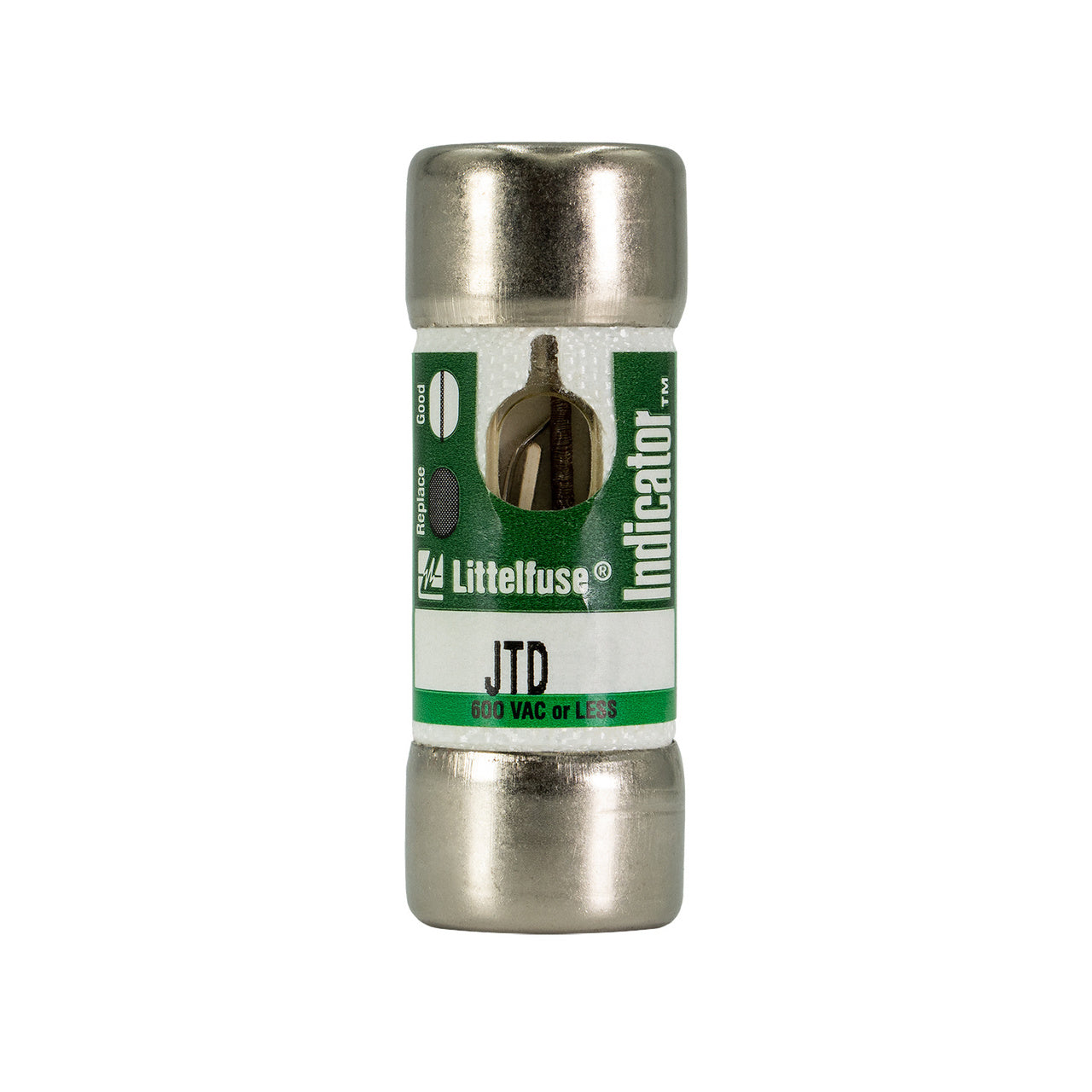

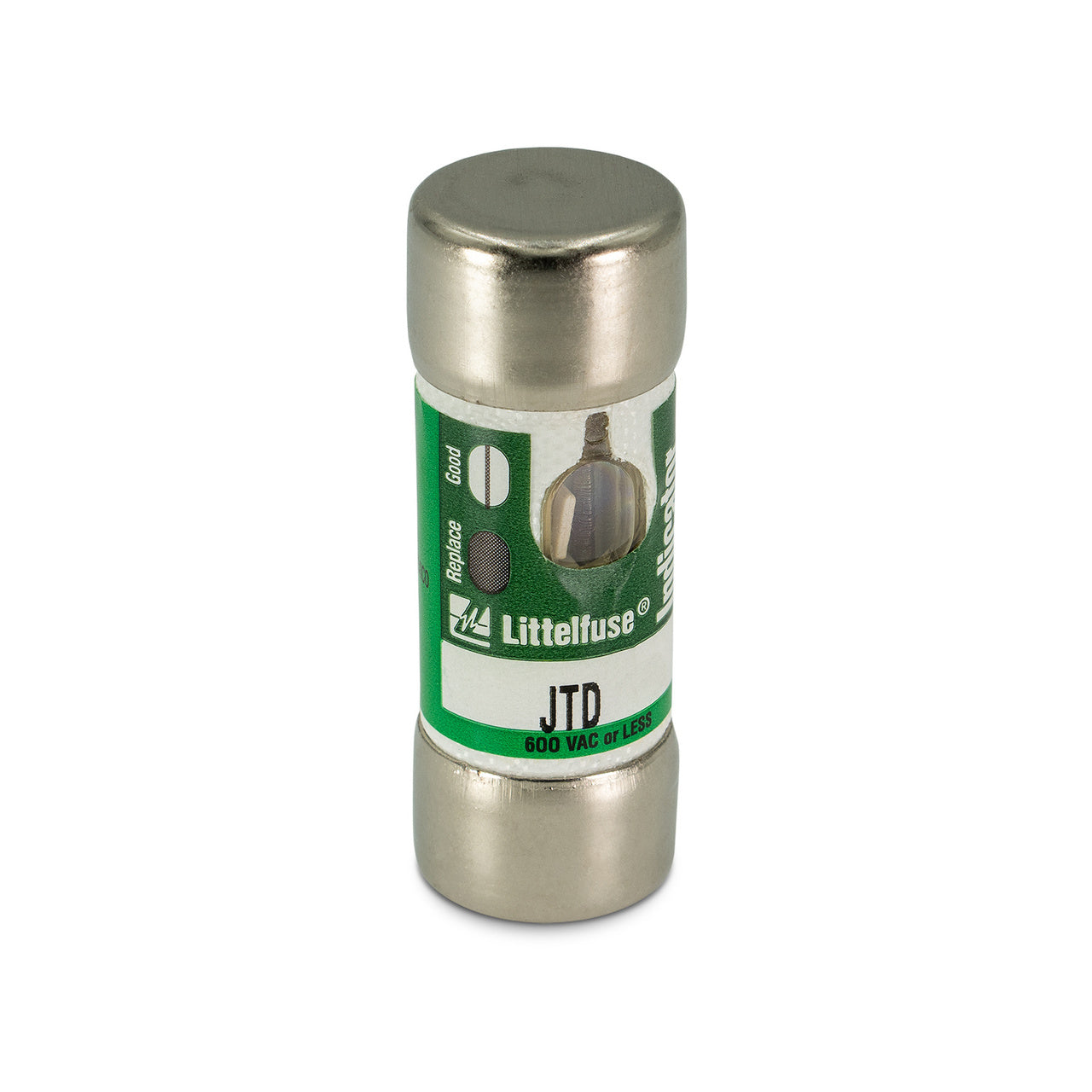

Littelfuse JTD-01.5ID - Time-Delay Fuse 1.5A 600V (Ceramic Body, 100kA IR)

Littelfuse JTD-01.5ID is a time-delay, low-voltage fuse designed for circuit protection in industrial control systems. It features a 600V AC/300V DC voltage rating with a 1.5A current rating, providing reliable overcurrent protection for sensitive equipment. The compact cylindrical design (10.3mm diameter x 38.1mm length) features a durable ceramic body with sand-filled construction for arc suppression. UL/CSA certified, it meets industry standards for safety and performance in demanding environments. Typical applications include motor control centers, transformers, and power distribution panels where coordinated protection is critical.

Key Features & Specifications

• Type: Time-delay (JTD), ceramic body, sand-filled construction
• Voltage Rating: 600V AC / 300V DC
• Current Rating: 1.5A
• Dimensions: 10.3mm diameter x 38.1mm length
• Standards: UL 248-14, CSA C22.2 No. 248.14
• Applications: Industrial control systems, motor protection, power distribution
• Fuse Class: JTD (Time-delay)
• Interrupt Rating: 100kA at 600V AC
• Operating Temperature: -50°C to +125°C
• Mounting: Clip-mounted (JTD series compatible holders)

Product Identification

• UPC: 782001963057
