Littelfuse JTD-002 - Time-Delay Fuse 600V AC/DC (2A Current Rating)

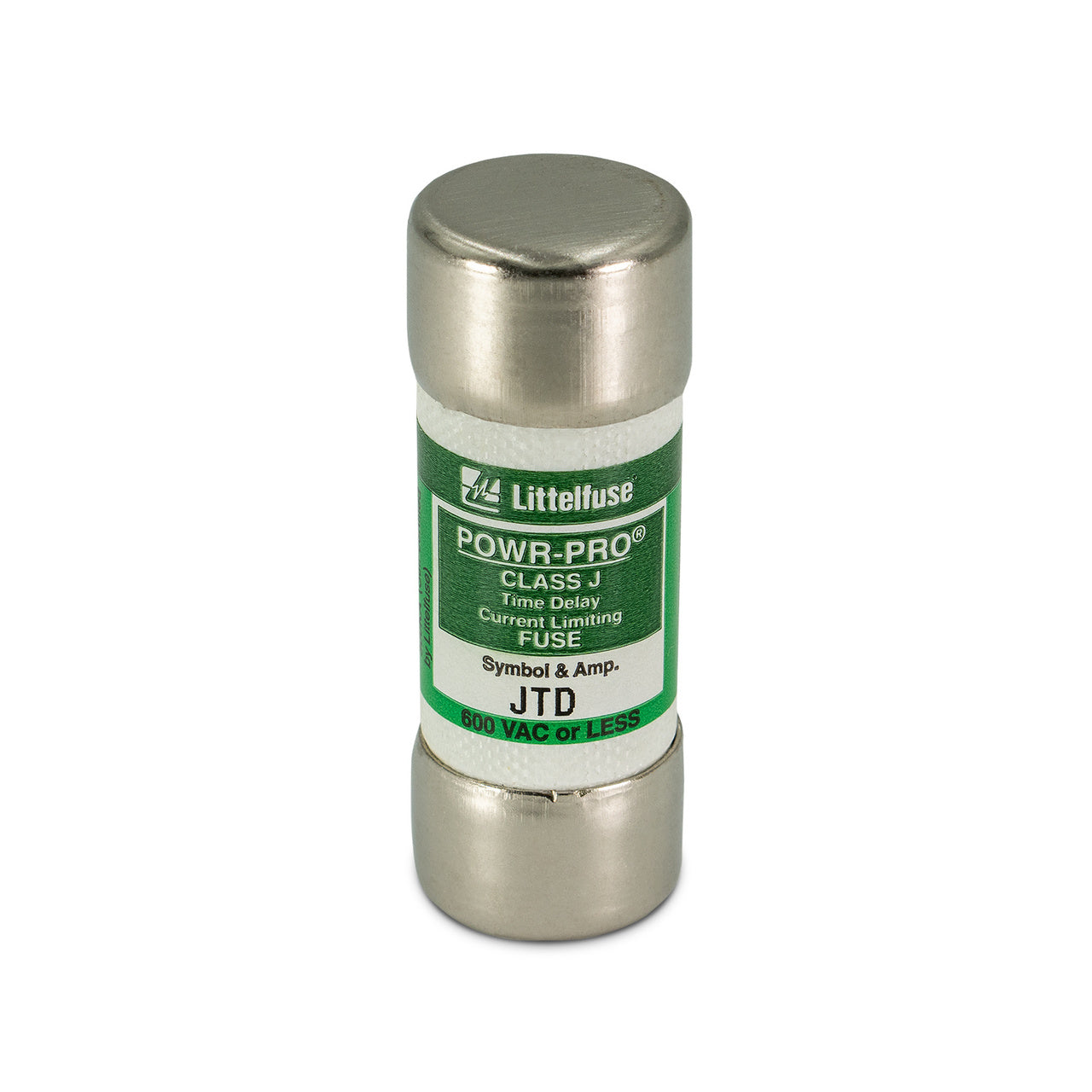

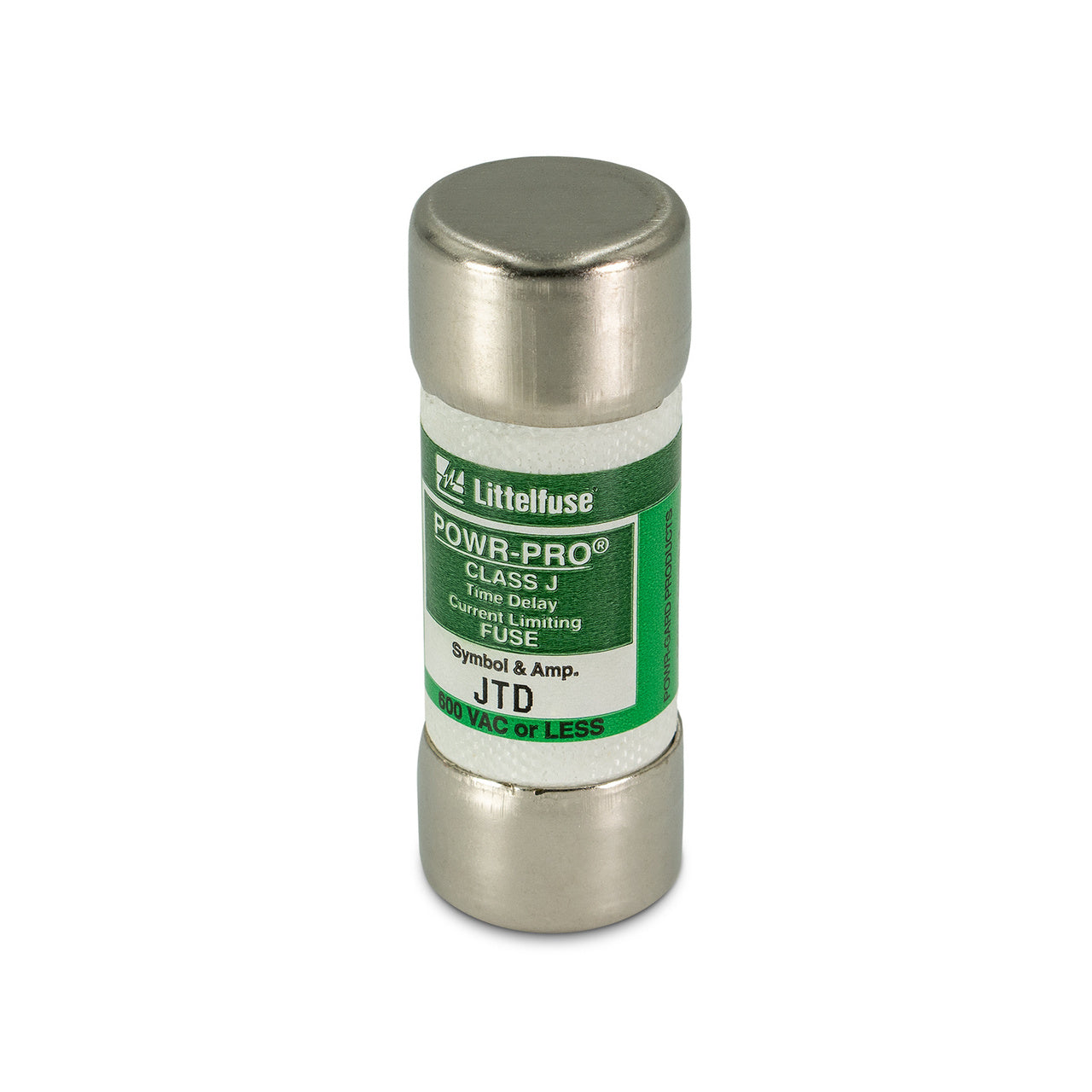

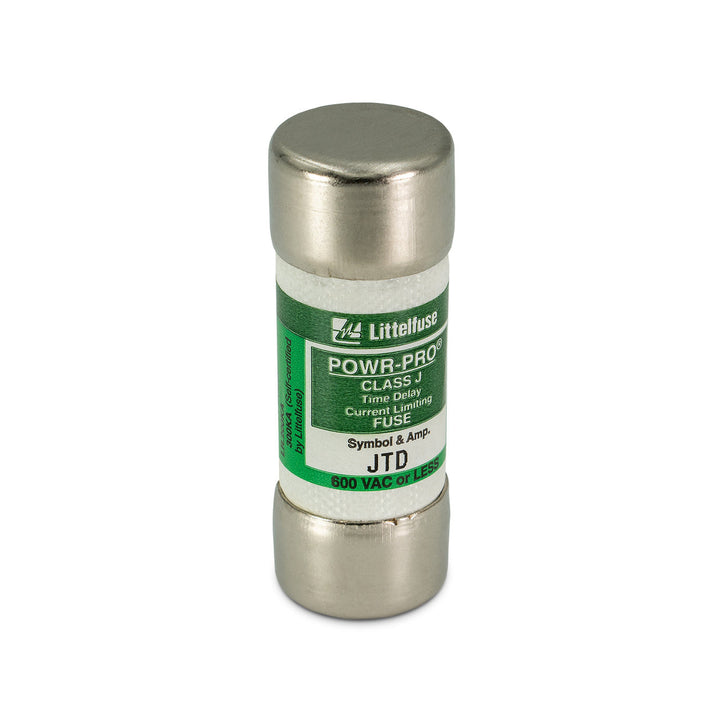

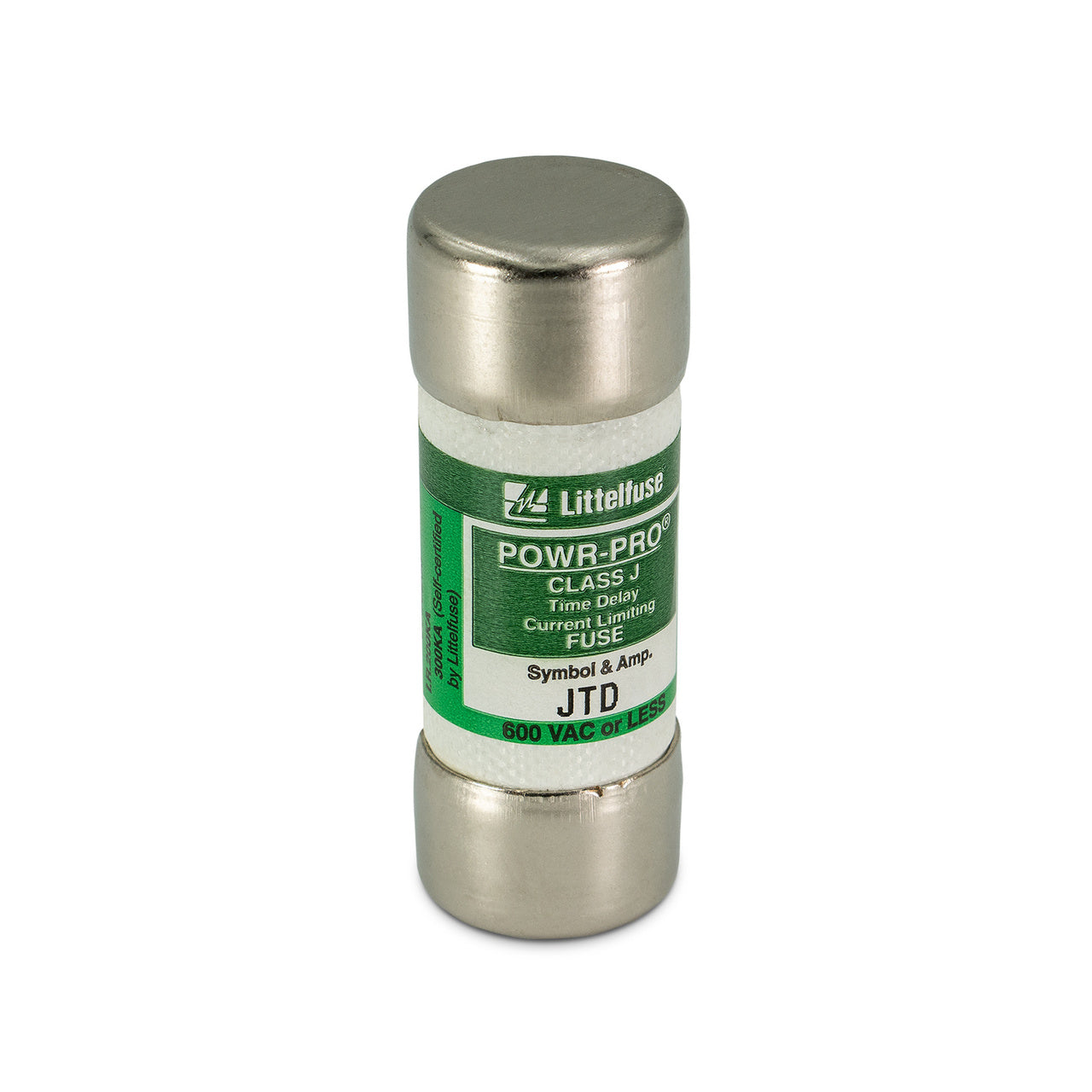

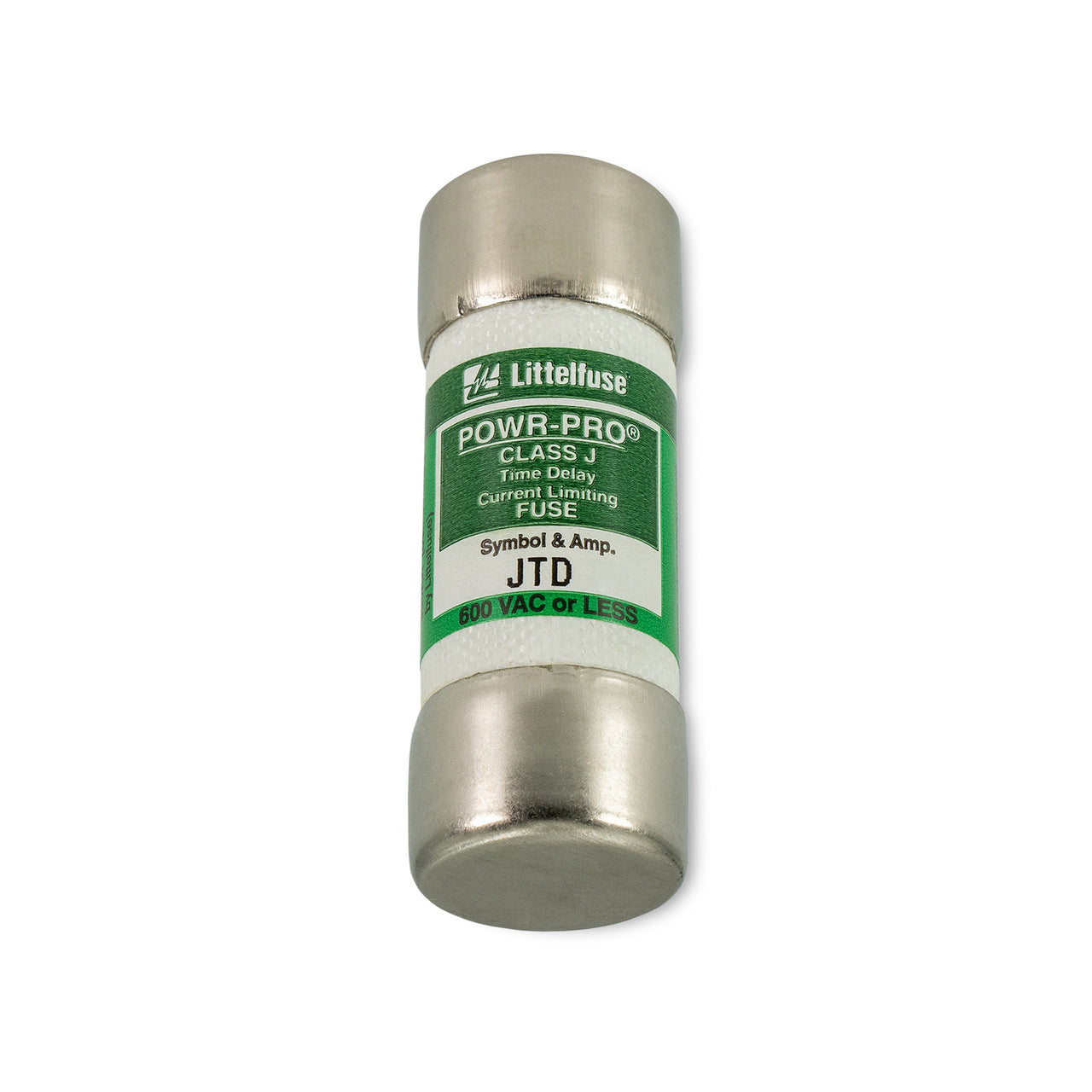

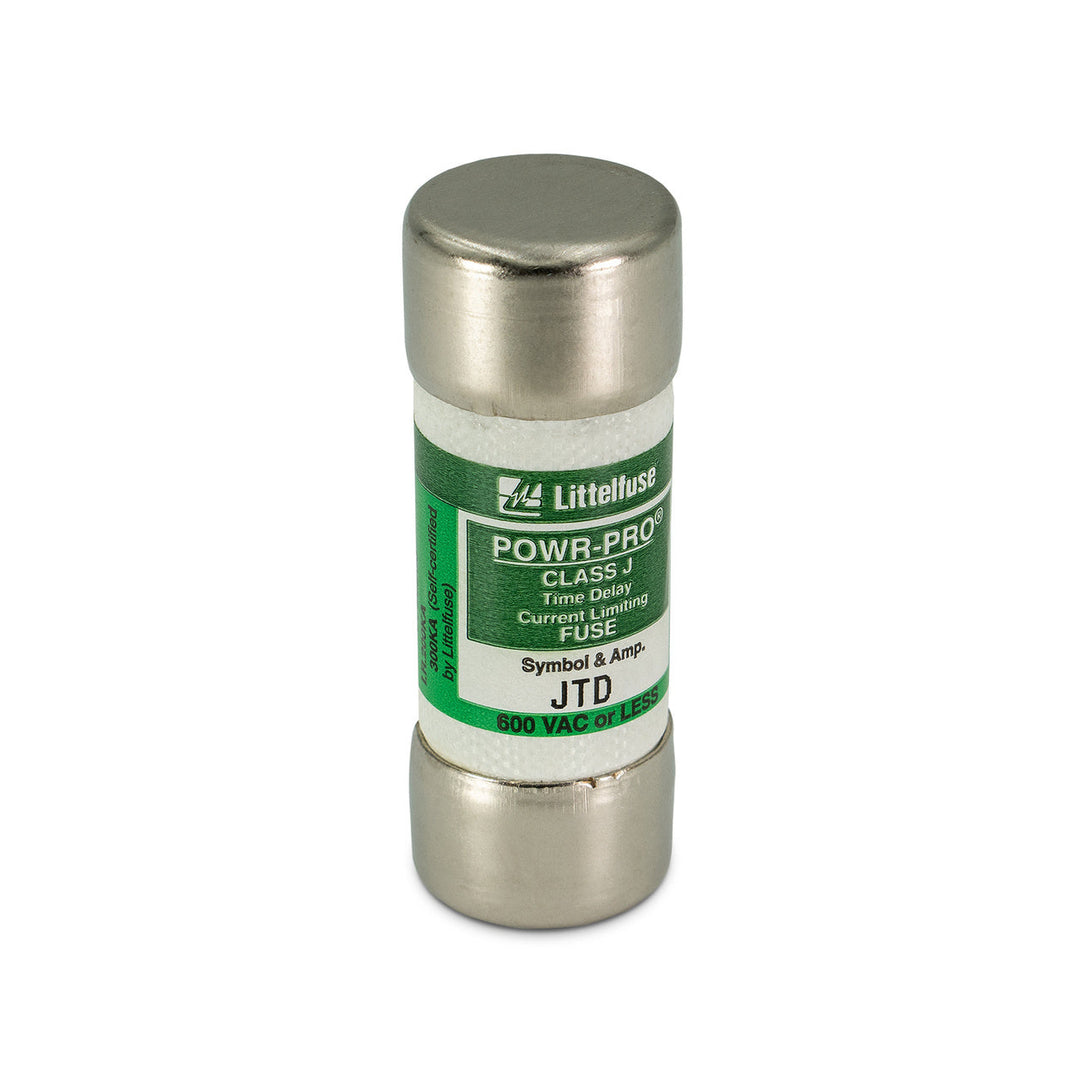

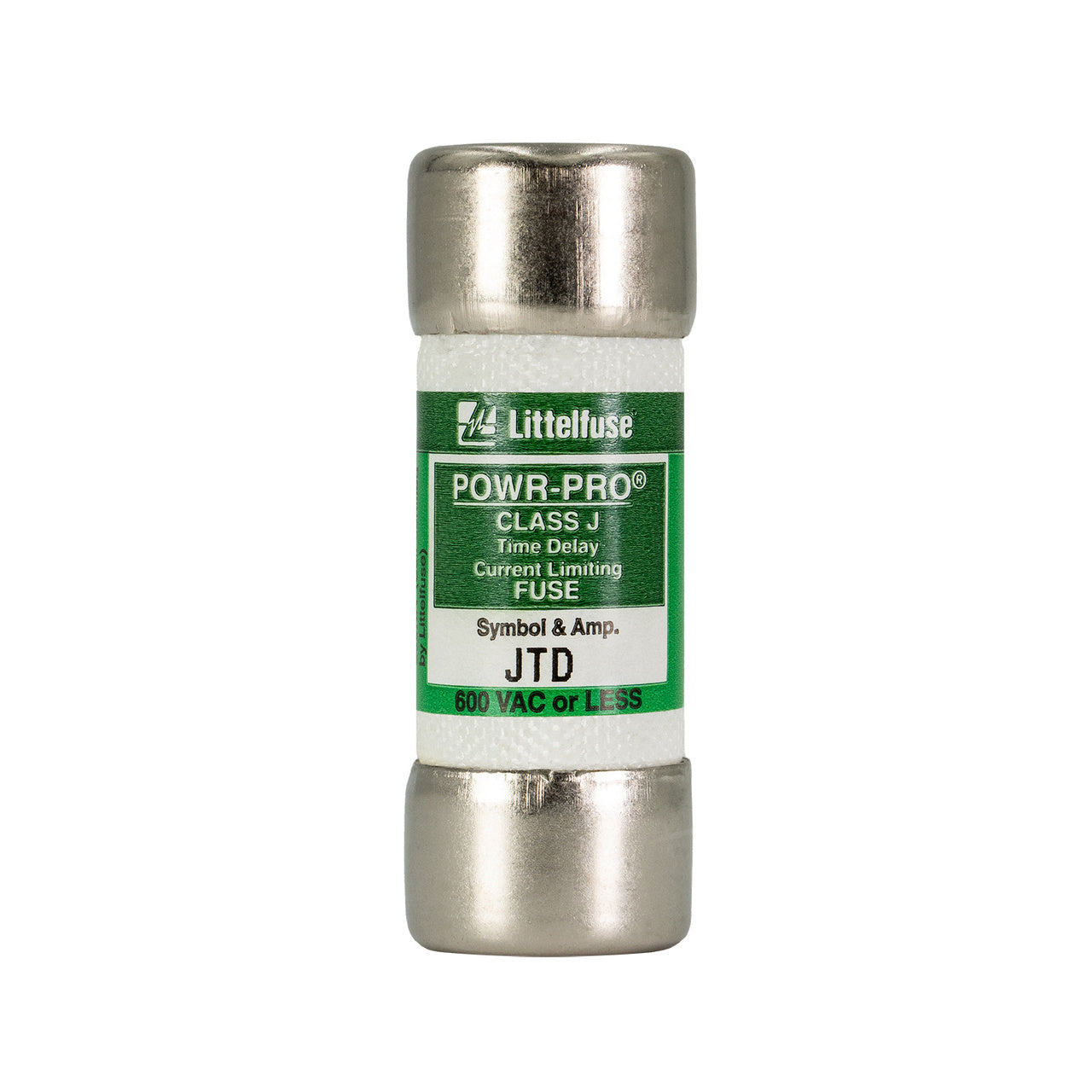

Littelfuse JTD-002 is a low-voltage time-delay fuse designed for circuit protection in industrial control systems. It features a 600V AC/DC voltage rating and a 2A current rating, providing reliable overcurrent protection with its ceramic body and tin-plated brass end caps. The fuse meets UL/CSA standards and is rated for operation in temperatures up to 125°C, ensuring compliance with industrial safety requirements. Its compact 10.3mm diameter x 38.1mm length form factor makes it suitable for panel boards, motor controls, and transformer protection applications.

Key Features & Specifications

• Type: Time-delay fuse with ceramic body and tin-plated brass end caps
• Voltage Rating: 600V AC/DC
• Current Rating: 2A
• Dimensions: 10.3mm diameter x 38.1mm length
• Standards: UL/CSA certified
• Applications: Industrial control systems, panel boards, motor controls
• Operating Temperature: Up to 125°C
• Item Subcategory: Low Voltage Fuse

Product Identification

• UPC: 7945802570
