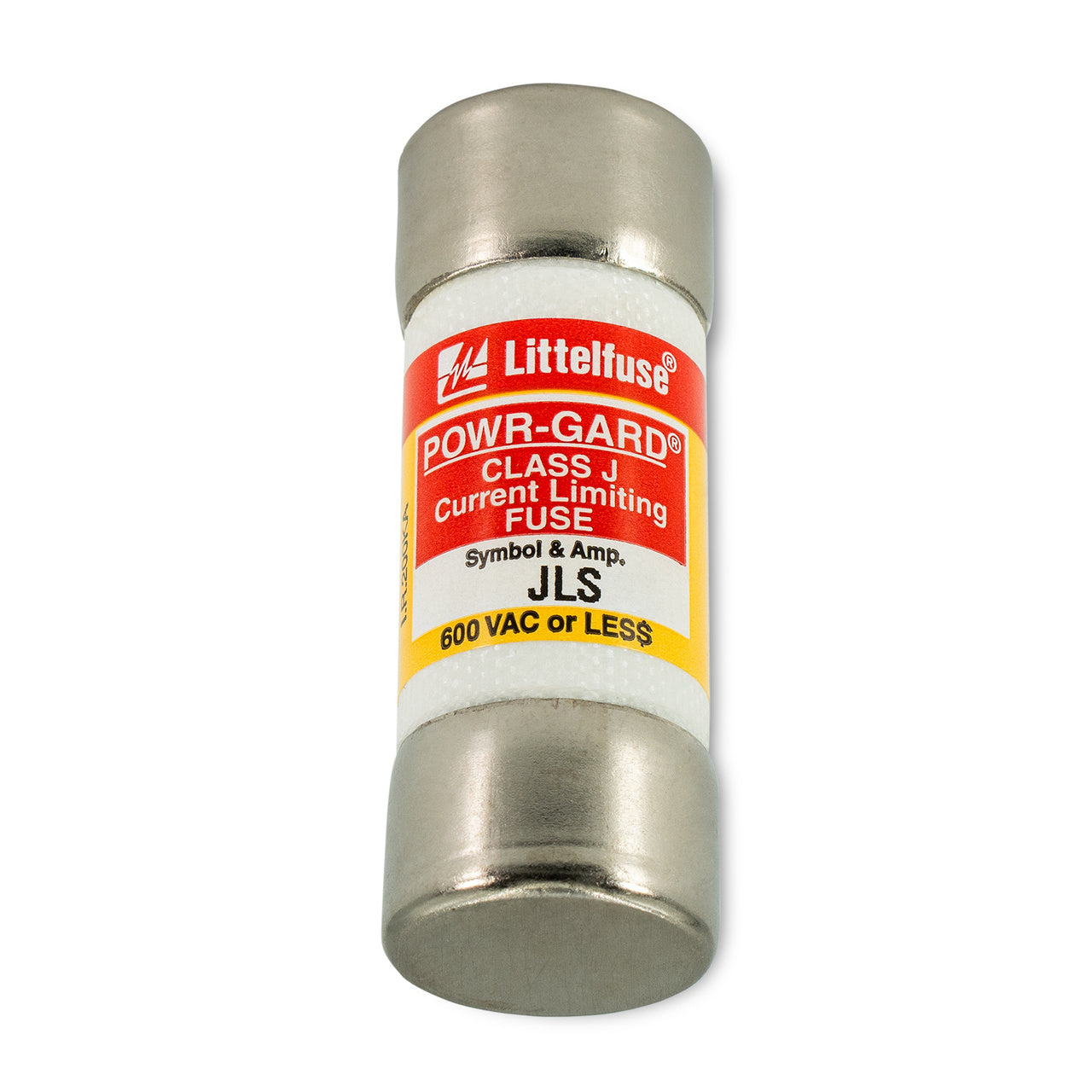

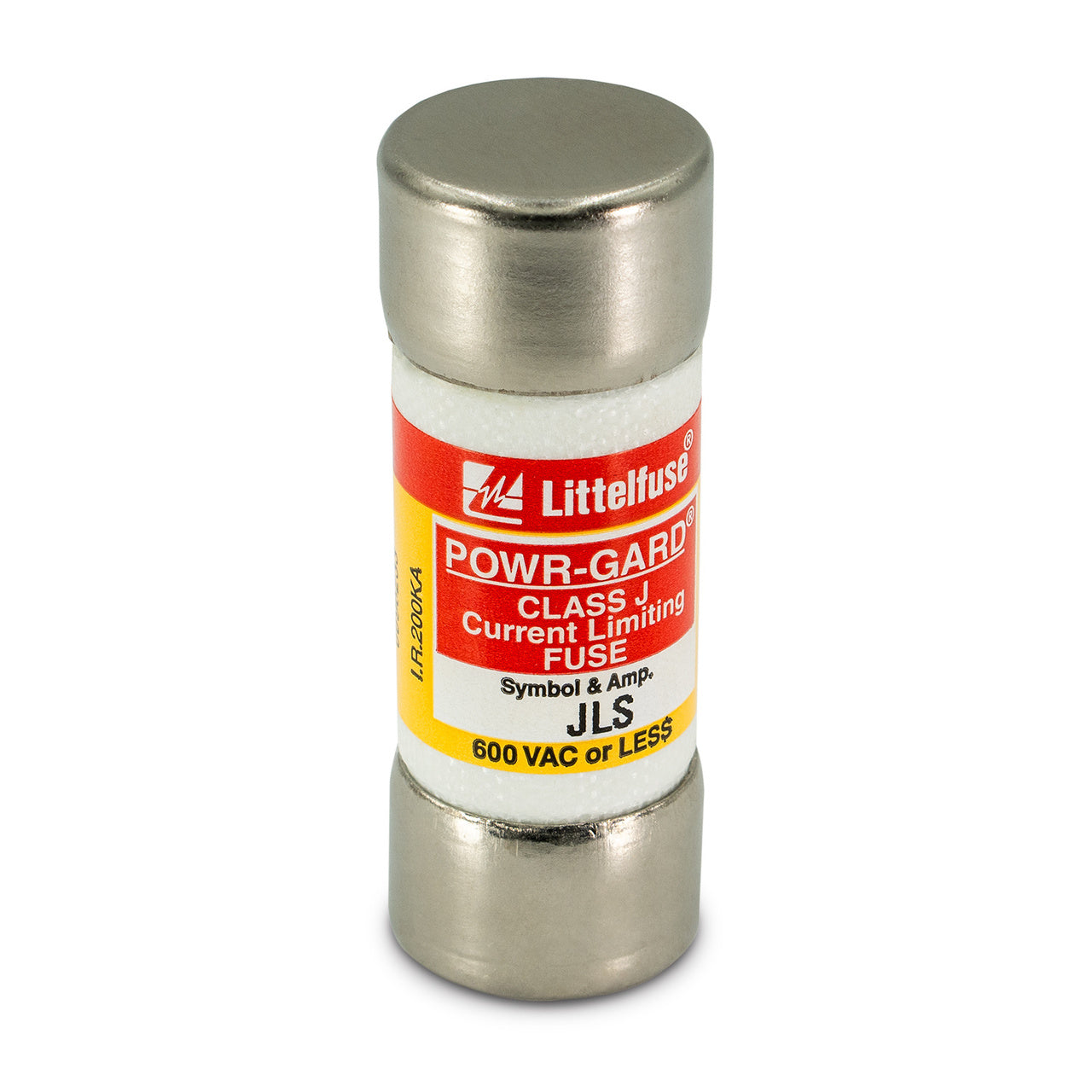

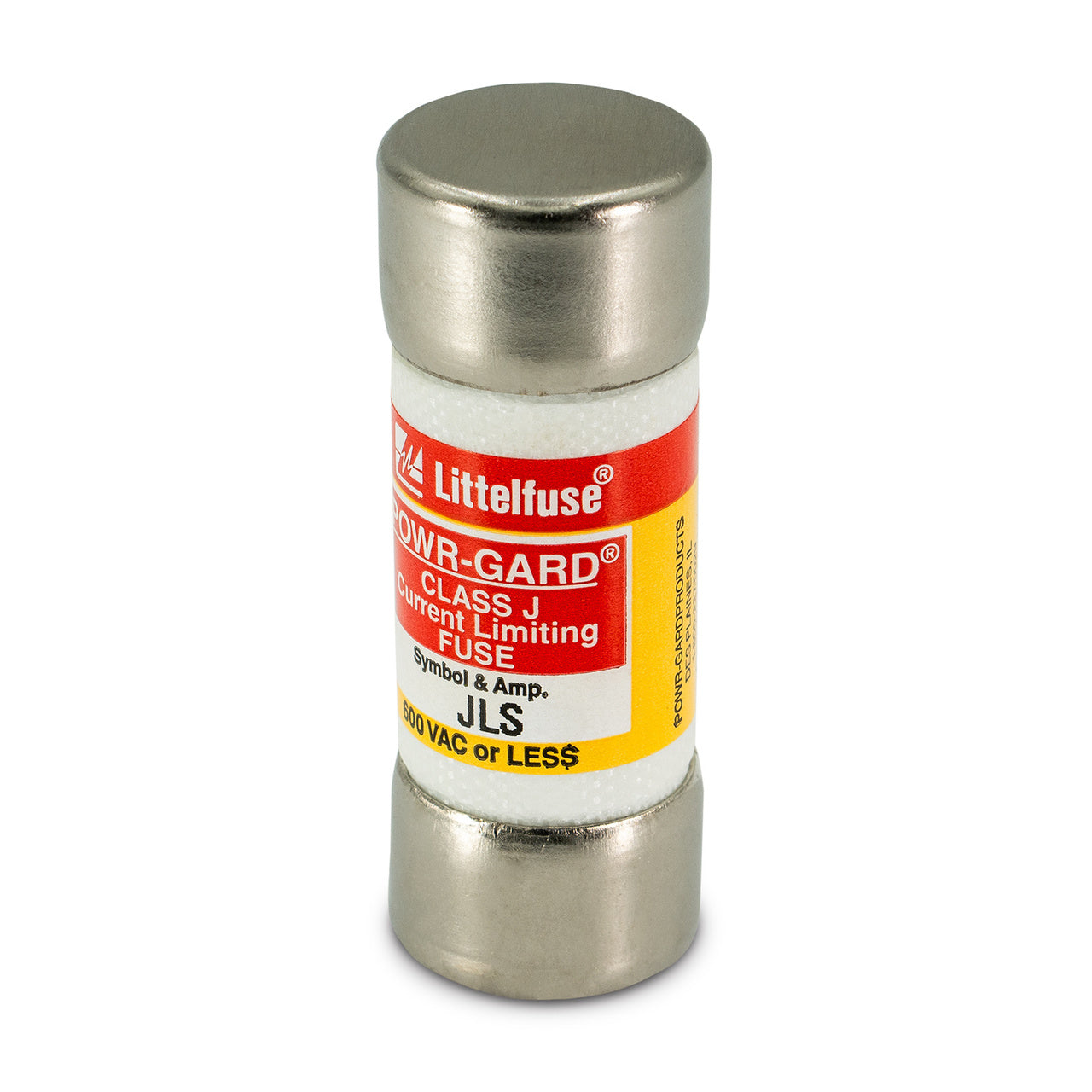

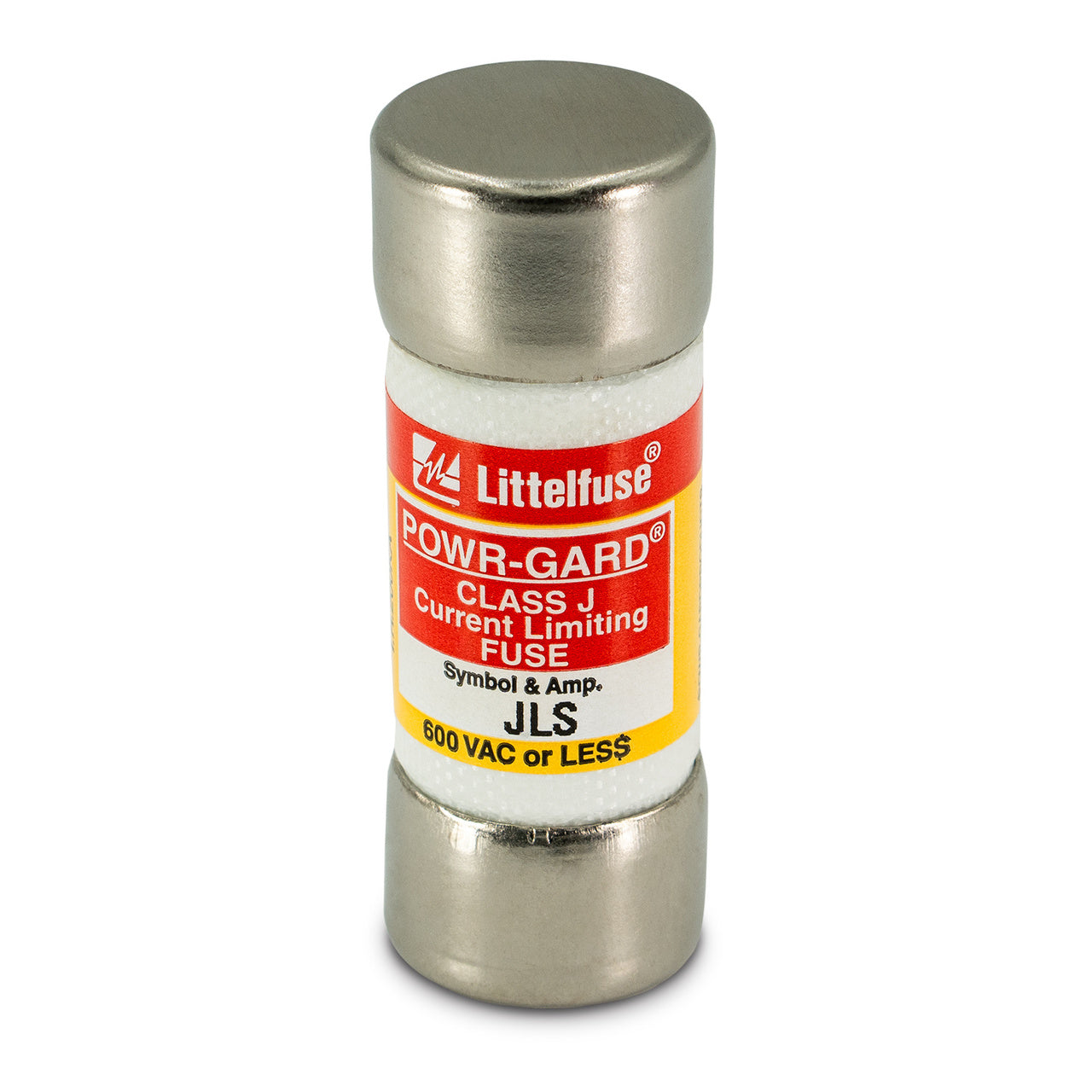

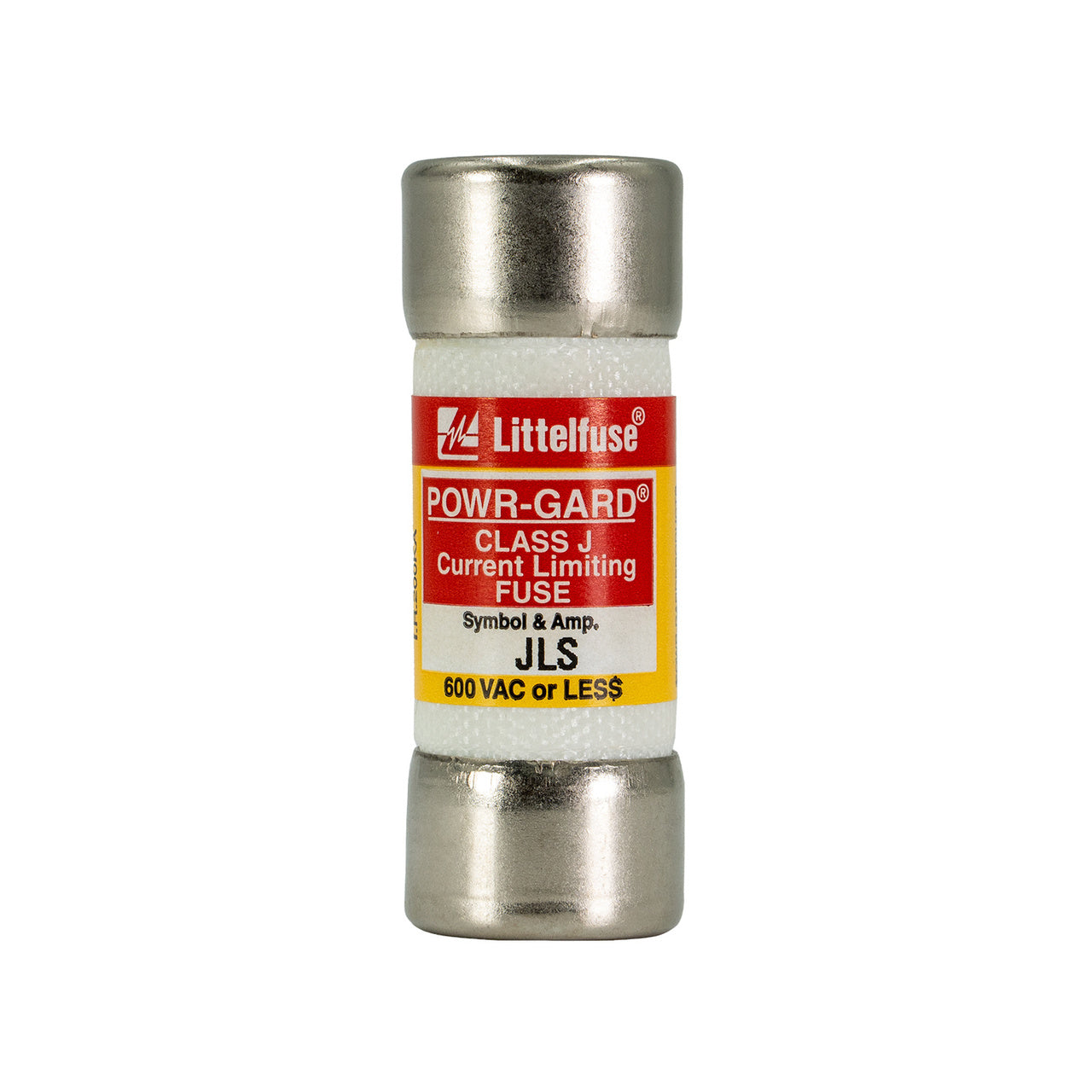

Littelfuse JLS001 - Class J Fuse 1A 600V (200kA AIC)

Littelfuse JLS001 is a UL Class J fast-acting fuse designed for overcurrent protection in industrial electrical systems. It features a 600V AC voltage rating with a 1A current rating and 200kA interrupting capacity at 600V AC for reliable circuit protection. The fuse construction includes a single-barrel design with ferrule connections and measures 0.81 inches in diameter with a weight of 5.19 lb. It complies with UL standards for Class J fuses and is typically used in motor protection, transformer circuits, and industrial control panels requiring fast-acting protection characteristics.

Key Features & Specifications

• Type: UL Class J Fast-Acting Fuse, single barrel with ferrule connections
• Voltage Rating: 600V AC
• Current Rating: 1A
• Dimensions: 0.81 inches diameter
• Standards: UL Class J
• Applications: Motor protection, transformer circuits, industrial control panels
• AIC rating: 200kA@600V AC
• Connection: Ferrule
• Barrels: 1
• Velocity: FA - Fast Action
• Class Rating: J
• Weight: 5.19 lb

Product Identification

• UPC: 07945820031
• GTIN: 00079458200317
